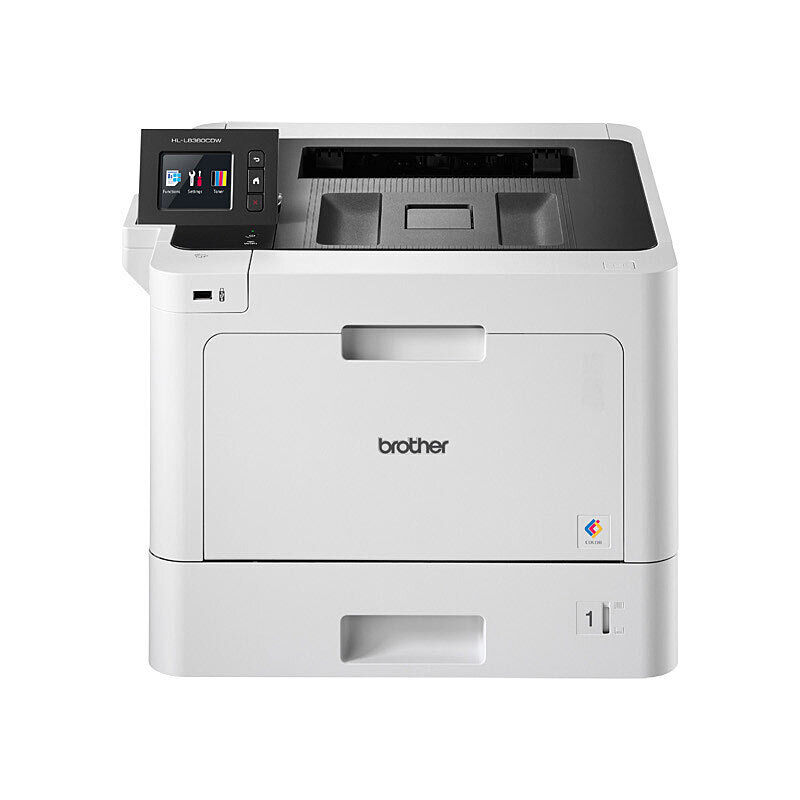

Brief Overview
The Brother HL-L8360CDW is a high-performance colour laser printer that is perfect for small businesses. Up to 31ppm Colour & Mono. USB, Network & Wireless. Automatic Double Sided Printing.
Product Description
Brother’s HL-L8360CDW Printer is designed for business, offering fast
and accurate printing to maximise productivity and keep you ahead of the
pack. With day-in-day-out high quality colour prints, the HL-L8360CDW
features prints speeds of up to 31ppm, a 6.8cm intuitive touchscreen,
USB, wired and wireless connectivity, as well
as NFC connectivity that allows you to print by touching your phone to
your printer. And, with optional paper trays and super high-yield
toners, you’ve got a printer that improves your efficiency and adds to
your professionalism.
General
FunctionsA4 Wireless Network Colour Laser Printer Engine Colour Laser (single-pass)Standard Memory512MB
Display
LCD Display6.8cm Panel Touchscreen Colour LCD LED DisplayGreen x 1 (Power)
Printer
EmulationPCL6, BR-Script3, PDF Version 1.7, XPS Version 1.0Print Speed
Up to 31 ppm Mono / Up to 31 ppm Colour CPU Speed800MHzPrinter
Resolution600 x 600dpi, 2400dpi (2400 x 600) quality Printer
Compatibility Windows 10 (32&64bit), Windows 8/8.1 (32&64bit),
Windows 7 (32&64bit), Windows Server 2008 (32&64bit), Windows
Server 2008 R2, Windows Server 2012 (32&64bit), Windows Server 2012
R2, Windows Server 2016 (All server Operating Systems are print only)
Mac OS X 10.10.5 or greater
Linux CUPS, LPD/LPRng (x86/x64 environment)
Citrix Xen App� 6.0/ 6.5 and Citrix Xen Desktop� 5.0/ 5.6Printer Driver
Functions Windows: Poster, N in 1, Header-Footer, Watermark, Duplex,
Secure Print, Toner Save Mode
Mac: N in 1, Duplex, Secure Print, Toner Save2 Sided PrintYes
(Automatic)2 Sided Print Speed Up to 14/14ipm or 7/7ppm (Mono/Colour,
based on ISO/IEC 24734)First Print Out TimeLess than 15 secs Mono/Colour
(From Ready mode and standard tray)
Less than 35 secs Mono/Colour (From Sleep mode and standard tray)Warm Up
Time Less than 29 sec from Sleep, Less than 32 sec from Power
OnResident FontsPCL:66 scalable fonts, 12 bitmap fonts, 16 bar codes
PS: 66 scalable fonts Resident BarcodesCode39, Interleaved 2 of 5,
FIM(US-PostNet), Post Net(US-PostNet), EAN-8, EAN-13, UPC-A, UPC-E,
Codabar, ISBN(EAN), ISBN(UPC-E), Code128 (set A, set B, set C), EAN128
(set A, set B, set C), Code93, GS1Databar, MSIQuiet Mode Yes
Paper Handling
Standard Paper Capacity Up to 250 Sheets Multi-Purpose Tray CapacityUp
to 50 sheets / 10 Envelopes Output Paper Capacity Up to 150 Sheets Face
Down (80gsm)
1 sheet face-up (straight paper path)Media Weights Paper Tray60 - 105
gsmMedia Weights MP Tray60 - 163 gsmMedia Weights Duplex60 - 105
gsmMedia Weights Paper Tray (Option)60 - 105 gsm Media Size Paper
TrayA4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico
LegalMedia Size MP TrayWidth 76.2 to 215.9 mm, Length 127 to 355.6
mmMedia Size DuplexA4Media Size Paper Tray (Option)A4, Letter, A5,
Executive, Legal, Folio, Mexico LegalMedia Types Paper TrayPlain Paper,
Letterhead, Coloured Paper, Thin Paper, Recycled PaperMedia Types MP
TrayPlain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper,
Thicker Paper, Recycled Paper, Bond, Label, Envelope, Envelope Thin,
Envelope Thick, Glossy PaperMedia Types Duplex Plain Paper, Letterhead,
Coloured Paper, Thin Paper, Recycled Paper, Glossy PaperMedia Types
Paper Tray (Option)Plain Paper, Letterhead, Coloured Paper, Thin Paper,
Recycled Paper Media Low or Out SensorYes for both Standard and Optional
Lower trays
Photo Capture Centre
Digital-Media Spec USB Memory Drive (Individual files no larger than 2GB)Image Format-MediaPDF version1.7, JPEG, Exif+JPEG,
PRN (created by own printer driver), TIFF (MH, scanned by Brother model), XPS Version 1.0
Software
Software Available Windows: Status Monitor, BR Admin Light�, BR Admin Professional�, Driver Deployment Wizard�
Mac: Status Monitor Software Included Windows: Printer driver, Status Monitor Cerner Certified Yes
Connectivity
Interface Hi-Speed USB 2.0, 10Base-T/100Base-TX/1000Base-T Ethernet and
IEEE 802.11 b/g/n Wireless, Wi-Fi Direct, NFCWired
Interface10Base-T/100Base-TX/1000Base-T EthernetWireless InterfaceIEEE
802.11b/g/n Wireless NFC Yes (Card Reader / iPrint&Scan / Link to
Solutions Centre / NFC Shortcut)Wi-Fi DirectYesDirect USBYes - PrintUSB
HostYes for External IC Card Reader (CH-1000) (Front)
Mobile / Web Printing
iPrint Scan Yes (Print Only)AirPrint Yes Web Connect Print from Picasa,
Flickr, Facebook, Google Drive, Evernote, Dropbox, Box, SkydriveGoogle
Cloud PrintYes (Google Cloud Print 2.0)MopriaYes
Networking
Wireless InterfaceIEEE 802.11b/g/n WirelessWireless ModeIEEE 802.11b/g/n
(Infrastructure Mode mode)Wireless SecurityWEP 64/128 bit, WPA-PSK
(TKIP/AES), WPA2-PSK (TKIP/AES)Network Protocols IPV4ARP, RARP, BOOTP,
DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS,
LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP
Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP
Client, SNMPv1/v2c/ v3, ICMP, Web Services (Print), CIFS client, SNTP
client, LDAPNetwork Protocols IPV6NDP, RA, DNS resolver, mDNS, LLMNR
responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP
Server,TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP
Client, SNMPv1/v2c/v3, ICMPv6, Web Services (Print), CIFS Client, SNTP
Client, LDAPNetwork Management Windows: BRAdmin Light, Web Base
Management, BRAdmin Professional, Network Remote Setup
Mac: Web Base Management, Network Remote Setup
Linux: Web Base Management Email Alerts E-mail Notification and E-mail Reports
Security
LDAPYesActive Directory Authentication Yes Secure Print Windows / Mac Secure Function Lock Version 3, 200 users
Options
Optional Paper Tray250 sheets (LT-330CL) x 3 or
500 sheets (LT-340CL) x 2 or
250 sheets (LT-330CL) x 1 + 500 sheets (LT-340CL) x 1
(Max. 1,000 sheets) or
Consumable

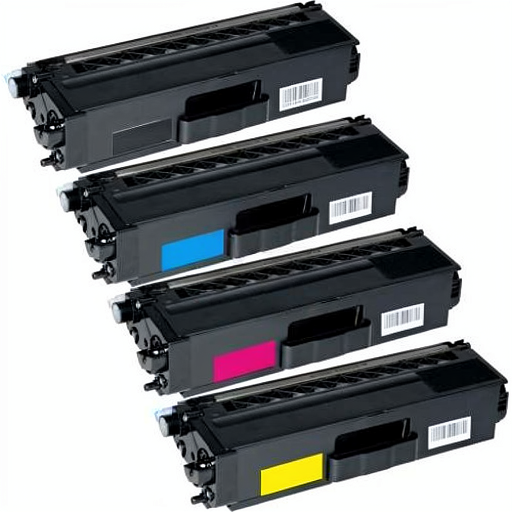

ConsumablesBlack Toner (TN-441BK) Up to 3,000 pages*

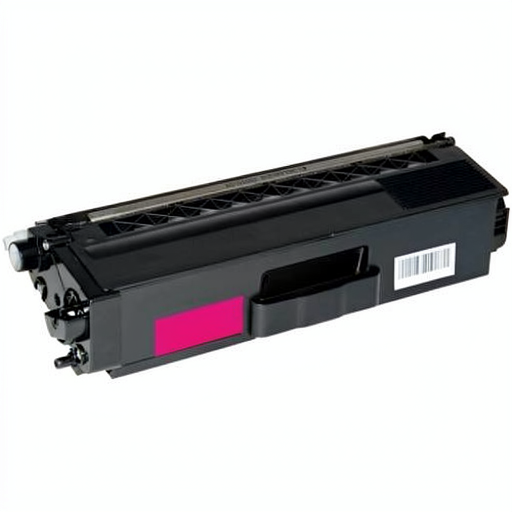

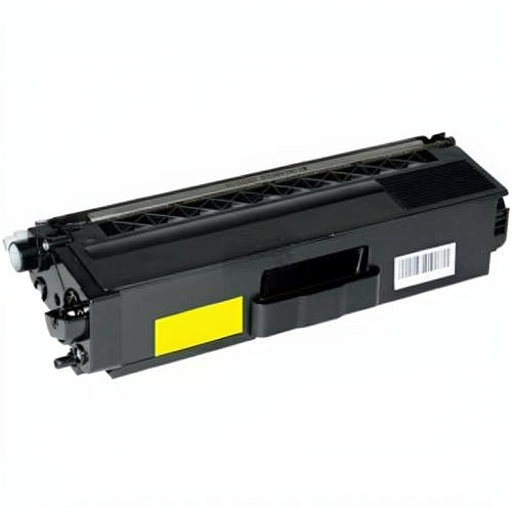

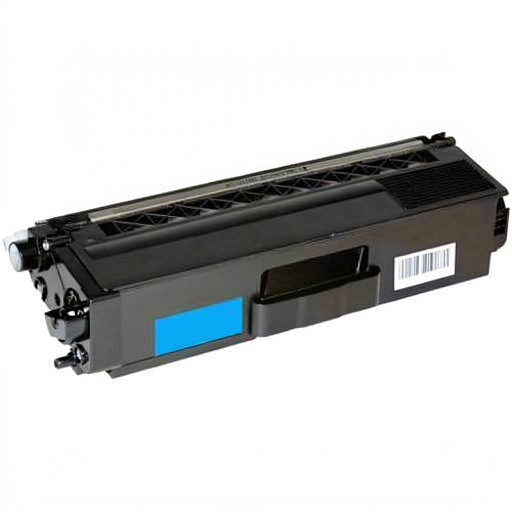

Colour Toner (TN-441C/TN-441M/TN-441Y) Up to 1,800 pages*
Black Toner High Yield (TN-443BK) Up to 4,500 pages*
Colour Toner High Yield (TN-443C/TN-443M/TN-443Y) Up to 4,000 pages*
Black Toner Super High Yield (TN-446BK) Up to 6,500 pages*
Colour Toner Super High Yield (TN-446C/TN-446M/TN-446Y) Up to 6,500 pages*
Belt Unit: Up to 130,000 pages (3-page per job), Up to 50,000 pages (1-page per job)(BU-330CL).
Waste Toner Box: Up to 50,000 pages (WT-320CL).
Drum Unit: Up to 30,000 pages (1-page per job),Up to 50,000 pages (3-page per job) (DR-441CL)
*In accordance with ISO/IEC 19798Inbox ConsumablesBlack Toner (TN-441BK) Up to 3,000 pages*
Colour Toner (TN-441C/TN-441M/TN-441Y) Up to 1,800 pages*
Belt Unit: Up to 130,000 pages (3-page per job), Up to 50,000 pages (1-page per job)(BU-330CL).
Waste Toner Box: Up to 50,000 pages (WT-320CL).
Drum Unit: Up to 30,000 pages (1-page per job),Up to 50,000 pages (3-page per job) (DR-441CL)
*In accordance with ISO/IEC 19798
Weight and Measures
Size441(W) x 486(D) x 313(H)mmWeight16.6 Kg without consumables
Environment
Energy Star Compliant Yes Power Consumption Peak: Average 580W, Ready:
Average 70W, Sleep: 10W, Deep Sleep: 1.5W, Power Off: 0.03WEcologyPower
Saving, Toner SavingNoise Level Sound Pressure Level: (Printing) Less
than 49 dBA, (Ready) InAudible
Sound Power Level: (Printing) Less than 6.56 B, (Ready) InAudibleSleep ModeYes (0-50 min)TEC Value1.8kWh/Week
Others
Warranty 12 Months Return To Base Recommended Monthly Print Volume1,000 to 4,000 pages
Carton Contents HL-L8360CDW, Quick Setup Guide, User's Guide, CD-ROM
(Windows), Power Cord, Black Toner (TN-441BK) Up to 3,000 pages*
Colour Toner (TN-441C/TN-441M/TN-441Y) Up to 1,800 pages*
Belt Unit: Up to 130,000 pages (3-page per job), Up to 50,000 pages (1-page per job)(BU-330CL).
Waste Toner Box: Up to 50,000 pages (WT-320CL).
Drum Unit: Up to 30,000 pages (1-page per job),Up to 50,000 pages (3-page per job) (DR-441CL)
*In accordance with ISO/IEC 19798
What's in the box?
HL-L8360CDW, Quick Setup Guide, User's Guide, CD-ROM (Windows), Power Cord, Black Toner (TN-441BK) Up to 3,000 pages*
Colour Toner (TN-441C/TN-441M/TN-441Y) Up to 1,800 pages* Belt Unit: Up to 130,000 pages (3-page per job), Up to 50,000 pages (1-page per job)(BU-330CL). Waste Toner Box: Up to 50,000 pages (WT-320CL). Drum Unit: Up to 30,000 pages (1-page per job),Up to 50,000 pages (3-page per job) (DR-441CL)
Product Specifications
Up to 31ppm Colour & Mono
Up to Resolution 600 x 600 dpi
250 Sheet Input Tray
512MB RAM Memory
Automatic Double Sided Printing
USB, Network & Wireless
One Year Return to Base Warranty
Brochure for Brother HL-L8360CDW, A4, Colour Laser Printer
