Brief Overview
WIRELESS (WiFi & BT) /NETWORKABLE HIGH SPEED LABEL PRINTER / UP TO 62MM WITH BLACK/RED PRINTING (*DK-22251 required)
Product Description

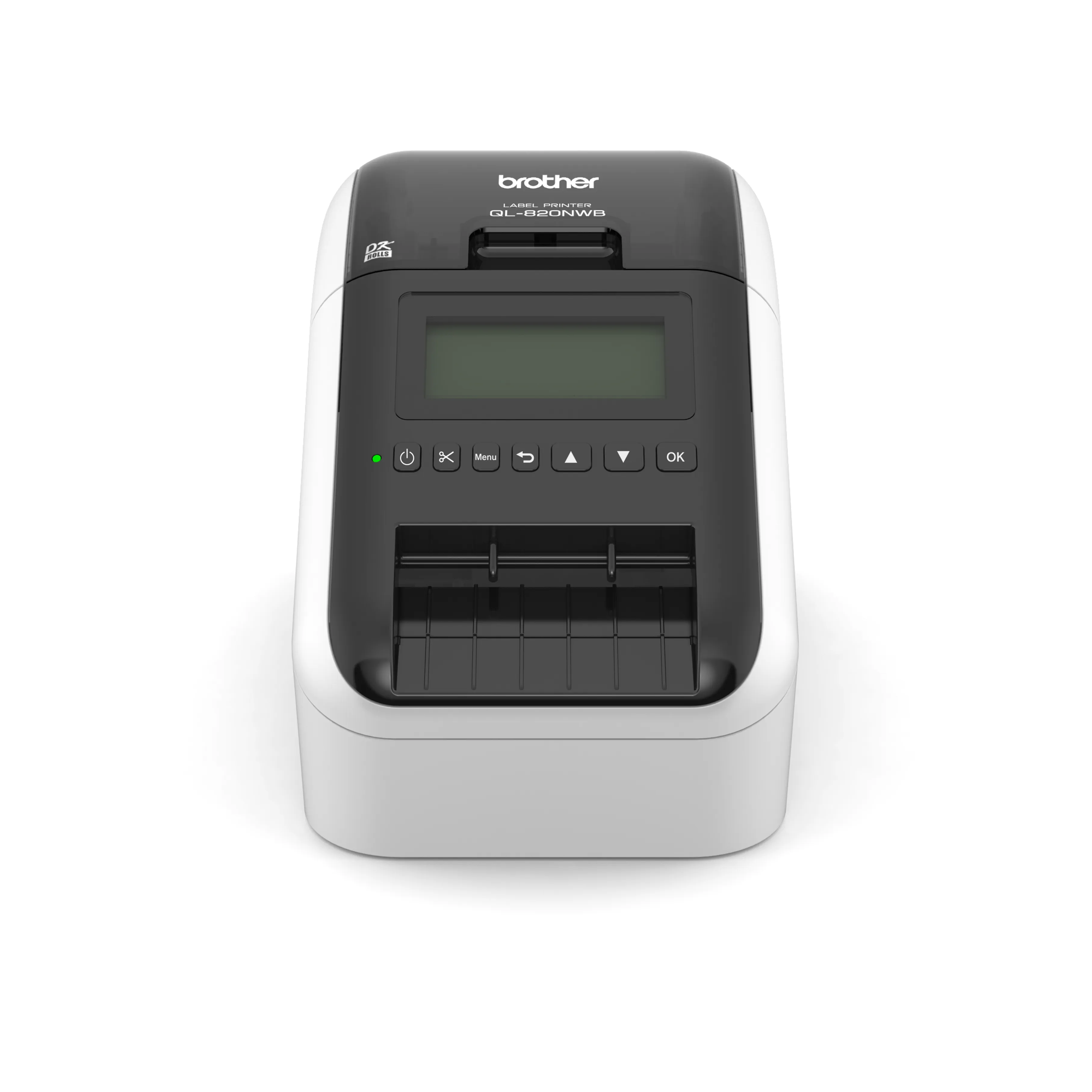

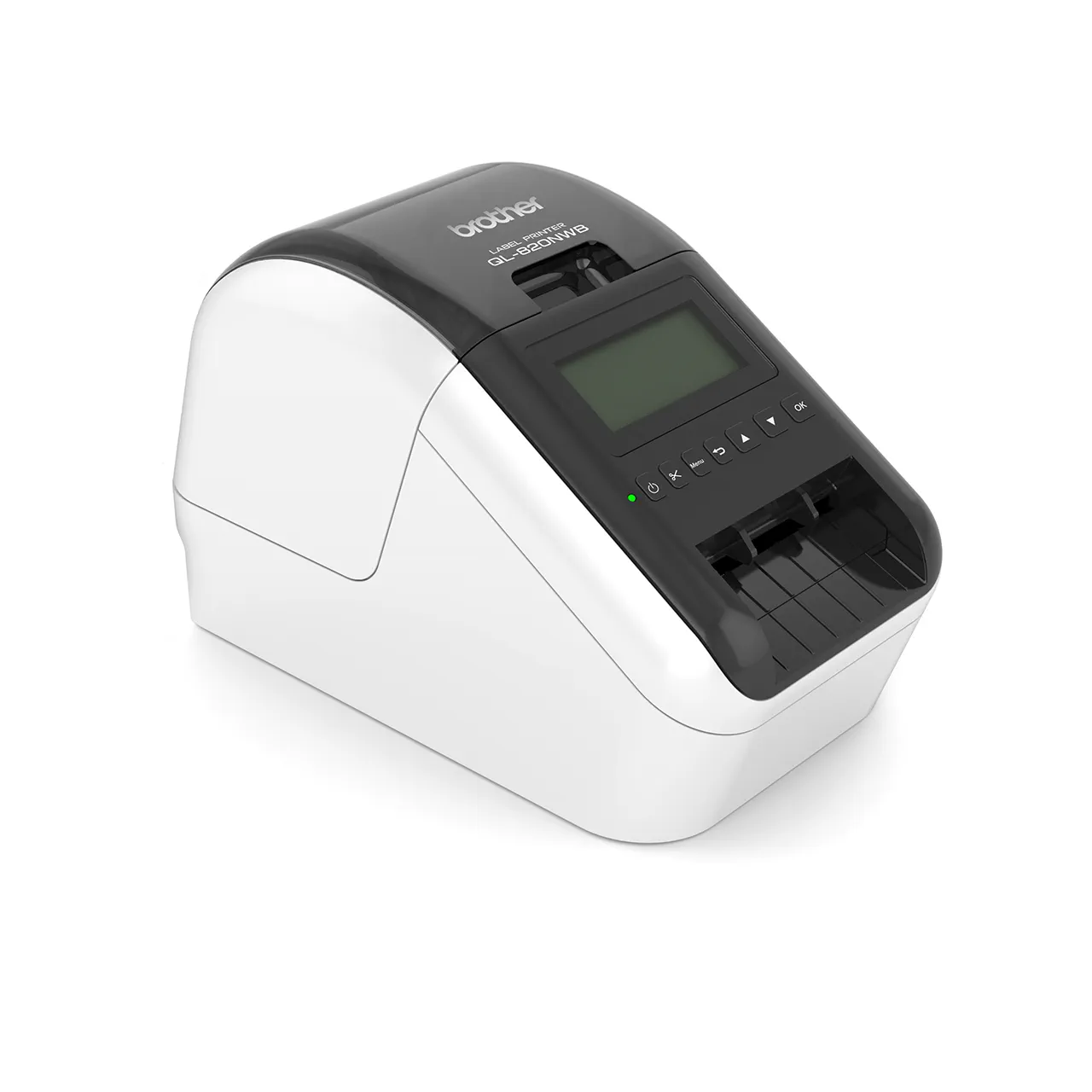

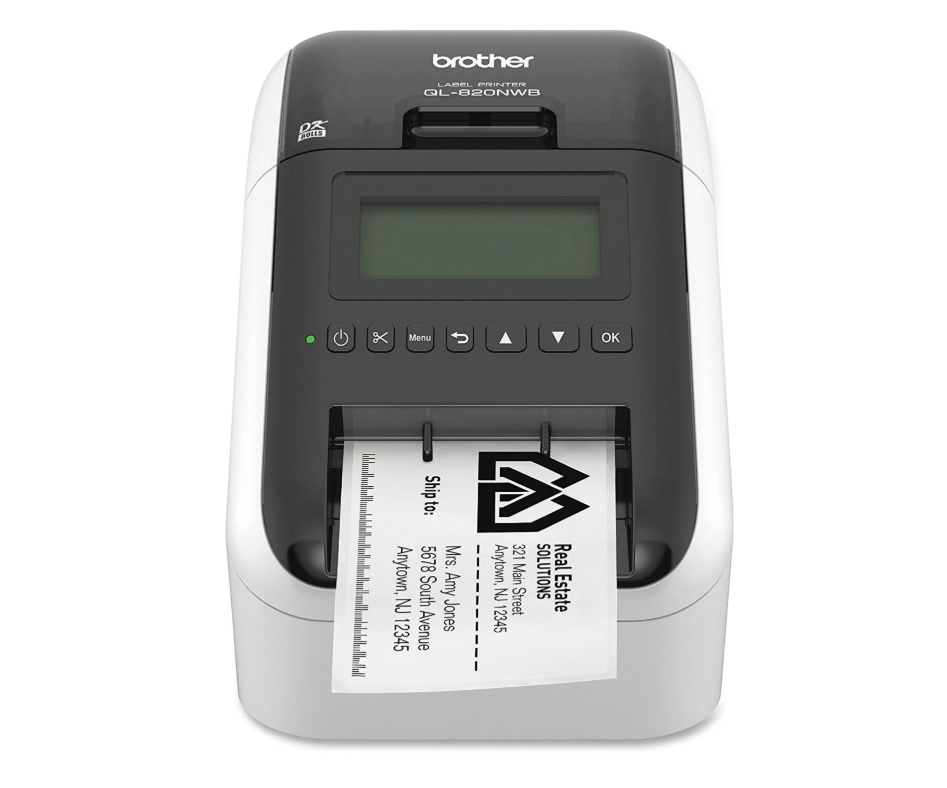

Introducing the QL-820NWB; Brother’s fastest label printer of up to 110
labels/min. Equipped with a large graphic LCD display making it easier
to operate and design personal labels, the Brother QL-820NWB can also
work without being connected to a PC. Providing unprecedented
flexibility and creative possibilities for users, this device prints in
both black and red text, enabling a variety of use applications
including warnings, highlighting important messages or emphasising
offers on signs. Offering Bluetooth and wired network connectivity in
addition to Wi-Fi, AirPrint and USB connection, and an optional Li-ion
battery supporting mobile use, the QL-820NWB is the professional tool
you’ve been looking for.
General
Functions Wired/Wireless network ready with Bluetooth labeller that
prints 62mm labels with auto cutter Hardware TypeDesktop EngineDirect
thermal Standard Memory6Mb / 255 templates
Display
Display TypeLCD Display 62mm x 26mm with Preview and Back light, LED - Power
Control Panel
Buttons7 (Power, Cut, Menu, Return, Up, Down, OK)
Printer
Emulation1.Raster
2.ESC/P
3.PTouch template Print Speed Max. 176 mm / sec. Printer Resolution300
dpi / 720 dots Distributed PrintingYes (Windows Only via USB or
Ethernet)
Labeller
Characters and Symbols PC Select Frames and Backgrounds PC Select
Barcodes Yes Bar Code Names Software side: CODE39, CODE128,
UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13,
EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode,
POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14
Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked),
PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data
Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4,
Model5), IMB**
Machine side: CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5),
CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 Data Bar(RSS)(GS1
DataBar Omni directional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1
Data Bar Stacked Omni directional,GS1 DataBar Limited,GS1 DataBar
Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate,
Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square,
ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION Multi
Line PrintPC Select Tape Length Setting12.7mm - 1000mm Max Print
Height58.93 mm Max Print Length Up to 1000mm long (Windows) Fonts
LabellerBuilt-in Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold,
San Diego, Brougham
Built-in Outline fonts: Helsinki, Brussels, Letter Gothic
All True Type Fonts installed in your computer Time and Date FeatureBuilt-in or Via Computer
Software
Software Included Win: P-touch Editor , Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1
Mac: P-touch Editor Template Transfer to Machine Yes (255 Templates or 6MB)
Connectivity
Interface USB(Full Speed), RS-232C, 10/100 BASE-TX Wired Ethernet, IEEE
802.11b/g/n Wireless LAN, Bluetooth, USB Host Wired Interface10/100
BASE-TX Wired Ethernet Wireless Interface Yes Operating System Windows
10, Windows 8/8.1, Windows 7, Vista, Server 2008, Server 2008R2, Server
2012, Server 2012R2
Mac: OSX 10.9 or greater
Linux deb, rpm (Only driver)
Android / IOS
Mobile / Web Printing
Mobile Operating System Iprint&Label (Android/IOS), AirPrint iPrint Label Android/IOS
Networking
Wireless Interface Yes Wireless ModeIEEE 802.11b/g/n, (Infrastructure
Mode), IEEE 802.11b (Adhoc Mode) Wireless SecuritySSID (32 chr), WEP
64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), LEAP, EAP-FAST
Power Supply
AC Adaptor External S/W Power Supply (PA-AD-001A) Battery Life
Mono:4,300 labels / 2 colour:1,400 labels Battery RechargeLess than 2
hours and 30 minutes
Options
Optional Power Rechargeable Lithium-Ion Battery Pack (PA-BU-001)

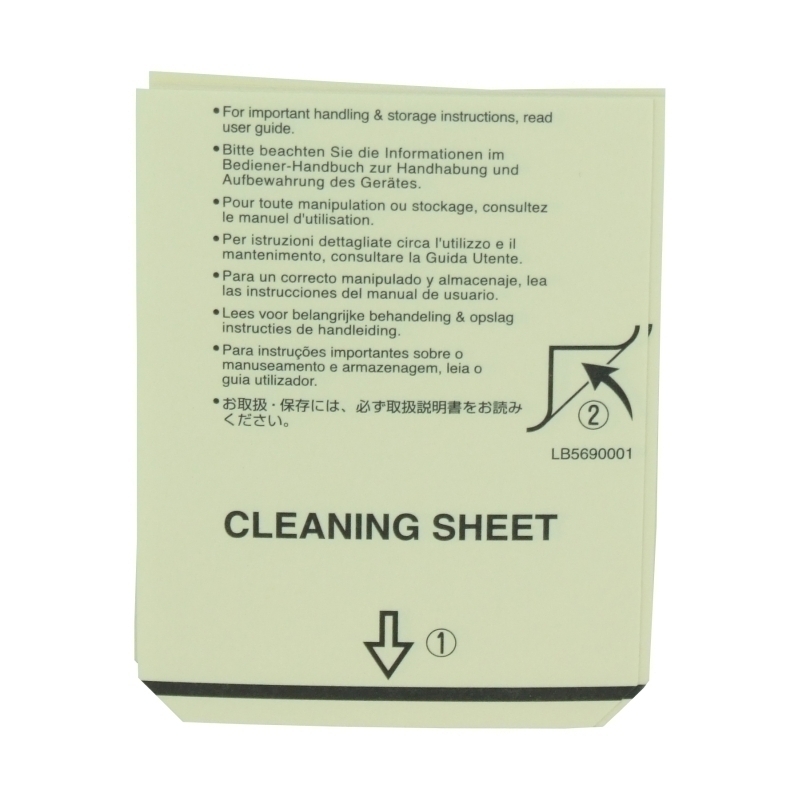

Optional Other Cleaning Sheet (10 sheets) Batteries Optional
Rechargeable Lithium-Ion Battery Pack (PA-BU-001)
Consumable
Roll Width62mm Roll Type DK Rolls (DK Die-cut Labels / DK Continuous
Length Tape / DK Two Colour Rolls) Roll SizeSee Roll Type Roll Cutter
Durable Auto cutter (User unreplaceable)
Weight and Measures
Size 125x234x145 (WxDxH) mm Weight1.13kg (without DK roll)
Environment
Energy Star Compliant Yes Auto Power Off Yes
Others
Warranty 3 Years Return To Base Carton ContentsQL-820NWB, CD-ROM
(Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK
Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100
labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter
roll, 5m), Power Cord and Adaptor
What's in the box?
QL-820NWB, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick
Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label
(Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length
Paper Tape (Starter roll, 5m), Power Cord and Adaptor
Product Specifications
Up to Print Speed Max. 176mm/Sec.
Up to Resolution 300 dpi / 720dots
6 MB Standard Memory
7 Control Panel Buttons
Up to 1000mm Max. Print Length
USB & Wireless Interface
3 Years Return to Base Warranty
Brochure for Brother QL-820NWB Professional Label Printer
