Brief Overview

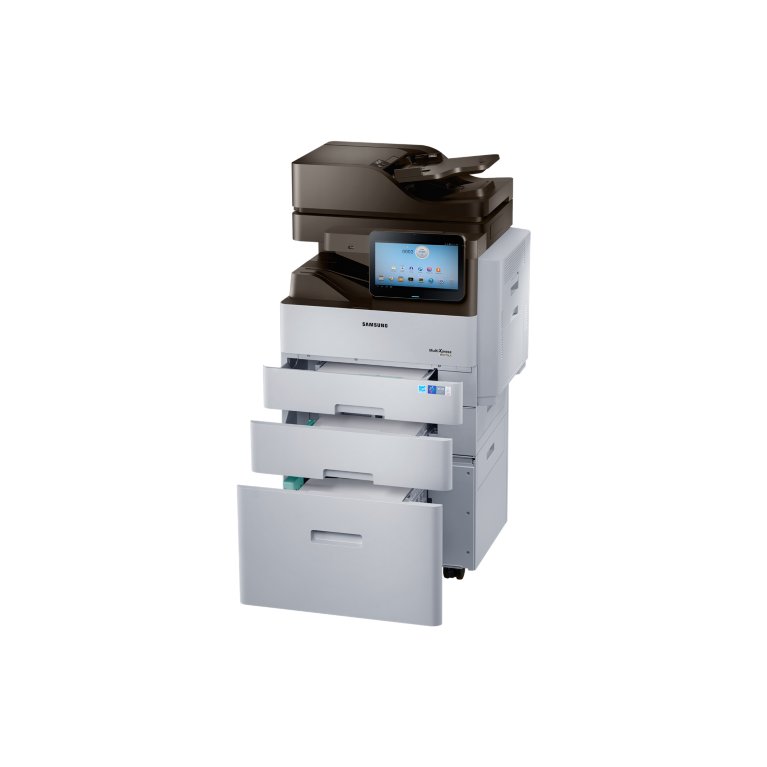

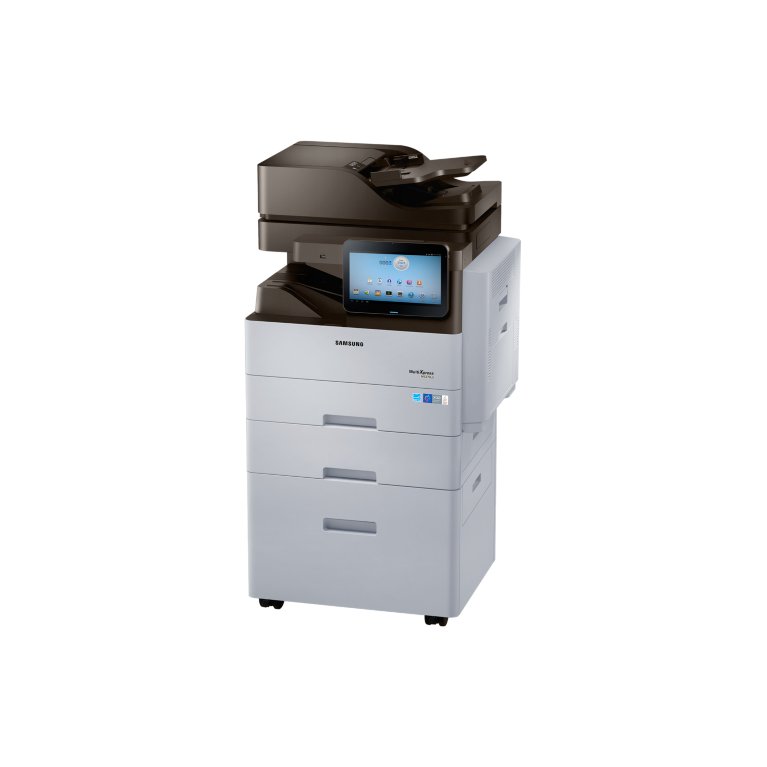

Samsung - SL5370LX - Multi-Function Mono Laser Printer - 53ppm - 3-in-1 Print/Scan/Copy - Duplex - USB 2.0 Gigabit Ethernet, No FAX on this model.
Product Description
General
Standard Functions
Print / Copy / Scan / Fax (optional)
Value Added Functions
10.1" Color Touch-Screen LCD / Dual Scan Document Feeder
Processor
1 GHz (Dual Core)
Operational Panel
10.1" Color Touch-Screen LCD (960 x 600)
Memory (Standard)
4 GB ( 2GB for Android OS * User Available Space for Android OS: 1GB)
Memory (Maximum)
4 GB ( 2GB for Android OS * User Available Space for Android OS: 1GB)
Hard Disk Drive
320 GB * User Available Space: 279 GB
Interface (Standard)
Hi-Speed USB 2.0 Host / Device, Ethernet 10/100/1000 Base TX
Interface (Optional)
IEEE 802.11b/g/n + NFC Active Type
Power Requirements
Input Voltage (Europe): AC 220 - 240 V (-10 % -6 %) / 4.5 A, Input
Voltage (USA): AC 110 - 127 V (-10 % -6 %) / 9 A, Input Voltage (Korea):
AC 220 - 240 V (-10 % -6 %) / 4.5 A, Rated Frequency: 50 / 60 Hz
Power Consumption
Ready: Less than 30 W / Normal operation: Less than 900 W / Max/Peak:
Less than 1,000 W / Sleep: Less than 1.5 W / Power Off: Less than 0.5 W /
TEC: Less than 3.9 kWh
Noise Level
Printing (Simplex / Duplex): Less than 56 dBA / Copying: Less than 58
dBA / Standby: Less than 37 dBA / Sleep: Background Noise Level
Dimension (WxDxH)
630 x 506 x 636 mm (24.8" x 19.9" x 25.0")
Max Dimension (WxDxH)
1065 x 506 x 1168 mm (41.9" x 19.9" x 46")* SCF x 3 + 2-bin Finisher installed
Weight
49 kg
Max. Monthly Duty Cycle
300000Pages
Recommended Monthly Print Volume
15,000Pages
Network Security
Authentication (Local): Yes, Authentication (Network): Yes (Kerberos /
SMB / LDAP), IP Address Filtering: Yes (IPv4 Filtering / IPv6 Filtering /
MAC Filtering), HDD Overwrite (Standard): Yes (Manual Image Ovewrite
only), HDD Overwrite (Max. Overwrites): 9, Secure Print: Yes, Encrypted
Secure Print: Yes, Encrypted PDF Mode (Encrypted Scanning): Yes, IP Sec:
Yes
Certification
New Blue Angel / Energy Star 2.0 / EPEAT Silver
Print
Speed (Mono)
Up to 53 ppm @ A4 (Up to 55 ppm @ Letter)
First Print Out Time (Mono)
Less than 7.5 sec
Resolution
Up to 1200 x 1200 dpi Effective Output (1200 x 600 x 2 bit)
Print Languages
PCL5C / PCL6 / PS3 / PDF V1.7
Duplex Print
Bulit-in
Client OS Support
Windows: XP (32 / 64 bit) / 2003 Server (32 / 64 bit) / Vista (32 / 64
bit) / 2008 server (32 / 64 bit) / 7 (32 / 64 bit) / 2008 Server R2 /
Win8 (32 / 64 bit) /2012 (64 bit), Linux: Red Hat Enterprise Linux (5 /
6) / Fedora (11 / 12 / 13 / 14 / 15 / 16 / 17 / 18 / 19) / openSUSE
(11.0 / 11.1 / 11.2 / 11.3 / 11.4 / 12.1 / 12.2 / 12.3) / Ubuntu (10.04 /
10.10 / 11.04 / 11.10 / 12.04 / 12.10 / 13.04) / SUSE Linux Enterprise
Desktop (10 / 11) / Debian (5.0 / 6.0 / 7.0 / 7.1) / Mint (13 / 14 /
15), UNIX: Sun Solaris (9 / 10 / 11, x86 / SPARC) / HP-UNIX (11.0 / 11i
v1 / 11i v2 / 11i v3, PA-RISC / Itanium), IBM AIX (5.1 / 5.2 / 5.3 / 5.4
/ 6.1 / 7.1, PowerPC), Mac OS: X 10.5 - 10.9
Network Protocols
TCP/IPv4 / HTTP / HTTPS / SNMP (v1.2/v3) / LDAP / LDAPS / SMTP / SSL/TLS
/ IPSec / DNS / WINS / SLP / Bonjour / SSDP /DDNS / DHCP/BOOTP / IPv6 /
NetBIOS over TCP/IP
Direct Print Support
PDF
Print Features
Proof Print / ECO Print / Auto Continue / Skip Blank Pages / AirPrint / Google Cloud Print
Copy
Speed (Mono)
Up to 53 cpm @ A4 (Up to 55 cpm @ Letter)
First Copy Out Time (Mono)
Less than 4.5 sec @ Platen / Less than 8 sec @ ADF
Resolution
Scan: 600 x 600 dpi (Optical) / Printing: Up to 1200 x 1200 dpi Effective Output (1200 x 600 x 2 bit)
Reduce / Enlarge Range
ADF: 25 - 200 % / Platen: 25 - 400 %
Multi Copy
9,999Pages
Duplex Copy
Built-in
Copy Features
Erase Edge / Margin Shift (Auto Center / Custom Margin) / Book Center
Erase / Form Copy / Watermark Copy / Page Numbering / Time & Date
Stamp / ID Stamp / Job Program / Erase Background (Auto / Erase 7 Levels
/ Enhance 3 Levels) / Sharpness (11 Levels) / Negative Image (On/Off) /
Erase Backside Image / Job Build / Mirror
Scan
Scan Speed (Mono)
Simplex: Up to 53 ipm (@ 300 dpi) / Duplex: Up to 80 ipm (@ 300 dpi)
Scan Speed (Color)
Simplex: Up to 53 ipm (@ 300 dpi) / Duplex: Up to 80 ipm (@ 300 dpi)
Compatibility
TWAIN(Only for USB)
Method
White-LED Scan Lamp Type of CCD
Resolution (Optical)
Up to 600 x 600 dpi
Resolution (Enhanced)
Up to 4800 x 4800 dpi
Scan Destinations
Email / FTP / SMB / HDD / USB / Client
Scan Document Weight
SMTP / MIME(Base 64) / SMB / FTP / WebDAV
FAX (OPTIONAL)
Compatibility
ITU-T G3 / Super G3
Modem Speed
33.6kbps
Resolution
300 x 300 dpi (Mono, S.Fine)
Memory
HDD Stored
Auto Dial
Yes
Fax Feature
Transmission Reservation / ECM / Caller ID / On Hook Dial / Broadcasting
/ Forward / Delay Transmission / Erase Backside image / Cover Page /
Job Build / Quick Start Fax / Multi Access / Preview
Paper Handling
Input Capacity (Cassette)
520-Sheet Cassette Tray
Input Capacity (Multipurpose Tray)
100-Sheet MP Tray
Input Capacity (Other Options)
520-Sheet SCF x 3 / 2,100-Sheet HCF + 520-Sheet SCF
Input Capacity (Maximum)
3,240-Sheet Cassette Tray (520 Std + 100 MP + 520 SCF + 2,100 HCF)
Media Type (Cassette)
Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled /
Envelope / Label / CardStock / Letterhead / Thick / Colored / Archive /
Cotton
Media Type (Multipurpose Tray)
Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled /
Envelope / Label / Cotton / CardStock / Letterhead / Thick / Colored /
Archive
Media Type (Other Options)
SCF: Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled /
Envelope / Label / Cotton / CardStock / Letterhead / Thick / Colored /
Archive, HCF: Plain Paper / Thin Paper / Bond / Punched / Pre-Printed /
Recycled / Cotton / CardStock / Letterhead / Thick / Colored / Archive
Media Size (Cassette)
Letter / Legal / Oficio / Folio / A4 / JIS B5 / ISO B5 / Executive / A5 /
Statement / A6 / PostCard 4x6 / Envelope B5 / Envelope Monarch /
Envelope COM-10 / Envelope DL / Envelope C5 / Envelope C6 / Custom [Min:
98 x 148 mm (3.85" x 5.83") / Max: 216 x 356 mm (8.5" x 14")]
Media Size (Multipurpose Tray)
Min: 98 x 148 mm (3.85" x 5.83") / Max: 216 x 356 mm (8.5" x 14")
Media Size (Other Options)
SCF: Letter / Legal / Oficio / Folio / A4 / JIS B5 / ISO B5 / Executive /
A5 / Statement / Envelope Monarch / Envelope COM-10 / Envelope DL /
Envelope C5 / Envelope C6 / Custom [Min: 98 x 152 mm (3.85" x 6") / Max:
216 x 356 mm (8.5" x 14")], HCF: A5 / Statement / JIS B5 / Executive /
Letter / A4 / Folio / Oficio / Legal
Media Weights (Cassette)
Supported Weight: 60 - 163 g/m2 (16 - 43 lb), Duplex Supported Weight:
60 - 90 g/m2 (16 - 24 lb) / Plain Paper: 70 - 90 g/m2 (18 - 24 lb) /
Thin Paper: 60 - 69 g/m2 (16 - 18 lb) / Bond: 105 - 120 g/m2 (28 - 32
lb) / Punched: 75 - 90 g/m2 (20 - 24 lb) / Pre-Printed: 75 - 90 g/m2 (20
- 24 lb) / Recycled: 60 - 90 g/m2 (16 - 24 lb) / Envelope: 75 - 90 g/m2
(20 - 24 lb) / Label: 120 - 150 g/m2 (32 - 40 lb) / CardStock: 106 -
163 g/m2 (28 - 43 lb) / Letterhead: 75 - 90 g/m2 (20 - 24 lb) / Thick
Paper: 91 - 105 g/m2 (24 - 28 lb) / Colored: 75 - 90 g/m2 (20 - 24 lb) /
Cotton Paper: 75 - 90 g/m2 (20 - 24 lb)
Media Weights (Multipurpose Tray)
60 - 163 g/m2 (16 - 43 lb)
Media Weights (Other Options)
Plain Paper: 70 - 90 g/m2 (18 - 24 lb) / Duplex (Plain / Thin Paper): 60
- 90 g/m2 (16 - 24 lb) / Thick Paper: 91 - 105 g/m2 (24 - 28 lb) / Thin
Paper: 60 - 69 g/m2 (16 - 18 lb) / Bond: 105 - 120 g/m2 (28 - 32 lb) /
Punched: 75 - 90 g/m2 (20 - 24 lb) / Pre-Printed : 75 - 90 g/m2 (20 - 24
lb) / Recycled : 60 - 90 g/m2 (16 - 24 lb) / Envelope : 75 - 90 g/m2
(20 - 24 lb)
ADF Type
DSDF
ADF Document Capacity
100Sheets
Output Capacity
500 sheets @ 75 g/m2 (20 lb)
Supplies
Toner (Black)
Approx. 30,000 Pages * Declared Yield Vaue in Accordance With ISO/IEC 19752 (Average Continuous Cartridge Yield)
Imaging Unit/Drum (Black)
Approx. 100,000 Pages
Waste Toner Container
N/A
Developer Unit
N/A
Transfer Belt
125,000 Pages
Etc
Option
Option
500-Sheet Second Cassette Feeder / 2,100-Sheet High Capacity Feeder /
Short Stand / Cabinet Stand / 1-bin Finisher / 2-bin Finisher / 4-bin
Mailbox / Workging Table / Foreign Device Interface / Fax kit / Wireless
LAN
Solution
Device Management
SyncThru Admin 6.0
Output Management
CounThru Enterprise / CounThru Pro
Document Management and Distribution
SmarThruWorkFlow Lite 1.0
Security
SecuThru Lite 1.0 / 2.0
Mobility
SCP 1.0
What's in the box?
Product Specifications
Up to 55ppm in Mono
Up to Resolution 1200 x 1200 dpi
520 Sheet Input Tray
1GHz Processor
300K Pages Monthly Duty Cycle
USB 2.0 & Ethernet (10/100/1000)
One Year Warranty
No FAX
Brochure for SAMSUNG MULTIXPRESS SL-5370LX A4 MONO MFP PRINTER / COPY SCAN FAX / 53PPM / 1x100 SHEET TRAY 1x520 SHEET CASSETTE / USB / NIC / DUPLEX
