Brief Overview

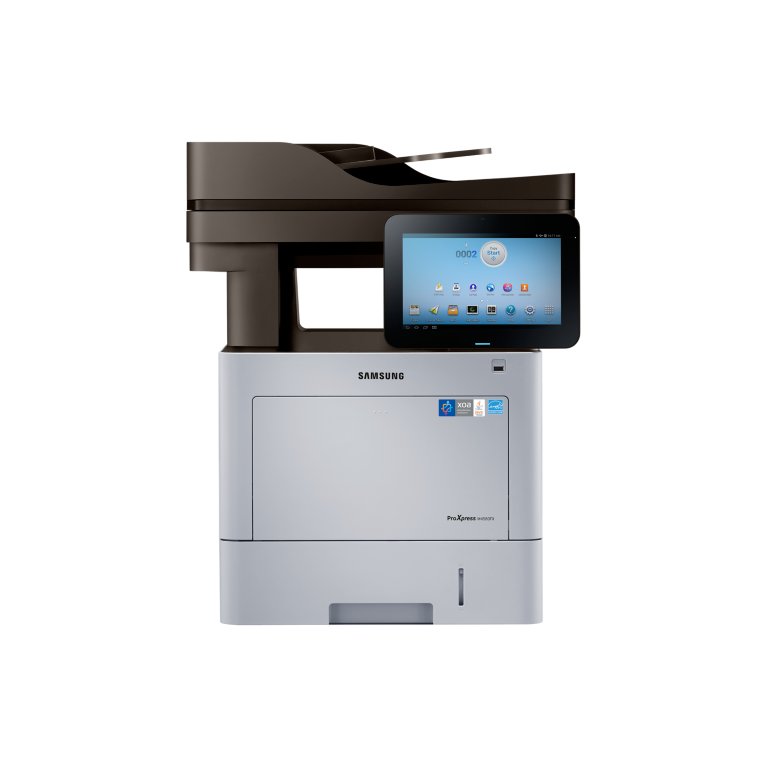

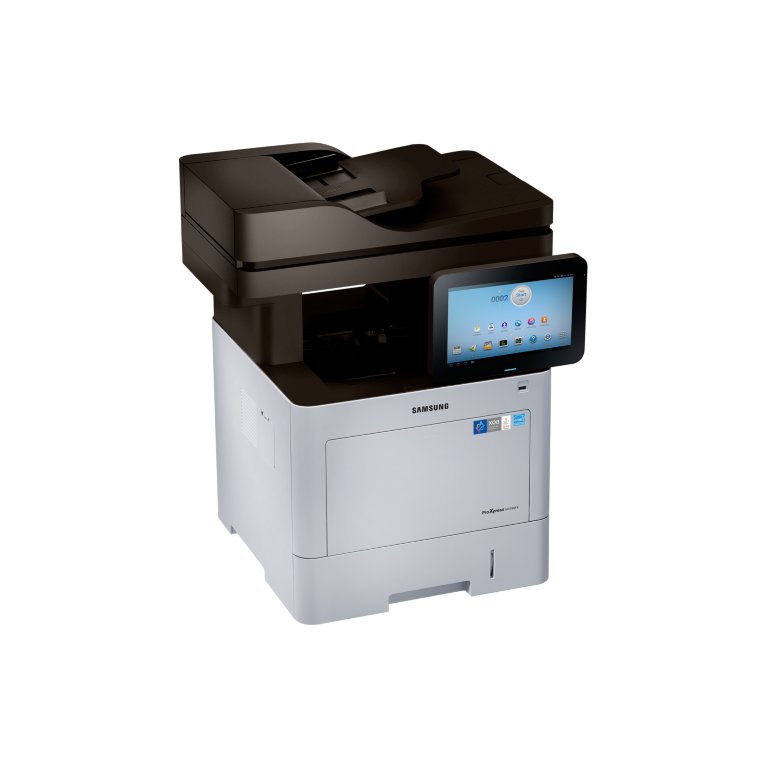

Samsung - SL M4580FX - Multi-Function Mono Laser Printer - 45ppm
- 4-in-1 Print/Scan/Copy/Fax - Duplex - USB 2.0 Gigabit Ethernet
Product Description
General
Standard Functions
Print / Copy / Scan / Fax
Value Added Functions
Android base UX
Processor
Dual Core 1 GHz
Operational Panel
10.1" Touch Screen LCD
Memory (Standard)
4 GB ( 2GB for Android OS * User Available Space for Android OS: 1GB)
Memory (Maximum)
4 GB ( 2GB for Android OS * User Available Space for Android OS: 1GB)
Hard Disk Drive
320 GB * User Available Space: 279 GB
Interface (Standard)
Hi-Speed USB 2.0 / Ethernet 10/100/1000 Base TX / Direct USB
Interface (Optional)
IEEE 802.11b/g/n + NFC(Active)
Power Consumption
900W(Normal) / 30W(Ready) / 1.8W(Sleep)
Noise Level
Less than 54dBA (Printing) / Less than 56dBA (Copying) / Less than 30dBA (Standby)
Dimension (WxDxH)
530 x 459.5 x 649 mm (20.9" x 18,1" x 25.5")
Weight
30.2 kg
Max. Monthly Duty Cycle
200000Pages
Recommended Monthly Print Volume
2000 - 10000
Print
Speed (Mono)
Up to 45 ppm in A4 (47 ppm in Letter)
First Print Out Time (Mono)
6.5 sec
Resolution
Up to 1,200 x 1,200 dpi effective output
Print Languages
PCL5e / PCL6 / PostScript3 / PDF Direct V1.7
Duplex Print
Bulit-in
Client OS Support
Windons 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS X 10.5 - 10.9, Various Linux / Unix
Direct Print Support
Direct USB
Print Features
Direct Print / Secure Print
Copy
Speed (Mono)
SDMC: Up to 45 cpm in A4 (47 cpm in Letter) / MDMC: Up to 35 cpm in A4 (36 cpm in Letter)
First Copy Out Time (Mono)
6.5 sec
Resolution
Up to 600 x 600 dpi effective output
Reduce / Enlarge Range
25 - 400 %
Multi Copy
1 - 9999
Duplex Copy
Built-in
Copy Features
N-Up / Booklet / Book Copy / Poster Copy / Image Repeat / Watermark / Stamp / Overlay / Erase Edge / Image Shift / Covers / Background Adjustment / Mirror Image / Negative Image / Build Job / Proof Copy / ID Copy / Save to Box
Scan
Scan Speed (Mono)
Duplex : up to 60 ipm / Simplex : up to 35 ipm
Compatibility
Windows : TWAIN / WIA, Mac : TWAIN / ICDM, Linux : SANE
Method
3ch Digital CIS Module
Resolution (Optical)
Up to 1,200 x 1,200 dpi
Resolution (Enhanced)
Up to 4,800 x 4,800 dpi
Scan Destinations
HDD(Shared Folder) / USB / Email / Client(NetScan) / SMB / FTP
FAX
Compatibility
ITU-T G3 / Super G3
Modem Speed
33.6kbps
Resolution
Standard: 203 x 98 dpi / Fine Photo: 203 x 196 dpi / Super Fine: 300 x 300 dpi / Ultra Fine: 600 x 600 dpi
Memory
HDD (Shared)
Auto Dial
Yes
Fax Feature
On hook Dial / Auto Redial / Search / Tone,Pulse / Pause / Last Number Redial / Distinctive Ring / Caller ID / External Phone Interface / Fax Forward to E-Mail / Fax to PC / Broadcasting 500 Locations / Delayed Fax / Color Fax (Send / Receive)
Paper Handling
Input Capacity (Cassette)
550Sheets
Input Capacity (Multipurpose Tray)
100Sheets
Input Capacity (Other Options)
550 Sheets
Input Capacity (Maximum)
2,300 Sheets (Std 550 + MP 100 + 3 x SCF 550)
Media Type (Cassette)
Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Envelope / Label / CardStock / Letterhead / Thick / Colored / Archive
Media Type (Multipurpose Tray)
Plain / Thin / Bond / Pre-printed / Recycled / Envelope / Label / Cardstock / Thick / Cotton / Colored / Archive / Thicker
Media Type (Other Options)
Plain / Thin / Recycled / Thick / Archive / Bond / Cardstock
Media Size (Cassette)
A4 / A5 / A6 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / Statement / PostCard 4x6 / Envelope B5 / Envelope Monarch / Envelope COM-10-> Envelope No 10 / Envelope DL / Envelope C5 / Envelope C6 / Custom
Media Size (Multipurpose Tray)
Min : 76.2 mm x 127 mm (3"x5")Max : 216 mm x 356 mm (8.5"x14.0")
Media Size (Other Options)
A4 / A5 / A6 /Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / Statement / Custom
Media Weights (Cassette)
Supported Weight: 60 - 163 g/㎡ (16 - 43 lb), Thin Paper (60 - 70 g/㎡) / Plain Paper (70 - 90 g/㎡) / Thick Paper (91 - 105 g/㎡) / Bond Paper (105 - 120 g/㎡) / Cardstock (121 - 163 g/㎡)
Media Weights (Multipurpose Tray)
Supported Weight: 60 - 220 g/㎡ (16 - 59 lb),Thin Paper (60 - 69 g/㎡) / Plain Paper (70 - 89 g/㎡) / Thick Paper (90 - 104 g/㎡) / Bond Paper (105 - 120 g/㎡) / Cardstock (121 - 163 g/㎡) / Thicker Paper (164 - 220 g/㎡)
Media Weights (Other Options)
Supported Weight: 60 - 163 g/㎡ (16 - 43 lb),Thin Paper (60 - 70 g/㎡) / Plain Paper (70 - 90 g/㎡) / Thick Paper (90 - 105 g/㎡) / Bond Paper (105 - 120 g/㎡) / Cardstock: (121 - 163 g/㎡)
ADF Type
DSDF
ADF Document Capacity
50Sheets
Output Capacity
500 Sheets
Supplies
Toner (Black)
Extra high Yield: Average Cartridge Yield 40,000 standard pages.(Ships with 7,000 pages Starter Toner Cartridge) Declared Cartridge Yield in accordance with ISO/IEC 19752.
Imaging Unit/Drum (Black)
100,000 (* based on simplex 3 average letter/A4-size pages per print job and ~ 5% coverage)
Option
Option
3 x 550 Sheets Cassette Tray / Stand (Short) / Wireless + NFC
Solution
Device Management
Yes
Output Management
Yes
Document Management and Distribution
Yes
Security
Yes
What's in the box?
Power Cord, Full Standard Yield Toner, Driver/Software CD with Digital User Manual, Warranty Card, Quick Installation Guide
Product Specifications
Up to 47ppm in Mono
Up to Resolution 1200 x 1200 dpi
550 Sheet Input Tray
1GB RAM Memory
200K Pages Monthly Duty Cycle
USB 2.0 & Ethernet 10/100
One Year Warranty
Brochure for Samsung ProXpress M4580FX A4 Mono Multifunction Printer - Call us About Stock
