Brief Overview

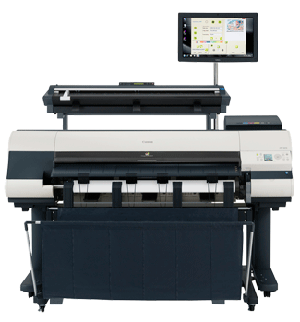

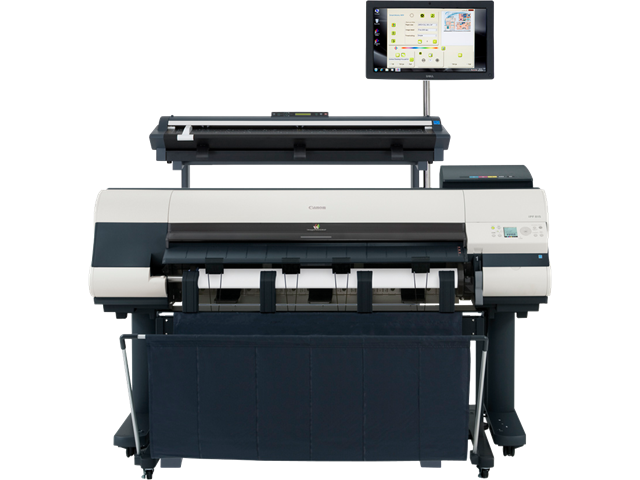

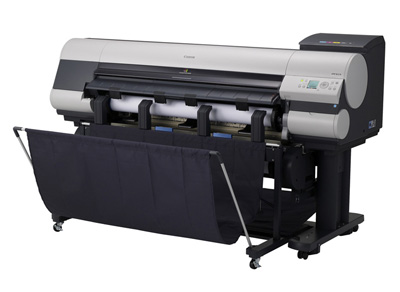

IPF815 B0 5 COLOUR TECHNICAL 44" LFP, 1YR OS, USB 2, LAN HDD, WINDOWS & MAC DRIVERS
Product Description
Printer Type 5-Colour 44-inch
Print Speed 64sq m/hr
Print Head 1.07" FINE (Photolithography Ink-Jet Nozzle Engineering)
Number of Nozzles 15,360
Max Resolution 2400 x 1200 dpi
Minimum Line Width 0.02mm
Ink Droplet 4 picolitre
Colour Set Dye,Cyan, Magenta, Yellow, Black; Pigment Matte Black
Ink Cartridges Capacity 700ml/330ml
Memory 32GB dedicated file processing memory (384MB Physical DRAM)
Hard Drive 160GB
Languages GARD (Canon Proprietary); HP-GL/2; HP RTL
Scanner Specifications
Scan Speed* 24-bit Full Colour @ 200 dpi: 1.67” (per second) 8-bit Grayscale and Monochrome @ 200 dpi: 10” (per second)
Scan Modes 16.7-million colour RGB (24 Bit) 256 and 16 colour RGB
adaptive indexed colour palette (8-bit and 4-bit) 256-level Grayscale (8
Bit) Black and White (1 Bit)
Colour Space Normalized RGB
Colour Image Processing Gamma, Brightness, Black-and-White Point Adjustment
Resolution 9600 dpi (maximum) 600 dpi (optical) Variable (100-9600 dpi, in one-dpi steps)
Scan Accuracy** +/- 0.1% ; +/- 1 pixel
Maximum Image Width 40 Inches
Maximum Media Width 41 Inches
Maximum Media Thickness 0.3mm (0.012")
Media Feed System Single large diameter precision ground drive roller;
adaptive CIS media focus mangagement and media guide mechanism;
intuitive face-up, front-loading, and front-exit media path with side
justification; automatic media size detection with reliable optical
media sensors
Digital Imaging Technology
Contact Image Sensor (CIS) Technology 5x close-spaced “deep focus” CIS
(17,000 pixels) 5x close-spaced “deep focus” CIS (17,000 pixels) 48-bit
RGB digital colour image capture 16-bit grayscale image capture
Panchromatic monochrome and black and white Bi-directional extra
long-life LED light system for optimum object illumination and
instant-on scanning capability
Digital Image Processing
2D Intelligent Adaptive Thresholding (IAT) (1-bit mode) Fixed Threshold
Black and White (1-bit mode) Fixed Threshold Black and White (1-bit
mode) Dynamic Normalisation Application (DNA) with 16-bit super sampling
User Status and One-Touch Operation
Center mounted LCD scanner control panel; walk-up operation and user
selection of scanner mode with stop, forward, rewind, scan, and copy
buttons; local language options, and panel overlay
Included Software SmartWorks MFP scan-to-file, copy, e-mail with real-time image viewer.
SmartWorks MFP scan-to-file, copy, e-mail with real-time image viewer. Supports TIFF, JPEG, TIFF G4, and PDF.
Operating System Windows 7
Scanner Interface Kit
USB 2.0 Hi-speed
Operating Environments 10 – 30°C, 35-80% RH, non-condensing
External Power Supply 100-250 VAC autosensing +/- 10%, 50-60 Hz
Scanner Power Consumption 40W (Scanning) 4.2W (Stand-by)
Compliances CB, CE, C-Tick, FCC, UL, RoHS, ENERGY STAR®
MFP Dimensions (H x W x D) (with Monitor) (Does not include Printer) 170 x 145 x 80cm
Package Dimensions (H x W x D) 49 x 145 x 56 cm
Package Weight 88KG
What’s In The Box?
imagePROGRAF Printer CiC40 Scanner with power cord and USB 2.0 Cable
(Scanner to Server) CiC40 MFP Stand CiC40 MFP Stand Assembly
Instructions SmartWorks MFP Software Dell Computer with Microsoft
Windows 7 23” Flat Panel Touch-screen Display Installation and Operation
Manual Operator Manual on CD-ROM
What's in the box?
Canon imagePROGRAF iPF815 MFP
PFI-303C Cyan Ink Tank (330 ml)
PFI-303M Magenta Ink Tank (330 ml)
PFI-303Y Yellow Ink Tank (330 ml)
PFI-303BK Black Ink Tank (330 ml)
PFI-303MBK Matte Black Ink Tank (330 ml)
PF-03 Printhead
MC-09 Maintenance Cartridge
PosterArtist Lite
Ci C40 Scanner
Power Cord
USB 2.0 Cable
C40 MFP Stand
Installation & Operation Manual
Scanner Calibration Sheet
Computer
Touchscreen Monitor
Keyboard
Mouse
SmartWorks MFP
Printer Drivers
Printer Stand
High Capacity Media Basket
Heavyweight Coated Paper Sample Roll
2.0" Roll Holder
Set Of 3.0" Core Adapters
Documentation Kit:
User Manual CD
Quick Start Guide
Reference Guide
Menu Map
Registration Card
User Software CD:
Printer Driver
HDI Driver
Digital Photo Front-Access
Printer Driver Extra Kit
imagePROGRAF Status Monitor
Media Configuration Tool
Print Plug-in for Microsoft Word
Accounting Manager
Power Cord
One-Year Limited Warranty
Product Specifications
Up to Out Put Width 44inch
Up to Resolution 2400 x 1200 dpi
384MB RAM
160 GB Hard Drive
Line Accuracy ±0.1% or Less
USB 2.0 Interface
One Year on Site Warranty
Brochure for Canon IPF815MFP 44inch Large Format Inkjet Printer
