Brief Overview

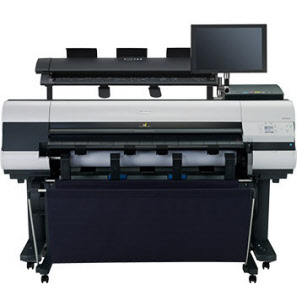

Canon iPF840MFP 44" Dual RollPrint/Copy/Scan System
Product Description
Printer Type 5-Color 44-inch Printer
Scanner Type: Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Scan Speed: 13 ips monochrome, 3 ips color
Nozzle Pitch 1,200 dpi
Non-firing nozzle detection and compensation
Number of Nozzles Total: 15,360 MBK: 5,120 nozzles C, M, Y, BK: 2,560 nozzles each
OS Compatibility Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX 10.6.8 - 10.10)
Standard Interfaces USB 2.0 High-Speed
10/100/1000 Base-T/TX
Scanner USB 3.0 and USB 2.0 High-Speed
Ink Droplet Size 4 picoliter
Ink Capacity 330ml, 700ml per color
Ink Droplet Size Dye/Pigment Reactive Ink
Color Set Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Hard Drive 320GB
Paper Sizes Scanner: Width: 42 inch document width (40 inch image width) Length: 315" (JPG or PDF), 590" (TIFF)
Media Width Cut Sheet - 8"- 44"
Roll Feed - 10" - 44"
Media Thickness
0.07-0.8mm .
Scanner: 0.079in (2mm)
Maximum Roll Print Length Roll Feed - 59'
Cut Sheet - 63"
Maximum Media Roll Diameter 5.9" or less
Borderless Printing Width 10", 14", 17", 24", 36", 42"
Paper Feed Method Roll Feed: One Roll, Front loading, Front output
Cut Sheet: One sheet, Front loading, Front output
Languages GARO (Canon Proprietary) HP-GL/2, HP-RTL
Noise Level Approx Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or less
Physical Dimensions
75"(W)x 51"(D)x 45"(H)
Box dimensions: 84" (W) x 62" (D) x 46" (H)
Weight Approximately 417 lbs
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 190W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Computer OEM Operating System: Windows 7
Monitor: Flat Panel Touch-Screen Display
User-replaceable items
Print Head: PF-04
Maintenance Cartridge: MC-09, MC-10
Ink Tanks: PFI-307 (330ml: C, M, Y, BK, MBK) PFI-707 (700ml: C, M, Y, BK, MBK)
Software Included
SmartWorks MFP, Direct Print & Share
Direct Print Built In Card Reader Functions
Software Canon Printer Driver, Printer Driver Extra Kit (Free Layout,
Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print
& Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only),
Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status
Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution
2,400 x 1,200 dpi (Max)
Scanner
Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions: 9600dpi interpolated
What's in the box?
Hex wrench screwdriver
1 x print head
1 x set of starter ink tanks
3 inch core adapters
Set up guide
Basic guide
Manual CD-ROM
User software CD-ROM (Mac & Win)
Carrying caution leaflet
Safety/Standard Environment leaflet
PosterArtist Lite leaflet
PosterArtist Lite software CD-ROM
EU/UK Power Cord
Product Specifications
Up to Output Width 44"(B0)
Up to Resolution 2400 x 1200 dpi
320GB Hard Disk Drive
Accurate Scalable Copies
Large Capacity Ink Tanks
USB 2.0 Interface
One Year on Site Warranty
Brochure for Canon IPF840MFP 44" Large Format Inkjet Printer
