Product Description

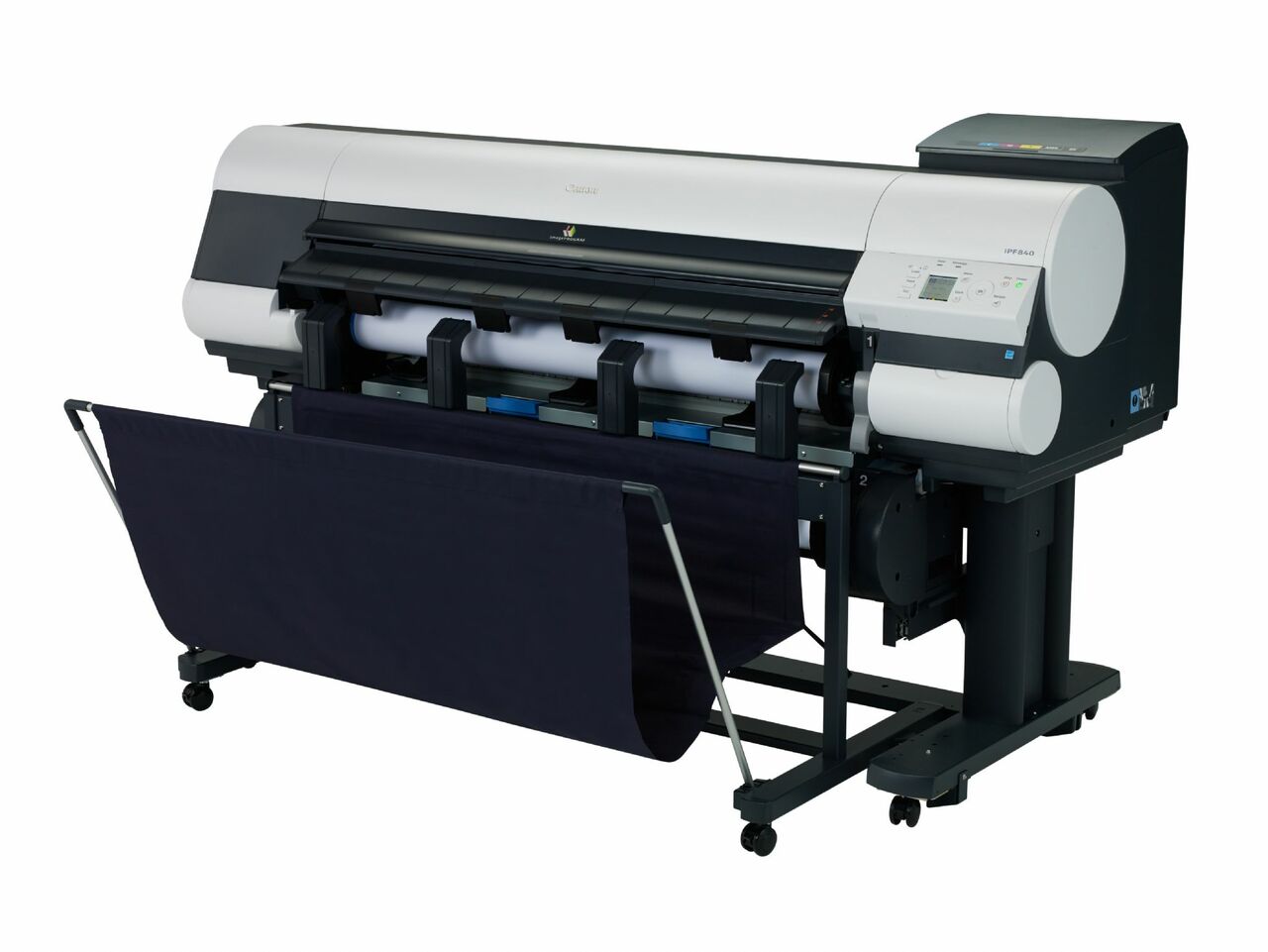

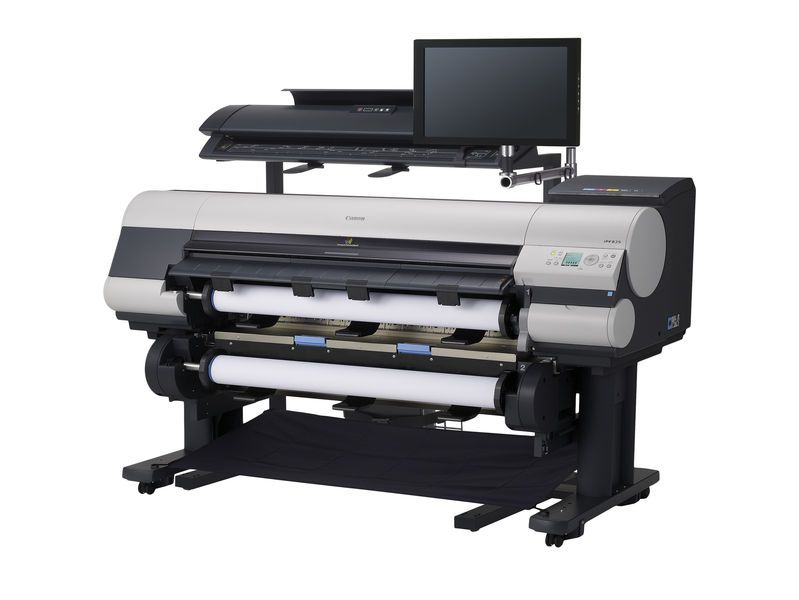

The Canon imagePROGRAF iPF840 MFP M40 44" large format imaging system is designed to meet the speed and precision requirements for AEC, CAD, MCAD and ECAD, with outstanding ease-of-operation to handle all-purpose, office projects. The iPF840 MFP M40 provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.
Printer Type 5-Color 44-inch Printer
Scanner Type Contact Image Sensor (CIS) technology
Scan Accuracy: +/- 0.1%
Scan Speed: 13 ips monochrome, 3 ips color
1,200 dpi
Non-firing nozzle detection and compensation
Nozzle Pitch
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
OS Compatibility
Windows® (XP 32bit/Vista/7/8/8.1)
Macintosh® (OSX10.6.8 - 10.10)
Standard Interfaces
USB 2.0 High-Speed 10/100/1000 Base-T/TX
Scanner: USB 3.0 and USB 2.0 High-Speed
Ink Droplet Size
4 picoliter
Ink Capacity
330ml , 700ml per color2
Ink Droplet Size
Dye/Pigment Reactive Ink
Color Set
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
Hard Drive 320MB
Paper Sizes
Scanner:
Width: 42 inch document width (40 inch image width)
Length: 315 (JPG or PDF), 590 (TIFF)
Media Width
Cut Sheet - 8 - 44
Roll Feed - 10 - 44
Media Thickness
0.07-0.8mm
Scanner0.079in (2mm)
Maximum Roll Print Length
Roll Feed - 59' 3 Cut Sheet - 63
Maximum Media Roll Diameter 5.9
Borderless Printing Width - 10, 14, 17, 24, 36, 42
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Languages
GARO (Canon Proprietary) HP-GL/2, HP-RTL
Noise Level Approx
Operation: 52 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: Approx. 6.8 Bels or less
Physical Dimensions 75(W)x 51(D)x 45(H)
Box Dimensions 84(W)x62(D)x46(H)
Weight
Approximately 417lbs
Box Weight Approximately 697lbs
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 190W or less
Standby 5W or less
Power Off: .5W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Operating System: Windows 7
All-in-One HD Multi-touch PC
User-replaceable items

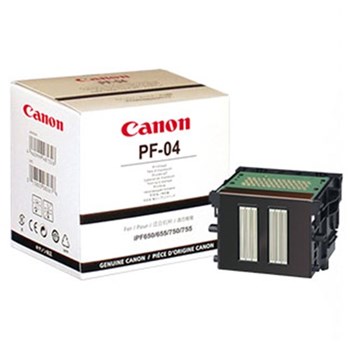

Print Head: PF-04Maintenance Cartridge: MC-10, MC-09Ink Tanks:
PFI-307 (330ml: C, M, Y, BK, MBK)
PFI-707 (700ml: C, M, Y, BK, MBK)
Software Included
SmartWorks MFP, Direct Print & Share
Direct Print Built In Card Reader Functions
Software
Canon Printer Driver, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Direct Print & Share, imagePROGRAF Print Utility4, PosterArtist Lite (PC Only), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Status Monitor, Media Configuration Tool, Optimized Module for AutoCAD
Print Resolution 2,400 x 1,200 dpi (Max)
Scanner:
Optical Resolutions: 1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions: 9600dpi interpolated
What's in the box?
Colortrac Scanner with power cord, USB 3.0 Cable and USB 2.0 Cable (for printer to PC connection)
Scanner Stand
SmartWorks MFP Software
Direct Print & Share Cloud Portal Software
All-in-One HD Multi-Touch PC
iPF840 Printer with Stand & Portable Media Basket
2 - 2" Roll Holder with 3" Core Adapters
A2 Cut Sheet Heavyweight Coated Paper (5 pieces)
1 Print Head
1 Maintenance Cartridge (installed)
5 Ink Tanks (C, M, Y, BK, MBK)
Ethernet Card (built in)
USB 2.0 High-Speed Interface for printer
User Manual CD for printer
Quick Start Guide
Reference Guide
Menu Map
Power Cord for printer
One Year Warranty Card for printer
Registration Card for printer
PosterArtist Lite
User Software CD with: imagePROGRAF Printer Driver Printer Driver Extra Kit (FreeLayout, imageRUNNER Enlargement Copy modules) imagePROGRAF Status Monitor Media Configuration Tool Print Plug-in for Microsoft Word Accounting Manager
