Product Description

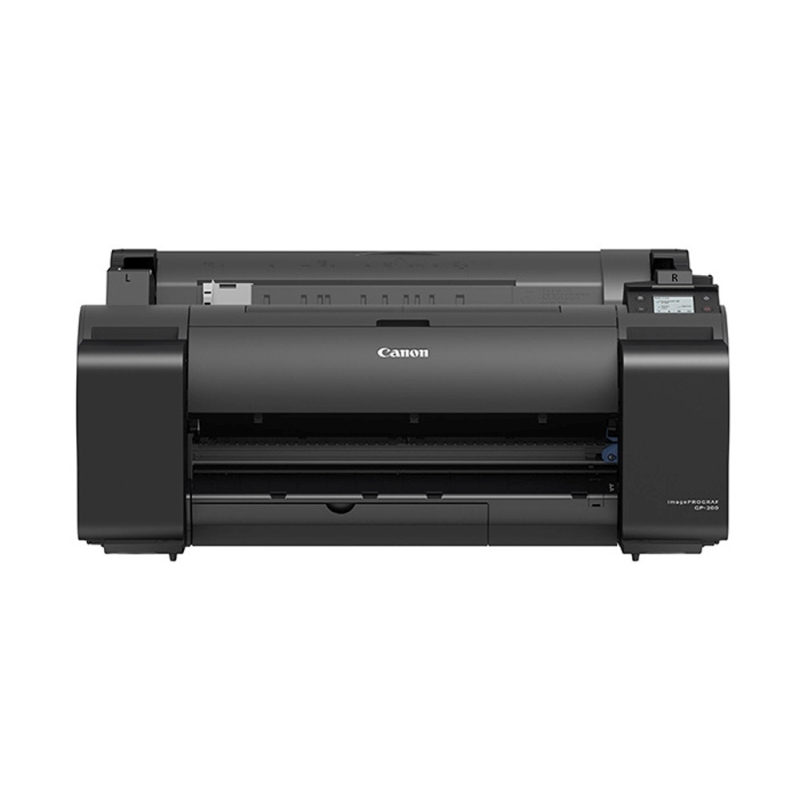

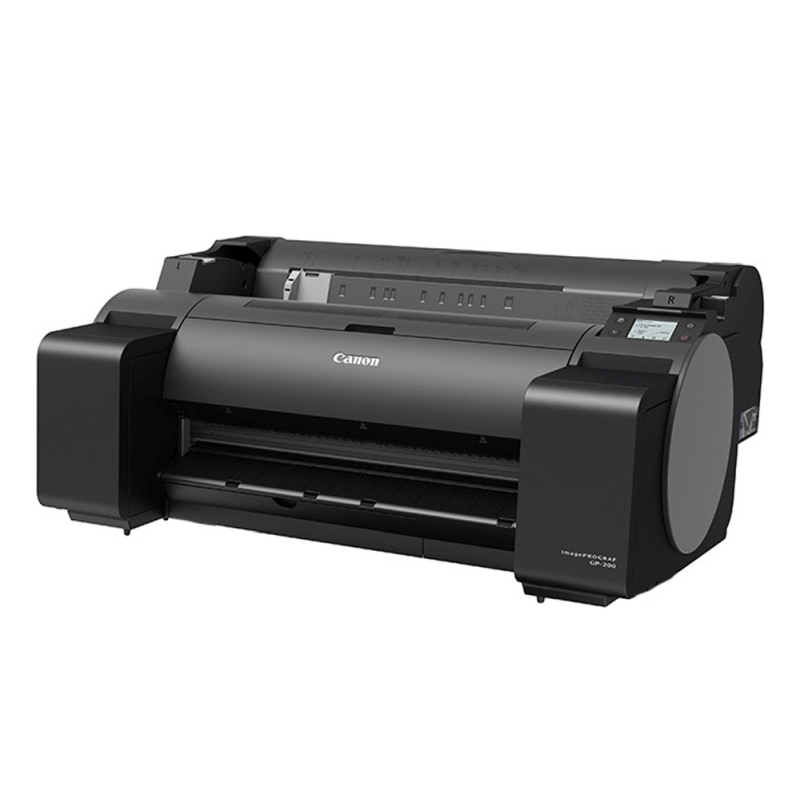

Create premium-quality, eye-catching posters with a 6-colour, 24-inch large format printer, featuring the newly developed fluorescent pink ink
Printer Type 6 Colour 24"
Print Technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15,360 nozzles MBK, BK, C, M, Y, FP : 2,560 nozzles each
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch 1,200 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size minimum 5 pl per colour
Ink Capacity Bundled Starter Ink : 90 ml (MBK, BK, C, M, Y, FP)
Sales Ink : 130 ml, 300 ml
Ink Type Pigment inks : 6 colour MBK, BK, C, M, Y, FP
OS Compatibility Microsoft Windows 32 Bit : 7, 8.1, 10
Microsoft Windows 64 Bit : 7, 8.1, 10, Windows Server 2008R2, 2012, 2012R2, 2016, 2019
Apple Macintosh : macOS 10.13.6 - macOS 11
Printer Languages PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port : USB Memory Direct Print for JPEG/PDF files
USB B Port : Built-in Hi-Speed USB
Ethernet : IEEE 802.3 10base-T, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / Auto-Negotiation, IEEE 802.3x Full Duplex
Wireless LAN : IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory Standard Memory 2GB
Expansion slot : No
Hard Drive 500GB
Print Speed Poster
Plain Paper (A1):
0:25 (Fast)
0:44 (Standard)
Heavy coated Paper (A1):
0:55 (Fast)
1:22 (Standard)
Glossy photo Paper (A1):
3:28 (Standard)
5:18 (High Quality)
Media Handling Media Feed and Output
Roll Paper : One Roll, Upper-loading, Front Output
Added Roll Paper : N/A
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper : 203.2 mm - 610 mm
Cut sheet : 203.2 mm - 610 mm
Media Thickness
Roll/Cut : 0.07 mm - 0.8 mm
Minimum Printable Length
Roll paper : 203.2 mm
Cut sheet : 279.4 mm
Maximum Printable Length
Roll paper : 18 m (Varies according to the OS and application)
Cut sheet : 1.6 m
Maximum Media Roll Diameter 150 mm
Media Core Size Internal diameter of roll core : 2"/3"
Margins Recommended Area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable Area
Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Roll Paper : 1 roll
Cut Sheet : 1 sheet
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only)
[Recommended] 515 mm (JIS B2), 594 mm (ISO A1), 10", 14", 17", 24"
[Printable] 257 mm (JIS B4), 297 mm (ISO A3), 329 mm (ISO A3+), 420 mm (ISO A2), 8", 12", 15", 16", 18”, 20", 22”, 300 mm, 500 mm, 600 mm, and custom roll width (203.2 - 610 mm)
Maximum Number of Delivered Prints Standard position of the basket : 1 sheet
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation : 71 W or less
Sleep mode : 2.1 W or less
Default setting for the time to enter the Sleep mode : Approx. 5 Minutes
Power off : 0.3 W or less
Operating Environment
Temperature : 15~30℃, Humidity : 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Pressure
Operation : 49 dB (A) (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Standby : 35 dB (A) or less
Power
Operation : 6.7 Bels (Plain paper, Standard mode, Poster) (Measured on ISO7779 standard)
Regulations
Europe : CE mark
Other Countries : CB certfication
Environment Certificates TUV, CB
Dimensions and Weight
Physical Dimensions and Weight
982 x 870 x 1060 mm (Basket Open)
982 x 757 x 1060 mm (Basket Closed)
50 kg (Main Unit + Stand + Basket, including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet) : 1152 x 913 x 705 mm
69 kg
Stand + Basket : 1055 x 824 x 268 mm
16 kg
What's Included
What's in the Box?
Printer, 1 print head, 1 roll holder (spool), 3 inch paper core attachment, Power Cable, 1 set of starter ink tanks, Set up guide, Printer Stand Setup Guide, Quick Guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), PosterArtist Lite CD-ROM, EU Biocide Sheet, Important Information Sheet
Software Included
imagePROGRAF GP Printer Driver and PosterArtist Lite
Other software available as Download from Web.
Options
Optional Items
2/3" Roll Holder : RH2-28

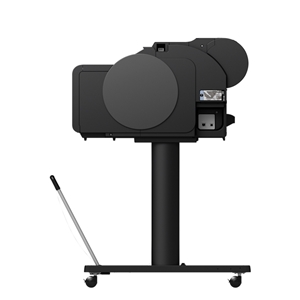

Printer Stand : SD-24
Consumables
User Replaceable Items
Ink Tank : PFl-120 (130ml), PFl-320 (300ml)
Print Head : PF-07
Cutter Blade : CT-08
Maintenance Cartridge : MC-31
