Product Description

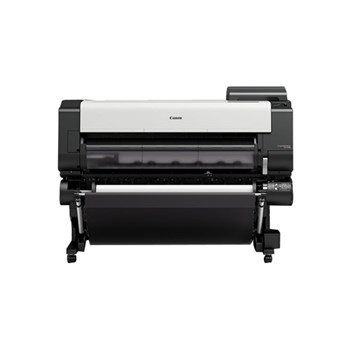

The new 44-inch TX-4100 large-format printer has been upgraded with faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing to improve productivity and efficiency. Pre-processing technology between pages and a faster cutter speed help to achieve printing speeds up to 3.2 ppm (plain paper, drawings) during continuous printing.
The TX-4100 features the 5-color TD pigment ink set. This ink was formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine this pigment ink with water resistant media and you have a printed drawing that can withstand the outdoor conditions, especially outdoor job sites such as construction sites. Available in 160 ml, 330 ml, and 700 ml ink tanks1, you have the ability to purchase a combination of ink sizes based on your printing volume. 1,650 ml of ink ships standard with the TX-4100.
Intelligent Media Handling
The Sub-Ink Tank System allows all of the available ink in a tank to be used before having to replace it
This printer boasts Canon's print-head technology that lays down ink with outstanding speed and accuracy
The large and more vibrant screen displays information such as remaining ink levels
Canon's advanced print head technology achieves speeds up to 190 D-sized prints per hour on uncoated media
Canon's L-COA processor, which controls the optimal ink layout helping to ensure high resolution output
Direct USB thumb drive printing supports JPEG and PDF file formats
Operating System Compatibility: Windows 7, 8.1, 10 (32/64bit), Windows Server 2008 R2, 2012, 2012 R2, 2016 (64bit), Macintosh OS 10.12.6 and late
Printer Type 5-Color 44-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to) 2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram 128 GB (Virtual) 2 GB (Physical)
Hard Drive 500 GB
Media Width
Cut Sheet - 6” - 44”
Roll Feed - 6” - 44”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59' (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: Cut Sheet, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 63” x 47” (Main unit and TX Stacker)
46” x 63” x 39” (Main unit and Catch Basket Opened)
Weight
approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 116W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
What's in the box?
imagePROGRAF TX-4100
TX Stacker or Catch Basket
Stand
2"/3" Core Media Spool (Adaptors Included)
US AC Power Cable
Tools and Screws
Print Head PF-06
Maintenance Cartridge (Installed)
5 Ink Tanks (330 ml: MBK/C/M/Y/BK)
Ethernet Card (built-in)
USB 2.0 High-speed Interface
USB Connection Sheet
iWR Service Terms Leaflet
User Manual
Quick Setup Guide
User Software CD for Windows (Printer Driver Utilities)
PosterArtist Lite CD
User Registration Card
Warranty Statement
