Brief Overview
PRO1000 A2 PROFESSIONAL-GRADE PHOTO PRINTER
Product Description
Main Unit Specs
Printer Type Wireless Professional Inkjet Printer
Printing Method FINE: Full-Photolithography Inkjet Nozzle Engineering
Features AirPrint4
Borderless Printing
Canon PRINT app5
Grayscale Photo Printing
Photo Printing
Wireless PictBridge6
Wireless Printing7
Pro Gallery Print8
PIXMA Cloud Link9
Print Speed (up to) 17" x 22" Bordered Photo (Color):
Approx. 4 minutes 10 seconds3
13" x 19" Bordered Photo (Color):
Approx. 2 minute 30 seconds3
Number of Nozzles 1,536 Nozzles x 12 Inks, Total: 18,432
Nozzle Pitch 600 dpi x 2
Print Resolution (Up to) Color: Up to 2400 x 1200 dpi4
Black: Up to 2400 x 1200 dpi4
OS Compatibility Computer Operating Systems:
Mac:16 Mac OS X v10.7.5 - 10.10.x
Windows:17 Windows® 10, Windows® 8, Windows 8.1, Windows 7, Windows 7
SP1, Windows Vista® SP1, Vista SP2, Windows Server 2012,2012 R2,
2008,2008 R2
Mobile Operating Systems: iOS®, Android™
Standard Interfaces Hi-Speed USB 2.0
Ethernet (10/100Base -T/TX)
PictBridge (Wireless LAN)6
Wireless LAN (IEEE 802.11b/g/n)7
Ink Droplet Size 4 Picoliters per Ink
Ink Capacity 80ml
Type: Pigment Based LUCIA PRO Ink Technology
Paper Sizes 17" x 22", 14" x 17", 13" x 19", 11" x 14", 10" x 12", 8.5" x 11', 8" x 10", 5" x 7", 4" x 6"
Maximum Paper Size 17" x 22"
Media Thickness Rear Tray: Maximum 0.3 mm
Manual Feed Slot: 0.1 mm - 0.7 mm
Paper Feed Method Rear Tray and Manual Feed Slot
Languages Printer Languages:Printer Language: Swift Graphic Raster
Job Control Language: IVEC
Status Reply: IVEC
Noise Level Approx 41.0 dB(A)12
Physical Dimensions 28.5" x 11.2" x 17.0" (W x H x D)
Weight 70.5lbs
Power Consumption Maximum: 37 W13
Standby: 2.5 W
Power Off: 0.4 W
Operating Environment Temperature: 59 - 86 F° (15 - 30 C°)
Relative Humidity: 10 - 80% (No Condensation)
Warranty 1-Year limited warranty with InstantExchange Program. 1-Year toll-free U.S.-based technical phone support.19
Software Included Setup Software & User's Guide CD-ROM
imagePROGRAF PRO-1000 Printer Driver
Print Studio Pro v 2.018
Management Tools:
Quick Utility Toolbox
Media Configuration Tool
Accounting Manager
Device Management Console
Color Calibration Tool
General Features 12 Individual Ink Tanks, Advanced Pattern Print, Index
Print, Fine Art Paper Support, L-COA PRO Image Processing Engine,
Non-Firing and Compensation Function, Real Time Control of Ink Ejection,
Air Feeding System, Color Density Sensor, Calibration Link, Contrast
Reproduction
Certifications Rated EPEAT Silver
Chlorine-free paper can be used.
Energy Star Certified
RoHS Directive Certification
Printer Memory 1 GB (Standard)
Display 3.0" LCD
Head Configuration 12 Ink Integrated Type (4 Ink Chips x 3)
Storage Environment Temperature: 32 - 104 F° (0 - 40 C°)
Relative Humidity: 5 - 95% (No Condensation)
PRINT LONGEVITY10
PT-201 LU-101
Gas Fastness Approx. 60 Years Approx. 60 Years
Light Fastness Approx. 60 Years Approx. 45 Years
Longevity in Photo Album Approx. 200 Years Approx. 200 Years
What's in the box?

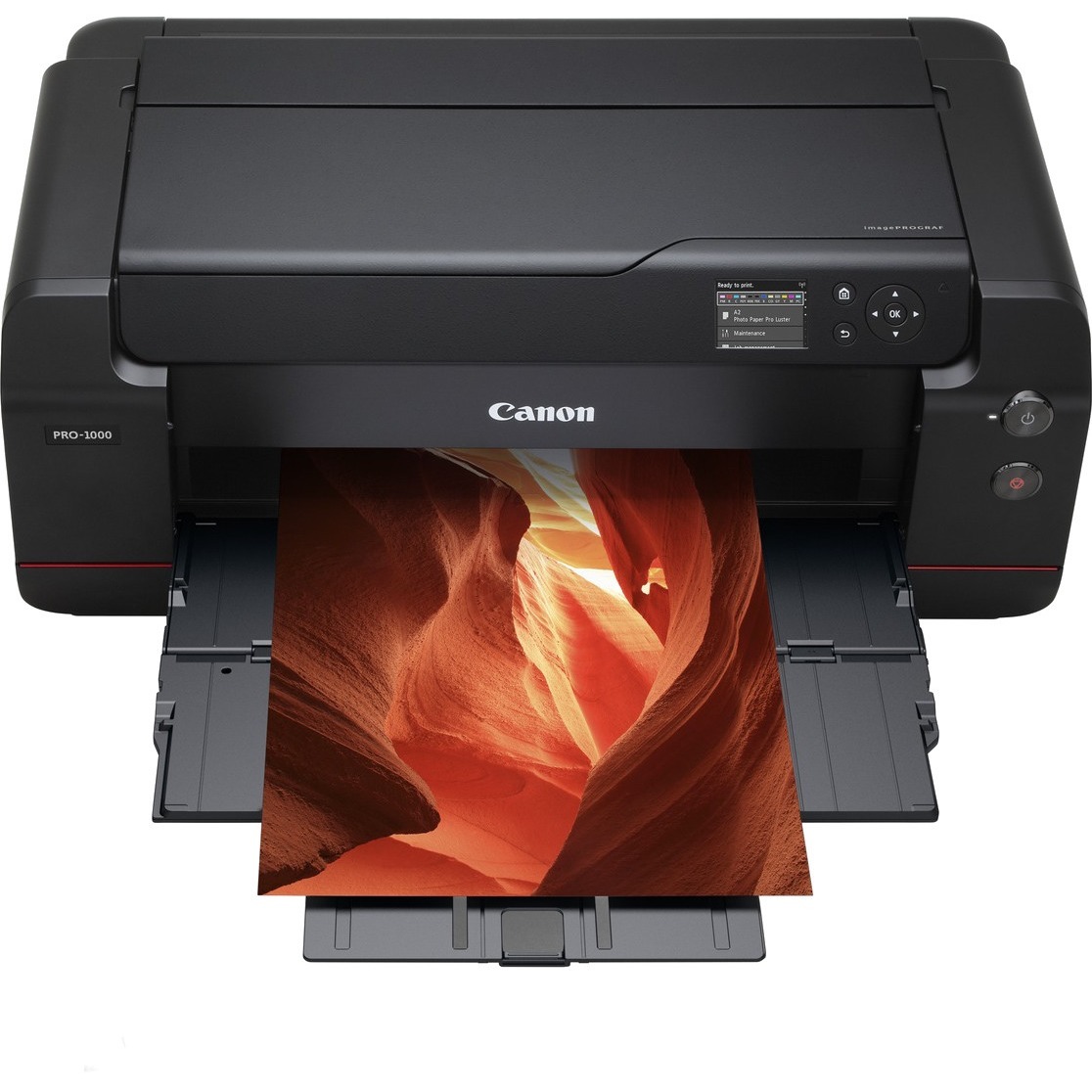

Canon imagePROGRAF PRO-1000 17" Professional Photographic Inkjet Printer

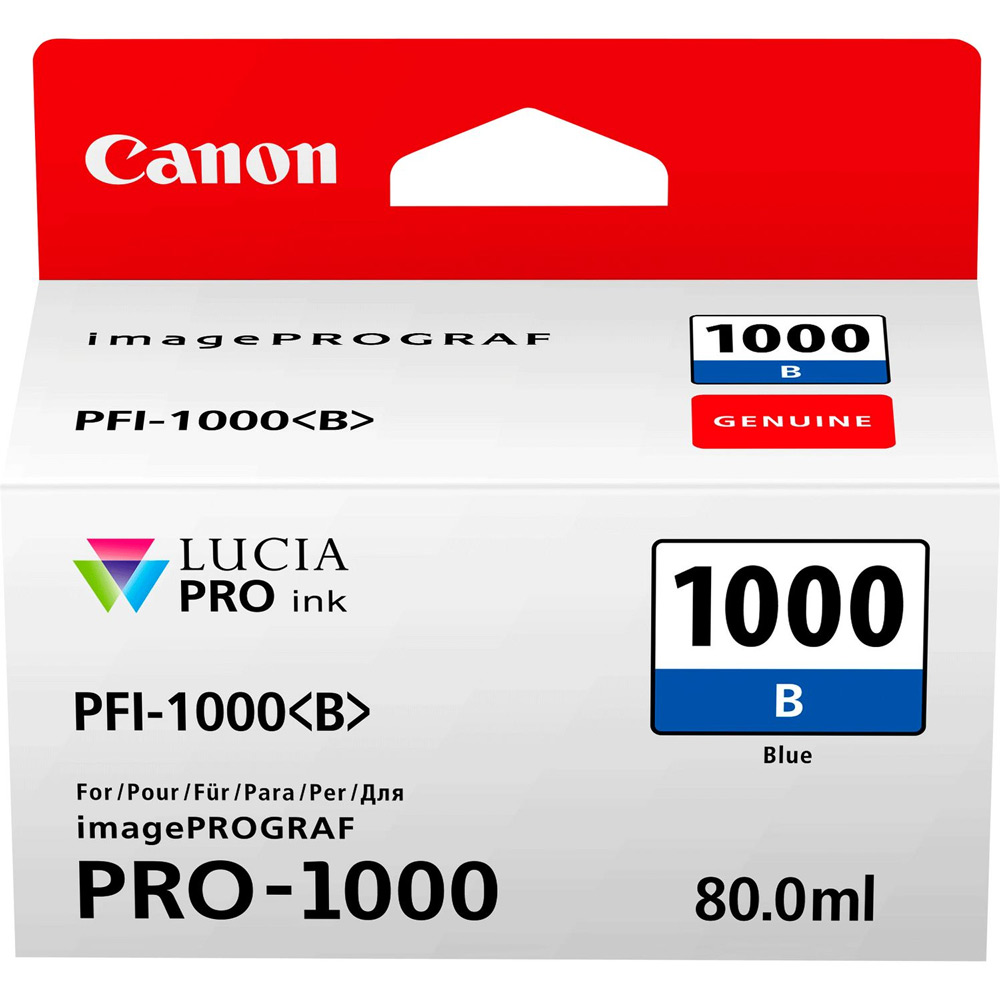

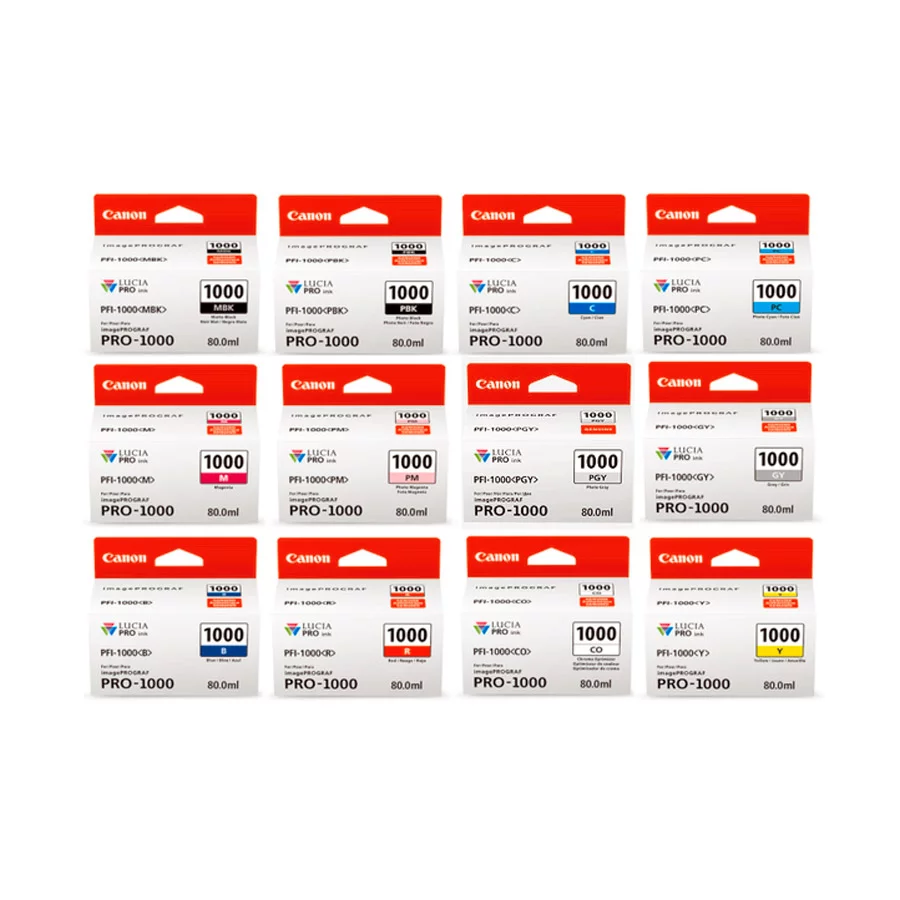

PFI-1000 B LUCIA PRO Blue Ink Tank (80ml)
PFI-1000 C LUCIA PRO Cyan Ink Tank (80ml)
PFI-1000 CO LUCIA PRO Chroma Optimizer Ink Tank (80ml)
PFI-1000 GY LUCIA PRO Gray Ink Tank (80ml)
PFI-1000 M LUCIA PRO Magenta Ink Tank (80ml)
PFI-1000 MBK LUCIA PRO Matte Black Ink Tank (80ml)
PFI-1000 PBK LUCIA PRO Photo Black Ink Tank (80ml)
PFI-1000 PC LUCIA PRO Photo Cyan Ink Tank (80ml)
PFI-1000 PGY LUCIA PRO Photo Gray Ink Tank (80ml)
PFI-1000 PM LUCIA PRO Photo Magenta Ink Tank (80ml)
PFI-1000 R LUCIA PRO Red Ink Tank (80ml)
PFI-1000 Y LUCIA PRO Yellow Ink Tank (80ml)
MC-20 Maintenance Cartridge
5 x Sheets of LU-101 Photo Paper Pro Luster (8.5 x 11")
Power Cord
Documentation & Software CD-ROM
Limited 1-Year Warranty
Product Specifications
1536 Nozzles x 12 Colors Per Chip
17"x 22" Color Photo 4 Min. 10 Sec.
Up to Resolution 2400 x 1200 dpi
1 GB Standard Memory
3.0" LCD Display
USB, Network & Wireless
One Year Limited Warranty
Brochure for Canon imagePROGRAF PRO-1000 A2 Colour Inkjet Printer
