Brief Overview
IPFPRO-4100 44 12 COLOUR GRAPHICS ARTS LFP WITH HDD
Product Description

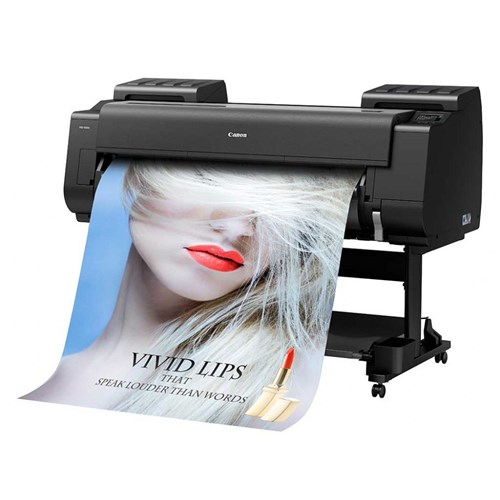

Canon’s imagePROGRAF PRO-4100 achieves the most professional photographic reproductions on stock up to 44" wide.
Features:
Enhance Productivity with an intuitive multifunctional roll unit
Maximise output from your photographic studio with an intuitive multifunctional roll unit that automatically detects, selects and adjusts to the required media. Reduce waste and costs with a smart alert that lets you know when a media roll is running low.
Printer Type
12 Colour 44"/1118mm
Print Technology
Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)
Print Resolution 2,400 x 1200 dpi
Number of Nozzles 18,432 nozzles (1536 nozzles x 12 colour)
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only
Nozzle Pitch
600 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size minimum 4 pl per colour
Ink Capacity
Sales Ink: 160ml/330ml/700ml
Bundled Starter Ink: 330ml
Ink Type
Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, Chroma Optimiser
OS Compatibility
Microsoft Windows: 32 Bit, Vista, 7,8, 8.1,10
Server 2008, 64 Bit: Vista, 7,8, 8.1,10,
Server 2008/R2, Server 2012/R2, Windows Server 2019
Apple Macintosh: OS X 10.11.6?macOS 10.12~macOS 10.15
Printer Languages
SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces
USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB 2.0
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Memory
Standard Memory
3 GB
Hard Drive
500GB (Encrypted HDD)
Printing Speed
Media Type (A0 page size)
Print Mode: Print Time
Plain Paper (A0 page size)
Fast: 01.37 min
Standard: 02.49 min
Coated Paper (A0 page size)
Standard: 02.49 min
High Quality: 05:35 min
Glossy Photo Paper (A0 page size)
Standard: 05.35 min
High Quality: 08:50 min
*Output Image: ISO JIS SCID N5
Media Handling
Media Feed and Output
Upper Roll Paper: One Roll, Front-loading, Front Output
Lower Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)
Media Width
Roll paper: 152.4 – 1118 mm
Cut sheet: 152.4 – 1118 mm
Media Thickness
Roll/Cut: 0.07 - 0.8 mm
Minimum Printable Length
203.2 mm
Maximum Printable Length
Roll paper: 18 m (Varies according to the OS and application)
Cut sheet: 2133.6mm
Maximum Media Roll Diameter
170 mm
Media Core Size
Internal diameter of roll core: 2"/3"
Margins Recommended area
Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area
Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity
Roll Paper: Two rolls. Automatic switching is possible.
Cut Sheet: 1 sheet
Media Take-up roll unit
Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Borderless Printing Width (Roll Only)
515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0), 594mm(ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36", 42", 44", 257mm(JIS B4)*, 297mm(ISO A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*,6'', 8"*, 12'', 16"*, 20'', 22'', 30"*, 300mm*, 500mm, 600mm 800mm, 1000mm and custom roll width (152.4~1118mm)
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10 sheets, Coated paper less than 20 sheets (excludes strong curled condition)
Dimensions and Weight
Physical Dimensions and Weight
W x D x H
1593 x 984 x 1168 mm (Basket Open)
1593 x 766 x 1168 mm (Basket Closed)
145 kg (including Roll Holder Set and Roll unit, excluding ink and print heads)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1820 x 915 x 1042 mm
177 kg
Roll Unit: 1727 x 562 x 461 mm
33 kg
Power and Operating Requirements
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Operation: 107 W or less
Sleep mode: 2.0W or less
Default setting for the time to enter the Sleep mode: Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment
Temperature: 15~30?, Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)
Operation: approx. 48 dB (A) (Glossy paper, Print priority: Standard)
Standby: 35 dB (A) or less
Operation: 6.6 Bels or less (Glossy paper, Image, Print priority: Standard) (Measured on ISO 7779 standard)
Regulations
Europe: CE mark, Russia: EAC
Certificates
TUV, CB
What's Included
What's in the Box?
Printer, 1 print head, 3 inch paper core attachment, Power cable, 1 set of starter ink tanks, Set up guide, Safety/Standard Environment leaflet, User software CD-ROM (Win), Poster Artist Lite CD-ROM, EU Biocide Sheet, Eurasian Economic Union Sheet, Important Information Sheet
Software Included
imagePROGRAF PRO Printer Driver, and PosterArtist Lite
Other software available as Download from Web.
Options
Optional Items
2/3" Roll Holder: RH2-46
Roll Unit: RU-43
Consumables
User Replaceable Items
Ink Tank: PFl-1100 (160ml), PFl-1300 (330ml), PFl-1700 (700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
BUNDLE INCLUSIONS:
- iPF4100 Main Unit
- Printer Stand
- LFPROLL 90gsm Matt Coated Paper for Installation
Main Unit inclusions:
iPF PRO-4100 Printer
Hard Drive
Print Drivers and Utilities
PosterArtist Lite
RH2-46 Roll Holder
1 x set of 330ml starter Inks
1 x Printhead
1 x Maintenance Cartridge
Network Interface
2 x USB Interfaces
1 x Power Cord
24 Months Warranty (Defect Only - including Printhead but not Consumables
What's in the box?
Canon imagePROGRAF PRO-4100 (NO STAND)
Starter Ink Cartridges
1 Printhead
3 Inch Paper Core Attachment
Power Cable
Setup Guide
Safety/Standard Environment Leaflet
User Software CD-ROM (Windows)
Poster Artist Lite CD-ROM
EU Biocide Sheet
Eurasian Economic Union Sheet
Important Information Sheet
Product Specifications
Up to 44inch Wide Printing
Up to Res 2400 x 1200 dpi
3GB Standard Memory
4.3" Colour LCD Touch Screen
500GB Encrypted HDD
USB, Network & Wireless
One Year on Site Warranty
