Product Description

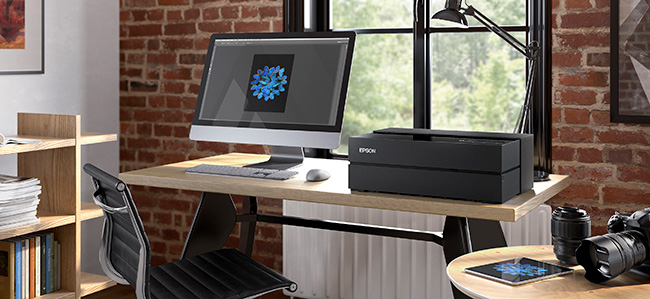

The Epson SureColor SC-P706 is an A3+ inkjet printer that delivers even higher performance exhibition quality prints with new and professional features, all achieved within an impressively space-saving A4 sized footprint.
The P706 boasts the highest D-Max currently, and its superb print quality and colour are backed by the combination of Epson's innovative MicroPiezo®'s print head and Epson's industry-leading ink technology, the UltraChrome Pro10 Ink with Violet. Together, they enable the delivery of gallery-quality black and white output with better contrast and improved tonality as well as a wider colour gamut with the new Violet ink on board to produce vibrant and rich prints. In addition, the 4-blacks-and-6 colours Ultra Chrome Pro10 inks offer great lightfastness which combines with proper display methods to offer longevity.
New Advanced Black and White Photo Mode comes with preset modes -- neutral, warm, cool, or sepia -- to aid users to effortlessly achieve stunning neutral or toned black-and-white prints. This feature provides flexibility for advanced adjustments and fine-tuning via custom slider bars and a colour tone wheel. Additionally, customised settings can be saved for future use to achieve consistent prints. By downloading the optional Epson Print Layout software, which is now available on Apple moblie devices as well, users can automatically preview personal images with the selected settings.
SIZE
Max Print Width 13 inch (330.2mm)
Max Sheet Size A3+
PRINT TECHNOLOGY
Print Head Epson Micro Piezo™
Print Modes Uni & Bi-directional
Features Variable Sized Droplet Technology (VSDT)
Advanced Epson LUT
Enhanced Colour Density
Enhanced Print Durability
Black enhance overcoat
Nozzle Configuration 180 per colour
Active Channels 10 (Dedicated Pk / Mk ink lines)
Max Resolution 5760 x 1440 optimised dpi
Min Droplet Size 1.5pl
INK SYSTEM
Family UltraChrome® Pro10
Type Aqueous all-pigment
Colours 10
Cartridge Size 25ml
PERFORMANCE
A4 2 minutes
A3+ 3.28 minutes
4" x 6" borderless 48 seconds
MEDIA SUPPORT
Format Cut Sheet & Roll media
Printable CD's & DVD's
Size 3.5" x 5" (89 x 127mm) to 13" x 19" (329 x 482.6mm) sheets
13" (330.2mm) wide with 2" core rolls
(max roll diameter 82mm)
12" standard shaped printable optical media
Thickness ASF:
PlainPaper：0.08 - 0.11mm
Genuine Media : 0.08 - 0.50 mm
Front Thick Paper Path : 0.5 - 0.7 mm
Front Straight Path : 0.7 - 1.5 mm
Roll Paper Path : 0.08 - 0.70 mm
Min Margins (Normal Printing) 3mm all directions on standard sheets
3mm left & right, 20mm top & bottom on thick sheets
50mm top, 14mm bottom on rolls
18mm interior diameter margin (21mm recommended) with max 120 diameter total print area on optical media
Borderless Printing (Supported on nominated paper widths for roll media and standard thickness sheets) A4, A3, A3+ (329 x 483mm), Letter (8.5"x11"), 3.5"x5" (90x130mm), 4"x6" (100x150mm), 16:9 (102x181mm), 5"x7" (130x180mm), 5"x8" (130x200mm), 8"x10" (200x250mm), 10"x12" (254x305mm), 11"x14" (279x356mm) 11"x17" (280x430mm), 12"x12" (300x300mm) sheets
13" (329mm) wide rolls
Max Print Length 18m
Loading Top rear sheet feeder for plain and photo paper
Front manual for fine art & poster board
Rear roll paper unit (built in)
Roll Handling Integrated support, operation requires manual cutting
Output Front with extendable tray
Double Sided Printing Supported via manual loading however please refer to the user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
OPERATION
Control Panel 4.3” Touchscreen Colour LCD
Interface High Speed USB 3.0
Ethernet 10Base-T / 100Base-TX
Wi-Fi 5 (IEEE802.11 b/g/n/ac)
Included Software (Windows) Printer Driver, Print CD, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Software Updater and Firmware updater on CD
Web Downloads (Windows) Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, E-Web Print, Firmware Updater & software uninstaller
Web Downloads (Mac) Printer Driver, Epson Print Layout, ColorBase2, Epson Media Installer, Photo+, EpsonNet Config, EpsonNet Setup, Software Updater, Firmware updater & software uninstaller
OS Compatibility Mac OS X 10.6.8 or later
Windows 10, 8/8.1, 7,
3rd Party S/W Compatibility Compatible with a wide range of design, production, workflow management, and RIP software
Memory 256MB
Language ESC/P Raster
ENVIRONMENT
Operational Temp 10° to 35° C (15-25° C recommended)
Operational Humidity 20 to 80% with no condensation (40-60% recommended)
Power Supply 220 – 240V, 50 – 60Hz AC, 0.3A
Power Consumption 22W Operating / 1.1W Sleep / 0.18W Off
Operating Noise 39dB
Operational Space
(W x D x H) 515mm x 769mm x 420mm recommended
(Additional space will be required at rear when using the straight through paper path or roll paper unit)
PHYSICAL
Dimensions (W x D x H) 515 x 368 x 185mm (sheet feeder & output tray closed)
Weight 12.7kg (excludes consumables)
WHAT'S IN THE BOX
Printer, power cord, Set of 25ml inks (a significant amount of ink will be used to charge the machine during initialization, we suggest an extra set be purchased with the printer), 1 x Maintenance tank, Set-up guide, User Manual/driver/utility software CD.
Packaging
(W x D x H) 648 x 483 x 337mm, 16Kg
CONFIGURATION OPTIONS
C11CH38501 Printer with 1 Year Return To Base Warranty**
SCP7063YR Printer with 3 Year On-Site CoverPlus**
