Product Description

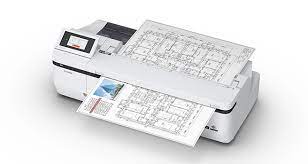

The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays.
SIZE
Max Print Width 24 inch wide (610mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration 800 per colour
Maximum Resolution 2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
SCAN TECHNOLOGY
Technology Contact Image Sensor (CIS)
Light Source Single
Feed System Sheet pass-through
Maximum Resolution 600dpi
INK SYSTEM
Family Epson Ultrachrome® XD2
Type All-Pigment Aqueous
Colours C+M+Y+K
Cartridges CMY 26/50ml
K 50/80ml
PERFORMANCE (per Sheet)
CAD A1 34sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.
SCAN PERFORMANCE
Max Scan Speed 3.81 cm/s or 1.5 ips (Colour)
11.43 cm/s or 4.5 ips (Mono)
Max Copy Speed 77s per A1 sheet Colour
60s per A1 sheet Mono
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors.
MEDIA SUPPORT
Roll Format Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-610mm wide, 119mm max diameter, 3Kg max weight
Sheet Format Top loaded A4-A1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
Auto Cutter Inbuilt rotary type
Manual Double Sided Printing Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output Single sheet hold feature
Supplied with an A4/A3 output tray
Floor-standing model and optional Printer Stand incorporates a media basket
SCAN & COPY SUPPORT
Media Handling Single Sheet Front Loading
Media Types Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-610mm wide, 148-2720mm long
Document Types Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To Formats JPEG, PDF & TIFF
Copy Function 1-99 Sheets
25-400% scaling, Auto Fit
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control Code ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory 1GB RAM
Scanner Support USB interface with integrated control & auto enlargement
Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17x22"), B2, US-D (22x34"), A1 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxDxH) Desktop: 970 x 505 x 292 mm, 33.4kg (no consumables, media or options, no output tray, ASF closed)
Floor Standing: 970 x 696 x 974 mm, 44.4 kg (closed basket, no consumables, media or options, no output tray, ASF closed)
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz
Power Consumption 28W Operating, 8W Standby, 1.6W Sleep
Operating Noise 49dB
SHIPPING INFO
Packaging (WxDxH) Desktop: 1096 x 598 x 504mm, 45kg
What’s in the Box Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations.
Delivery & Install Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
SCT3160M1YR Desktop with 1Yr On-Site Warranty
SCT3160M3YR Desktop with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
OPTIONAL ACCESSORIES
C12C933151 24" Printer Stand for T3160N/M
C12C933211 Additional Roll Feed Spindle for T3160 (24")
1YWTSCT3160M 1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT3160M 2 Yrs Epson CoverPlus On-Site Printer Service Pack**
