Product Description
The Epson SureColor Technical series is a versatile and compact range of
printers. They are designed for users who need to produce large-format
colour and black-and-white images, economically and at high speed. They
are compatible with a wide range of media from basic bond paper, to
photographic media. They support high resolution print with dense and
consistent colour. They are ideal for maps, plans, drawings, schematics,
geological survey diagrams, sales presentations, POS posters and
displays.
SIZE
Max Print Width 36 inch wide (914mm)
PRINT TECHNOLOGY
Print Head PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes Uni & Bi-directional
Nozzle Configuration 800 per colour
Maximum Resolution 2400dpi x 1200dpi
Minimum Ink Droplet Size 4.0pl
INK SYSTEM
Family Epson Ultrachrome® XD2
Type All-Pigment Aqueous
Colours C+M+Y+K
Cartridges CMY 26/50ml
K 50/80ml
PERFORMANCE (per A1 Sheet)
CAD A1 31sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type.
MEDIA SUPPORT
Roll Format Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-910mm wide, 110mm max diameter, 3Kg max weight
Sheet Format Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
Auto Cutter Inbuilt rotary type
Manual Double Sided Printing Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
Output Single sheet hold feature
Supplied with an A4/A3 output tray

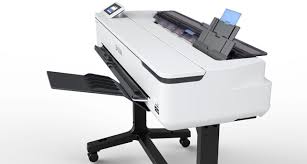

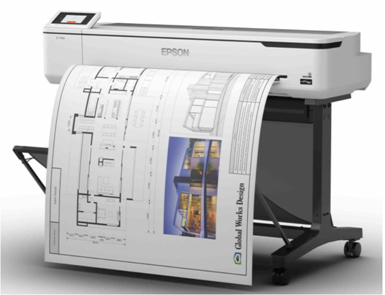

Floor-standing model and optional Printer Stand incorporates a media basket
OPERATION
Control Panel 4.3" Colour LCD touch screen
Control Code ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Compatibility Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory 1GB RAM
Scanner Support USB interface with integrated control & auto enlargement
Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models

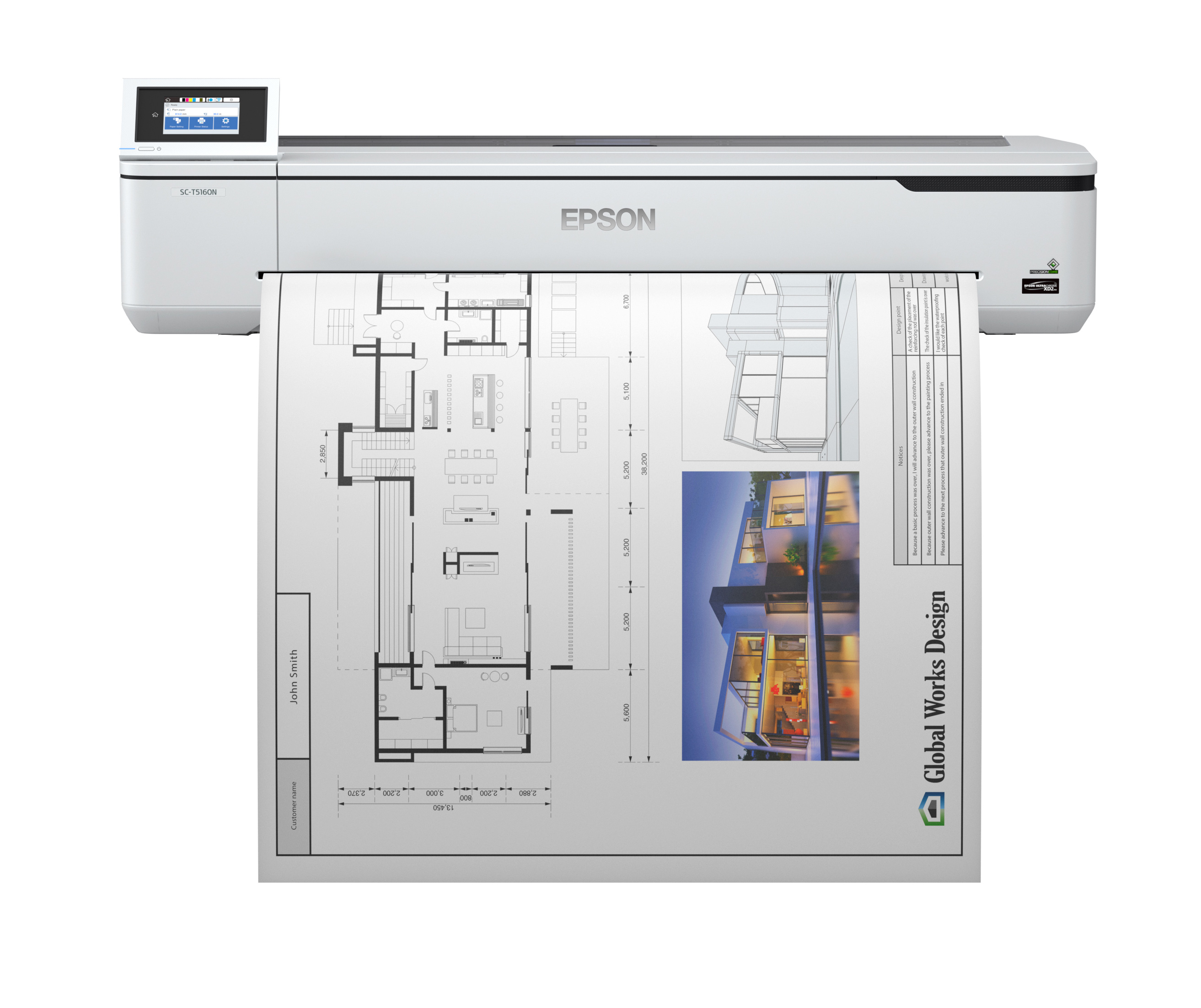

Physical (WxHxD) Desktop: 1268 x 230 x 505 mm, 33kg (no consumables, media or options, no output tray, ASF closed)
Floor Standing: 1268 x 913 x 696 mm, 46kg (closed basket, no consumables, media or options, no output tray, ASF closed)
ENVIRONMENT
Operational Temp 10° to 35° C
Operational Humidity 20 to 80% (no condensation)
Power Supply 100 - 240 V AC, 50/60 Hz
Power Consumption 28W Operating, 8W Standby, 1.6W Sleep
Operating Noise 49dB
Recommended Install Space (WxHxD) Desktop: 1318 x 380 x 915mm
Floor-standing: 1318 x 1063 x 1270mm
SHIPPING INFO
Packaging (WxDxH) Desktop: 1,506 x 724 x 522mm, 45Kg
Floor standing: 1,506 x 724 x 587mm, 58Kg
What’s in the Box Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations.
Delivery & Install Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations.
Service & Support Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
SCT5160N1YR Desktop with 1Yr On-Site Warranty
SCT5160N3YR Desktop with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT5160NS1YR Desktop with DS-530 scanner with 1Yr On-Site Warranty
SCT5160NS3YR Desktop with DS-530 scanner & 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT51601YR Floor Standing with 1Yr On-Site Warranty
SCT51603YR Floor Standing with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT5160S1YR Floor Standing with DS-530 scanner & 1Yr On-Site Warranty
SCT5160S3YR Floor Standing with DS-530 scanner & 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
OPTIONAL ACCESSORIES
C12C933091 36" Printer Stand (included with Floor-Standing configurations) (T5160)
C12C933131 Additional Roll Feed Spindle for T5160 (36")
1YWTSCT5160 1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT5160 2 Yrs Epson CoverPlus On-Site Printer Service Pack**
What's in the box?
Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations.
Product Specifications
Up to 36inch Wide Printing
Up to Res 2400 x 1200 dpi
1GB RAM Memory
4.3" Colour LCD touch screen
800 Nozzles Per Colour
USB, Network & Wireless
One Year on Site Warranty
Brochure for Epson SureColor T5160 36" Large Format Inkjet Printer
