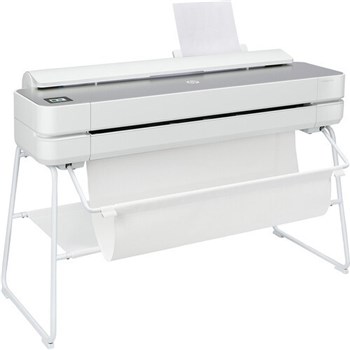

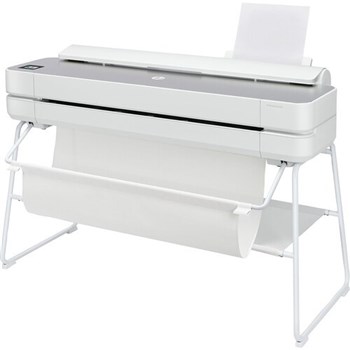

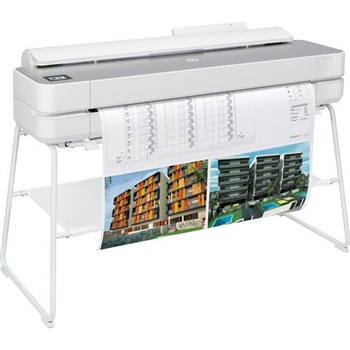

HP Designjet Studio 36" Steel Large Format Inkjet Printer

The HP 5HB14C DesignJet Studio Steel 36" Large Format Wireless Plotter Printer with High-Tech Steel Design from HP features a modern office design that compliments its environment and performance. This plotter printer is suitable for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renderings with precise, accurate line quality and crisp text. Print resolution is an impressive 2400 x 1200 dpi, and this powerful unit accepts roll and sheet media up to 36" wide.

Designed for speed and efficiency, you can send multiple files in one click with HP Click software, and 22 x 34" media can be printed in 25 seconds. Additionally, with the HP Smart app, you can wirelessly manage and print your jobs from a smartphone or tablet.

Print speed 36-in: 25 sec/page on A1, 82 A1 prints per hour

Print resolution Up to 2400 x 1200 optimized dpi

Technology HP Thermal Inkjet

Margins Roll: 5 x 5 x 5 x 5 mm / Sheet: 5 x 5 x 5 x 5 mm

Ink types Dye-based (C, M, Y); pigment-based (K)

Page Yield 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines

Ink drop 5.5 pl (C, M, Y); 12 pl (K)

Printheads 1 (cyan, magenta, yellow, black)

Printhead nozzles 1376

Line accuracy ±0.1%

Minimum line width 0.02 mm

Max optical density 8 L* min/2.10 D

Handling Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Roll size 36-in: 279 to 914 mm

Sheet size Auto sheet feeder: 210 x 279 to 330 x 482 mm / 36-in manual feed: 210 x 279 to 914 x 1897 mm

Standard sheets Auto sheet feeder: A4, A3 / 36-in manual feed: A4, A3, A2, A1, A0

Grammage 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)

Thickness Up to 0.3 mm

Applications Line drawings; Presentations; Renderings

Memory 1 GB

Hard disk None

Interfaces Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n

Print languages (standard) HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Drivers Raster driver for Windows and macOS

Printer 36-in: 1317 x 555 x 932 mm

Shipping 36-in: 1470 x 575 x 646 mm

Printer Weight 36-in: 41.7 kg

Shipping Weight 36-in: 62 kg

What in the Box HP DesignJet Studio series printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges,spindle, quick reference guide, setup poster, power cord

HP DesignJet Studio  Series Printer

Printer Stand

Automatic Sheet Feeder

Roll Cover

Printhead

Introductory Ink Cartridges

Spindle

Quick Reference Guide

Setup Poster

Power Cord
