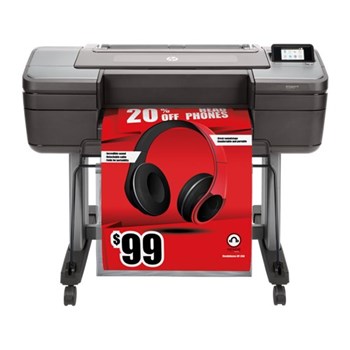

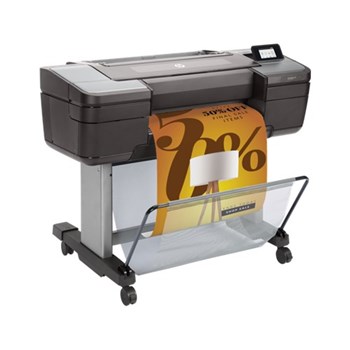

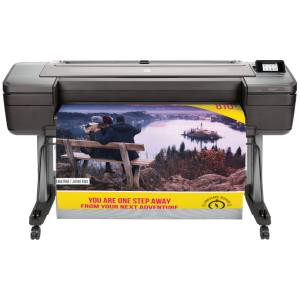

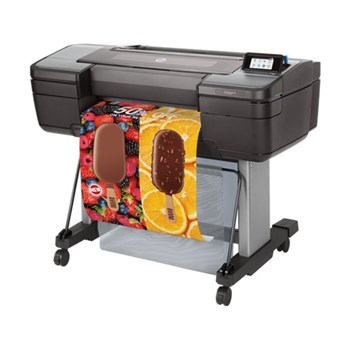

DESIGNJET Z6 24" POSTSCRIPT PRINTER
Product Description
High-definition prints, fast and secure. More quality with fewer inks.
Print speed 24-in:Fast: 66.9 m²/hr on plain media/ Normal: 15.2 m²/hr on coated media/Best: 7.9 m²/hr on glossy media
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Margins Roll: 5 x 5 x 5 x 5 mm (borderless on selected media , or on all media with V-Trimmer ) Sheet: 5 x 17 x 5 x 5 mm
Ink types Pigment-based
Ink drop 7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)
Printheads 3 universal printheads (valid for all colors)
Printhead nozzles 2112 per color
Line accuracy ±0.1%
Minimum line width 0.02 mm (PDF addressable @ 1200 dpi)
Short-term color stability < 1 dE2000 in less than 5 minutes
Long-term print-to-print repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Max optical density 4 L* min/2.5 D
Handling Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter,
Roll size 24-in: 279 to 610-mm
Sheet size 24-in: 210 x 279 to 610 x 1676 mm
Standard sheets 24-in: A4, A3, A2, A1
Grammage 80 to 500 g/m²
Thickness Up to 0.8 mm
Printer (w x d x h) 24-in: 1293 x 695 x 998 mm
Shipping (w x d x h) 24-in: 1440 x 766 x 718 mm
Printer 66-96 kg
Shipping 97-132 kg
What's in the box?
HP DesignJet Z6 24-in PostScript Printer
Printheads
Introductory Ink Cartridges
Printer Stand and Media Bin
Spindle
Quick Reference Guide
Setup Poster
Power Cord
Product Specifications
Max. Print Width 24inch
Up to Res 2400 x 1200 dpi
128GB Standard Memory
6 Ink Cartridges
500GB Self-Encrypting HDD
USB & Network Interface
One Year Limited Warranty
Brochure for HP DesignJet Z6 24" Colour Large Format Inkjet Printer
