Product Description

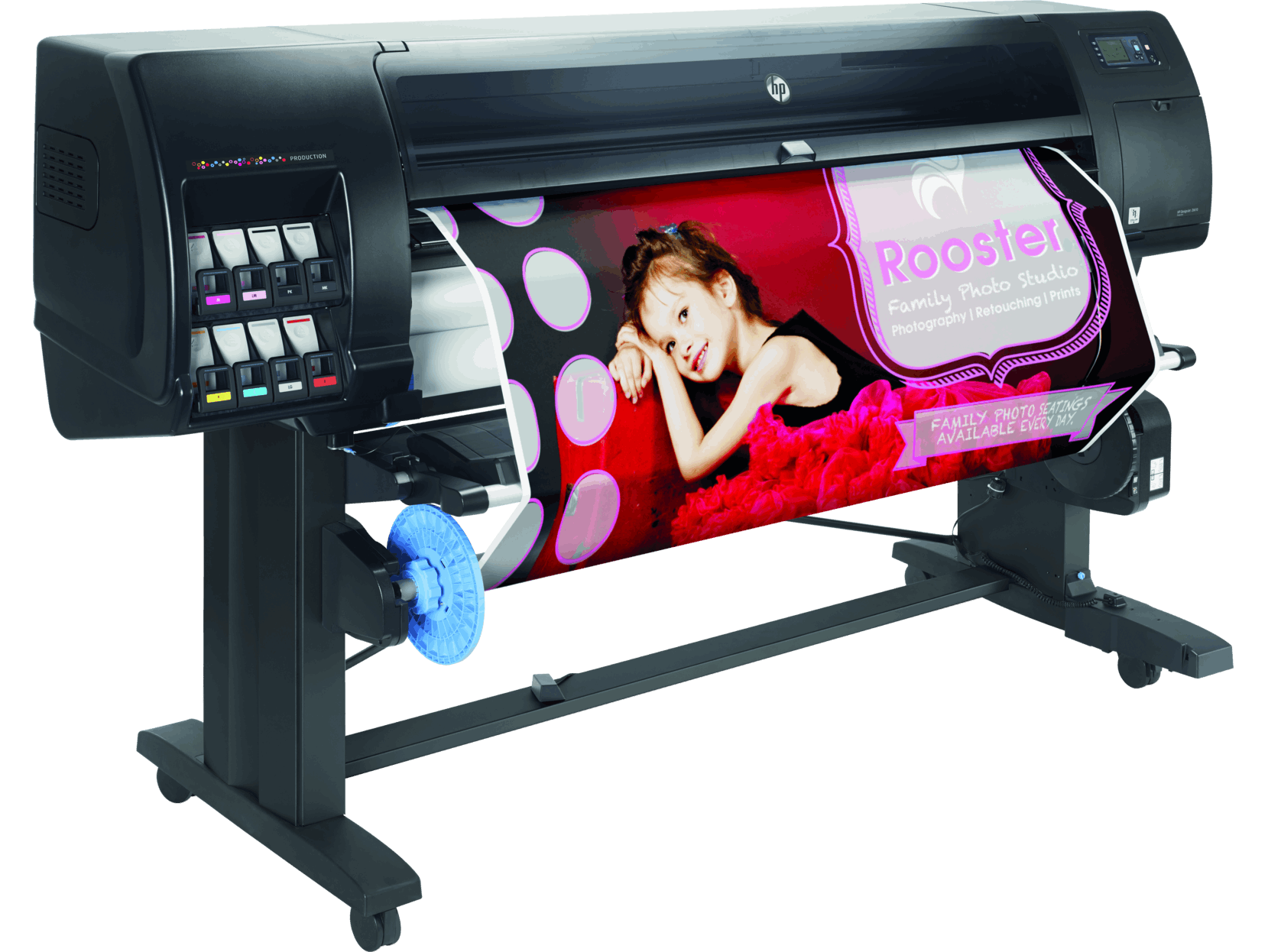

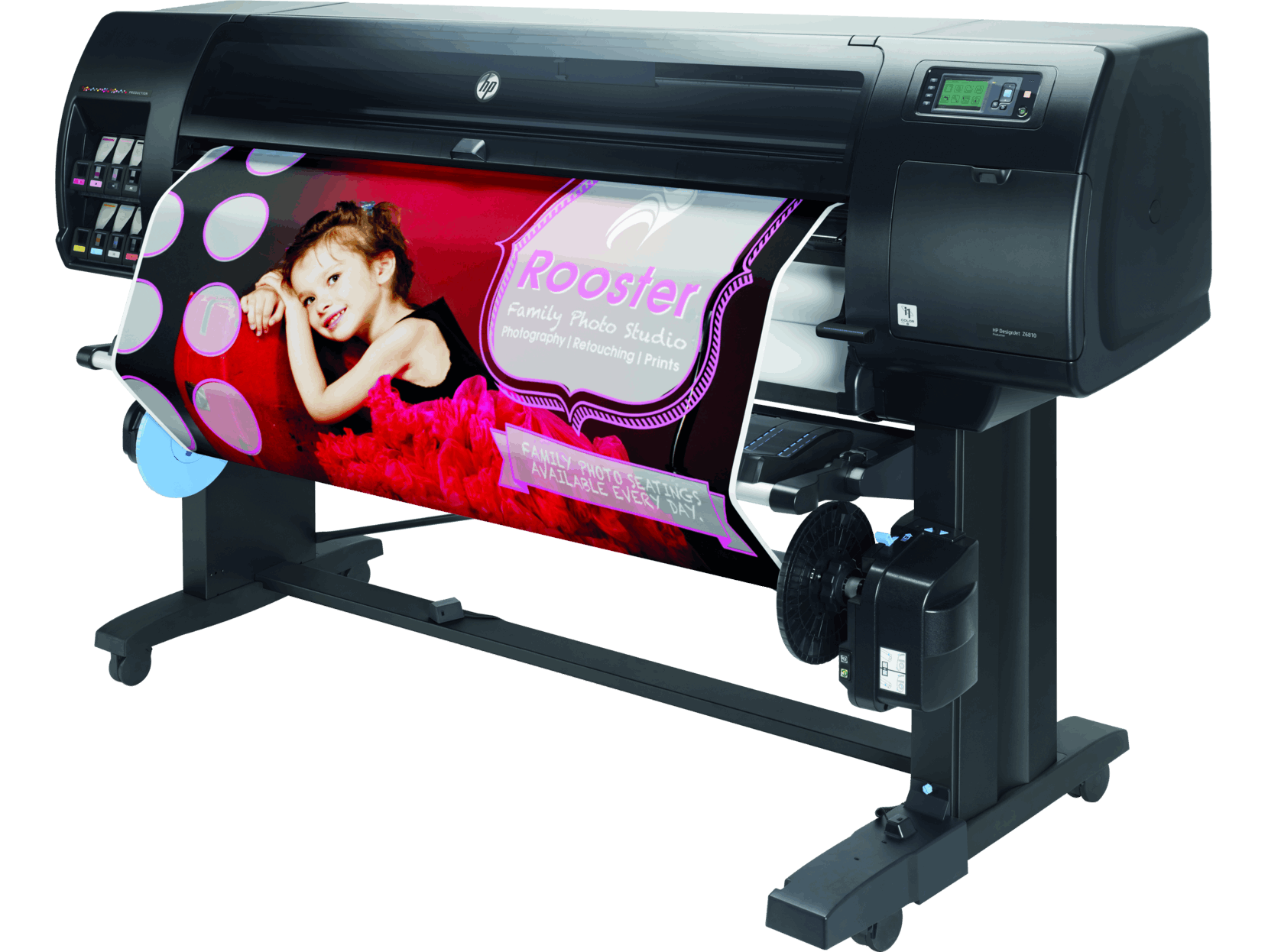

HP DesignJet Z6810 Production Printer 42-Inch
The fastest high-quality specially designed for production printing solution At a glance
• 42 inch
• High quality expectations
• Impressive printout from impactful photo to detailed line drawings
• Print speeds up to 19.7 m²/h on glossy and 50.9 m²/h on plain paper
• Easily create content and submit jobs using the HP Applications Center
Max print speed 140 m²/hr1 (1500 ft²/hr1) on plain media
Color images Normal: 1.5 min/page2 on A1/D or up to 26.3 m²/hr1 (283 ft²/hr1) on coated media / Best: 3.2 min/page2 on A1/D or up to 13.1 m²/hr1 (141 ft²/hr1) on glossy media
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Margins Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
Ink types Pigment-based
Ink cartridges 8 (magenta, yellow, matte black, photo black, chromatic red, cyan or light cyan, light gray, light magenta)
Printheads 8 (2x matte black/chromatic red, 2x magenta/yellow, 2x light magenta/cyan, 2x photo black/light gray)
Color accuracy Median < 1.25 dE2000, 95% of colors < 2.75 dE20003
Short-term color stability < 1 dE2000 in less than 5 minutes4
Long-term print-to-print repeatability Average < 0.5 dE2000, 95% of colors < 1.25 dE20004
Max optical density 4.5 L* min/2.31 D4
Handling Roll feed, automatic horizontal cutter, media bin5, take-up reel6
Roll size 42-in: 279 to 1067 mm; 60-in: 279 to 1524 mm;
Grammage 80 to 500 g/m²
Thickness Up to 0.6 mm (Up to 22 mil)
Printer 42-in: 1970 x 690 x 1370 mm;
Shipping 42-in: 2280 x 735 x 1200 mm;
Printer Weight 42-in: 123 kg;
Shipping Weight 42-in: 177 kg;
What's in the box HP DesignJet Z6810 Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin, take-up reel, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord
Product Specifications
Max. Print Width 42"
Up to Res 2400 x 1200 dpi
64GB Standard Memory
500GB Hard Disk Drive
8 Number of Colours
USB & Network Interface
One Year Limited Warranty
Brochure for HP DesignJet Z6810 42-in Large Format Inkjet Printer
