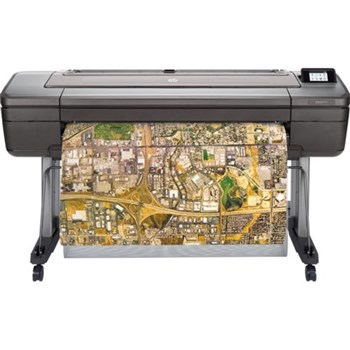

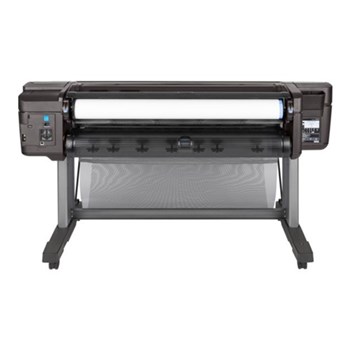

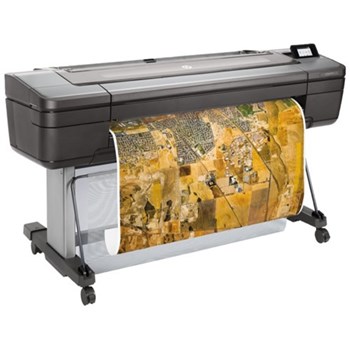

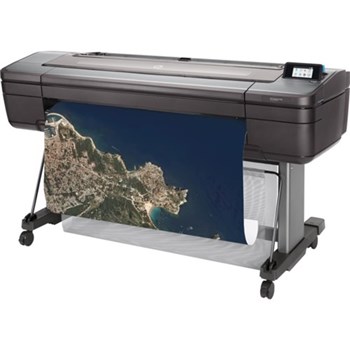

HP DesignJet Z6dr PS 44" Large Format Inkjet Printer

The HP T8W18A Large Format Dual-Roll PostScript Graphics Printer reads details more clearly and see high-contrast color with new high-definition HP printheads. Handle complex files and secure your printers/dataProfessional photographers, graphic designers and print service providers who want to create high-impact indoor prints consistently and accurately More quality with fewer inks for high-definition output.

Designed to handle even the most complex files, and with built-in security to help you protect your work and your information. This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Handle even the most complex files with powerful processing architecture and the Adobe PDF Print Engine.[3]Cut maps to different sizes in fewer steps with the first printer including an integrated vertical trimmer.

Print speed 44-in:Fast: 80.5 m²/hr on plain media / Normal: 18.8 m²/hr on coated media / Best: 9.7 m²/hr on glossy media

Print resolution Up to 2400 x 1200 optimized dpi

Technology HP Thermal Inkjet

Margins Roll: 5 x 5 x 5 x 5 mm (borderless on selected media , or on all media with V-Trimmer ) Sheet: 5 x 17 x 5 x 5 mm

Ink types Pigment-based

Ink drop 7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)

Printheads 3 universal printheads (valid for all colors)

Printhead nozzles 2112 per color

Line accuracy ±0.1%

Minimum line width 0.02 mm (PDF addressable @ 1200 dpi)

Short-term color stability < 1 dE2000 in less than 5 minutes

Long-term print-to-print repeatability Average < 0.5 dE2000, 95% of colors < 1.4 dE2000

Max optical density 4 L* min/2.5 D

Handling Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)

Roll size 44-in: 279 to 1118-mm

Sheet size 44-in: 210 x 279 to 1118 x 1676 mm

Standard sheets 44-in: A4, A3, A2, A1, A0

Grammage 80 to 500 g/m²

Thickness Up to 0.8 mm

Printer (w x d x h) 44-in: 1802 x 695 x 998 mm

Shipping (w x d x h) 44-in: 1950 x 766 x 718 mm

Printer 66-96 kg

Shipping 97-132 kg

HP DesignJet Z6dr 44" PostScript Printer

Printheads

Introductory Ink Cartridges

Printer Stand and Media Bin

Spindle

7.62cm (3in) Core Adapter

Quick Reference Guide

Setup Poster

Power Cord
