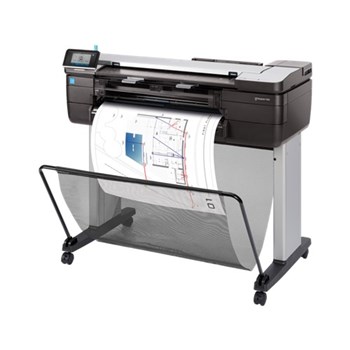

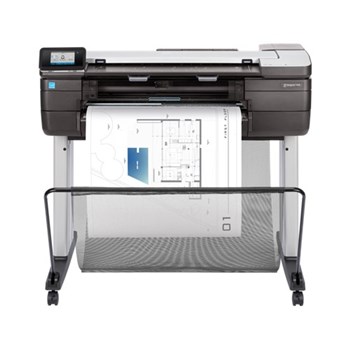

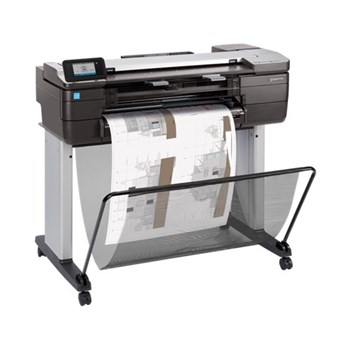

HP Designjet T830, MFP 24", Large Format Inkjet Printer

Brief Overview

A1 Colour HP DesignJet T830, Large Format Multifunction 24" Printer, Perfect for Enterprise

Product Description

Communicate more effectively—no learning curve needed—with print plus scan and copy capabilities

Print speed  26 sec/page on A1, 81 A1 prints per hour
Print resolution  Up to 2400 x 1200 optimized dpi
Technology  HP Thermal Inkjet
Margins  Roll: 5 x 5 x 5 x 5 mm / Sheet: 5 x 5 x 5 x 5 mm

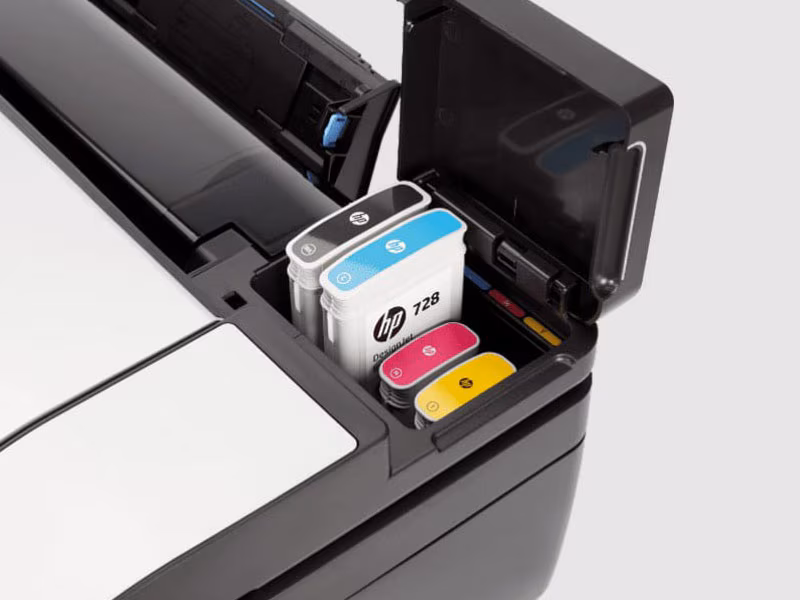

Ink types  Dye-based (C, M, Y); pigment-based (mK)
Ink drop  6 pl (C, M, Y); 12.6 pl (mK)
Printheads  1 (C, M, Y, mK)
Printhead nozzles  1376
Line accuracy  ±0.1%
Minimum line width  0.02 mm (HP-GL/2 addressable)
Max optical density  8 L* min/2.10 D
Multifunction capabilities  Up to 3.81 cm/sec (color, 200 dpi)
Scan speed  Up to 11.43 cm/sec (grayscale, 200 dpi)
Scan resolution  Up to 600 dpi
Scan format  JPEG, PDF, TIFF
Scan destinations  Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
Thickness  0.8 mm
Handling  Sheet feed, roll feed, input tray, media bin, automatic horizontal cutter
Roll size  279 to 610 mm
Sheet size  Input tray: 210 x 279 to 330 x 482 mm / Manual feed: 330 x 482 to 610 x 1897 mm
Standard sheets  Input tray: A4, A3 / Manual feed: A2, A1
Grammage  60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)
Applications  Line drawings; Renderings; Presentations
Memory  1 GB
Hard disk  None
Interfaces  Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Print languages (standard)  HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, URF
Printing paths  Wi-Fi Direct to enable mobile printing via HP ePrint, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive
Printer  1098 x 605 x 1155 mm
Shipping  1310 x 570 x 645 mm
Printer Weight  46.7 kg
Shipping Weight  65.7 kg
What's in the box  HP Designjet T830 24-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers
