Product Description
Produce high-quality HD results with CCD scanning technology. Streamline workflows with incredible scan and processing speeds. Improve efficiency and productivity with an enhanced feature set. Enjoy easy integration with HP large-format printers.
Scan speed Color: up to 33 cm/sec; Grayscale: up to 33 cm/sec
Resolution 1200 dpi
Technology CCD scanning technology and LED-based illumination system
Accuracy 0.1% ±1 pixel
Data capture (color/mono) 48-bit/16-bit
Scan format PDF, PDF/A, TIFF, JPEG, JPEG2000, DWF, CALS (B&W), multi-page PDF generation
Scan destinations File, email, USB, HDD, network folder, FTP, print
Settings Type of original, image crop and align preview, lightness, saturation and RGB controls, white point and black point adjust, sharpen/blur, mirror copy, enlarge/reduce, paneling, tiling, nesting, accounting, batch, multipage PDF generation, invert, collate copy with reprint
Maximum scan width 1067 mm
Handling Straight-through scan paper path for sheet and cardboard originals, adjustable paper pressure for very thin media. Face-down, front entry, rear exit, rewind to front, use document return guide for front-return. Automatic high adjustment of scanner bridge for thick originals up to 15 mm (0.6 in) thickness.
Types Non-abrasive paper, vellum, Mylar, sepia, blueprints, plastic, film, plastic laminate, foam board, cardboard, newspaper, tracing paper. Varying condition documents: old, delicate, folded, creased, crumpled, damaged originals (no plywood, stone plates, metal plates or abrasive, dirty, rough, sharp edged, metal clamped, or burned surfaces or transparencies)
Maximum media width 1118 mm
Maximum media thickness 15 mm
Scanner 1530 x 930 x 1660 mm
Shipping 1910 x 680 x 800 mm
Scanner Weight 71 kg
Shipping Weight 118 kg

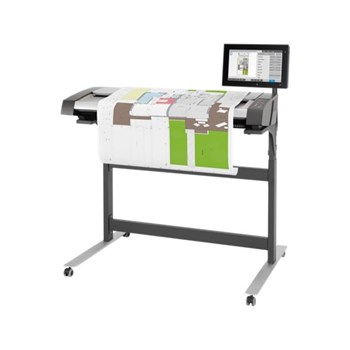

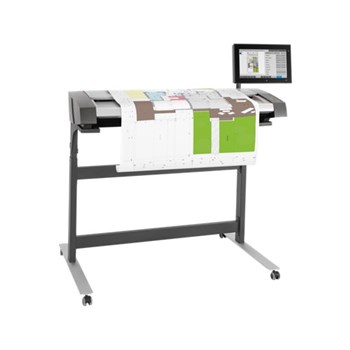

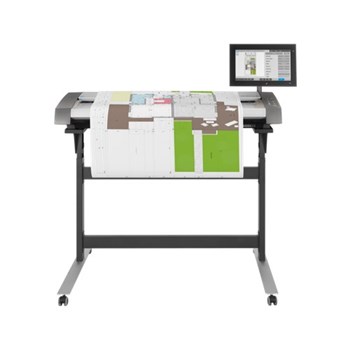

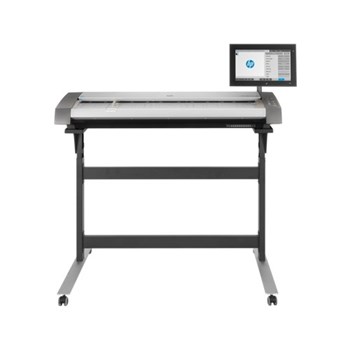

What's in the box HP HD Pro 2 42-in Scanner, stand, touchscreen (panel PC), quick reference guide, media guides, setup poster, copy/scan software, documentation software, Ethernet cable, USB cable, power cords
