Product Description

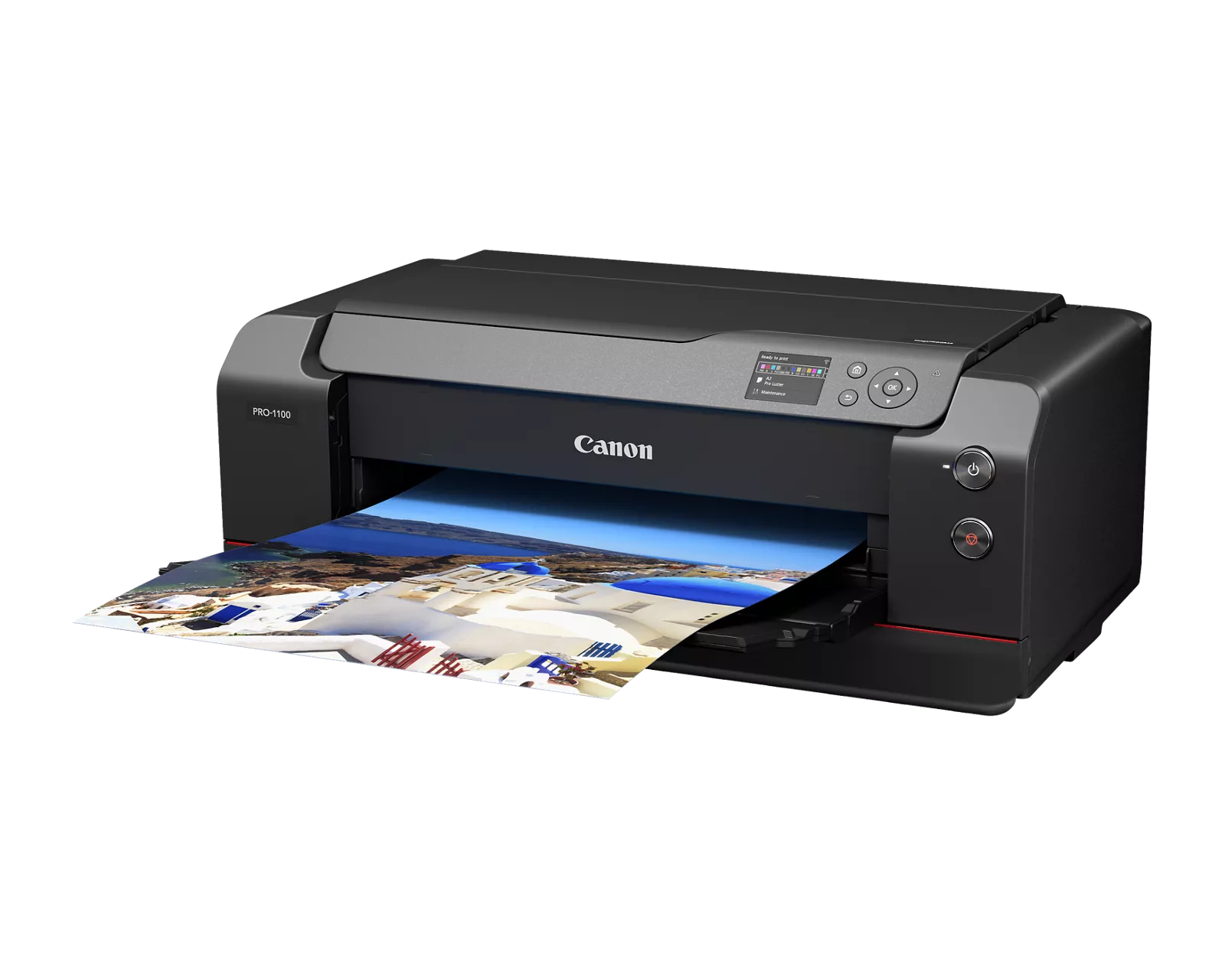

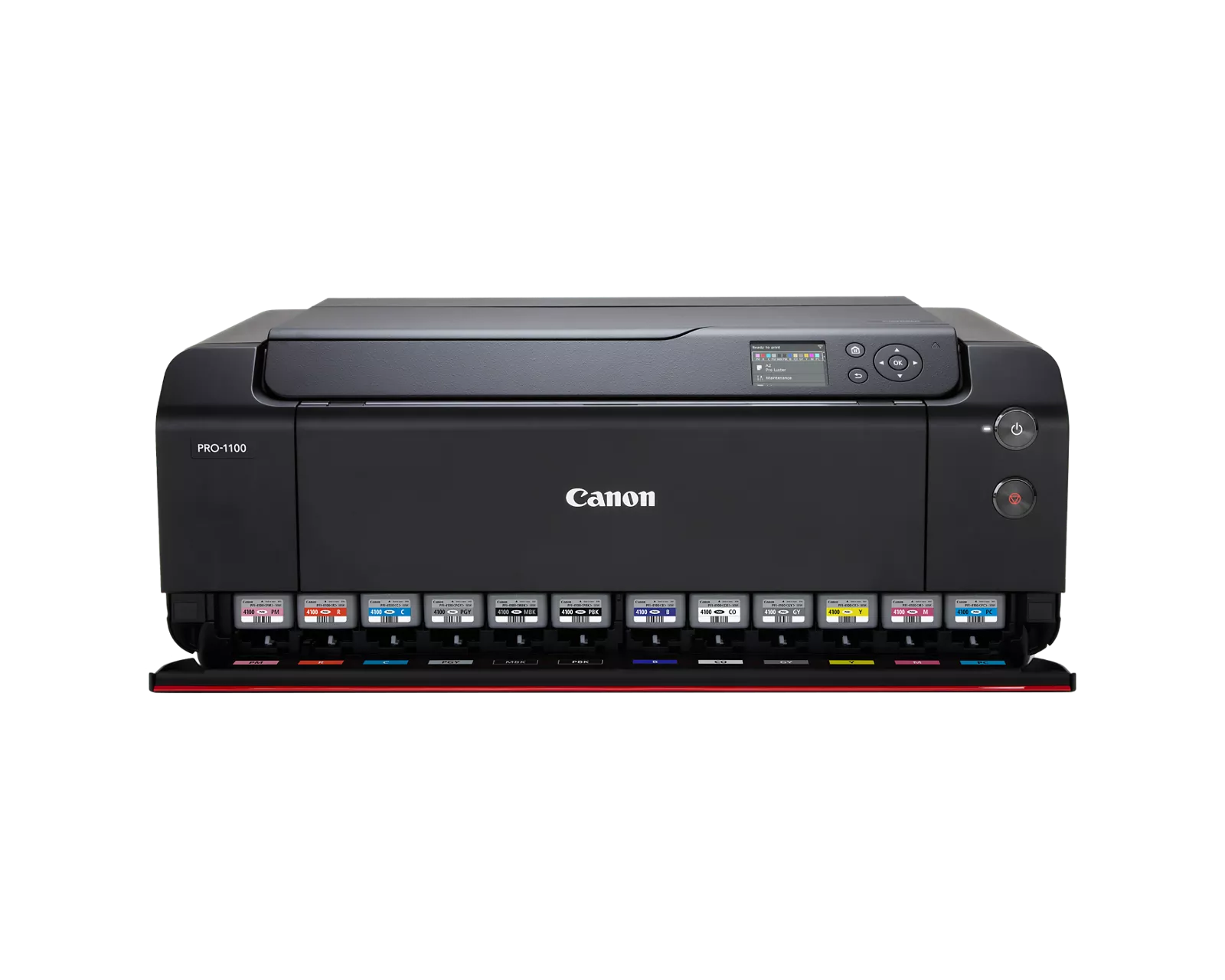

Equipped with the L-COA PRO Image Processing Engine, the PRO-1100 can quickly and accurately determine printing paths and patterns to work as soon and efficiently as possible. This enables bordered 17 x 22" photos to be created in just four minutes while Canon's Air Feed System helps prevent paper from being deflected so ink falls accurately and in the right place. Also, to expand on the capabilities of the LUCIA PRO II ink set, it uses high light-resistant inks for long-term preservation of printed images, plus improved scratch resistance, improved black density, and improved reproduction in blue-dark areas.

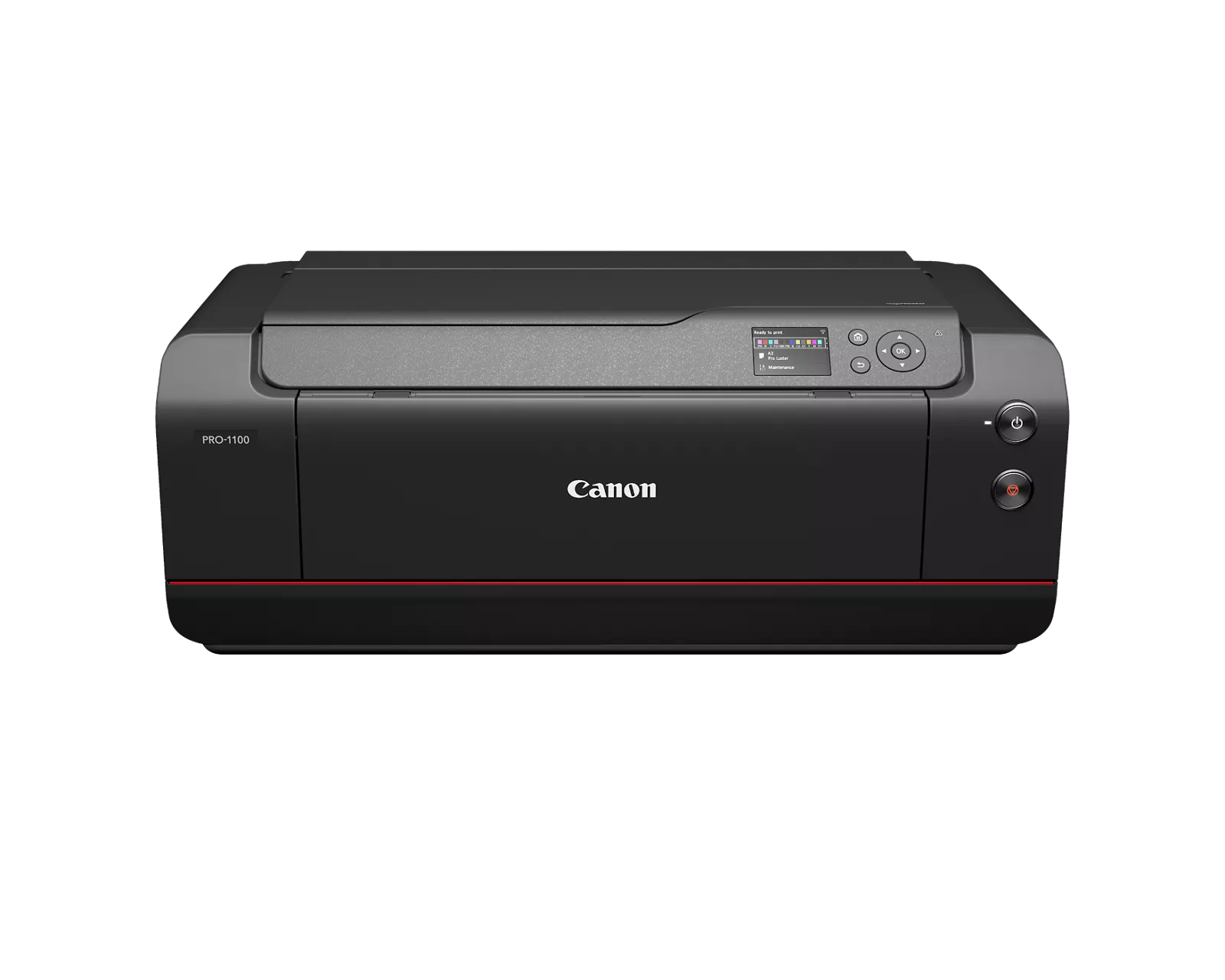

A 3.0" color LCD is available on the front of the unit for easily viewing settings and making adjustments. Connectivity options include USB 2.0, Ethernet, and Wi-Fi 5 (802.11ac). Wireless printing adds compatibility with Canon's PRINT app, Apple AirPrint, and Mopria for iOS and Android devices.
Anti-Clogging Technology and Compensation Function
Anti-clogging technology is controlled using a fine print head that controls precise ink ejection. Ink nozzle conditions are precisely checked with sensors and when a blockage is detected, another nozzle automatically provides backup. In addition to preventing printing failures due to banding, this also reduces the frequency at which head cleaning is required.
Air Feeding System
The Air Feeding System prevents paper from skewing for accurate ink placement. It prevents the sheet in use from being deflected in such a way that the ink falls accurately and in the right place. This uniform-level surface allows incredible ink drop accuracy and better image quality.
Wide Color Gamut for Exceptional Image Clarity
The LUCIA PRO II ink system helps you improve color reproduction, image clarity, and enhanced darker areas. It faithfully reproduces colors and dark areas crucial for printing works of art.
Integration of EOS & imagePROGRAF PRO Series
Canon's total technological capabilities provide high-quality photo output.
11 Pigment-Based Ink System Plus Chroma Optimizer
The 11 pigment-based ink system provides a broad color gamut and improved gloss uniformity for superb glossiness and anti-bronzing. The included Chroma Optimizer ink enhances glossiness flattens the print surface, and expands color range.
Enhanced Color Reproduction
There is enhanced color reproduction in dark areas with deep, detailed expression (art paper/glossy paper).
L-COA PRO Image Processing Engine
Process massive volumes of image data quickly with the L-COA PRO image processing engine.
Professional Print & Layout Software
This powerful software provides professional photographers with intuitive printing solutions. This standalone application can also be used as a plug-in from Digital Photo Professional or Adobe software to support seamless output.
Printer Management Solutions
Every detail in your print must be perfect. Why not have the same obsession for your workflow? The PRO-1100 is precisely managed with powerful management tools such as the Media Configuration, Color Calibration, and Accounting Manager tools.
LUCIA PRO II Ink
LUCIA PRO II pigment ink system inherits LUCIA PRO's high image quality and further enhances image robustness and photo art quality.
Improved Print Longevity
The newly developed pigment ink "LUCIA PRO II" uses high light-resistant inks for the long-term preservation of printed images.
Improved Scratch Resistance
New Highly Crystalline Wax reduces abrasiveness without losing image quality and makes handling artwork less worrisome.
Improvement of Black Density
The new matte-black ink formula improves black density and achieves deeper black expression.
Greater Dark Blue Representation
The new color design has improved reproducibility in blue-dark areas for a wider gamut of colors.
Wide Color Gamut
A wider array of colors helps produce a wider color gamut, achieving improved color reproduction and image clarity as well as enhanced darker areas.
Consistent Reflection of Light with Chroma Optimizer
Printing on gloss paper using pigment ink sometimes results in uneven glossiness and bronzing due to the light dispersion caused by the varying height of the adhering ink. Chroma Optimizer solves this problem by evenly coating the surface of the print
Technical Specifications
Printer Overview
Printer Type Professional 17” Wireless Inkjet Photo Printer with a 11 Pigment-based Ink System plus Chroma Optimizer
Ideal For Professional Photography, Fine Art Printing, Gallery Photo Printing up to 17” x 22”, Black & White Printing, Grayscale Photo Printing, Studio Photo Printing, Graphic Artists
Print
Ink & Maintenance Information
Print Features
Advanced Pattern Print, Air Feeding System, AirPrint®3, Mopria® Print Service5, Anti-Clogging Technology, Auto Photo Fix, Black & White (Monochrome) Photo Printing, Borderless Printing4, Calibration Link, Canon PRINT App2, Canon Print Studio Pro Plug-in, Chroma Optimizer, Color Density Sensor, Contrast Reproduction, Fine Art Paper Support, Grayscale Photo Printing, Index Print, Non-Firing and Compensation Function, Paper Feed Skew Correction, Photo Printing, Real Time Control of Ink Ejection, Wireless Printing2
Printing Capability
Single Sided (Simplex) Printing, Borderless Photo Printing (4” x 6” - 17” x 22”)
Print Speed (ESAT)
17” x 22” Bordered Photo (Color): Approx. 4 Minutes6
13” x 19” Bordered Photo (Color): Approx. 2 Minutes, 25 Seconds6
Print Head
FINE (Full-photolithography Inkjet Nozzle Engineering) Print Head, User Replaceable: Yes
Number of Nozzles
1,536 Nozzles x 12 Inks, Total: 18,432
Head Configuration
12 Ink Integrated Type (4 Ink Chips x 3)
Nozzle Pitch
600 dpi x 2
Droplet Size
Minimum 4 Picoliters Per Ink
Print Resolution
Up to 2400 x 1200 dpi7
Media Handling
Rear Tray and Manual Feed Slot
Supported Media Sizes
A5, A4, A3 (13” x 19”), A2, B5, B4, B3, Letter (8.5” x 11”), Legal (8.5” x 14”), Ledger (11” x 17”), Hagaki/Return Hagaki/A3+/L/2L/4" x 6", 5" x 7", 9" x 13", 11" x 14", 13" x 19" Super B/US Photo 16" x 20", 17" x 22", 17" x 25", 7" x 10", 8" x 10", 10" x 12", 12" x 12", 14" x 17", 17” x 22”
Media Compatibility
Plain: Plain Paper; Super High Gloss: Photo Paper Pro Platinum; Glossy: Photo Paper Plus Glossy II, Photo Paper Pro Crystal Grade; Semi-Gloss: Photo Paper Plus Semi-Gloss, Photo Paper Pro Luster; Matte: Matte Photo Paper, Photo Paper Premium Matte; Other: Premium Fine Art Smooth, Premium Fine Art Rough, Fine Art “Museum Etching”, Greeting Cards, Magnetic Photo Paper, Photo Stickers, Restickable Photo Paper
Paper Capacity
Top Tray: Plain Paper: 150 Sheets (Letter Size)
Photo Paper: 4” x 6”: 20 Sheets, 8.5” x 11” (Letter) / 8” x 10”: 10 Sheets, 13” x 19”(A+) / 17” x 22”: 1 Sheet
Manual Feed Slot: Photo Paper: All Sizes: 1 Sheet
Printable Paper Length
Maximum: 129"
Supported Media Thickness/Weight
Top Tray: Maximum: 0.3 mm
Manual Feed Slot: 0.1 mm - 0.7 mm
Ink & Maintenance Information
Ink System
11 Individual Pigment-Based Ink System plus Chroma Optimizer, LUCIA PRO II Pigment Ink System
Ink Tanks

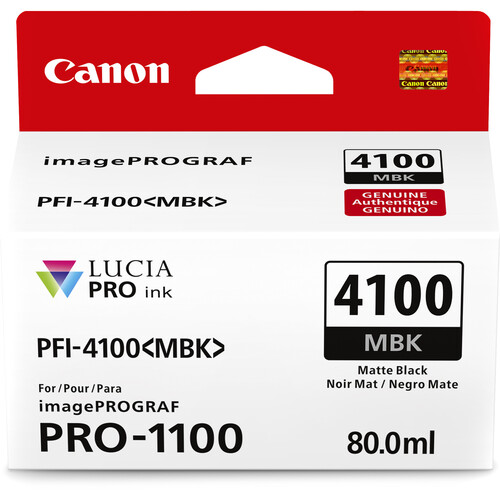

PFI-4100 MBK (Matte Black)

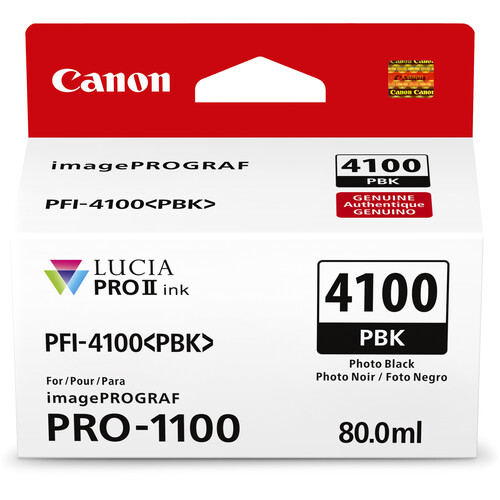

PFI-4100 PBK (Photo Black)

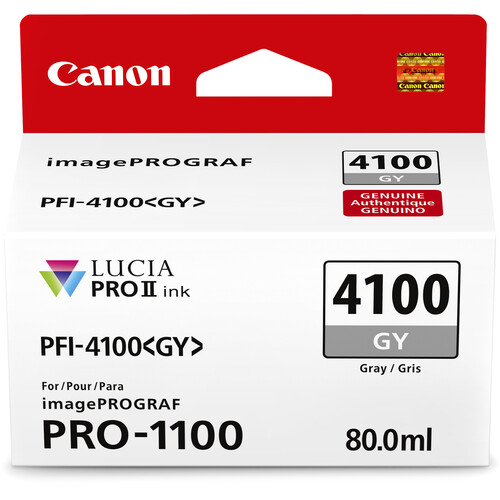

PFI-4100 GY (Gray)

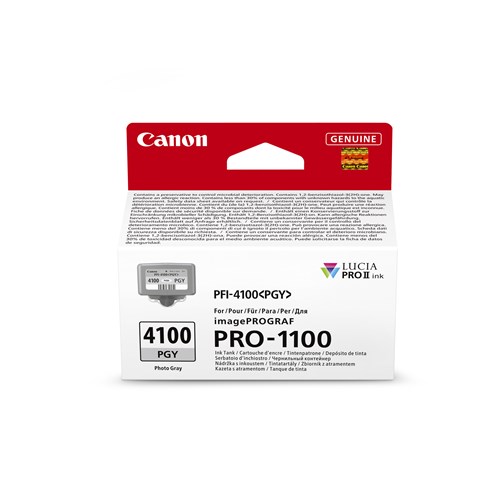

PFI-4100 PGY (Photo Gray)
PFI-4100 B (Blue)

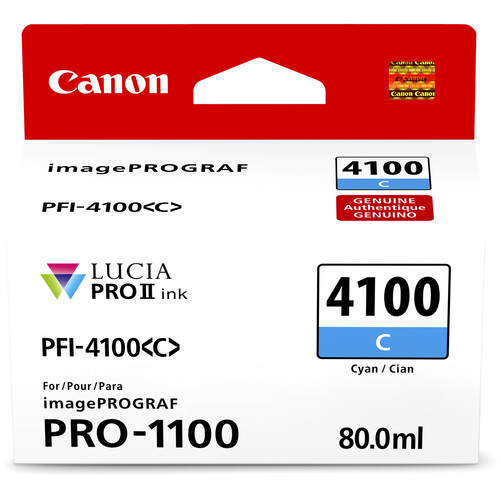

PFI-4100 C (Cyan)

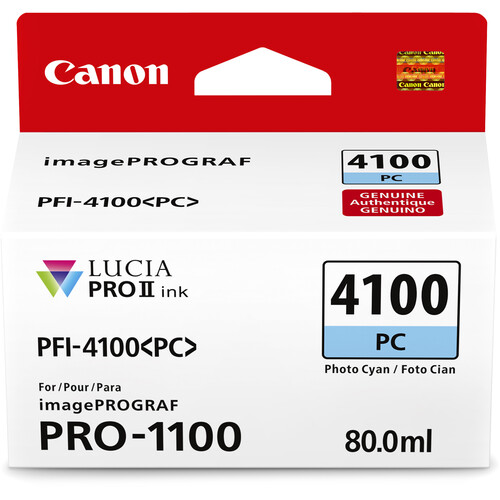

PFI-4100 PC (Photo Cyan)

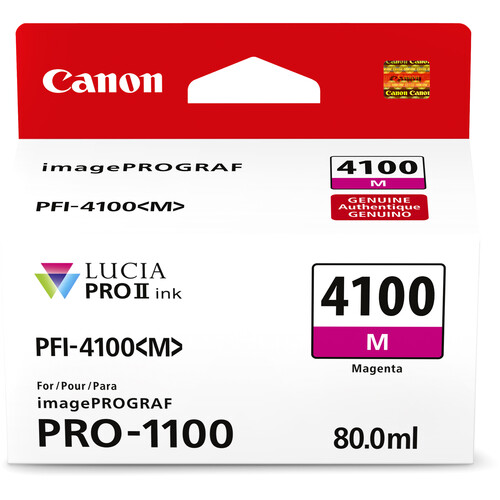

PFI-4100 M (Magenta)

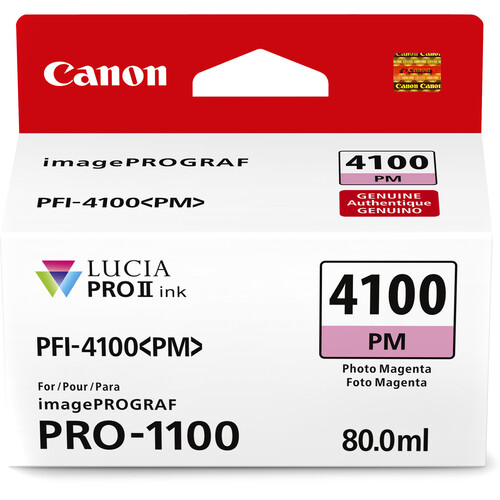

PFI-4100 PM (Photo Magenta)

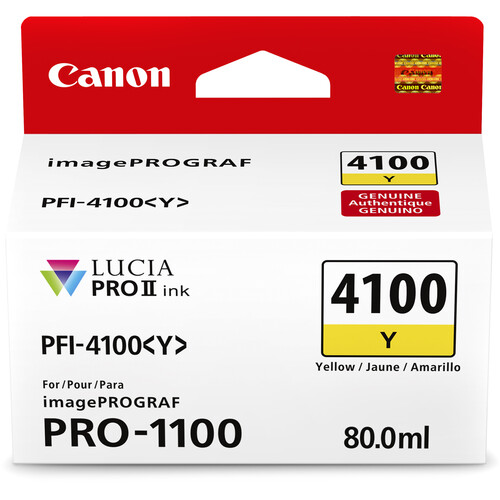

PFI-4100 Y (Yellow)

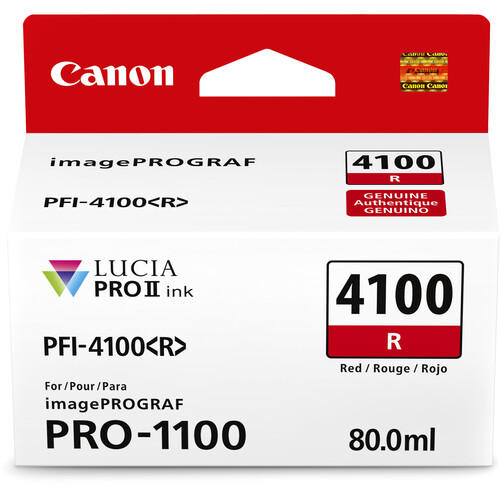

PFI-4100 R (Red)

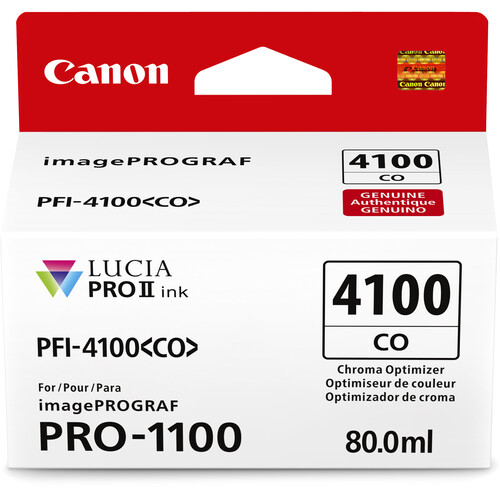

PFI-4100 CO (Chroma Optimizer)
Ink Fill Volume
PFI-4100 Inks: 80.0 ml (each)
PFI-4100 CO: 80.0 ml (each)
Ink Information
The professional LUCIA PRO II Pigment Ink System1 offers accurate color reproduction and enhanced print longevity. LUCIA PRO II Inks have provided a broader color gamut and greater shadow detail reproduction in dark areas, and offer:8
Increased density of ink on the paper improves color gamut
Even light reflection contributes to improved glossiness and image clarity
Contributes to anti-bronzing on glossy paper
Maintenance Information
MC-20 Maintenance Cartridge
General
Connectivity
Hi-Speed USB
Wi-Fi® / Wireless2
Ethernet 10 / 1000
Wireless Information
Wireless Standard: IEEE 802.11 b/g/n/a/ac2
Wireless Security: WPA-PSK, WPA2-PSK, WPA3-SAE2
Wireless LAN Frequency Band: 2.4 GHz / 5 GHz2
Access Point Mode Capable: Yes2
Wireless Direct Connection Capable: Yes2
Display
3.0” LCD
OS Compatibility
Windows: Windows 11, Windows 10, Windows 8.1, Windows 7 SP1, Windows Server 2022, 2019, 2016, 2012 R2, 2008 R2 SP110
Mac: mac OS v14 – macOS v11.7.1010
Mobile Operating Systems: iOS®, AndroidTM, ChromeOS10
Mobile Apps & Plug-ins (iOS® / AndroidTM)
AirPrint®3
Canon PRINT app
Mopria® Print Service5
Software & Plug-in (Windows/Mac)
imagePROGRAF PRO-1100 17” Professional Wireless Inkjet Photo Printer Driver10
Setup Software & User Guide CD10
Canon Professional Print & Layout10
Management Tools:
Quick Utility Toolbox
Media Configuration Tool
Accounting Manager
Device Management Console
Supported Languages
22 Supported Languages: Chinese (Simplified), Chinese (Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Brazilian, Swedish, Thai, Turkish
Power Consumption
Energy Efficiency: Rated EPEAT Gold, Energy Star® Certified, RoHS Directive Compliant
Auto Power On / Off Capable: Yes
Input Voltage: AC 100 – 240V, 50 / 60 Hz
Power Consumption: 38W (1.2W Standby)11
Sound Management
Quiet Mode: Available
Noise Level: Approx. 43.0 dB(A)12 (Canon PT-201 Photo Paper)
Rec. Operating Environment
Operating Temperature: 41° - 95° F (5° - 35° C)13
Operating Humidity: 10 - 90% RH (No Condensation)13
Storage Environment
Temperature: 32° - 104 F (0° - 40° C)
Humidity: 5 - 95% RH (No Condensation)
Warranty
1-Year Limited Warranty with InstantExchange Program14
Printer Dimensions (Closed) 28.5” (W) x 17.1” (D) x 11.2” (H)
Printer Weight 71.4 lbs.
