Product Description

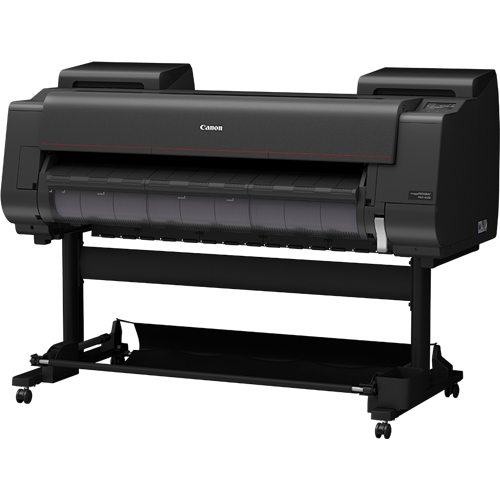

Produce premium-quality photos and art pieces with a sustainable, 60” cutting-edge 12-colour printer. Designed for photographers, artists and print service providers who demand unbeatable image quality and print longevity.
Where Your Vision Becomes Timeless Precision
Elevate your fine art and photography with unbeatable image quality, most faithful colour with precision and courtesy of enhanced blacks. Our prints are not just exquisite, they endure the test of time. Experience unparalleled reliability and efficiency while producing prints with excellence.
Premium image quality
Deliver print perfection with exceptional colour gradation for striking photography and fine art pieces. The cutting-edge 12-colour LUCIA PRO II ink set1 with Chroma Optimiser enhances dark density and produces deeper blacks with precision.
Increased durability
Future-proof your art with the imagePROGRAF PRO-6600. Improve image robustness with high scratch resistant ink and and preserve your work with improved light fastness using high light resistance pigment ink for 200 years2. Revel in unrivalled durability and set the benchmark for print longevity.
Seamless workflows

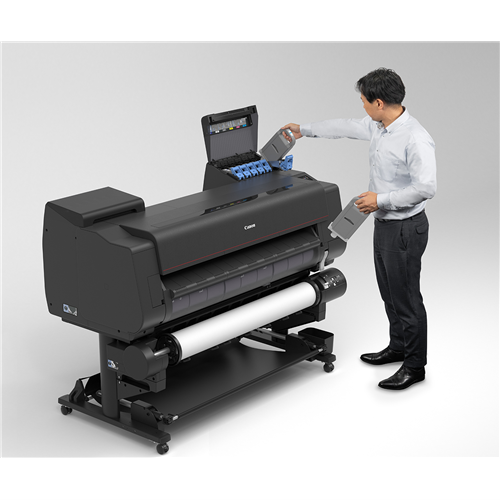

Transform printing workflows with easier media handling and simplified settings. Enhance efficiency with dual rolls, auto media loading, practical interior LED light and roll media size indicator. With new print head monitoring function and auto alignment adjustment, masterpieces are created without image deterioration.
Improved sustainability
Protect the environment by using less power during operation and power-off. The imagePROGRAF PRO-6600 is EPEAT Gold rated3 and its packaging reduces 89.5% of polystyrene usage.
Specifications:-
Printer Technology
Printer Type 12 Colours 60"
Print Technology Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles 18,432 nozzles (1536 nozzles x 12 colours)
Line Accuracy ±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 600 dpi x 2 includes Non-firing nozzle detection and compensation system
Ink Droplet Size minimum 4pl per colour
Ink Capacity Bundled Starter Ink: 3960ml (330ml for each colour)
Sales Ink: 160ml / 330ml / 700ml
Ink Type Pigment inks : 12 colours (Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey,
Photo Cyan, Photo Magenta, Photo Grey, Red, Blue, Chroma Optimiser)
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7~macOS 13
Other Supported Job Submission Protocols Apple AirPrint
Printer Languages PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

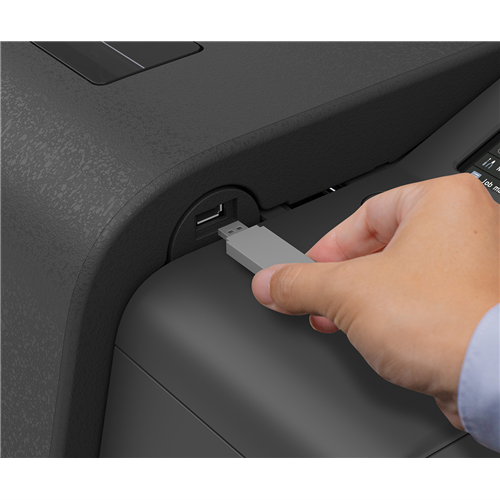

Standard Interfaces USB A Port: USB Memory (Direct Print) for PDF/JPEG files
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN1: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 3GB
Expansion slot : No
Hard Drive 500 GB (Encrypted HDD)
Print Speed
Photo Plain paper (A0):
1:37 (Fast)
2:49 (Standard)
Coated paper (A0)
2:49 (Standard)
5:35 (High Quality)
Glossy Photo Paper (A0)
5:35 (Standard)
8:50 (High Quality)
Media Handling
Media Feed and Output Upper Roll Paper : One Roll, Upper-loading, Front Output
Lower Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width Roll paper: 152.4 - 1524mm Cut sheet: 152.4 - 1524mm
Media Thickness Roll/Cut : 0.07 - 0.8mm
Minimum Printable Length Roll paper: 101.6mm (Cross and canvas paper: 200mm) Cut sheet: 203.2mm
Maximum Printable Length Roll paper : 18m (varies according to the OS and application) Cut sheet : 1.6m
Maximum Media Roll Diameter 170mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet: Top: 20mm, Bottom:20mm, Side: 3mm
Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet: Top: 3mm, Bottom: 12.7mm, Side: 3mm
Media Feed Capacity
Roll Paper: Two rolls. Automatic switching is possible.
Roll Paper, Cut Sheet: Manual switching is possible
Cut Sheet: 1 sheet
Media Take-Up Roll Unit Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll
Borderless Printing Width (Roll Only)
[Recommended] 515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0), 594mm(ISO A1), 841mm(ISO A0), 10”, 14”, 17”, 24”, 36”, 42”, 44”, 50", 54", 60"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 364mm(JIS B3/B4), 420mm(ISO A2), 6’’, 8”, 12’’, 15", 16”, 18", 20’’, 22’’, 30”, 34", 300mm, 500mm, 600mm, 800mm, 1000mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Maximum Number of Delivered Prints
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10 sheets,
coated paper less than 20 sheets
(excludes strong curled condition)
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption
Operation: 85W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less
Operating Environment Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)
Acoustic Noise (Power/Pressure) Operation: Approx. 48dB(A) (Measured based on ISO7779 Photo Glossy Paper HG/Standard/60")
Standby: 35 dB(A) or less
Operation: 6.6 Bels or less (Measured based on ISO7779 Photo Glossy Paper HG/Standard/60")
Regulations
CE mark, UKCA mark
Environment Certificates
CB certfication, EPEAT GOLD2
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main unit + Stand
1999×984×1168 mm (Basket Opened)
1999×766×1168 mm (Basket Closed)
171 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 2227 x 915 x 1025 mm, 222kg
Roll unit: 2133 x 562 x 461 mm, 42kg
What's Included
What's in the Box?
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Stack Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included
Software available as Download from Web.
Options
Optional Items
2"/3" Roll Holder: RH2-66
Roll Unit: RU-63
Consumables
User Replaceable Items
Ink Tank: MBK: PFI-2100(160ml)/PFI-2300(330ml)/PFI-2700(700ml)

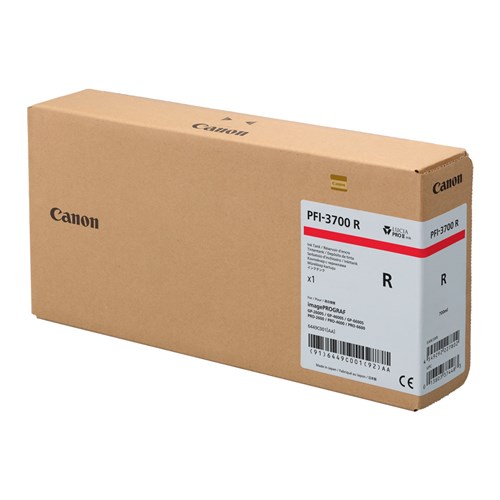

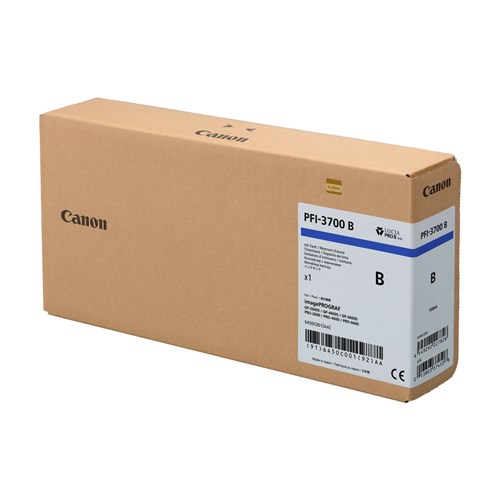

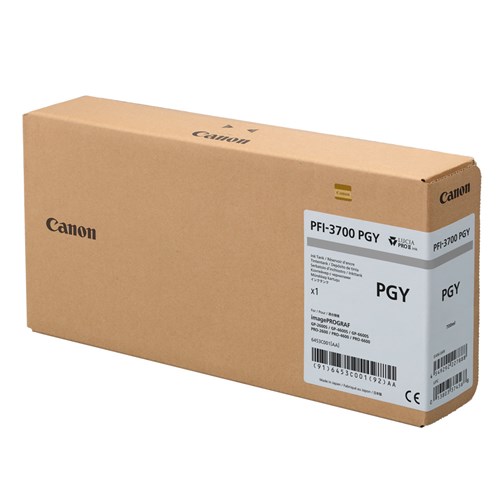

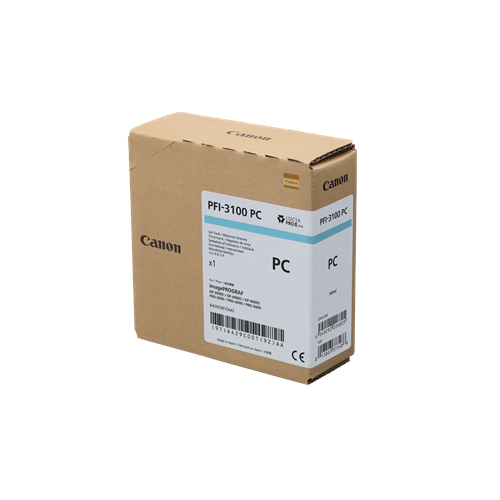

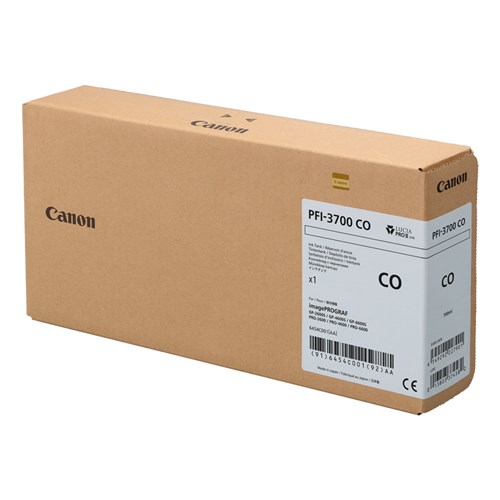

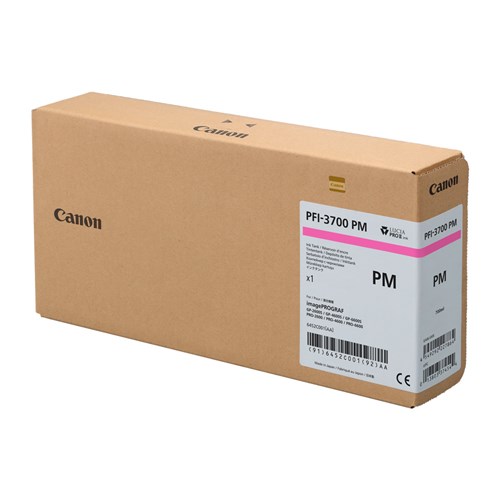

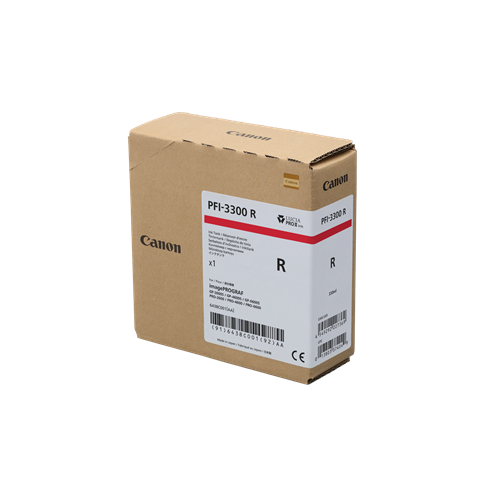

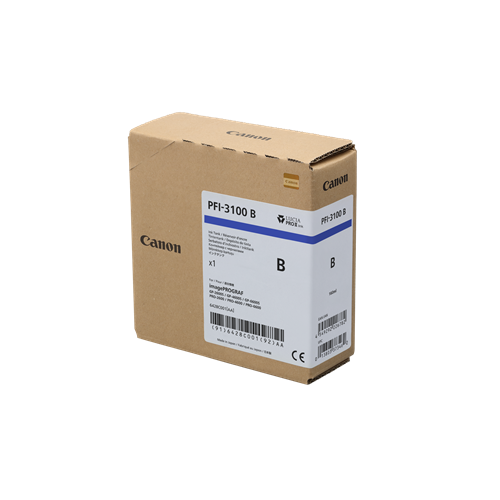

Others:PFI-3100(160ml)/PFI-3300(330ml)/PFI-3700(700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
