Product Description
Reimagine printing performance with the sustainable 24” imagePROGRAF TM-240, offering less noise printing, more intuitive functionality and brilliant image quality. Seamlessly produce sharp, crisp lines and vivid red colour for eye-catching marketing materials and accurate CAD prints for AEC offices, retail and education.

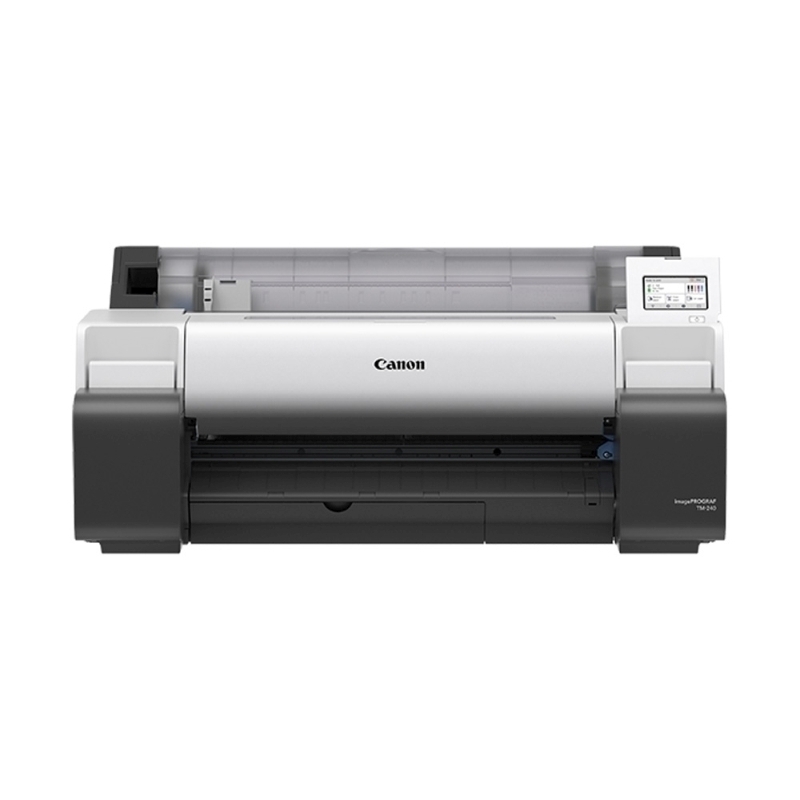

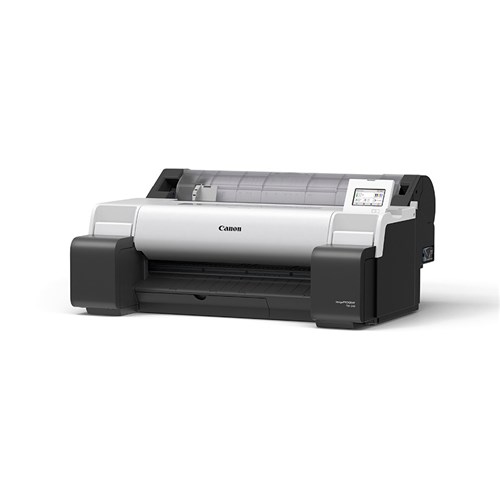

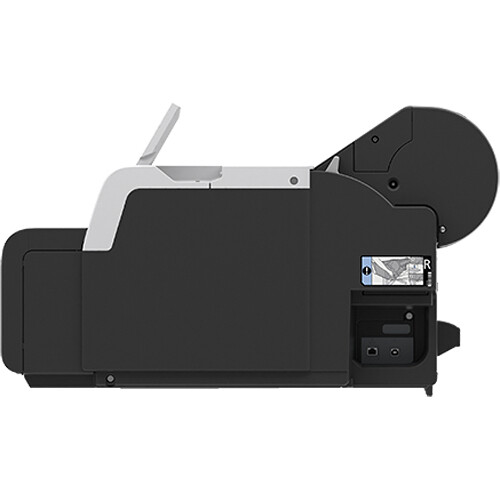

The Canon imagePROGRAF TM-240 Large Format Printer – where precision meets performance to bring your creative visions to life. This cutting-edge large format printer is designed to meet the demands of professionals who require exceptional quality and versatility in their prints.
Precision Engineering:
The Canon imagePROGRAF TM-240 is engineered with precision in mind. Featuring a 5-color Lucia TD pigment ink set, including matte black for enhanced black density and sharpness, this printer delivers stunningly accurate and vibrant prints. With a maximum resolution of 2400 x 1200 dpi, every detail of your design is reproduced with unparalleled clarity.
Efficiency Unleashed:
Equipped with the latest Canon technology, the TM-240 ensures maximum efficiency in every print job. The fast print speeds of up to 24 inches per minute for plain paper prints mean you can turn your ideas into reality in record time. The dual roll unit allows for seamless media changes, reducing downtime and increasing productivity.
Intuitive Operation:
The user-friendly 3-inch color touchscreen makes navigating the TM-240 a breeze. Effortlessly manage print settings, preview images, and check ink levels with just a few taps. The intuitive software interface ensures that even complex printing tasks are executed with ease.
Versatility Redefined:
From CAD drawings to vibrant posters, the Canon imagePROGRAF TM-240 handles a wide range of media types and sizes, thanks to its 24-inch printing width. Whether you're working with plain paper, glossy photo paper, or heavyweight coated media, this printer adapts to your creative needs.
Reliability You Can Trust:
Canon is synonymous with reliability, and the imagePROGRAF TM-240 is no exception. With a robust design and advanced features such as sub-ink tank system for ink replacement without interrupting the printing process, this printer ensures uninterrupted performance even in high-volume environments.
Connectivity at Your Fingertips:
Stay connected and in control with versatile connectivity options. The TM-240 supports USB, Ethernet, and Wi-Fi, providing seamless integration into your workflow. Print directly from your mobile device or cloud storage for added convenience.
Environmental Consciousness:
Canon is committed to sustainability, and the imagePROGRAF TM-240 reflects this commitment. With energy-saving features and eco-friendly design, you can print with confidence, knowing you're making a responsible choice for both your business and the environment.
Elevate your printing experience with the Canon imagePROGRAF TM-240 Large Format Printer – where precision, efficiency, and versatility converge to bring your creative visions to life like never before.
Specifications
Print Head
PF-06
Number of Nozzles
MBK: 5,120 nozzles
BK/C/M/Y: 2,560 nozzles
Droplet Size
Minimum 5pl per color
Ink Type
Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
Ink tank
Shipped with Printer: MBK(80ml), C, M, Y, BK (55ml each)
Replacement: C, Y, BK, MBK: PFI-030 (55ml) Magenta: PFI-031 (55ml)
Printer RAM
2 GB
Media Feed
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top-loading, Front Output
Media Width
Roll Paper: ISO A3, A3+, A2, A2+, A1
JIS B4, B3, B2
ARCH 12”, 18”, 24”
Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”
300mm, 500mm, 600mm
Cut Sheet
ISO A4, A3, A3+, A2, A1, B4, B3, B2
DIN C4, C3, C2
JIS B4, B3
ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”
17 x 22”, 22 x 34”
ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
Photo (20 x 24”), (18 x 22”), (14 x 17”)
(12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
Poster 20 x 30”, 300 x 900mm
Others 13 x 22”
Media Cutter
Automatic horizontal cutting (Rotary Cutter)
Media Thickness
0.07 – 0.8 mm
Media Core Sizes
2” or 3” Core (3” core adaptor is available with RH2-28/RH2-35 purchase. Not included in printer)
Maximum Roll Outer Diameter
150mm or less
Printing Software Utilities
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
PosterArtist Web/PIXMA Cloud Link
Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
– macOS Ventura 13
Print Language
SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4
Interface
Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
Wireless LAN: IEEE 802.11 b/g /n
Power Supply
AC 100–240V (50 – 60 Hz)
Power Consumption
Power Consumption (using wired LAN) Approx 59W
Standby (using wired LAN) Approx 1.6W
Power Off Approx 0.1W
Operational Environment
Temperature: 15°-30° C
Relative Humidity: 10-80%
(Non Condensation).
Printer Dimensions
(W x D x H) and Weight
Dimensions with stand basket opened (W x D x H) 978 x 868 x 1060mm
Weight (with Stand) 50.9 kg
Package Dimensions
(W x D x H) and Weight TM-240
Printer Package Dimensions (W x D x H) with pallet 1152 x 912 x 679mm
Printer Package Weight 71kg
Stand Package Dimension 1058 x 826 x 270 mm
Stand Package Weight 20kg
Options
Roll Holder RH2-28
Consumables
Ink Tank PFI-030 C/Y/BK/MBK, PFI-031 M
Maintenance Cartridge MC-31
Cutter Blade CT-08
