Product Description

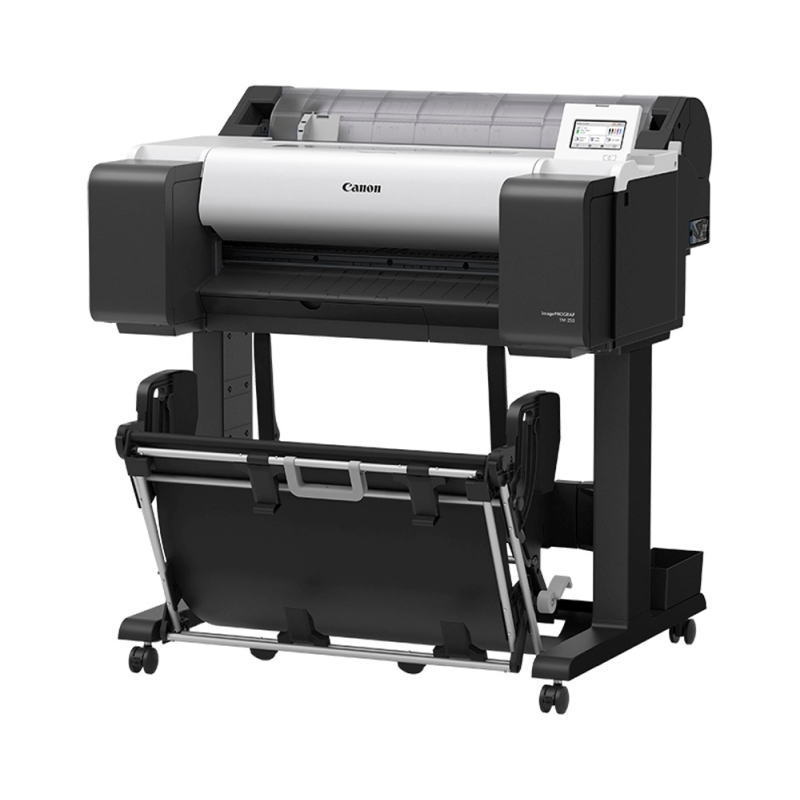

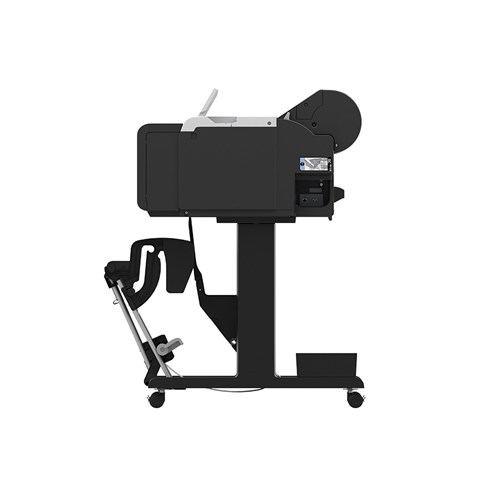

The Canon imagePROGRAF TM-250 is a printing powerhouse that redefines your printing experiences with elevated productivity, intuitive functionality, and professional image quality, all within an environmentally conscious and sustainable design. Ideal for corporate offices, sizable AEC spaces, and dynamic sectors like retail and education, the TM-250 sets a new standard for efficient and high-quality printing.
Elevate printing experiences with enhanced productivity, intuitive functionality and professional image quality from a sustainable device. The 24” printer can seamlessly create accurate CAD prints with sharp lines and eye-catching marketing materials, designed for corporate and sizable AEC offices and the retail and education sector.
Professional printing quality
Use stable image enhancements to create sharp, crisp lines and new magenta ink for vivid red colour. As a result, you’ll produce vivid and accurate CAD drawings, posters and educational materials
Enhanced productivity
Produce A1 CAD prints in just 20 seconds, or A1 posters in 22 seconds. Save time trimming excess margins with borderless prints of any sizes and easily meet higher print demand with larger ink tanks, quick processing time and a fast return from sleep mode
Intuitive functionality
Follow easy instructions and take in important information like media type, remaining media and ink amount on a 4.3” touch screen panel. Save time by setting roll paper with quick access through a flat-top cover
Improved sustainability
Environmentally conscious EPEAT Gold* rated device for low energy consumption, with power reduction during standby and packaging free from polystyrene foam. Less noise printing makes it ideal for quiet offices
Specifications
Print Head PF-06
Number of Nozzles
MBK: 5,120 nozzles
BK/C/M/Y: 2,560 nozzles
Droplet Size Minimum 5pl per color
Ink Type
Pigment: Cyan (C), Magenta (M), Yellow (Y), Black (BK), Matte Black(MBK)
Ink tank
Shipped with Printer: MBK(130ml), C, M, Y, BK (90ml each)
Replacement: C, Y, BK, MBK: PFI-120 (130ml), PFI-320 (300ml) Magenta: PFI-121 (130ml), PFI-321 (300ml)
Printer RAM 2 GB
Media Feed
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top-loading, Front Output
Media Width
Roll Paper:
ISO A3, A3+, A2, A2+, A1
JIS B4, B3, B2
ARCH 12”, 18”, 24” 12”, 18”, 24”
Others 8”, 10”, 14”, 15”, 16”, 17”, 20”, 22”, 300mm, 500mm, 600mmx`
Cut Sheet
ISO A4, A3, A3+, A2, A1, B4, B3, B2
DIN C4, C3, C2
JIS B4, B3
ANSI 8.5 x 11”, 8.5 x 14”, 11 x 17”, 13 x 19”, 17 x 22”, 22 x 34”
ARCH 9 x 12”, 12 x 18”, 18 x 24”, 24 x 36”
Photo (20 x 24”), (18 x 22”), (14 x 17”), (12 x 16”), (10 x 12”), (10 x 15”), (16 x 20”)
Poster 20 x 30”, 300 x 900mm
Others 13 x 22”
Media Cutter Automatic horizontal cutting (Rotary Cutter)
Media Thickness 0.07 – 0.8 mm
Media Core Sizes 2” or 3” Core
Maximum Roll Outer Diameter 150mm or less
Printing Software Utilities
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Free Layout Plus,
imagePROGRAF Printer Driver for Windows®/ Mac®, Media Configuration Tool, Canon PRINT Inkjet Selphy,
PosterArtist Web/PIXMA Cloud Link
Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows
Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS Catalina 10.15.7
– macOS Ventura 13
Print Language SGRaster, HP-GP/2, HP RTL, JPEG, CALS G4
Interface
Hi-Speed USB: Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk transfer
Ethernet(Built in): IEEE802.3ab(1000BASE-T)/IEEE802.3u(100BASE-TX)/IEEE802.3(10BASE-T)
Wireless LAN: IEEE 802.11 b/g /n
Power Supply AC 100–240V (50 – 60 Hz)
Power Consumption
Power Consumption (using wired LAN) Approx 62W
Standby (using wired LAN) Approx 1.6W
Power Off Approx 0.1W
Operational Environment
Temperature: 15°-30° C
Relative Humidity: 10-80% (Non Condensation).
Printer Dimensions
(W x D x H) and Weight
Dimensions with stand basket opened (W x D x H) 978 x 885 x 1060mm
Weight (with Stand) 54.5 kg
Package Dimensions
(W x D x H) and Weight
Printer Package Dimensions (W x D x H) with pallet 1152 x 913 x 679mm
Printer Package Weight 73kg
Stand Package Dimension 1058 x 826 x 270 mm
Stand Package Weight 22kg
Options
Roll Holder RH2-28
Consumables
Ink Tank PFI-120 C/Y/BK/MBK, PFI-121 M, PFI-320 C/Y/BK/MBK, PFI-321 M,
Maintenance Cartridge MC-31
Cutter Blade CT-08
What's in the box?
Printer
Stand with Stackable Basket
Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml)
1 Print Head Maintenance Cartridge (Installed)
2” Roll Holder with 3” Adapters
Installation Guide
User Registration Card
One-Year Printer Warranty Statement
Print Head Warranty Statement
Call Center Notice
Media Compatibility Flyer
PosterArtist Web Notice Flyer
Safety and Environmental Information
iWR Service Terms Leaflet
USB port (High Speed)
Power Cable and Screw
Gigabit Ethernet (Built-in)
