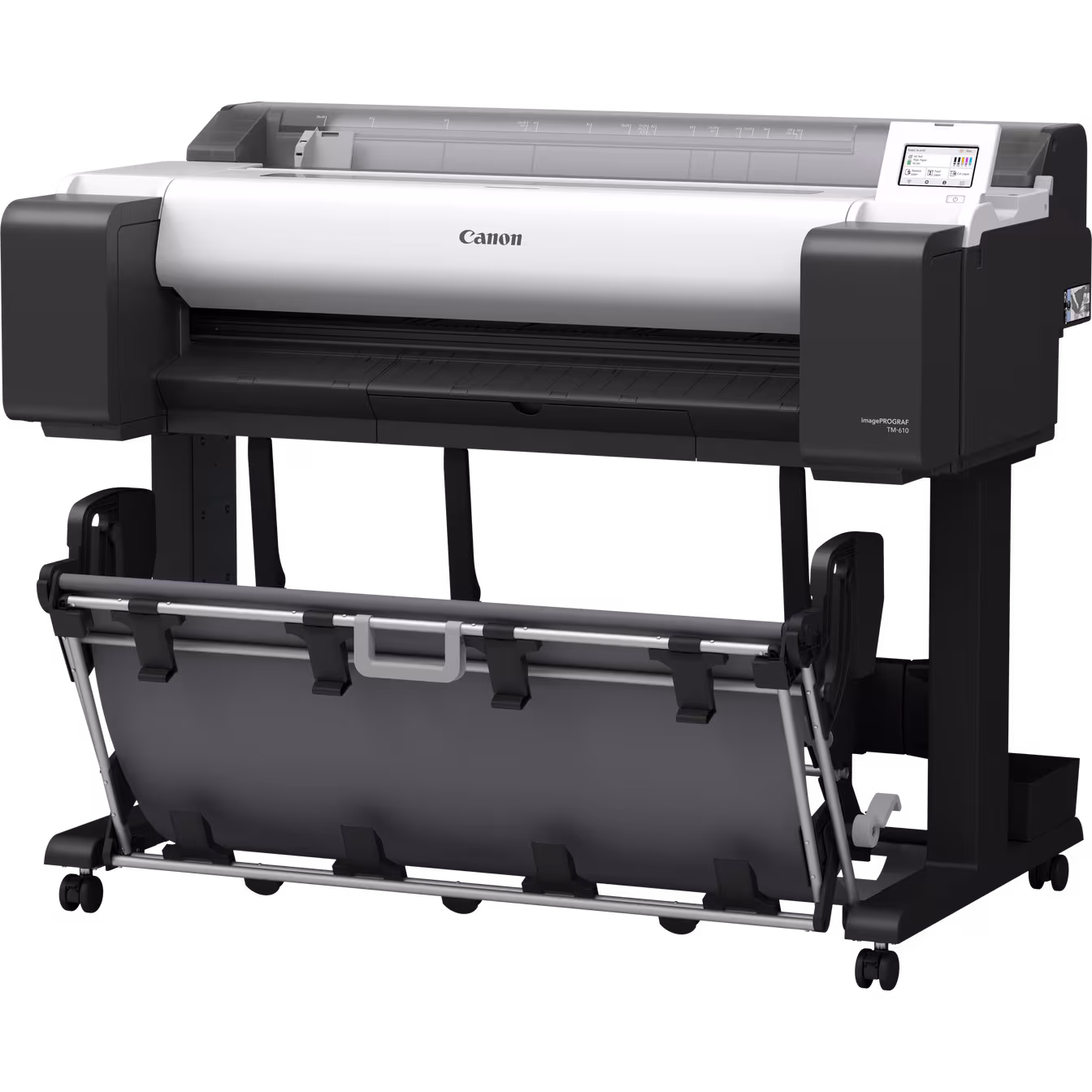

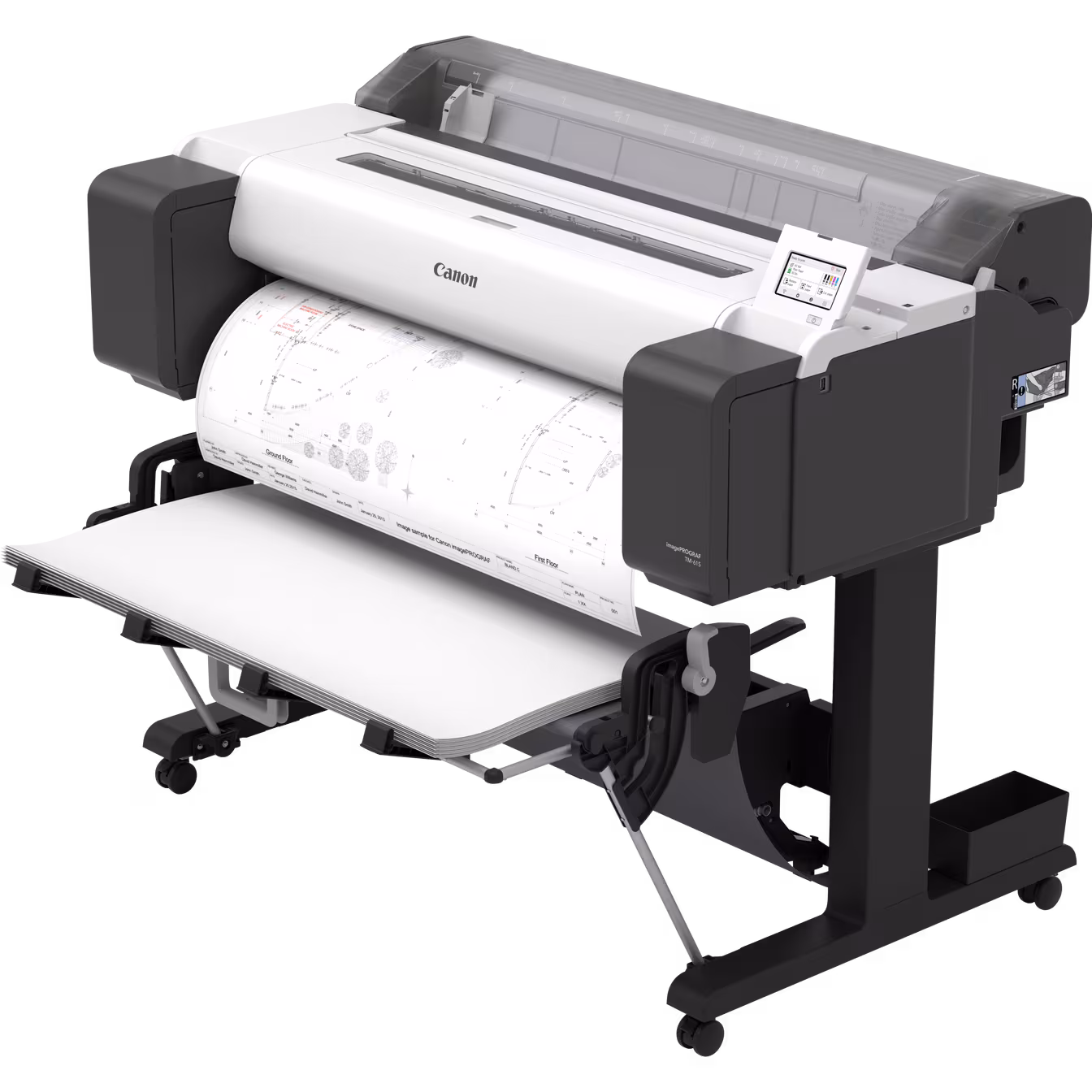

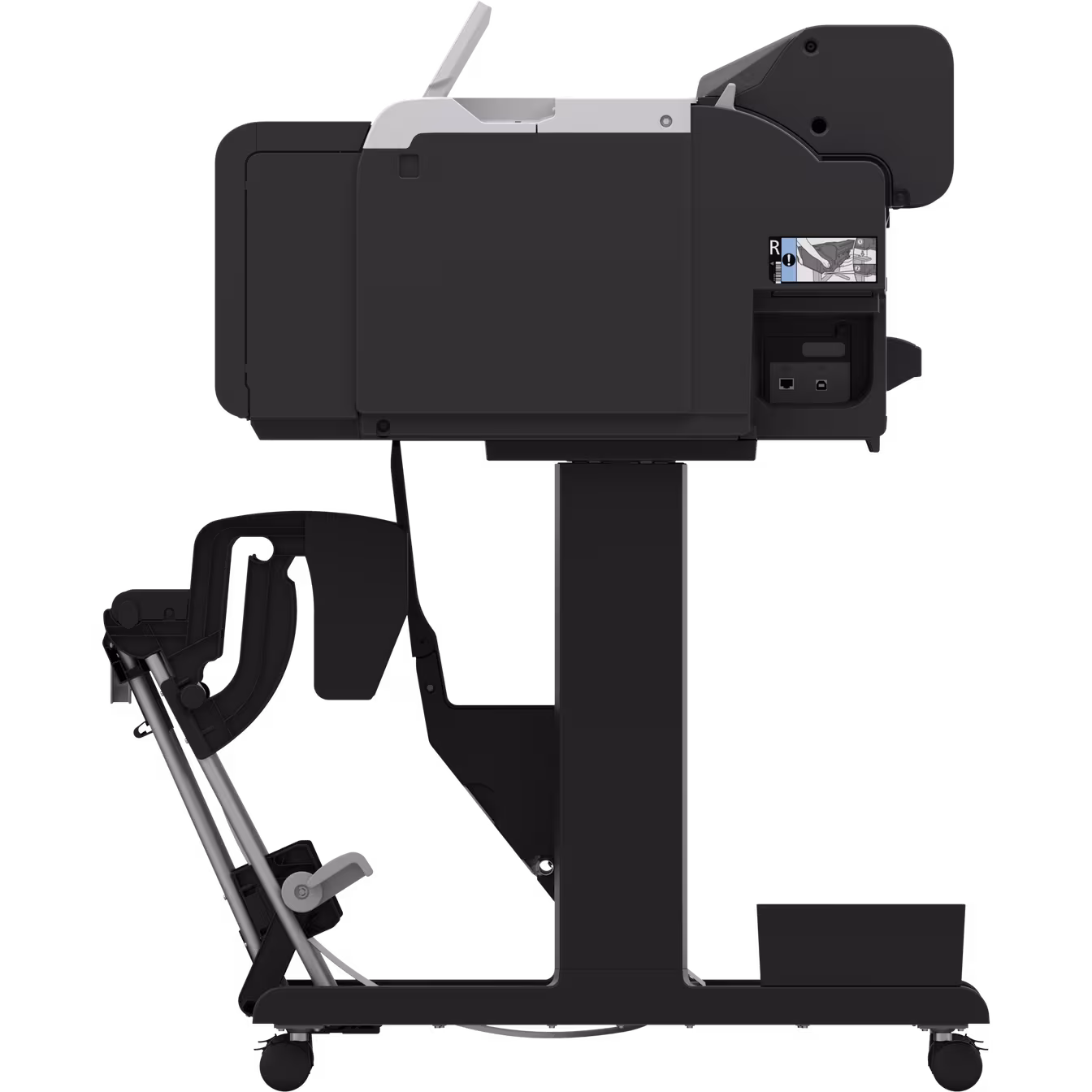

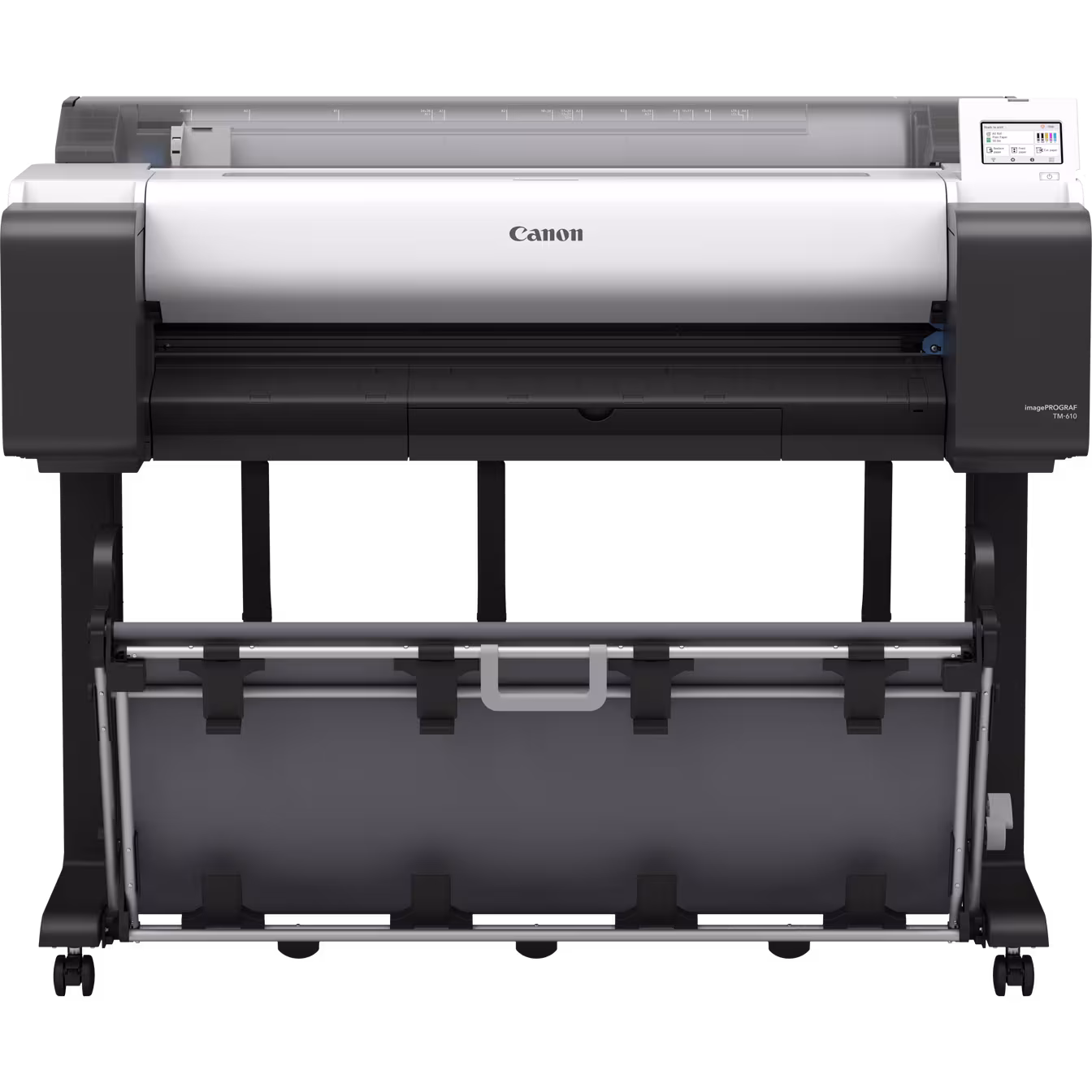

Canon imagePROGRAF TM-510
Precision, Elevated.
Designed for demanding AEC, engineering, construction and education environments, the Canon imagePROGRAF TM-510 combines precision, speed and vibrant colour in a professional 24-inch large-format printer.
Exceptional detail
Produce sharp CAD drawings, fine technical lines and impressive graphics with Canon’s 5-colour pigment ink system and enhanced image processing.
Built for productivity
Keep projects moving with A1 CAD output from approximately 20 seconds and high-capacity 300 ml / 130 ml ink tanks for demanding workflows.
Effortlessly connected
A 4.3-inch tiltable touchscreen, automatic media detection, Wi-Fi and network connectivity make everyday large-format printing simple and intuitive.
Made for professionals
From architectural plans and engineering drawings to posters and presentations, the TM-510 delivers the versatility to produce more from one powerful large-format solution.
Precision without compromise. Productivity without complexity.
Specifications in detail
Printer Technology
Printer Type 5 Colours 24"
Print Technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
Line Accuracy ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Droplet Size minimum 5pl per colour
Ink Capacity Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y) Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)
Ink Type Pigment inks : 5 colours MBK/BK/C/M/Y
OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11,
Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022, 2025
Apple Macintosh: macOS 12~macOS 26
Other Supported Job Submission Protocols
Apple AirPrint (for macOS/iOS/iPadOS)
Mopria (for Android/Windows)
IPP-Everywhere (for ChromeOS)
Printer Languages HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Standard Interfaces
USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 2GB Expansion slot: No
Storage N/A
Print Speed
CAD Drawing Plain paper (A1) 0:20 (Fast Economy Mode) 0:23 (Fast) 0:40 (Standard)
Poster Plain Paper (A1) 0:22 (Fast Economy Mode) 0:25 (Fast) 0:38 (Fast new) 0:44 (Standard)
Heavy coated paper (A1) 0:55 (Fast) 1:21 (Standard)
Media Handling
Media Feed and Output
Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width Roll paper: 203.2 - 610mm Cut sheet: 203.2 - 610mm
Media Thickness Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length Roll paper: 203.2mm Cut sheet: 279.4mm
Maximum Printable Length Roll paper : 18m (varies according to the OS and application) Cut sheet : 1.6m
Maximum Media Roll Diameter 150mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm
Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Media Feed Capacity Roll Paper: 1 roll Cut Sheet: 1 sheet
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only) [Recommended] 515mm(JIS B2), 594mm (ISO A1), 10", 14", 17", 24"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Maximum Number of Delivered Prints Standard position: 1 sheet
Folding position: Plain paper 20 sheets on A1 portrait
Flat position: Plain paper 20 sheets on A2 landscape (exclude strong curled position)
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption Operation: Approx. 62W
Sleep mode: Approx. 2.2W
Default setting for the time to enter the Sleep mode:
Approx. 5 minutes
Power off: Approx. 0.06W
Operating Environment Temperature: 15-30℃, Humidity: 10-80% RH (no dew condensation)
Acoustic Noise (Power/Pressure) Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
Regulations CE mark, UKCA mark
Environment Certificates CB certfication, EPEAT certification*
Interface
Display Type & Size LCD(4.3 inch/10.9 cm TFT color)
Display Languages 22 Languages Selectable:
Japanese/English/German/Italian/Spanish/Brazilian Portuguese/Dutch/Polish/Russian/French/Simplified Chinese/Traditional Chinese/Korean/Thai/Indonesian/Turkish
Czech/Danish/Swedish/Norwegian/Finnish/Ukrainian
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main unit with stand
978 x 885 x 1041 mm (Basket Opened)
978 x 756 x 1041 mm (Basket Closed)
55 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight Printer (Main unit with pallet): 1152 x 913 x 914 mm, 97kg
What's Included
What's in the Box? Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, 1 Roll holder (spool), 3” Paper Core Attachment, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included Software available as Download from Web
Options
Optional Items Desktop basket: BU-07
2"/3" Roll Holder: RH2-28
IC Card Reader Holder: RA-02
Consumables
User Replaceable Items Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Ink Tank

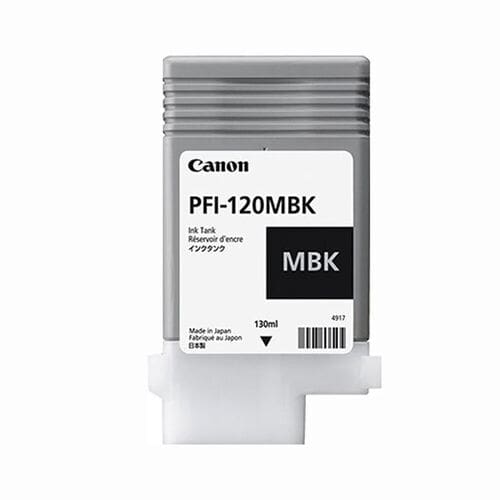

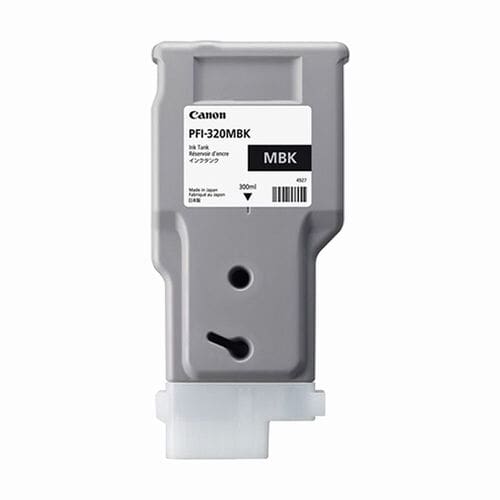

MBK: PFI-323(300ml) / PFI-123(130ml),
M:PFI-321(300ml) / PFI-121(130ml),
BK/C/Y:PFI-320(300ml) / PFI-120(130ml)
