Product Description

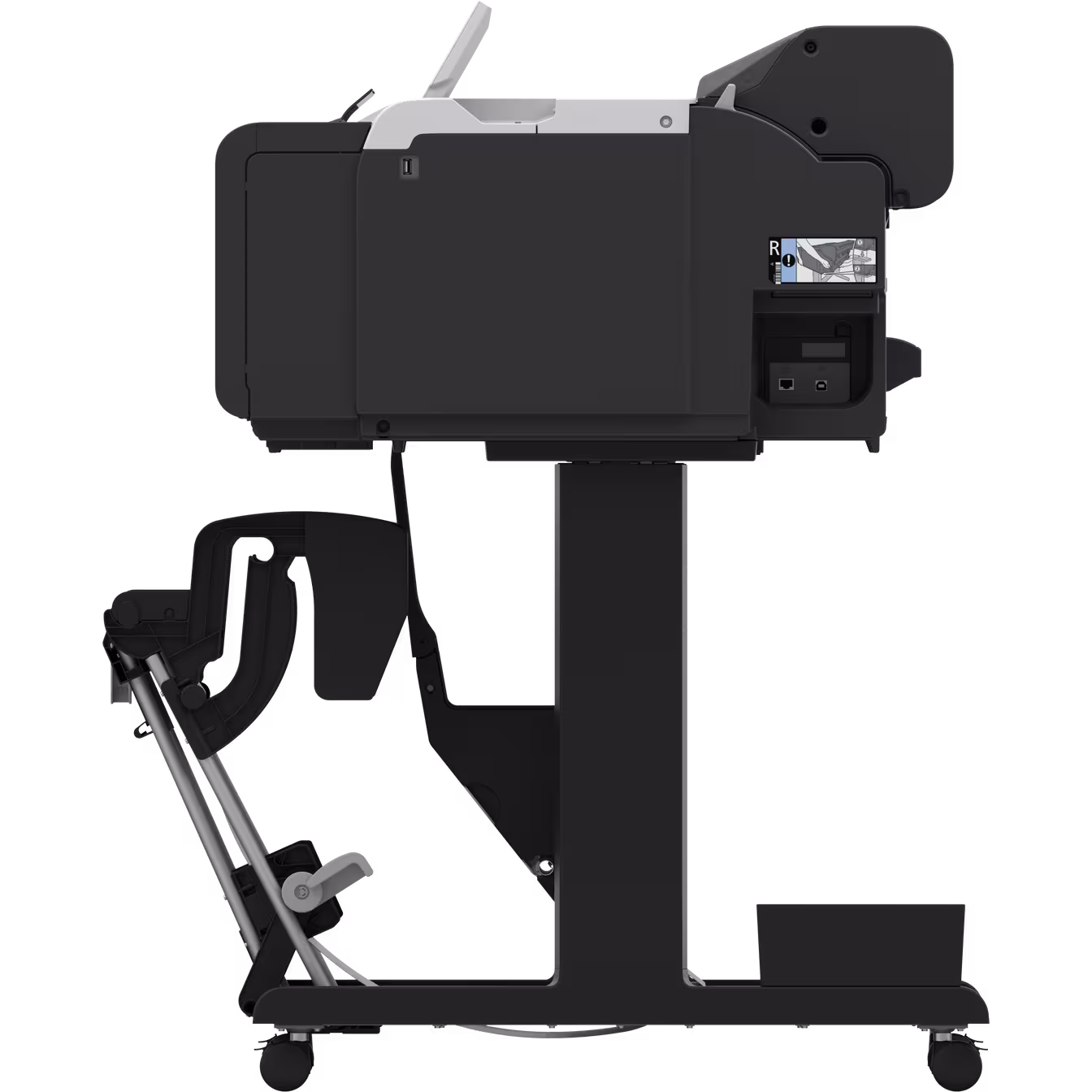

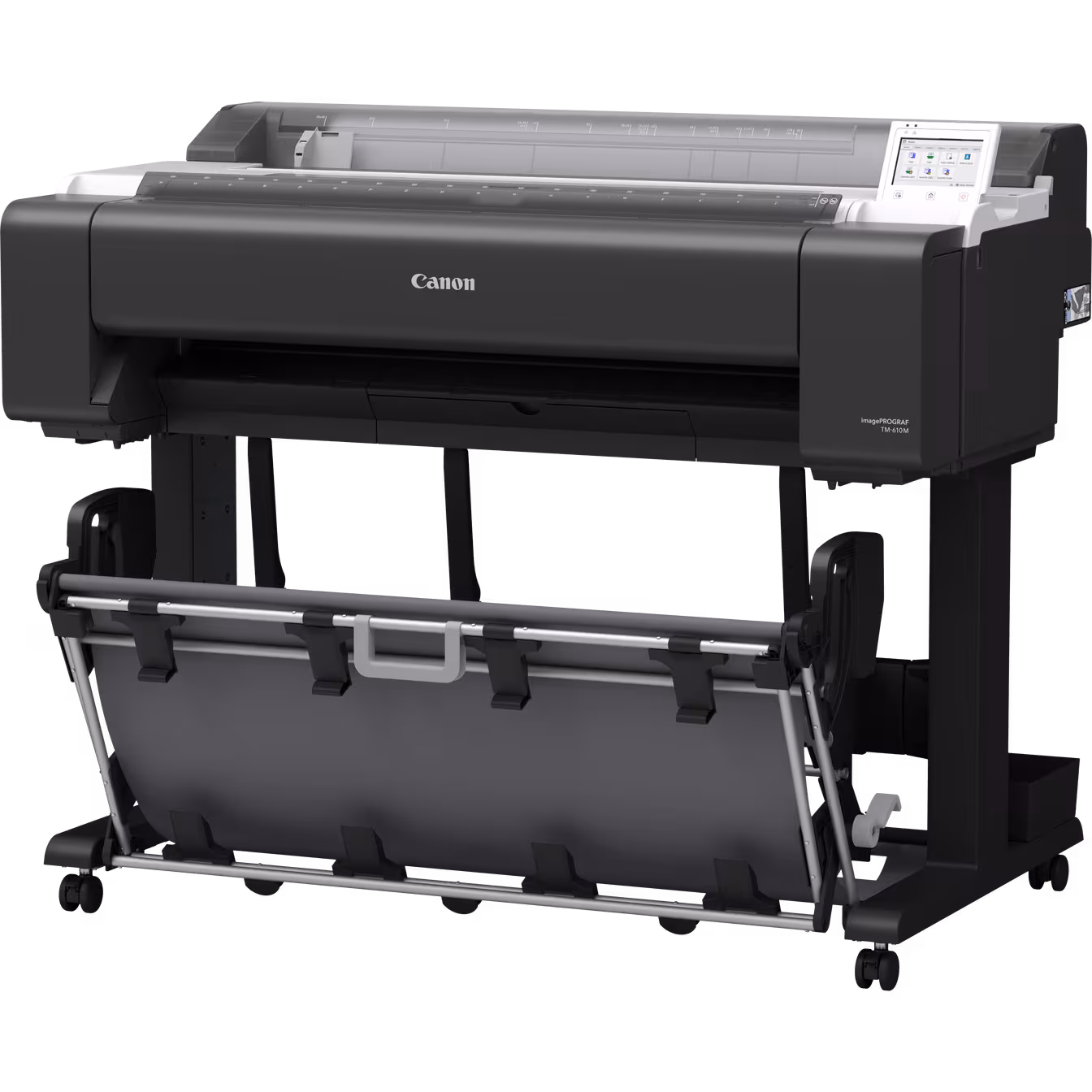

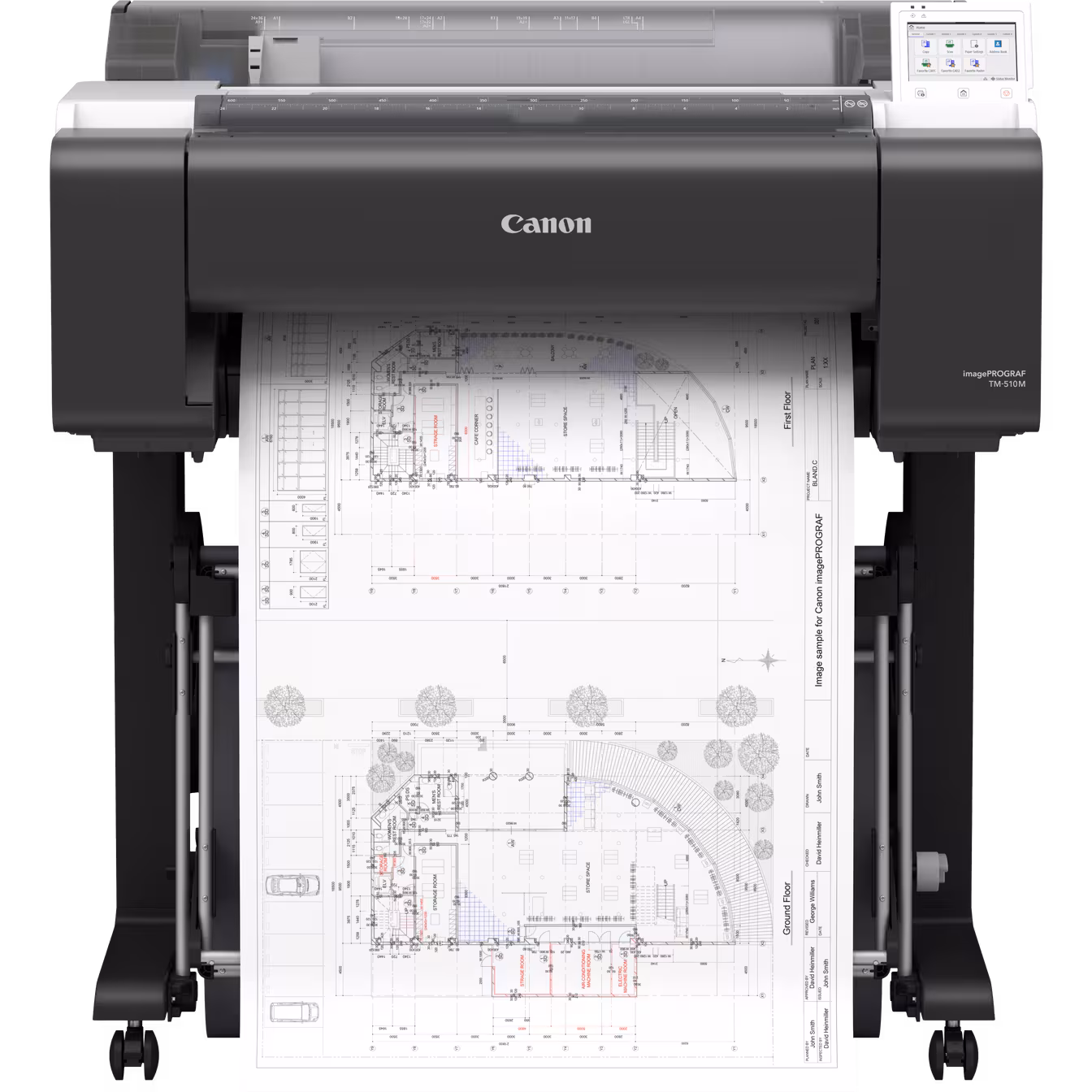

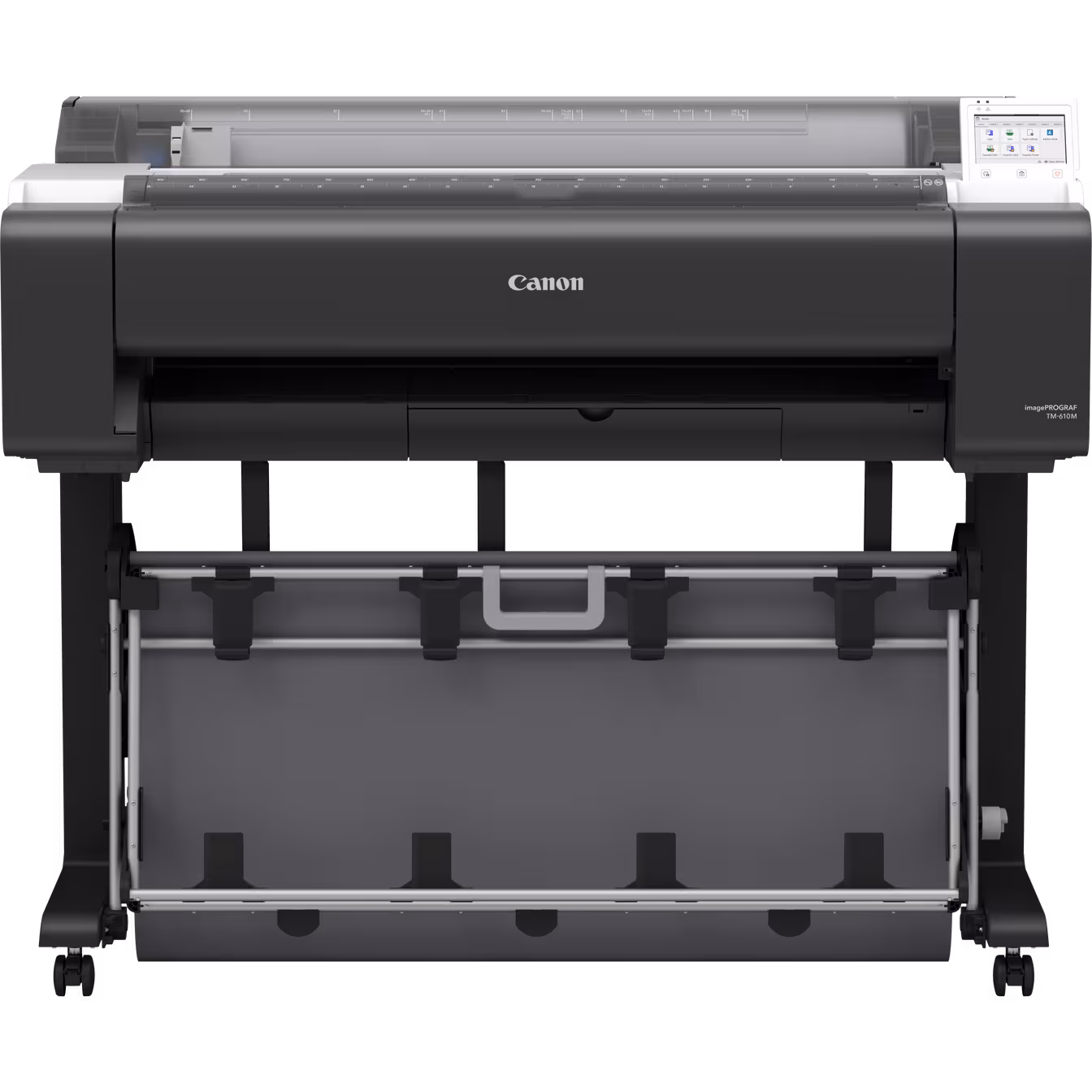

Canon imagePROGRAF TM-610M
Precision. Productivity. Complete.
Designed for demanding AEC, engineering and construction workflows, the Canon imagePROGRAF TM-610M brings high-performance 36-inch printing, scanning and copying together in one streamlined large-format solution.
Exceptional precision
Produce sharp CAD drawings, detailed plans and vibrant graphics with Canon’s 5-colour pigment ink system, delivering up to 2400 × 1200 dpi print resolution.
Built for productivity
Keep projects moving with fast large-format output and 300 ml / 130 ml replacement ink tanks, ideal for busy professional environments.
Integrated 36-inch scanning
Digitise, copy and share technical documents with an integrated 36-inch CIS scanner, offering up to 600 × 600 dpi optical resolution and dedicated modes for CAD drawings, maps, blueprints and tracing paper.
One seamless workflow
Scan directly to email, network folders or USB, while the shared 5-inch control panel helps simplify everyday print, scan and copy tasks.
From drawing to digital. From digital to print.
The Canon imagePROGRAF TM-610M gives professional teams the precision, productivity and flexibility to manage large-format documents from one integrated solution.
Specifications in detail
Scanner Technology
Scan Technology CIS scanner, dual-sided LED illumination
Maximum Resolution (dpi) 600 dpi x 600 dpi (Optical Resolution - Main Scan × Sub Scan, indicates the maximum sampling rate when scanning a document, based on the ISO 14473 standard.)
Grayscale Levels Greyscale Output: 8 bits Colour Ouput: 8 bits per RGB
Scan Speed 127mm per sec /5ips (Colour, 200 dpi), 254mm per sec/10ips (Mono, 200 dpi)
Scan Modes CAD (line drawing), Poster/Photo, Drawing/Map, Blueprint (Black & White Conversion), Inverse Blueprint (Black & White Conversion), Tracing Paper
Maximum Scan Width 914mm (36")
Minimum Scan Width 153mm (6")
Scan Length JPEG
200dpi:120mm - 8304mm
300dpi:120mm - 5536mm
600dpi:120mm - 2768mm
PDF
200dpi:120mm - 5080mm
300dpi:120mm - 5080mm
600dpi:120mm - 2768mm
Document Width 153mm (6") - 927mm (36.5")
Document Length 200mm (7.9") - 8304mm (326.9")
Document Thickness 0.07 - 0.8mm (The use of a carrier sheet is recommended for thin and thick media. Please refer to the user manual for details.)
Scan Format USB memory (FAT16, FAT32, exFAT), Email, SMB
File Format JPEG, PDF
Supported Media Types Plain Paper, Coated Paper, Blueprint, Tracing Paper, Glossy Paper (*) *Use a carrier sheet for scanning.
Functions Automatic Original Size Detection, Density Adjustment, Contrast Adjustment, Sharpness Adjustment, Saturation Adjustment, Print Quality Selection, White Enhancement, Black Enhancement, Data Size Adjustment, Frequently Used Settings
Number of Copies Up to 99 copies
Zoom Ratio 25 - 432%
Languages Same as printer
Control Panel 5" (Share the same panel with printer)
Weight of Scanner Embedded / Integrated with printer
Dimensions (W x D x L) Embedded / Integrated with printer
Document Handling - Face Up/Down Face up
Printer Technology
Printer Type 5 Colours 36"
Print Technology Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
Line Accuracy ±0.1% or less User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch 1,200 dpi x 2 lines
Ink Droplet Size minimum 5pl per colour
Ink Capacity Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y)
Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)
Ink Type Pigment inks : 5 colours MBK/BK/C/M/Y
OS Compatibility 32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11,
Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022, 2025
Apple Macintosh: macOS 12~macOS 26
Other Supported Job Submission Protocols
Apple AirPrint (for MacOS/iOS/iPadOS)
Mopria (for Android/Windows)
IPP Everywhere (for ChromeOS)
Printer Languages HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via SMB only)
Standard Interfaces USB A Port: USB memory (Scan to USB only, USB media print not supported)
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Memory
Standard Memory 6GB Expansion slot: No
Hard Drive N/A
Print Speed
CAD Drawing Plain paper (A1) 0:17 (Fast Economy Mode) 3.2ppm
Plain paper (A0) 0:32 (Fast Economy Mode) 0:40 (Fast) 1:08 (Standard)
Poster Plain Paper (A0) 0:36 (Fast Economy Mode) 0:42 (Fast) 1:04 (Fast new) 1:16 (Standard)
Heavy coated paper (A0) 1:38 (Fast) 2:30 (Standard)
Media Handling
Media Feed and Output Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width Roll paper: 203.2 - 917mm Cut sheet: 203.2 - 917mm
Media Thickness Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length Roll paper: 203.2mm Cut sheet: 279.4mm
Maximum Printable Length Roll paper : 18m (varies according to the OS and application) Cut sheet : 1.6m
Maximum Media Roll Diameter 150mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended Area Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm
Margins Printable Area Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Media Feed Capacity Roll Paper: 1 roll Cut Sheet: 1 sheet
Media Take-Up Roll Unit N/A
Borderless Printing Width (Roll Only) [Recommended] 515mm(JIS B2), 728mm(JIS B1), 594mm (ISO A1), 841mm(ISO A0), 10", 14", 17", 24", 36"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8", 12", 15", 16", 18", 20", 22", 30", 34", 300mm, 500mm, 600mm, 800mm
Other than above, free size borderless printing is supported on only roll paper by user definition
Maximum Number of Delivered Prints Standard position: 1 sheet
Folding position: Plain paper 20 sheets on A1 portrait / A0 portrait
Flat position: Plain paper 20 sheets on A2 landscape / A1 landscape (exclude strong curled position)
Power and Operating Requirements
Power Supply AC 100-240V (50-60Hz)
Power Consumption Operation: Approx. 76W
Sleep mode: Approx. 2.2W
Default setting for the time to enter the Sleep mode:
Approx. 5 minutes
Power off: Approx. 0.06W
Operating Environment Temperature: 15-30?, Humidity: 10-80% RH (no dew condensation)
Acoustic Noise (Power/Pressure) Operation: Approx. 41dB(A) (Standard Plain Paper,
Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.2 Bels or less (Standard Plain Paper, Standard
mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)
Regulations CE mark, UKCA mark
Environment Certificates CB certfication, EPEAT certification*
Interface
Display Type & Size LCD(5.0 inch/12.7 cm TFT color)
Display Languages 22 Languages Selectable:
Japanese/English/German/Italian/Spanish/Brazilian Portuguese/Dutch/Polish/Russian/French/Simplified Chinese/Traditional Chinese/Korean/Thai/Indonesian/Turkish
Czech/Danish/Swedish/Norwegian/Finnish/Ukrainian
Dimensions and Weight
Physical Dimensions and Weight W x D x H
Main unit with stand
1285 x 885 x 1041 mm (Basket Opened)
1285 x 756 x 1041 mm (Basket Closed)
77 kg (including Roll Holder Set, excluding ink and print head)
Packaged Dimensions and Weight
Printer (Main unit with pallet): 1462 x 1122 x 769 mm, 124kg
What's Included
What's in the Box?
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, 1 Roll holder (spool), 3” Paper Core Attachment, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Printer Stand Setup Guide, Notice for PosterArtist WEB
Software Included
Software available as Download from Web
Options
Optional Items 2"/3" Roll Holder: RH2-35, IC Card Reader Holder: RA-02
Consumables
User Replaceable Items Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
Ink Tank
MBK: PFI-323(300ml) / PFI-123(130ml),
M:PFI-321(300ml) / PFI-121(130ml),
BK/C/Y:PFI-320(300ml) / PFI-120(130ml)
