Product Description
High productivity B0 wide format printer for technical CAD drawing and in-house poster printing with efficient media handling.
High-volume B0 CAD and poster printing
Automatic media loading and detection
Optional dual roll
Multi-purpose versatile printer for high-volume operation

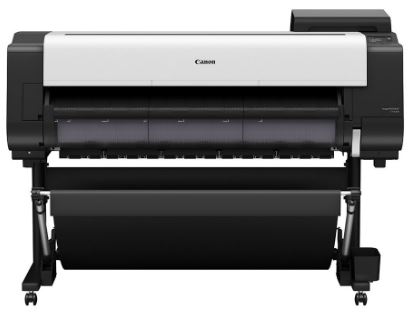

Canon imagePROGRAF TX-4200 is built to print high-volume technical drawings and posters. The TX-4200 has efficient paper handling, fast print operation, and workflow software to help manage all print tasks.
Quick and efficient
The TX-4200 prints A1 CAD drawing in 17 seconds*. (*Fast print mode on plain paper. Print speed does not include the time required for data processing, transfer, and preprinting operations.)
Smart roll feeding system maximises productivity
With an automatic media loading system, you simply load the media and let your printer do the rest. Feed in the paper then detect media type, width, and length with built-in multi-sensors.
Hot swap ink replacement to maximise output
Canon’s ‘hot swap ink system’ uses a sub-ink tank so you can replace inks on the fly. This helps to reduce downtime and boost productivity.
High-definition printing
The enhanced image quality features enable detailed CAD prints, from line drawings to maps, to be printed more accurately.
New Magenta ink and improved colour processor
Newly developed Magenta colour ink and image processor provide a more vivid and rich colour poster.
Enjoy large-capacity ink bottles
The TX-4200 comes with large-capacity ink bottles, including 5 x 330ml (Matte Black, Black, Cyan, Yellow and Magenta). There are three different size replacements to choose from - 160ml, 330ml or 700ml.
Specifications:-
Functions Print
Maximum Printing Resolution 2400 x 1200dpi
Paper Sizes Up to 44"
Colours 5 colours
Connectivity LAN, Wi-Fi, USB, Mobile
Ink Type Pigment
Borderless Printing Yes
Display 4.3" LCD touch screen
Stand Type With stand
Hard Disk 500GB
Dual Roll Optional
What's in the box?
Large Format Printer Main Unit
Printer Stand
Roll Holder
Drivers and Utilities
User Manuals, Quick start guide, and test sheets of paper
Printer Drivers and Utilities
1 x set of Inks (TX-2200 and TX-3200 = 330 ml: MBK, 160ml: BK\C\M\Y, TX-4200 = 330ml across all colours)
1 x Printhead (PF-06)
1 x Maintenance Cartridge
Network Interface
Wifi Interface
2 x USB Interfaces
1 x Power Cord
24 Months Warranty (Defect Only including Printhead but not Consumables)
Brochure for Canon IPF TX-4200 44" 5 Colour Large Format Inkjet Printer
