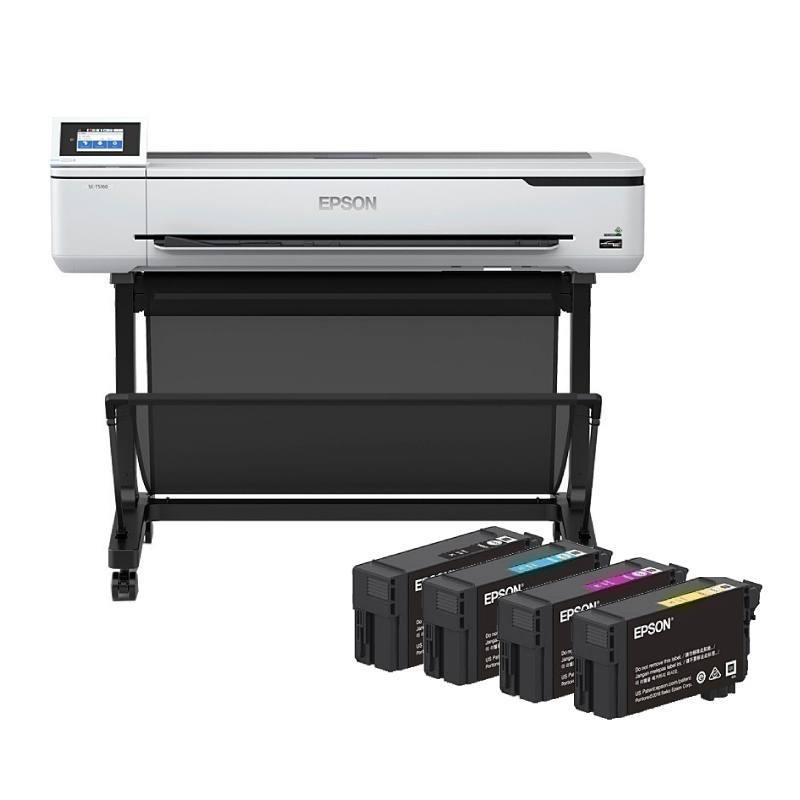

Epson SCT5160 36" LFP & E40S Inks

Brief Overview

Product Description

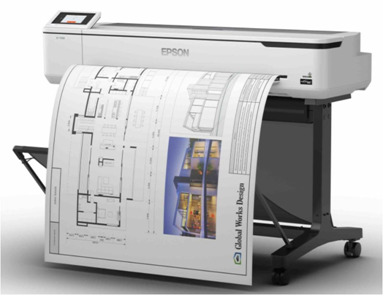

The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper to photographic media. They support high-resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters, and displays.

SIZE
Max Print Width  36 inches wide (914mm)
PRINT TECHNOLOGY
Print Head  PrecisionCore TFP with VSDT and Auto Head Alignment
Print Modes  Uni & Bi-directional
Nozzle Configuration  800 per colour
Maximum Resolution  2400dpi x 1200dpi
Minimum Ink Droplet Size  4.0pl
INK SYSTEM
Family  Epson Ultrachrome® XD2
Type  All-Pigment Aqueous
Colours  C+M+Y+K
Cartridges  CMY 26/50ml
K 50/80ml
PERFORMANCE (per A1 Sheet)
CAD A1  31sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, and data file size/type.
MEDIA SUPPORT
Roll Format  Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-910mm wide, 110mm max diameter, 3Kg max weight
Sheet Format  Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
Auto Cutter  Inbuilt rotary type
Manual Double-Sided Printing  Please refer to the user guide, and contact Epson or your authorized dealer before selecting any media for this purpose in order to check suitability.
Output  Single sheet hold feature
Supplied with an A4/A3 output tray
The floor-standing model and optional Printer Stand incorporate a media basket
OPERATION
Control Panel  4.3" Colour LCD touchscreen
Control Code  ESC/P Raster, HP/GL/2 & HP RTL* 1
Connectivity  USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Compatibility  Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory  1GB RAM
Scanner Support  USB interface with integrated control & auto enlargement
Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes
Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes
Supports Epson DS-530, DS-6500 & DS6000 scanner models
Physical (WxHxD)  Desktop: 1268 x 230 x 505 mm, 33kg (no consumables, media or options, no output tray, ASF closed)
Floor Standing: 1268 x 913 x 696 mm, 46kg (closed basket, no consumables, media or options, no output tray, ASF closed)
ENVIRONMENT
Operational Temp  10° to 35° C
Operational Humidity  20 to 80% (no condensation)
Power Supply  100 - 240 V AC, 50/60 Hz
Power Consumption  28W Operating, 8W Standby, 1.6W Sleep
Operating Noise  49dB
Recommended Install Space (WxHxD)  Desktop: 1318 x 380 x 915mm
Floor-standing: 1318 x 1063 x 1270mm
SHIPPING INFO
Packaging (WxDxH)  Desktop: 1,506 x 724 x 522mm, 45Kg
Floor standing: 1,506 x 724 x 587mm, 58Kg
What’s in the Box  Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations.
Delivery & Install  Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing, and package removal are not typically included but can be provided at an additional charge for most locations.
Service & Support  Support and Service is provided via authorized Epson Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or a consumable please contact your dealer for an initial problem evaluation. Should a printer require service this will be provided on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and traveling charges may apply for equipment located outside major metro areas.
CONFIGURATION OPTIONS
SCT5160N1YR  Desktop with 1Yr On-Site Warranty
SCT5160N3YR  Desktop with 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT5160NS1YR  Desktop with DS-530 scanner with 1Yr On-Site Warranty
SCT5160NS3YR  Desktop with DS-530 scanner & 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT51601YR  Floor Standing with 1Yr On-Site Warranty
SCT51603YR  Floor Standing with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
SCT5160S1YR  Floor Standing with DS-530 scanner & 1Yr On-Site Warranty
SCT5160S3YR  Floor Standing with DS-530 scanner & 2Yr CoverPlus On-Site Service Pack (total 3 yrs cover)**
OPTIONAL ACCESSORIES
C12C933091  36" Printer Stand (included with Floor-Standing configurations) (T5160)
C12C933131  Additional Roll Feed Spindle for T5160 (36")
1YWTSCT5160  1 Yrs Epson CoverPlus On-Site Printer Service Pack**
2YWTSCT5160  2 Yrs Epson CoverPlus On-Site Printer Service Pack**
