Brief Overview

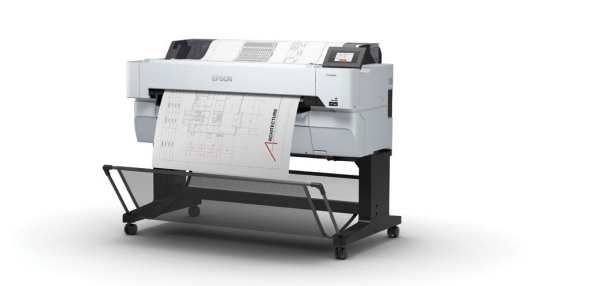

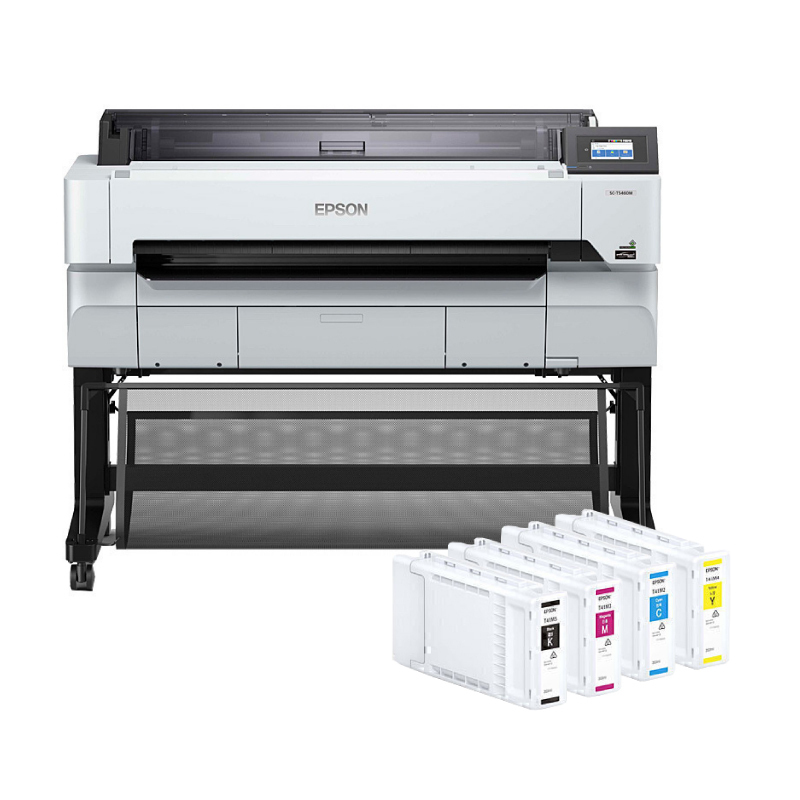

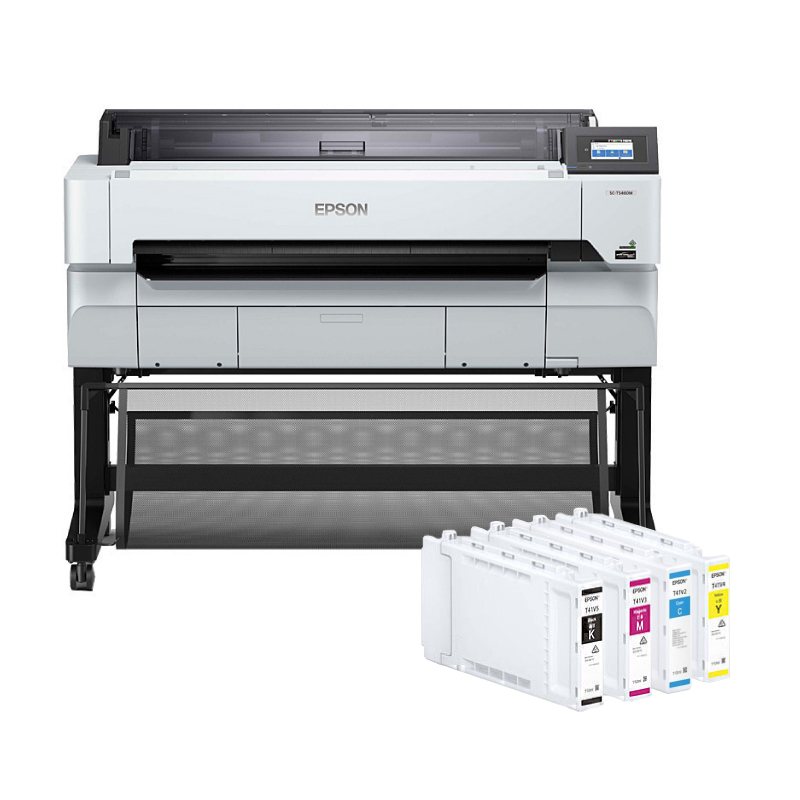

Epson SureColor T5460M Large Format Printer with E41V Black, Cyan, Magenta, and Yellow inks.
Product Description
The SC-T5460M will print an A1 image in as little as 22s with output that dries almost instantly to be water and rub-resistant. Designed for businesses that want to produce wide-format prints, the printer is supplied with a stand and paper basket and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications.
SIZE
Max Print Width36 inches wide (914mm)
PRINT TECHNOLOGY
Print HeadPrecisionCore TFP with VSDT and Auto Head Alignment
Print ModesUni & Bi-directional
Nozzle Configuration800 per colour
Maximum Resolution2400dpi x 1200dpi
Minimum Ink Droplet Size4.0pl
SCAN TECHNOLOGY
TechnologyContact Image Sensor (CIS) with RGB filters
Light SourceDual Low Angle
Feed SystemSheet pass-through
Maximum Resolution600dpi
INK SYSTEM
FamilyEpson Ultrachrome® XD2
TypeAll-Pigment Aqueous
ColoursC+M+Y+K
CartridgesCMYK 110ml
CMYK 350ml
PRINT PERFORMANCE (per Sheet)
CAD A122sec
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, and data file size/type.
SCAN PERFORMANCE
Max Scan Speed11.43cm/s or 4.5 ips (Colour)
19.05 cm/s or 7.5 ips (Mono)
Max Copy Speed38s per A1 sheet mono
44s per A1 sheet colour
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors.
MEDIA SUPPORT
Roll FormatSingle roll top loaded spindle, 2" core, 3” core for plain paper, 0.08 to 0.3mm thick, 254-914mm wide, 170mm max diameter, max weight 12kg
Sheet FormatTop loaded A4-A0/B1 single sheets, 279.4 to 1,580 mm length, 0.08-0.3mm thick
Borderless PrintingSupported Media Types: A1 (594mm) and A1+ (610mm), 700mm, B1 (728mm), A0 (841mm), A0+ (914mm)
Cut Sheet only borderless to the left and right of the sheet
Auto CutterInbuilt rotary type
Manual Double-Sided PrintingPlease refers to the user guide and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
OutputPrinter Stand incorporates a media basket
SCAN & COPY SUPPORT
Media HandlingSingle Sheet Front Loading
Media TypesPlain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-914mm wide, 148-30480mm long
Document TypesLine & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster
Scan To FormatsJPEG, PDF & TIFF
Copy Function1-99 Sheets
25-400% scaling, Auto Fit
OPERATION
Control Panel4.3" Colour LCD touchscreen
Control CodeESC/P2, ESC/P Raster, HP/GL/2 & HP RTL* 1
ConnectivityUSB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print
Included SoftwareMac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only)
Software via web downloadHDI driver, CopyFactory, EpsonNet SetupManager, Epson Device Admin, Epson Edge Dashboard, LFP Accounting tool
Roll Management System (Roll Format)Barcode Roll Media Management system helps keep track of the type of media and how many metres is left on the roll
USB InputFront panel USB slot enables JPEG and TIFF files to be printed directly from a thumb drive
CompatibilityWindows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
Memory1GB RAM + 8GB Micro SD Card
Physical (WxHxD)Floor Standing: 1385 × 966 × 1060 mm, 89kg (open basket, no consumables, media or options)
What's in the box?
Printer, printer stand and basket, a set of 110 ml ink cartridges, AC power cable, setup guide, software CD, maintenance box
Product Specifications
Up to 36inch Wide Printing
Up to Res 2400 x 1200 dpi
1 GB RAM Memory
800 Nozzles Per Colour
4.3" Colour LCD touchscreen
USB, Network & Wireless
One-Year On-Site Warranty
Brochure for Epson SCT5460M 36" LFP & E41V Inks
