Product Description

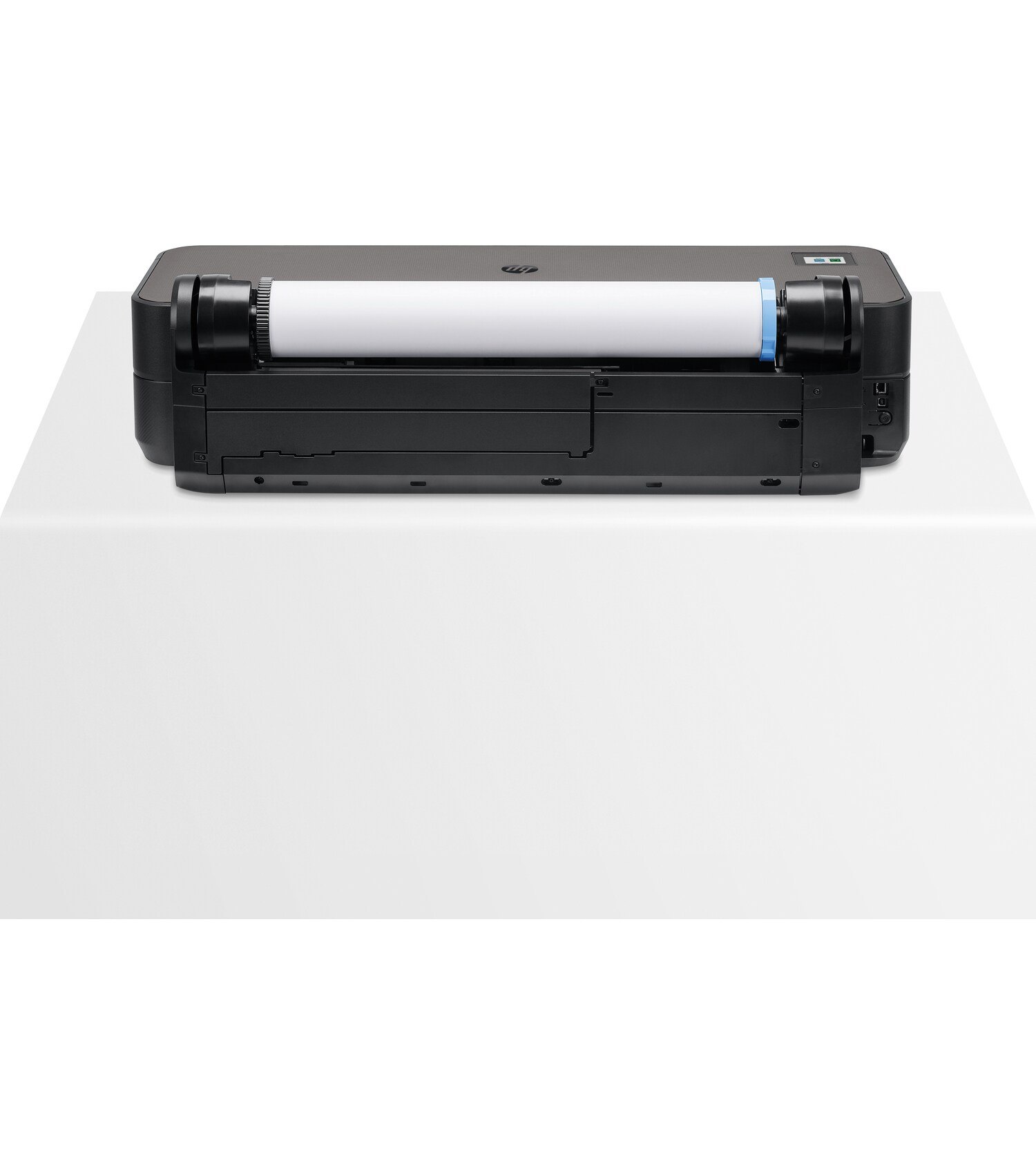

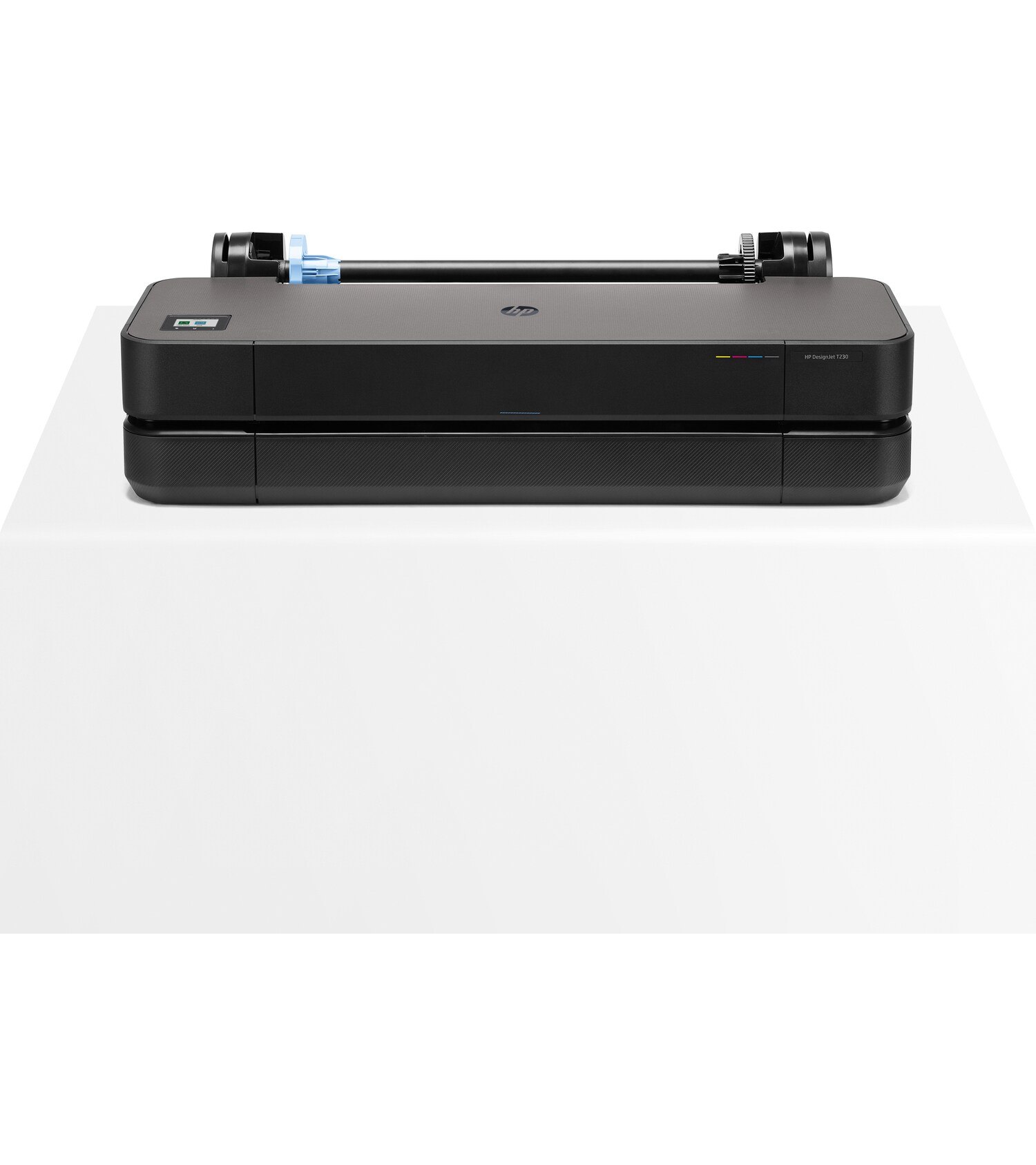

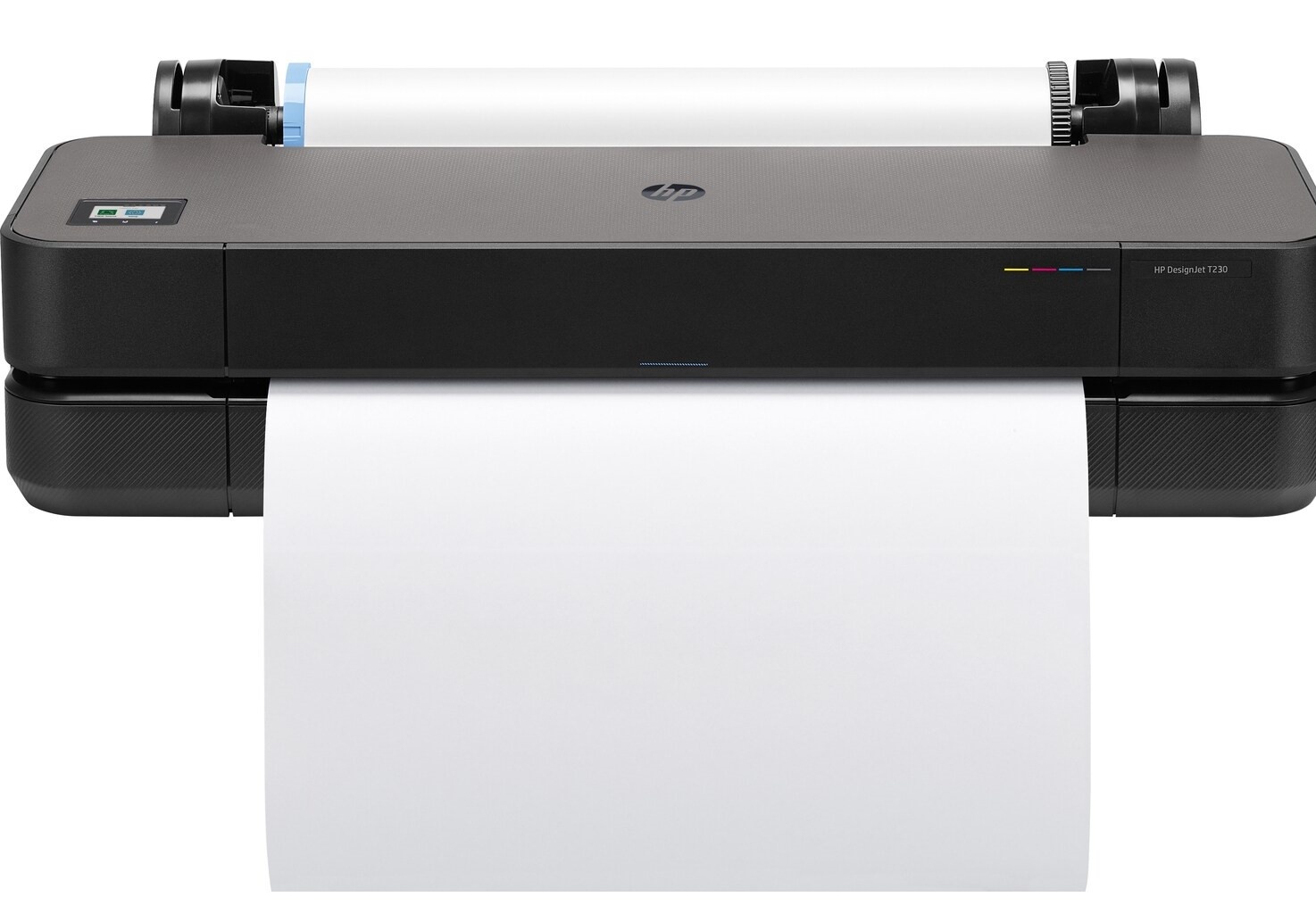

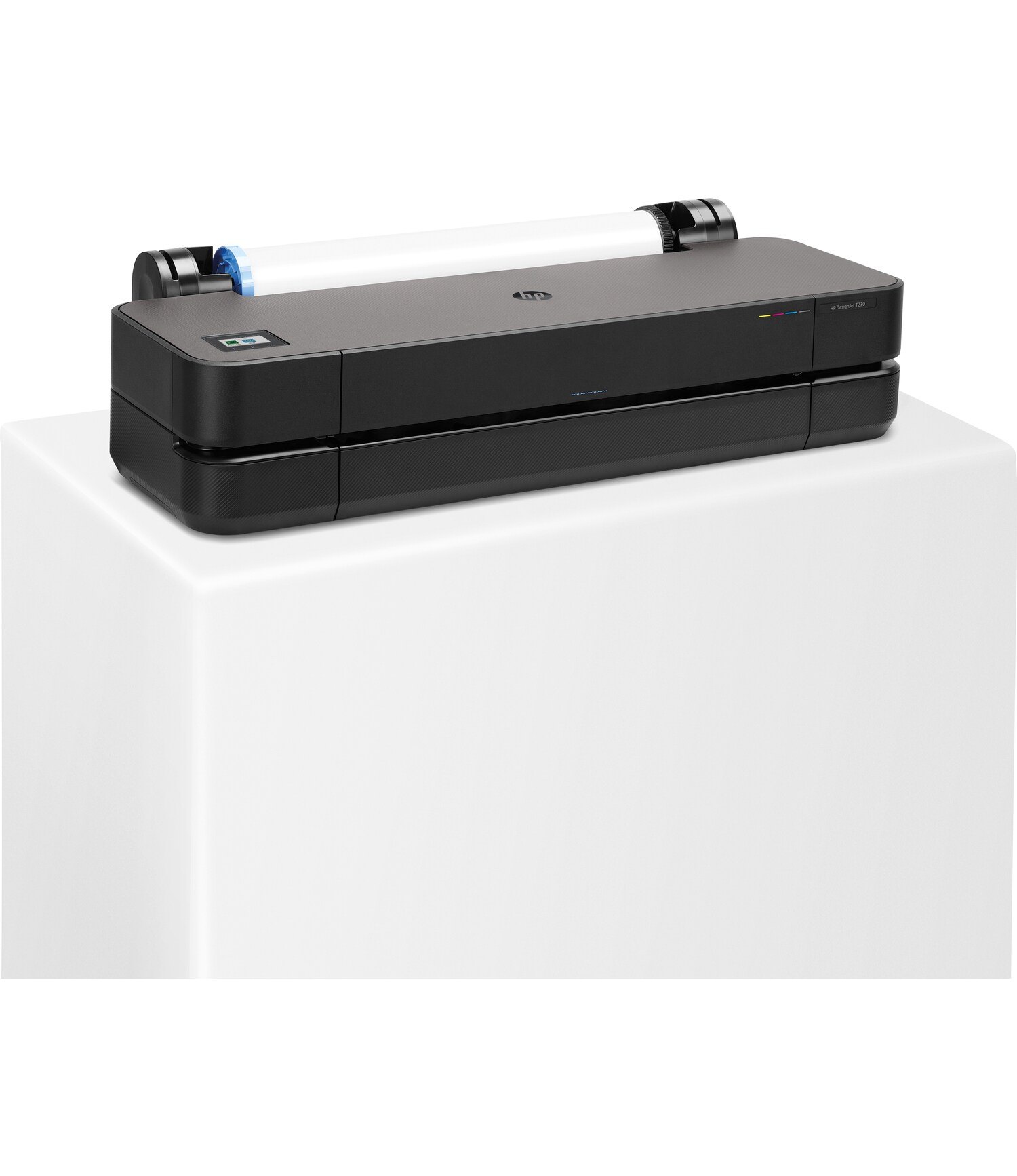

HP DesignJet T230 24-in Printer
Designed to fit your office, budget, and the way you work, the world's smallest plotters provide outstanding simplicity. Send multiple files in just one click. Print your A1/D plot as fast as 35 seconds. 500 MB memory.
Extreme simplicity
Save time with HP's easiest job submission—send multiple files in one click with HP Click software.
Print with confidence, and you'll get the results you expect with an intuitive driver and true print preview.
Print multi-size A3/B and A1/D projects with an accessory option without manually switching the media source.
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 35 seconds per A1/D plot.
Be more productive—save time from job prep to final print by printing your projects via HP Click.
Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Fits your office and budget
Save space with the HP's smallest plotters1 designed to fit your office.
SPECIFICATIONS:-
Print speed 35 sec/page on A1, 68 A1 prints per hour
Print resolution Up to 2400 x 1200 optimized dpi
Technology HP Thermal Inkjet
Ink types Dye-based (C, M, Y); pigment-based (K)
Page Yield 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
Ink drop 5.5 pl (C, M, Y); 12 pl (K)
Printheads 1 (cyan, magenta, yellow, black)
Printhead nozzles 1376
Line accuracy ±0.1%
Minimum line width 0.02 mm
Max optical density 8 L* min/2.10 D
Handling Sheet feed, roll feed, automatic horizontal cutter
Roll size 279 to 610 mm
Sheet size 210 x 279 to 610 x 1897 mm
Standard sheets A4, A3, A2, A1
Grammage 60 to 280 g/m²
Thickness Up to 0.3 mm
Applications Line drawings; Presentations; Renderings
Memory 512 MB
Hard disk None
Interfaces Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
Print languages (standard) JPEG, URF
Drivers Raster driver for Windows and macOS
Printer (w x d x h) 1013 x 440 x 285 mm
Shipping (w x d x h) 1155 x 575 x 405 mm
Printer 21.5 kg
Shipping 28 kg
What's in the box HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power Cord
What's in the box?
HP Designjet T230 24-in Printer
printhead
introductory ink cartridges
spindle
quick reference guide
setup poster
power Cord
Product Specifications
Max. Print Width 24.02"
Up to Res 2400 x 1200 dpi
512MB Standard Memory
1376 Printheads Nozzles
±0.1% Line Accuracy
USB, Network & Wireless
One-Year Limited Warranty
