Product Description

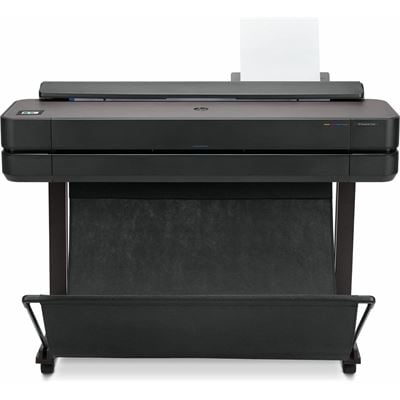

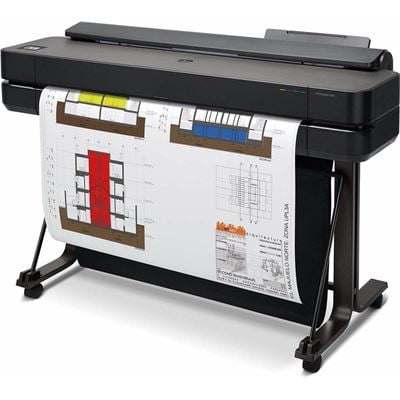

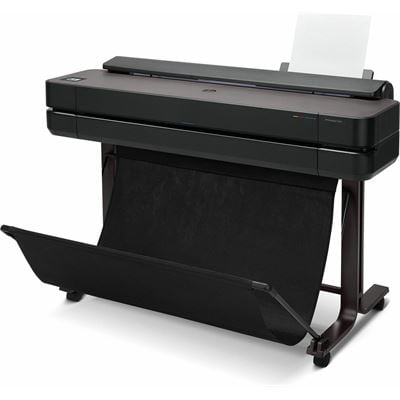

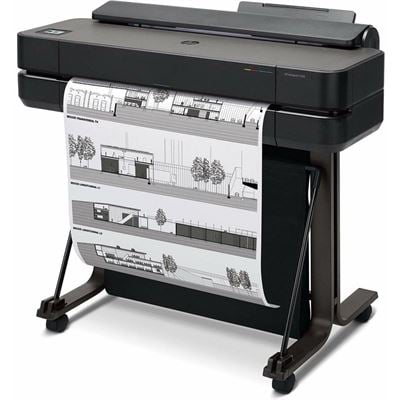

The HP Designjet T650 610mm (24-inch) is the world's easiest A0 plotter. It is compact, Wi-Fi enabled and offers automatic multi-size printing and a roll cover.
Functions Print
Print speed 26 sec/page on A1, 81 A1 prints per hour 1
Ink drop 5.5 pl (C, M, Y); 12 pl (K)
Print head nozzles 1376
Print cartridge/bottle volume 80 ml (K); 38 ml (K); 29 ml (C, M, Y) per cartridge
Ink types Dye-based (C, M, Y); pigment-based (K)
Print Cartridges/Bottle, Number 4 (C, M, Y, K) cartridges
Print heads 1 (cyan, magenta, yellow, black)
High capacity of page yield (colour) 20 ml of ink yields 101 A1 pages, taking into account maintenance routines 2
Print Cartridge/Bottle, Color(s) Cyan, magenta, yellow, black
Print quality color (best) Up to 2400 x 1200 optimized dpi
Maximum optical density (black) 8 L* min/2.10 D 3
Finished output handling Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Media sizes standard (metric rolls) 279 to 610 mm
Roll external diameter 100 mm
Roll maximum input 1
Roll maximum weight 4.1 kg
Recommended media Q1396A HP Universal Bond Paper (FSC® certified) 4 (recyclable) 5 610 mm x 45.7 m;C6019B HP Coated Paper (FSC® certified) 4 (recyclable) 5 610 mm x 45.7 m;C6029C HP Heavyweight Coated Paper (FSC® certified) 4 (recyclable) 5 610 mm x 30.5 m
Media thickness Up to 11.8 mil
Media thickness (metric) Up to 0.3 mm
Media width, maximum 610 mm
Supported Primary Applications Line drawings; Presentations; Renderings
Non-printable area (cut-sheet) 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Media sizes, custom Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm
Media sizes supported Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1
Media types Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended 60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Model size 610 mm
Internal Storage None
Line accuracy ±0.1% 6
Printer drivers included Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP Click Driver for Windows 11
Print languages HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Print technology HP Thermal Inkjet
Theoretical minimum line width 0.02 mm
Printing path HP Click App, HP Click Driver, HP app, Windows and MacOS printer drivers, HP-GL/2 driver for Windows, Apple AirPrint, Android Default Print Service, Printing support for ChromeOS, Email printing
Connectivity, standard Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Security features HP Wolf Essential Security: Secure boot with HW root of trust; Firmware Code Signature Validation; Automatic FW Updates; HTTPS Redirect enabled by default; SNMPv1/2 read-only by default; SNMPv3 disabled by default; Write-protected memory; HP Cartridge Security; Unique password; Disable USB ports; TLS 1.2; 802.1x; IPv4 & IPv6 Compatibility; CA/JD Compatibility
Remote print enabled Yes
Print multi-size files in one click Yes
Dimensions (W x D x H) 1013 x 605 x 932 mm
Package dimensions (W x D x H) 1155 x 575 x 475 mm
Weight 29.5 kg
Package weight 38 kg
Memory 1 GB
Acoustic power emissions (active, printing) 5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions 42 dB(A) (operating), <16 dB(A) (idle)
Operating humidity ranges 20 to 80% RH
Non-Operating Humidity Range 0 to 95% RH
Operating temperature range 5 to 40ºC
Operating temperature range 41 to 104ºF
Storage temperature range -25 to 55ºC
Storage temperature range -13 to 131ºF
Operating altitude Up to 3000 m
Post-consumer recycled plastic in hardware by weight of plastic 40%
Power consumption <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power Input voltage (auto-ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Software included HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
Electromagnetic compatibility Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Energy Star certified Yes
Environmental certification ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Climate+ Gold; UL Ecologo
Manufacturer Warranty Two-year limited hardware warranty.
What's in the box HP DesignJet T650 24-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
