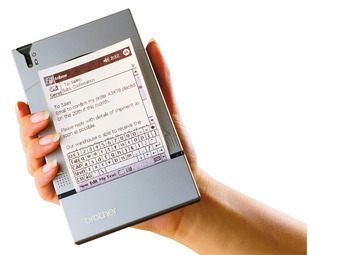

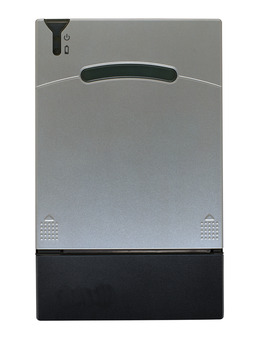

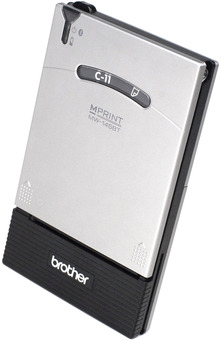

Brother MW-145BT A7 Mobile Printer

Brief Overview

The MW-145BT is the flagship model of the MPrint mobile printer family. Printing hard copy while on the move is now even easier with the new Bluetooth version of MPrint; the world's smallest

Product Description

General
Model MW-145BT
Print Engine Direct Thermal
FunctionsA7 Mobile Printer with USB and Bluetooth interface - 300dpi
Standard Memory NA
Drop Protection NA
Keyboard Power Key (On/Off), Bluetooth Key(On/Off)
Display
Display Type LED Status Indicator: Blue / Green / Red
LED Charging Indicator: Orange
Printer
Emulation3 command (Brother original command, MPrint ESC/P command, P-touch template printer command)
Print Speed Ave.: 15 sec./page or 4.4 mm/sec.(under our standard environment)
Printer Resolution300 x 300dpi
Printer Driver Functions Page size: 4(A7, A4->A7(default), B5->A7 and Letter->A7)
Half-tone: 3 (Dithering, Error diffusion, None)
Max Print AreaC11: 69 x 100mm
C51: 62 x 95mm
Paper Handling
Standard Paper CapacityC-11:A7 Thermal x (50 sheets/cassette)
C-51:A7 Carbon copy (2ply) x (30 sheets/cassette)
Media Size General74mm x 105mm (A7)
Software
Software Development Kit Pocket PC2002/2003, Windows Mobile 5 / 6, Blackberry, Windows 2000/XP/Vista
Template Transfer to Machine Yes
Connectivity
Interface USB 2.0 Full speed
Bluetooth Ver. 2.1+EDR Class 2 (Serial Port Profile)
Operating System Windows PC: Windows 2000 Professional / XP / Vista
Windows Mobile: WM5 / WM6
Mobile Operating System Software Development Kit for Pocket PC2002/2003, Windows Mobile 5 / 6, Blackberry, Windows 2000/XP/Vista/Windows7
Networking
Wireless Interface NA
Wireless Security NA
Options
Optional Power Rechargeable lithium-ion battery 780mAh(7.4V) (BT-100)
AC Adapter Auto switching (100-240V)
Optional Car Mount NA
Optional magnetic card reader NA
Optional Carry Case Yes (PCS-100)
Consumable
ConsumablesC-11: A7 Thermal x (50 sheets/cassette)
C-51: A7 Carbon copy (2ply) x (30 sheets/cassette) - Special software from SDK needed
Weight and Measures
Size100(W) x 163(D) x 17.5(H)mm (including 3mm antenna)
Weight300g (including paper cassette and battery)
Environment
Auto Power Off Power-off (5 minutes), Bluetooth sleep mode (3 minutes)
Humidity Operating Humidity: 20 to 80%
Temperature Operating Temperature: 0 to 40deg C
Others
Warranty12 Months Return To Base
Carton ContentsMW-145BT, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, C-11 thermal paper (50 sheets), Lithium ion Rechargeable battery pack (BT-100), AC Adaptor (AD-210AUS)

What's in the box?

MW-145BT, Quick Setup Guide, CD-ROM (Including users guide, printer driver), USB cable, C-11 thermal paper (50 sheets), Lithium ion Rechargeable battery pack (BT-100), AC Adaptor (AD-210AUS)
