Brief Overview
WIRELESS (WiFi) HIGH SPEED LABEL PRINTER / UP TO 62MM WITH BLACK/RED PRINTING (*DK-22251 required)
Product Description

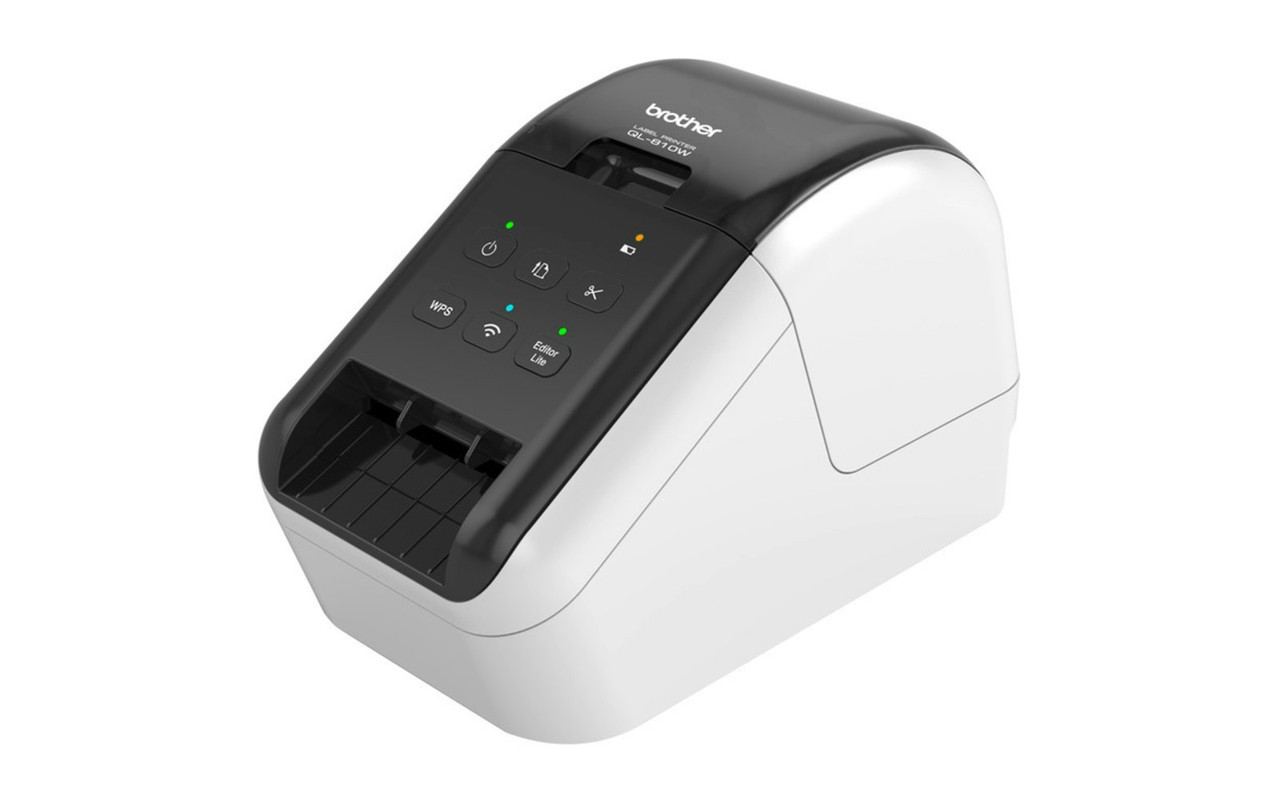

Introducing the QL-810W; Brother’s fastest label printer of up to 110
labels/min will ensure you’re always one step ahead, whatever your
business. Providing unprecedented flexibility and creative possibilities
for users, this device prints in both black and red text, enabling a
variety of use applications including warnings, special identification
of persons on name tags, highlighting important messages, emphasising
offers on signs or for practical reminders. Offering Wi-Fi connectivity
and AirPrint capabilities, an integrated cutter and software for
designing your own labels, and an optional Li-ion battery supporting
mobile use, the QL-810W is the professional tool you’ve been looking
for.
General
Functions Wireless network ready labeller that prints 62mm labels with
auto cutter Hardware TypeDesktop EngineDirect thermal Standard Memory6Mb
/ 99 templates
Display
Display TypeLED - WiFi, Editor Lite, Power, Battery
Control Panel
Buttons6 (Power, Feed, Cut, WPS, WiFi, Editor Lite)
Printer
Emulation1.Raster
2.ESC/P
3.PTouch template Print Speed Max. 176 mm / sec. Printer Resolution300
dpi / 720 dots Distributed PrintingYes (Windows Only via USB or
Ethernet)
Labeller
Characters and Symbols PC Select Frames and Back grounds PC Select
Barcodes Yes BarCode Names Software side: CODE39, CODE128,
UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13,
EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode,
POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14
Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked),
PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data
Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4,
Model5), IMB**
Machine side: CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5),
CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1
DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1
DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar
Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate,
Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square,
ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION Multi
Line PrintPC Select Tape Length Setting12.7mm - 1000mm Max Print
Height58.93 mm Max Print LengthUp to 1000mm long (Windows) Fonts
LabellerBuilt-in Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold,
San Diego, Brougham
Built-in Outline fonts: Helsinki, Brussels, Letter Gothic
All True Type Fonts installed in your computer Time and Date Feature Via Computer
Software
Software Included Win: P-touch Editor , Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1
Mac: P-touch Editor Template Transfer to MachineYes (99 Templates or 6MB)
Connectivity
Interface USB (Full Speed), IEEE 802.11b/g/n Wireless LAN Wireless
InterfaceYes Operating SystemWindows 10, Windows 8/8.1, Windows 7,
Vista, Server 2008, Server 2008R2, Server 2012, Server 2012R2
Mac: OSX 10.9 or greater
Linux deb, rpm (Only driver)
Android / IOS
Mobile / Web Printing
Mobile Operating System Iprint &Label (Android/IOS), AirPrint iPrintLabel Android/IOS
Networking
Wireless Interface Yes Wireless ModeIEEE 802.11b/g/n, (Infrastructure
Mode), IEEE 802.11b (Adhoc Mode) Wireless SecuritySSID (32 chr), WEP
64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), LEAP, EAP-FAST
Power Supply
AC Adaptor External S/W Power Supply (PA-AD-001A) Battery LifeMono:4,300 labels
2 colour:1,400 labels Battery Recharge Less than 2 hours and 30 minutes
Options
Optional Power Optional Rechargeable Lithium-Ion Battery Pack
(PA-BU-001) Optional OtherCleaning Sheet (10 sheets) BatteriesOptional
Rechargeable Lithium-Ion Battery Pack (PA-BU-001)
Consumable
Roll Width62mm Roll TypeDK Rolls (DK Die-cut Labels / DK Continuous
Length Tape / DK Two Colour Rolls) Roll SizeSee Roll Type Roll
CutterDurable Auto cutter (User unreplaceable)
Weight and Measures
Size125x234x145 (WxDxH) mm Weight1.07kg (without DK roll)
Environment
Energy Star Compliant Yes Auto Power Off Yes
Others
Warranty 3 Years Return To Base Carton ContentsQL-810W, CD-ROM
(Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK
Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100
labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter
roll, 5m), Power Cord and Adaptor
What's in the box?
QL-810W, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick
Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label
(Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length
Paper Tape (Starter roll, 5m), Power Cord and Adaptor
Product Specifications
Up to Print Speed Max. 176mm/Sec.
Up to Resolution 300 dpi / 720 dots
6 MB Standard Memory
Max. Print Height 58.93 mm
6 Control Panel Buttons
USB & Wireless Interface
3 Years Return to Base Warranty
Brochure for Brother QL-810W Professional Label Printer
