Product Description

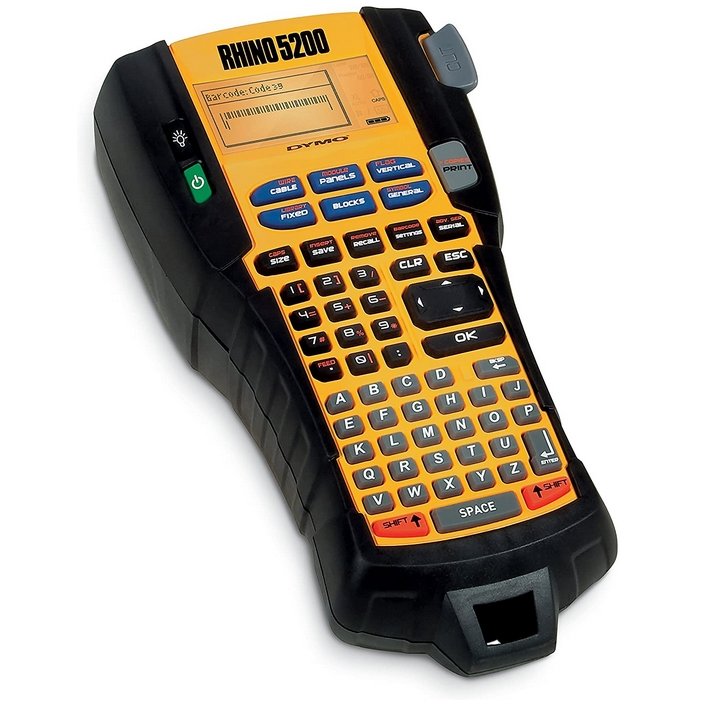

Rugged, versatile, and packed with time-saving features, the Rhino™ 5200 meets key ANSI and TIA/EIA 606-A labeling standards. Just press a proprietary Rhino “Hot Key” to automatically size, space and format text for perfect patch panel labels - then press another to print matching cable flags or face plate tabs, without retyping. It’s just as easy to print module and fixed-length labels, horizontal and vertical wire wraps, terminal and 110 blocks and much more. Print Code 39 and Code 128 barcodes. Access 100+ industry symbols, fractions, and punctuation marks with a few quick keystrokes. Add the optional quick-charging lithium-ion battery for uninterrupted productivity.
Features
Print Code 39 and Code 128 bar codes on 3/4" (19mm) wide labels – perfect for asset management
Large backlit 2-line and 14-character display
Meet key ANSI and TIA/EIA-606-A industry labeling standards
Exclusive, one-touch “Hot Keys” to automatically size, space, and format label text for electrical and patch panels, terminal and 110 blocks, wire and cable flags, horizontal and vertical wraps, vertical and fixed-length applications

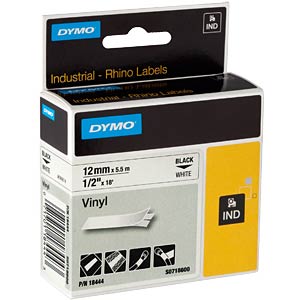

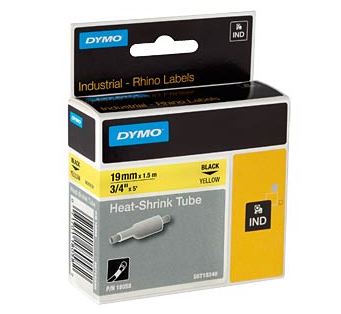

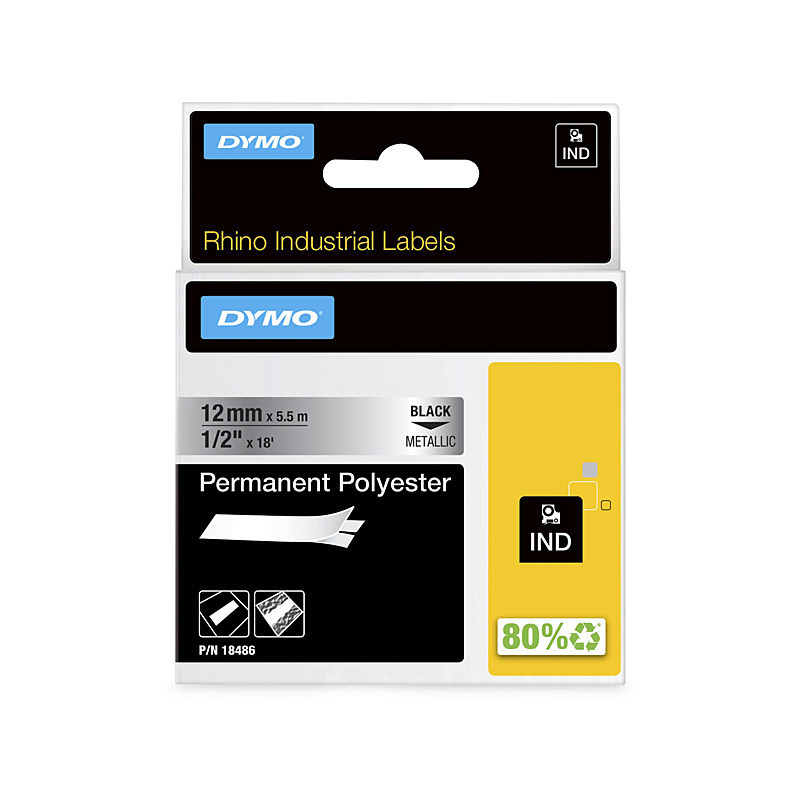

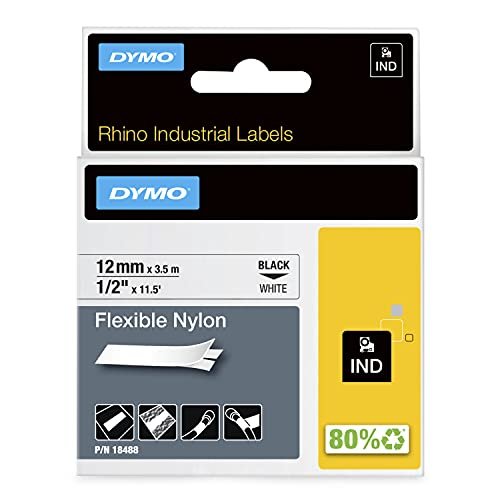

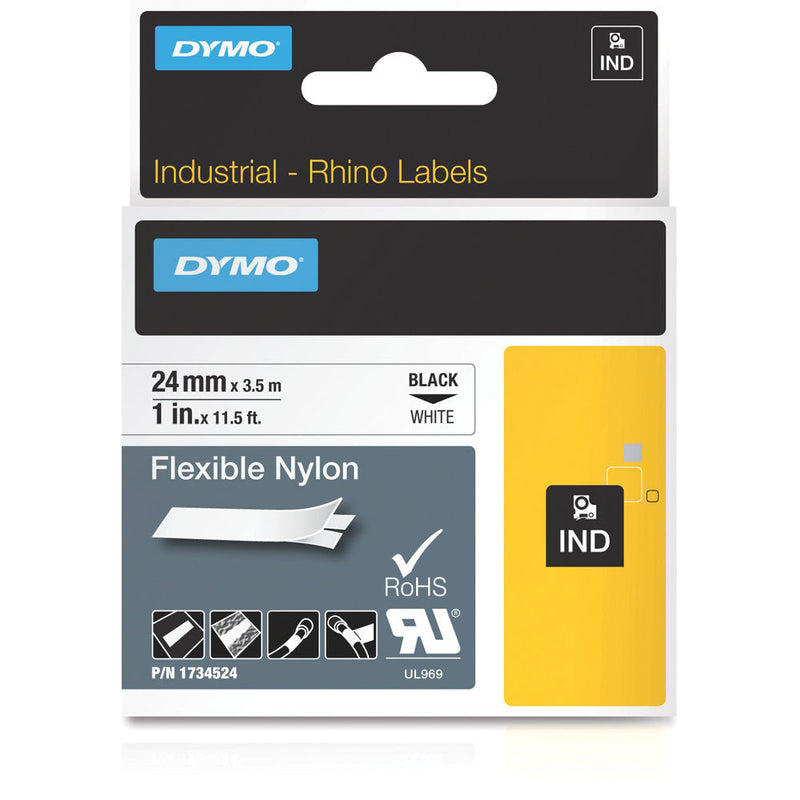

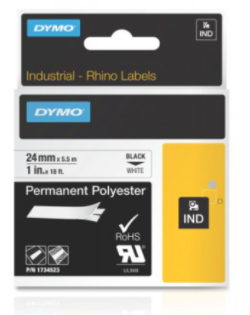

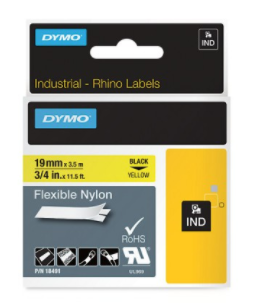

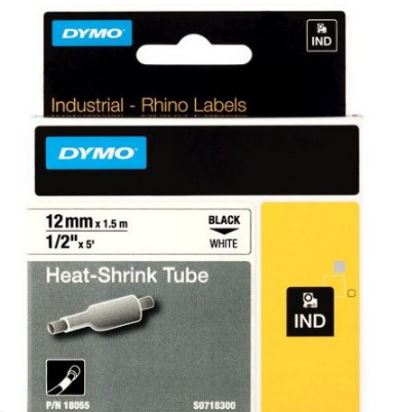

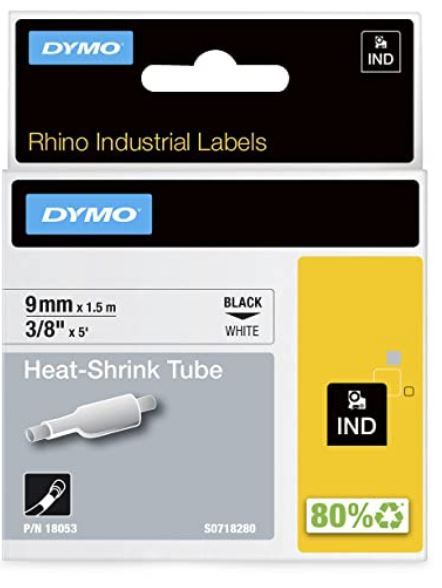

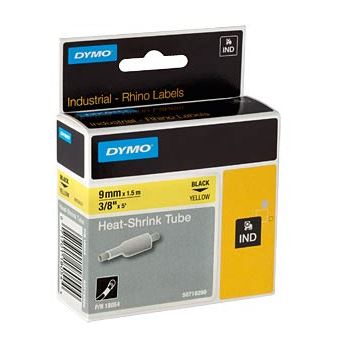

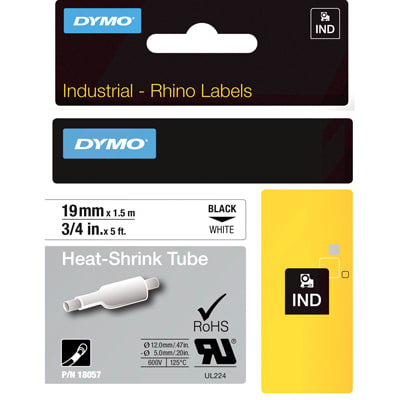

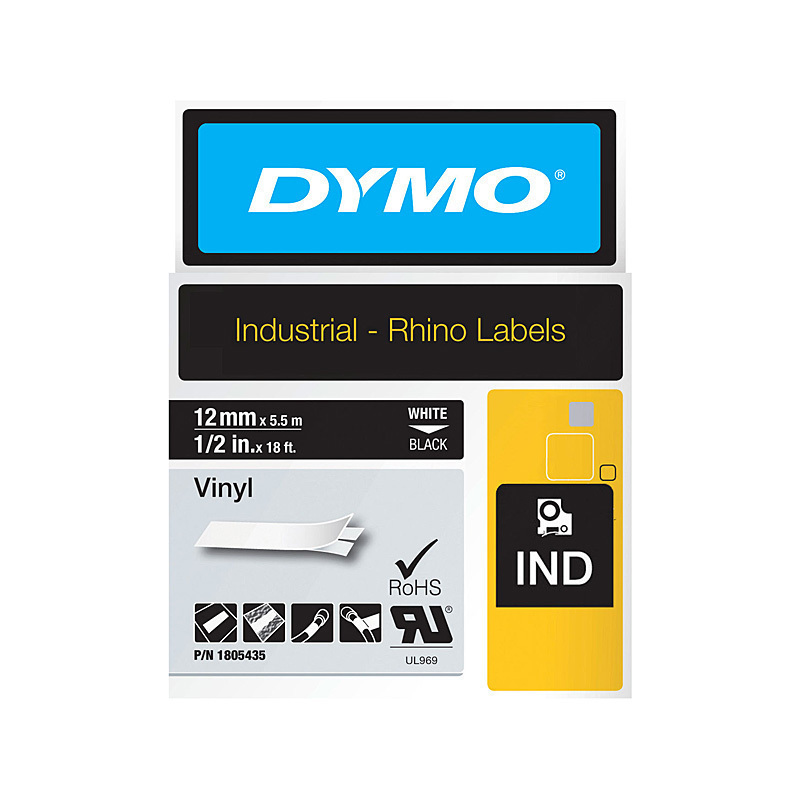

Uses DYMO Industrial labels with chemical-heat-and UV-resistant materials; also prints heat-shrink tubes and non-adhesive labels
SPECIFICATIONS
Print Applications: Assets and Barcoding, Facilities & MRO, Wires and Cables, Networking Components
Barcodes: Code 39 + Code 128
Patch Panels: Yes
110 Blocks: Yes
Terminal Blocks: Yes
Flags & Cable Wraps: Yes
Fixed & General: Yes
Breakers & Modules: Yes
Serialization: Advanced
Pre-programed Symbol Library: Yes
Customizable Library: Yes
Memory: 100 Labels

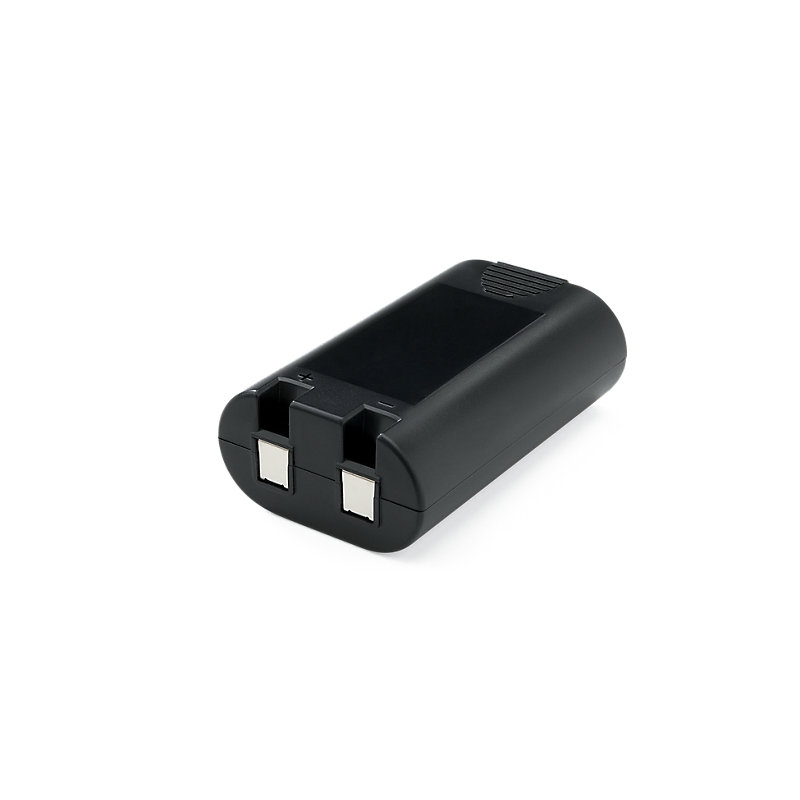

Li-ion Rechargeable Battery: Capable
Cutter Type: Manual
Keyboard Type: ABC
Backlit Display: Yes
Integrated Rubber Bumper: Yes
Multi-Label View: Yes
Lanyard Loop: Yes
Number of Styles: 5
Maximum Lines of Print: 5
Number of Character Sizes: 7
Printing Process: Thermal Transfer
Print Resolution: 180dpi
Languages: 17
Dimensions: 233(h) x 124(w) 63(d)mm
Weight: 0.9kg

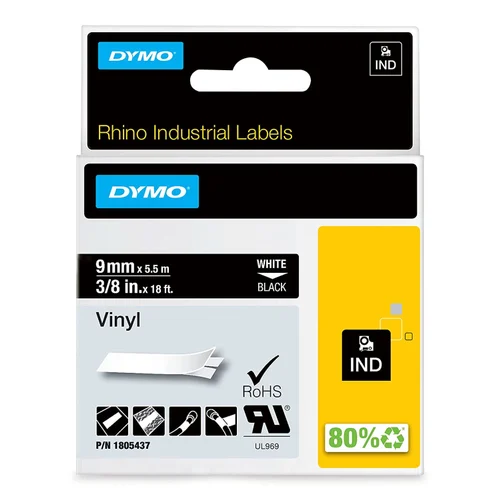

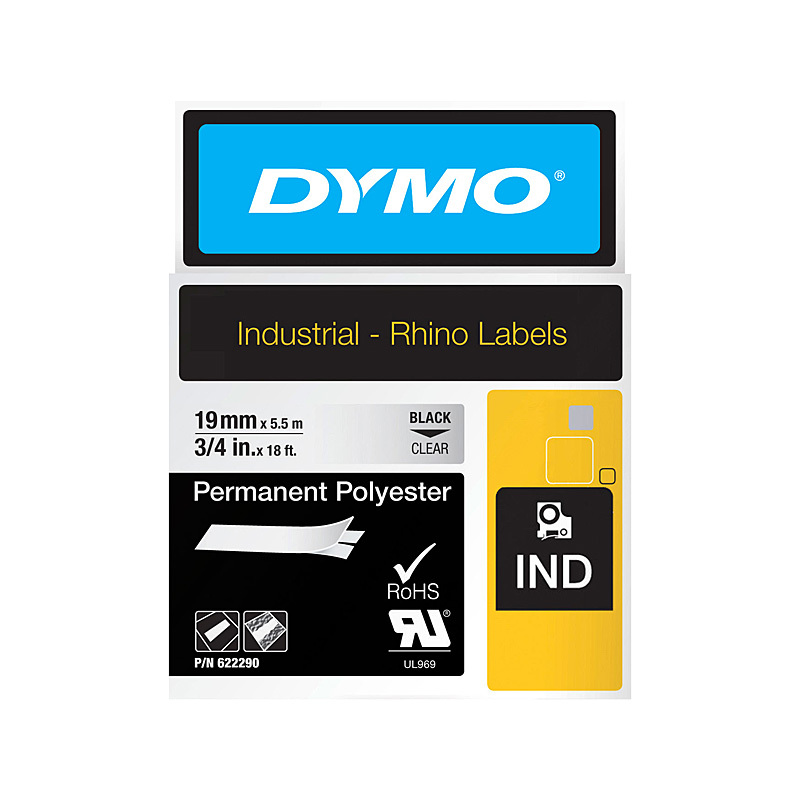

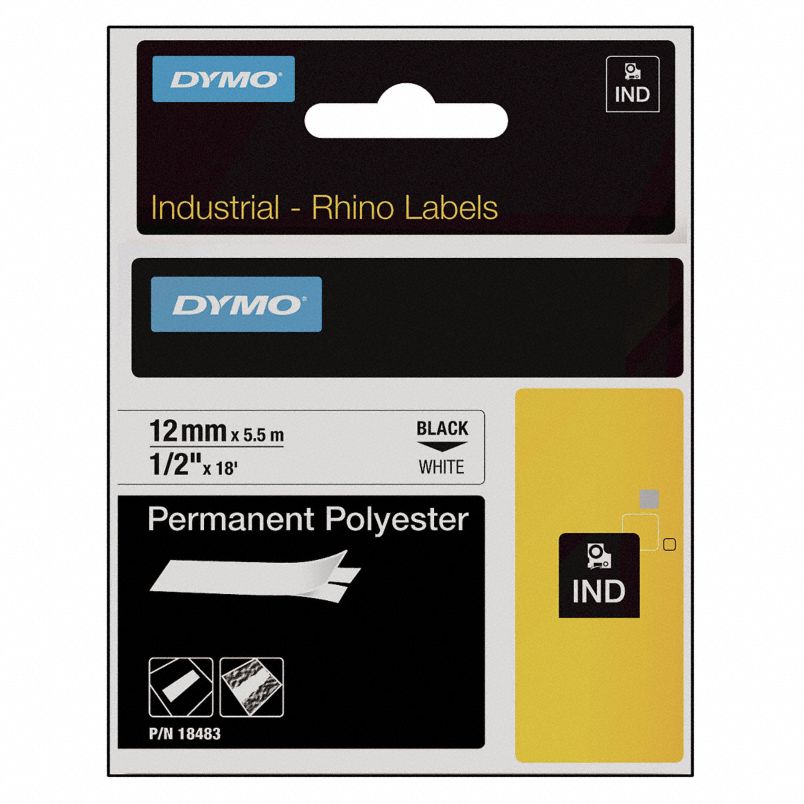

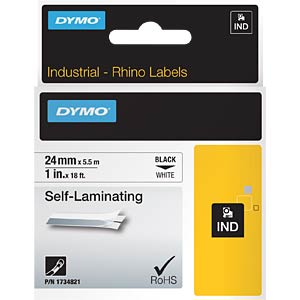

Tape System: Rhino Industrial Labels
Tape width: 6mm, 9mm, 12mm, 19mm

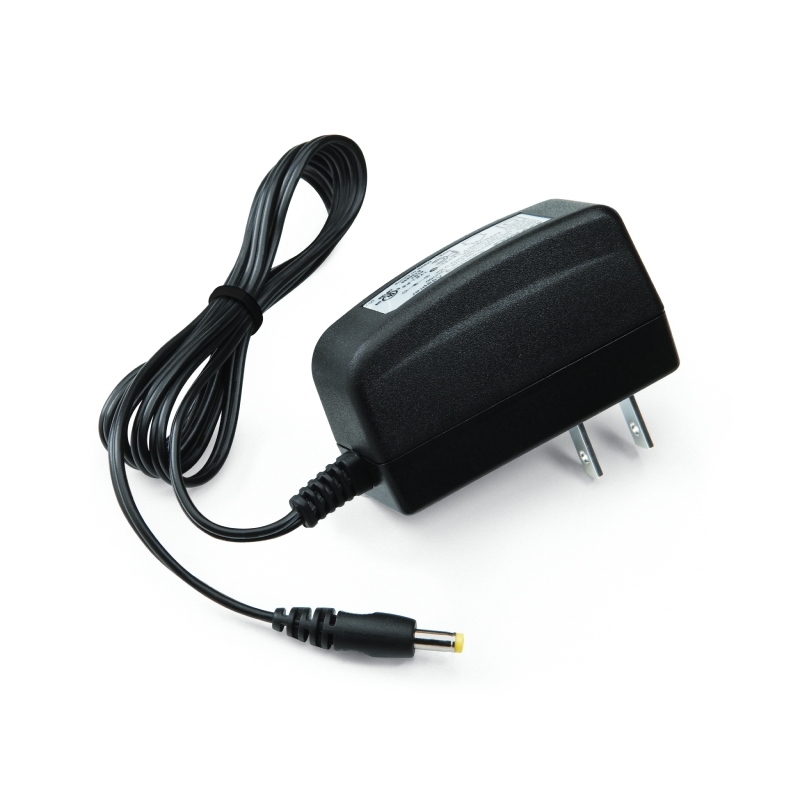

Package includes: Dymo Rhino Industrial 5200 Label Maker, White IND Vinyl Label Cartridge, White IND Vinyl Label Cartridge, User Manual CD-ROM, Quick Reference Guide, AC Adapter, Carry Case, Rechargeable Lithium-ion Battery
Warranty Information: 1-Year Limited Warranty
Colour: Black/Yellow
Product Specifications
Maximum Lines of Print 5
Up to Print Resolution 180dpi
ABC Keyboard Type
100 Labels Memory
17 Languages
Flags & Cable Wraps
One Year Limited Warranty
Brochure for DYMO Rhino 5200, Industrial Label Maker Printer
