Product Description
Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Product Type: Direct Thermal/Thermal Transfe
Platform Supported: PC
Maximum Print Width: 103.89 mm (4.09")
Power Source: AC Supply
Recommended Use: Label Print
Form Factor: Desktop
Maximum Print Resolution: 203 dpi
Brand Name: Zebra
Media Type: Black Mark
Notch
Die-cut Label
Continuous Label
Maximum Mono Print Speed: 152.40 mm/s
Environmentally Friendly: Yes
USB: Yes
Serial Port: Yes
Product Family: ZT200
Maximum Label Width: 114.30 mm
Print Color Capability: Monochrome
Energy Star: Yes
General Information
Product Type: Direct Thermal/Thermal Transfer Printer
Manufacturer Part Number: ZT23042-T0P000FZ
Manufacturer Website Address: http://www.zebra.com/ap/en.html
Manufacturer: Zebra Technologies Corporation
Product Model: ZT230

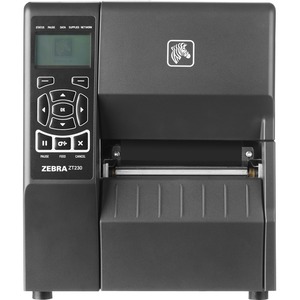

Product Name: ZT230 Industrial Printer
Product Series: ZT200
Brand Name: Zebra
Interfaces/Ports
USB: Yes
Serial Port: Yes
Media Types & Handling
Maximum Roll Diameter: 203.20 mm
Media Type: Continuous Label
Die-cut Label
Notch
Black Mark
Maximum Label Width: 114.30 mm
Maximum Label Length: 990.60 mm
Memory
Standard Memory: 128 MB
Miscellaneous
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: ENERGY STAR
Energy Star: Yes
Physical Characteristics
Weight (Approximate): 9.07 kg
Form Factor: Desktop
Height: 276.9 mm
Width: 241.3 mm
Depth: 431.8 mm
Power Description
Power Source: AC Supply
Technical Information
Maximum Print Width: 103.89 mm (4.09")
Recommended Use: Label Print
Maximum Print Resolution: 203 dpi
Maximum Mono Print Speed: 152.40 mm/s
Print Color Capability: Monochrome
Warranty
Limited Warranty: 1 Year
Product Specifications
Max. Mono Print Speed 152.40 mm/s
Max. Print Resolution 203 dpi
Max. Roll Diameter 203.20mm
Max. Label Length 990.60 mm
128MB Standard Memory
USB & Serial Connectivity
One Year Limited Warranty
Brochure for ZEBRA ZT230 4-inch 203DPI Thermal Transfer Printer
