Product Description
Zebra incorporated extensive customer feedback, as well as the legacy of our industry-leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space-saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Technical Specs
Memory
Standard Memory 128 MB
Network & Communication
Ethernet Yes
Power Description
Power Source AC Supply
Interfaces/Ports
USB Yes
Serial Port Yes
Physical Characteristics
Weight (Approximate) 9.07 kg
Height 276.9 mm
Width 241.3 mm
Depth 431.8 mm
General Information
Product Type Direct Thermal/Thermal Transfer Printer
Manufacturer Part Number ZT23042-T2P200FZ
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT230

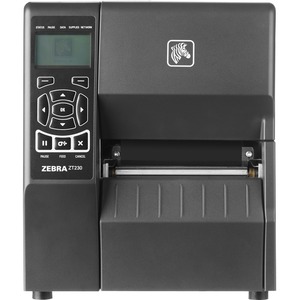

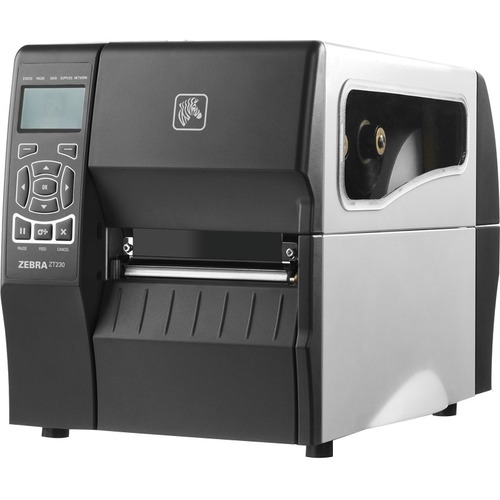

Product Name ZT230 Industrial Printer
Product Series ZT200
Brand Name Zebra
Miscellaneous
Package Contents
ZT230 Industrial Printer
Power Cord
Platform Supported PC
Environmentally Friendly Yes
Cables Included AC
Energy Star Yes
Technical Information
Application/Usage Industrial
Maximum Print Width 103.89 mm (4.09")
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Print Resolution (dpi) 203
Media Types & Handling
Maximum Roll Diameter 203.20 mm
Media Type Die-cut Label
Notch
Black Mark
Continuous Label
Maximum Label Width 114.30 mm
Maximum Label Length 990.60 mm
Product Specifications
Max. Print Width 103.89mm(4.09")
Max. Print Resolution 203 dpi
Max. Roll Diameter 203.20mm
Cutter with Catch Tray
128MB Standard Memory
USB, Network & Serial
One-Year Limited Warranty
Brochure for Zebra ZT230 (ZT23042-T2P200FZ) 203 dpi Thermal Transfer Printer
