Product Description

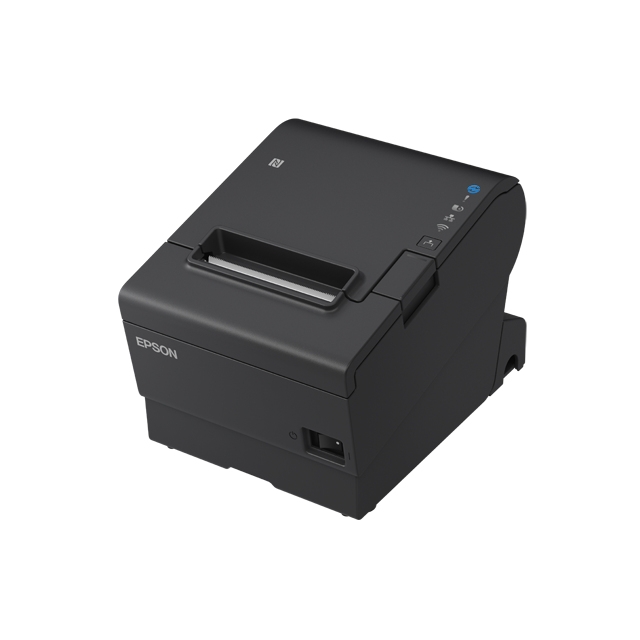

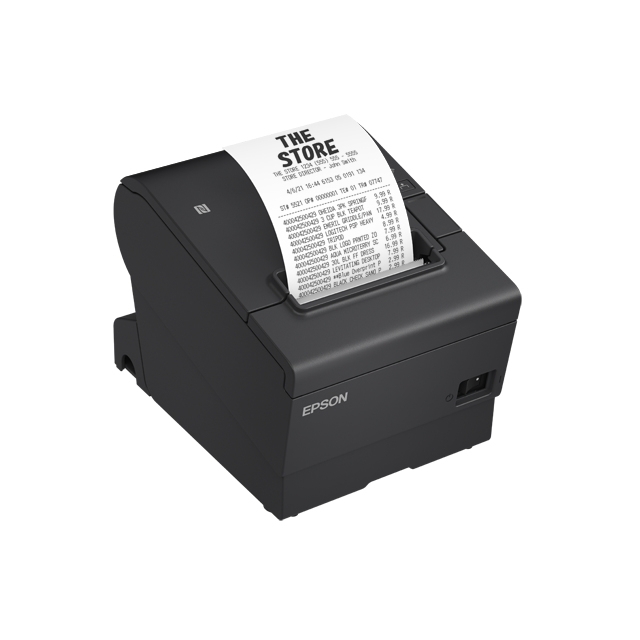

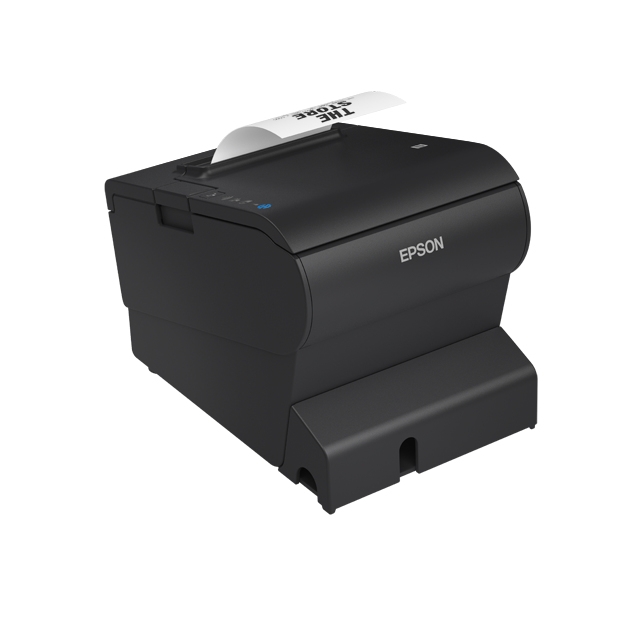

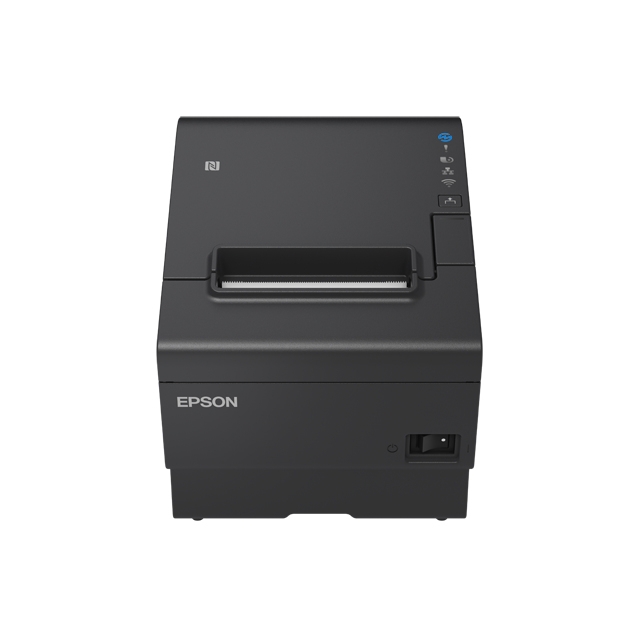

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
KEY FEATURES & BENEFITS
Ultra-fast transaction times – industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
Reliability you can count on – 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life2
Connect to multiple devices simultaneously – using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
Multi-interface support – built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
Secure wireless connection – supports the latest Wi-Fi® security standard (WPA3)
Online ordering ready – Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
POS peripheral support – supports POS peripherals including barcode scanners, customer displays, and more
Easy setup and configuration – streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
Easy to understand – status LEDs and network diagnostic sheet improve on-site network troubleshooting
Backwards compatible – fully compatible with the existing T88V and T88VI software and same footprint
Advanced paper-saving functions – top-margin and character-height reduction features help reduce paper usage by up to 49 percent
PRINTER
MODEL NAME TM-T88VII
PRINTING TECHNOLOGY Thermal line printing
PRINT RESOLUTION 180 dpi
PRINT SPEED 500 mm/sec (max)
PRINT FONTS Font A (default): 12 x 24
Font B: 9 x 17
COLUMN CAPACITY 80mm: 42/48/56 columns
58mm model: 30/36/40 columns
CHARACTER SIZE (mm) Font A (default): 12 x 24
Font B: 9 x 17
CHARACTER SET 95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page).
Options for customization include Traditional/Simple Chinese, Thai, Japanese and Korean
BARCODE UPC-A/E, Code 39/93/128, CODABAR PDF417, QR-CODE, MaxiCode, Data Matrix, Aztec Code, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional /Truncated /Limited /Expanded
MEDIA HANDLING
THICKNESS 48 – 80 µm
MEDIA DIMENSIONS 80mm: 79.5 ± 0.5 (W) x 83mm diameter (3.13" ± 0.02” x 3.27")
58mm: 57.5 ± 0.5 (W) x 83mm diameter (2.26" ± 0.02” x 3.27")
STANDARD CONNECTIVITY Built-in USB, Built-in Ethernet (10/100Base-T/TX) + UIB (Serial, Parallel, Powered USB)
Bluetooth 2.1+EDR (dedicated model)
Wireless (USB wireless dongle): OT-WL05 (802.11 a/b/g/n) or OT-WL02 (802.11 b/g/n)
Beacon (using Bluetooth Low Energy): Beacon dongle (Epson-approved dongle: Laird model BT820)
PRINTER DISCOVERY NFC (Near Field Communication), Simple AP (wireless network)
COMMUNICATION PROTOCOLS ESC/POS, ePOS-Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless)
PRINTING FROM A MOBILE DEVICE WiFi (802.11): iOS, Android™ and Windows® operating systems Bluetooth: iOS, Android and Windows
GENERAL
OPERATING SYSTEMS Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Mac OS X®
Linux (CUPS, JavaPOS)
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)
DIMENSIONS 145 x 195 x 148mm (W x D x H)
WEIGHT 1.6kg
SECURITY Security: WEP, WPA-PSK, WPA2-PSK/EAP
WPA2-EAP (Enterprise): EAP-TLS, PEAP/MSCHAPv2, PAEP/TLS
Port open/close setting
IP address filtering
SAFETY APPROVALS RCM: AS/NZS CISPR 32 Class A
CASE COLOUR Epson Black (EBCK)
RELIABILITY
MTBF 360,000 hours
MCBF 70,000,000 lines
THERMAL HEAD LIFE 200 km
AUTO CUTTER LIFE 3 million cuts
WARRANTY 48 months
DATA BUFFER
RECEIVE 45 bytes or 4KB, selectable
USER-DEFINED 12KB
MACRO 2KB
NV GRAPHICS 384KB
NV USER 1KB
SOFTWARE INCLUDED ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)
OPTIONS Power supply cover
PS-190 AC adapter
one wall hanging bracket
affixing tape and Connect-It interfaces
POWER
POWER SUPPLY VOLTAGE 24VDC ± 7%
POWER CONSUMPTION Operating: 27.6W
Stand-by: 0.5W
POWER SOURCE 24VDC ± 7%
CONFIG BUILDS
TM-T88VII -612 Built-in Ethernet, USB, Serial (Part Number : C31CJ57612)
TM-T88VII -622 Built-in Ethernet, USB, Parallel (Part Number : C31CJ57622)
TM-T88VII -632 Built-in Ethernet, USB, PUSB (Part Number : C31CJ57632)
TM-T88VII -652 Built-in Ethernet, Non UIB Slot (Part Number : C31CJ57652)
OPTIONS
C32C891324 Wireless LAN adapter 2.4GHz for TM-T88VII
C32C845040 Wall Hanging Bracket - use with TM-T88VI, TM-T88V, TM-T88IV, TM-T90, TM-L90, TM-U220 & TM-U230
C32C814596 Power supply cover for TM-T88VII
COVERPLUS SERVICE PACK (OPTIONAL)
1YWT88VII Coverplus 1yr Service Pack TM-T88VII
