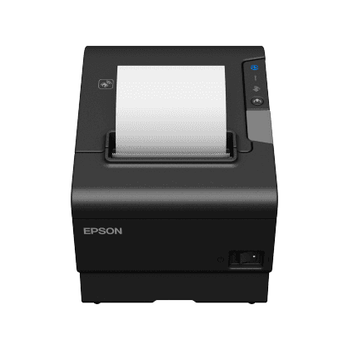

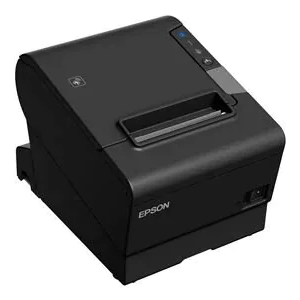

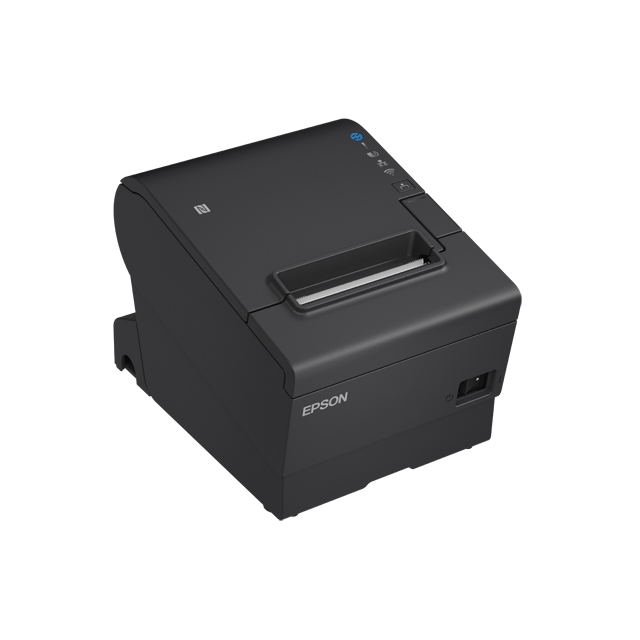

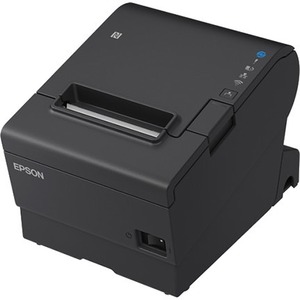

Product Description
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers.
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills.
Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
KEY FEATURES & BENEFITS
Ultra-fast transaction times - industry-leading print speeds up to 500 mm/sec1 and high-speed auto cutter
Reliability you can count on - 4-year warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
Connect to multiple devices simultaneously - using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
Multi-interface support - built-in USB and Ethernet, optional serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
Secure wireless connection - supports the latest Wi-Fi® security standard (WPA3)
Online ordering ready - Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
POS peripheral support - supports POS peripherals including barcode scanners, customer displays, and more
Easy setup and configuration - streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
Easy to understand - status LEDs and network diagnostic sheet improve on-site network troubleshooting
Backwards compatible - fully compatible with the existing T88V and T88VI software and same footprint
Advanced paper-saving functions - top-margin and character-height reduction features help reduce paper usage by up to 49 percent
Features
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
The printer is capable of printing sharp and detailed monochrome documents quickly
A smart and inexpensive solution to print temporary documents
Conveniently print your receipts
Technical Specs
Power Description
Power Source Power Adapter
Fonts & Emulation
Language Emulation ESC/POS
ePOS
Network & Communication
Ethernet Yes
Ethernet Technology Ethernet
Technical Information
Application/Usage Desktop
Barcode Symbology Supported GS1 DataBar Expanded
Maxi Code
GS1-128
GS1 DataBar Truncated
GS1 DataBar Omnidirectional
GS1 DataBar Limited
UPC-A/E
QR Code
PDF417
Data Matrix
Composite Symbology
Code 93
Code 39
Code 128
Codabar
Aztec Code
Recommended Use Receipt Print
Connectivity Technology Wired
Features Water Resistant
Print Head Life 200 km
Print Color Capability Monochrome
Mean Time Between Failures (MTBF) 41.1 Year
Mean Cycles Between Failures (MCBF) 70000000
Character Sets 128 x 43 Graphic
18 International
95 Alphanumeric
Thai
Column Capacity 80mm: 42/48/56 columns 58mm model: 30/36/40 columns
Optional Connectivity Wireless LAN
Parallel
Near Field Communication (NFC)
Bluetooth
Fonts Included Font A (default): 12 x 24 Font B: 9 x 17
Maximum Print Resolution (dpi) 180
Software
Software Included
ePOS-Print (XML over HTTP): WEP / WPA / WPA2-Personal/Enterprise
ePOS-Display Server Collaboration: Server Direct Print, Status notification
PHP/Sqlite3 Backup/Restore: TM Utlity (Win)
Operating System Supported
Microsoft® Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Mac OS X®
Linux (CUPS, JavaPOS)
Microsoft Windows 8.1 / iOS / Android (ePOS-Print SDK)
Cutter
Cutting Method Automatic
Cutter Yes
Cutter Life 3000000 Cuts
Interfaces/Ports
USB Yes
Serial Port Yes
USB Host Yes
Physical Characteristics
Weight (Approximate) 1.60 kg
Height 148 mm
Width 145 mm
Depth 195 mm
Product Color Black
Media Types & Handling
Media Thickness 80 µm
Maximum Roll Diameter 83 mm
Media Type Receipt
Media Sensor Cover Open Sensor
Paper End Sensor
Paper Near End Sensor
Maximum Label Width 80 mm
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number C31CJ57612
Manufacturer Website Address http://www.epson.com.au
Manufacturer Epson Corporation
Product Model TM-T88VII -612
Product Name TM-T88VII Single-station Thermal Receipt Printer
Product Series TM-T88VII
Brand Name Epson
Miscellaneous
Package Contents
TM-T88VII Single-station Thermal Receipt Printer
Thermal Roll Paper (starter roll for testing)
Power Switch Cover
Connector Cover
Bottom Cover for Connector Cover
Roll Paper Guide
Screws
Setup Guide
AC Adapter w/ AC Cord
CD (drivers, utilities and documentation)
Platform Supported Android
iOS
Mac
PC
SPARC
Environmentally Friendly Yes
Environmental Certification RoHS
Noise Level 52 dB
