Product Description

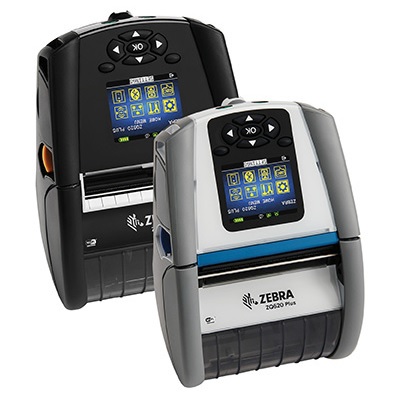

ZQ600 Plus Series Mobile Printers | Premium mobile label and receipt printers for maximum productivity
Want to improve inventory management and customer service in your store? With the ZQ600 Plus Series mobile printer, you can. The ZQ600 Plus Series takes Zebra's popular QLn platform and makes it even better-adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Plus Series never sleeps on the job. Your workers get fast, dependable wireless connections and your IT department will find the ZQ600 Plus Series easier to integrate, manage, setup and secure, thanks to Zebra's Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools. The ZQ600 Plus Series-the next evolution in the gold standard for mobile label and receipt printing.
Premium Features for Maximum Productivity | The Industry's First Wi-Fi™ 6 Mobile Printer
The ZQ600 Plus Series offers fast, dependable wireless connections for your inside-the-four-walls applications. Take advantage of your Wi-Fi 6/6E network upgrade and get best-in-class WPA3 security, lightning-fast speeds and enhanced roaming. For flexibility, choose between 802.11ax/Bluetooth® 5.3 or 802.11ac/Bluetooth 4.2 dual radio options, depending on your network environment.
Industry-Standard 802.11r Fast Roaming for Seamless Access
With support for 802.11r fast roaming technology, your workers can depend on a connection while they are on the move.
Instant Wake-Up Over Wi-Fi
This intelligent printer enters sleep mode when it is idle, and automatically wakes up the moment the user sends a print job. And the ZQ600 Plus Series' instant wake-up works over both Wi-Fi and Bluetooth.
Large Color Display Makes Configuration and Operation a Snap
The ZQ600 Plus Series provides a large display, user-friendly interface and easily customized menu. The ZQ600 Plus Series is based on Zebra's Link-OS® menu system to deliver a common user experience across other Zebra Link-OS mobile, desktop and industrial printers.
Business Tough-Built for All-Day Every Day Enterprise Use
While the ZQ600 Plus Series is lightweight and comfortable to wear all shift long, it is loaded with features that give it long-lasting durability, including over-molding, a tempered-glass display and seamless one-piece design. The high-grade resin is one of the toughest plastics available for greater impact resistance.
Unsurpassed Battery Power Management | Do More on a Single Charge
With the ZQ600 Plus Series' high-capacity battery, you can be sure that every worker has plenty of power for every shift. Plus Power Smart Print Technology™, Zebra's patented technology, maximizes efficiency by delivering the exact amount of power required for the highest quality printing, saving an estimated 20 to 30 percent of battery power.
Extraordinary Battery Management Capabilities
The ZQ600 Plus Series' PowerPrecision+ battery delivers the ultimate in battery power and management. A wealth of easily accessible battery metrics makes it easy to identify aging batteries before they impact productivity.
Apple™ iOS, Android™ and Windows™ Mobile connectivity
Direct thermal printing of barcodes, text and graphics
CPCL, EPL™ and ZPL™ programming languages
512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
ZQ620 Plus and ZQ610 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery
Built-in battery charger
Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
Black mark and gap media sensing using fixed center position sensors
Easy-to-use peel and present mode
Label present sensor for issuing labels one at a time
Tear bar for easy media dispensing
Tech Specification:-
Display & Graphics
Display Screen Yes
Power Description
Power Source Battery
Software
Operating System Supported
Link-OS
iOS
Android
Windows
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3250 mAh
Memory
Flash Memory 512 MB
Standard Memory 256 MB
Interfaces/Ports
USB Yes
USB Standard USB 2.0
USB Host Yes
Fonts & Emulation
Language Emulation CPCL
EPL
ZPL
ZBI 2.0
XML
Physical Characteristics
Weight (Approximate) 730 g
Form Factor Desktop
Height 77 mm
Width 117.9 mm
Depth 173.7 mm
Miscellaneous
Compatibility iPhone
iPod
iPad
Platform Supported iOS
PC
Android
Energy Star Yes
General Information
Product Type Direct Thermal Printer
Manufacturer Part Number ZQ62-HAXAA04-00
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZQ620 Plus
Product Name ZQ620 Plus Direct Thermal Printer
Product Series ZQ6
Brand Name Zebra
Network & Communication
Bluetooth Yes
Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Ethernet Technology Fast Ethernet
Bluetooth Version 4.2
5.3
Near Field Communication (NFC) Yes
Media Types & Handling
Media Thickness 165.1 µm
Maximum Roll Diameter 66.04 mm
Media Type Linered Media
Gap
Die-cut Label
Black Mark
Black Bar
Receipt
Tag
Label
Media Sensor Label Present Sensor
Gap Sensor
Black Mark Sensor
Maximum Label Width 79.38 mm
Maximum Label Length 812.80 mm
Technical Information
Application/Usage Industrial
Manufacturing
Mobile
Warehouse
Retail
Transportation & Logistic
POS System
Barcode Symbology Supported Micro PDF-417
MSI PLESSEY
PDF417
POSTNET
QR Code
TLC 39
UCC/EAN 128
UPC E with 2 and 5 add on
UPC-A
2 and 5 Digits Add-on
Code 128
Code 39
Code 93
Data Matrix
EAN-13
EAN-8
FIM
GS1 DataBar
Interleaved 2 of 5
Maxi Code
AZTEC
Codabar (NW-7)
Maximum Print Width 72 mm (2.83")
Recommended Use Label/Receipt Print
Connectivity Technology Wired & Wireless
Features Shoulder Strap
Water Resistant
Robust
Dust Resistant
Durable
Easy to Use
Belt Clip
Clamshell Design
Print Technology Direct Thermal
Peel Facility Yes
Mobile Device Printing Yes
Print Color Capability Monochrome
Maximum Print Length 813 mm
Character Sets Universal Font Scaling Technology (UFST)
Traditional Chinese
Korean
Agfa Monotype
Ingress Protection (IP) Rating IP54
Maximum Print Resolution (dpi) 203
Brochure for Zebra ZQ620-HC Plus (ZQ62-HAXAA04-00) 3" Mobile Label Printer
