Product Description
A new level of performance, versatility and ease of use

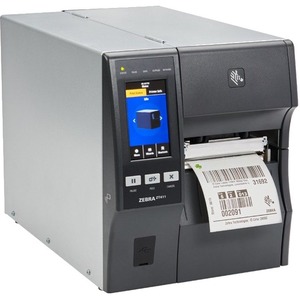

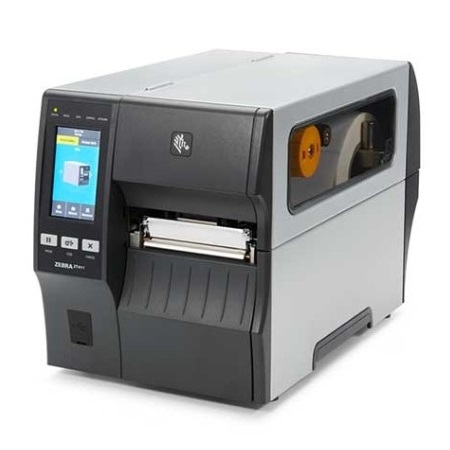

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra's Print DNA suite of applications, utilities and developer tools-all powered by Link-OS®. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs - today and tomorrow.
Versatile to Meet Your Evolving Needs | Configure Your Way With Multiple Connectivity Options
The ZT400 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth® 4.1. Add an optional dual-band wireless card, now available with 802.11ax/Bluetooth 5.3 for blazing fast and reliable wireless connections on your Wi-Fi™ 6/6E network.
Built to Handle a Wide Range of Media and Applications
The ZT400 is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi (600 dpi available on 4 in. ZT411 only). Add RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra's exclusive ZT411 RFID On-metal Tagging Solution, which is a dedicated option for printing and encoding thicker RFID labels for metal containers and assets.
Dual USB Host Ports For Added Flexibility
Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard - with two host ports, there's no need to plug and unplug peripherals.
Designed to Evolve With Your Needs
You can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.
Enhance Productivity Sustainably With ZeroLiner
With Zebra ZeroLiner Linerless Printing Solution you can boost productivity with up to 50% more labels per roll, minimizing downtime from roll changes and eliminating the hassle of peeling backing liners. Embrace sustainability with reduced waste and CO2 emissions, thanks to the elimination of backing liners and reduced material usage. Engineered for minimal adhesive buildup, the linerless ZT411 is specifically designed and tested for use with Zebra ZeroLiner labels and is offered in all dpi options for many applications. The factory-installed linerless option is direct thermal only, further reducing environmental impact by avoiding unnecessary parts. Alternatively, a linerless upgrade kit is now available for existing ZT411 printers. This field-installable kit allows for an easy conversion of your ZT411 fleet, maintaining versatility to switch to thermal transfer printing as your needs evolve.
Print Methods: Thermal transfer and direct thermal printing
Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
Side-loading supplies path for simplified media and ribbon loading
Thin film printhead with E3â„¢ Element Energyâ„¢ Equalizer for superior print quality
Communications: USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.2, Dual USB Host
4.3-in. color touch display with intuitive menu for quick operation and settings management
Bi-colored status LEDs for quick printer status
ENERGY STAR qualified
Zebra Designer Essentials: easy label design tool free at
Tech Specification:-
Memory
Flash Memory 512 MB
Standard Memory 256 MB
Cutter
Cutting Method Automatic
Cutter Yes
Cutter Type Guillotine
Power Description
Power Source AC Supply
Frequency 60 Hz
50 Hz
Display & Graphics
Display Screen Yes
Screen Size 10.9 cm (4.3")
Touchscreen Yes
Display Screen Type LCD
Interfaces/Ports
USB Yes
Serial Port Yes
USB Standard USB 2.0
USB Host Yes
Physical Characteristics
Weight (Approximate) 16.33 kg
Height 324 mm
Width 269 mm
Depth 495 mm
Network & Communication
Bluetooth Yes
Ethernet Yes
Ethernet Technology Fast Ethernet
RFID Yes
Bluetooth Version 4.1
Fonts & Emulation
Language Emulation EPL
EPL2
ZPL II
ZBI 2.0
ZPL
EZPL
Miscellaneous
Package Contents
ZT411 Thermal Transfer Printer
Print Line Coupler Rest of World ROW
Energy Star Yes
Power Cable Localization AUS
EU
JP
UK
General Information
Product Type Thermal Transfer Printer
Manufacturer Part Number ZT41142-T0P00G0Z
Manufacturer Website Address http://www.zebra.com/ap/en.html
Manufacturer Zebra Technologies Corporation
Product Model ZT411
Product Name ZT411 Thermal Transfer Printer
Product Series ZT400
Brand Name Zebra
Media Types & Handling
Media Thickness 250 µm
Maximum Roll Diameter 203 mm
Media Type Linerless
Notch
Label
Die-cut Label
Continuous Label
Black Mark
Media Sensor Transmissive Media Sensor
Reflective Media Sensor
Adjustable Media Sensor
Technical Information
Application/Usage Asset Tracking
Business
Distribution Center
Transportation & Logistic
Retail
Laboratory
Packaging Label
Manufacturing
Healthcare
Industrial
Pharmacy
Barcode Symbology Supported EAN-13
EAN With 2 and 5 Digit Extension
Data Matrix
Code 93
Code 49
Code 39
Codabar
Code 11
Code 128 (A/B/C)
AZTEC
UCC Case Codes
TLC 39
Standard 2 of 5
RSS-14
QR Code
Codablock
UPC-E
UPC-A
UPC 2 or 5 Digit Extension
EAN-8
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
Maxi Code
Micro PDF
MSI
PDF417
Planet Code
Plessey
POSTNET
Maximum Print Width 101.60 mm (4")
Recommended Use Label Print
Connectivity Technology Wired & Wireless
Features Easy to Use
UHF Reader
Versatile
Print Technology Thermal Transfer
Peel Facility Yes
Print Color Capability Monochrome
Maximum Print Length 3.99 m
Maximum Print Resolution (dpi) 203
