Brief Overview
EXPRESSION HOME XP-320
Product Description
PRINTER TYPE
Epson Expression Home XP-320 C11CD87501
PRINTING METHOD On-demand Inkjet (piezoelectric)
NOZZLE CONFIGURATION 180 nozzles Black, 59 nozzles each colour (Cyan, Yellow, Magenta)
MINIMUM INK DROPLET VOLUME 3 Picolitres
RESOLUTION
5760 x 1440 optimised dpi with (with Variable Sized Droplet Technology)
PRINT SPEED
BLACK TEXT (MEMO) A4 (Draft)^ 33ppm*1
COLOUR TEXT (MEMO) A4 (Draft)^ 15ppm*2
Photo 4" x 6" (10 x 15cm) (Default)^ Approx. 38 sec*3+
PAPER HANDLING
PAPER SIZES A4, Letter, Legal, 8x10", 5x7", 4x6", 3.5x5", 5x8", A6, A5, B5, Envelopes: No10, DL, C6
PAPER HOLD CAPACITY Input capacity: 100 sheets, A4 Plain paper (75g/m2)
True BorderFree™ printing is available for the following media sizes: 4"x6", 5"x7" and A4.
Media types recommended: Premium Glossy Photo paper A4, 4"x6" and 5"x7", Matte Paper - Heavyweight.
BorderFree prints are media dependent.
Scanner
SCANNER TYPE Flatbed colour image scanner
SENSOR TYPE CIS
DOCUMENT SIZE Up to A4
PIXEL DEPTH Input 48bit/colour (16bit/B&W) / output 24bit/colour (1bit/B&W)
SCANNING RESOLUTION 1200 x 2400 dpi
MONO SCAN SPEED A4 1200dpi 8.8msec/line
COLOUR SCAN SPEED A4 1200dpi 28.5msec/line
Copy Function
COPY SPEED
Copy Speed Black Text Memo (A4)+
Copy Speed Colour Text Memo (A4)+ Approx. 33 cpm (Draft)
Approx. 15 cpm (Draft)
General
WHAT'S IN THE BOX
Expression Home XP-320 All-in-One printer
Four DURABrite® Ultra ink cartridges - standard capacity (Black, Cyan, Magenta, Yellow)
Setup guide
CD-ROM containing drivers, software and user guide
Power cord
USB cable not included - sold separately
OPERATING SYSTEMS
PRINTER DRIVERS* Windows® XP/XP Professional x64 Edition/Vista/7/8/8.1, Mac® OS X 10.6.8 or later
ELECTRICAL SPECIFICATIONS
RATED VOLTAGE AC 100 ~ 240V
RATED FREQUENCY 50 ~ 60Hz
POWER CONSUMPTION
Approx. 13W (ISO/IEC 24712), 1.6W (Sleep Mode)
NOISE LEVEL
NOISE LEVEL # 4.9dB
36dB
# According to ISO7779 Pattern with Premium Glossy Photo Paper / Photo RPM mode.
INTERFACES
CONNECTIVITY High Speed USB — Compatible with the USB 2.0 Specification
NETWORKING 802.11b/g/n Wi-Fi Direct
MOBILE DEVICE PRINTING Epson Connect: Epson Email Print, Epson iPrint
Apple AirPrint
Google Cloud Print
LCD SCREEN 1.44" / 3.7cm TFT Colour
CARD SLOTS: Built in:
Supported: SD, Memory Stick Duo
SD, SDHC, SDXC, MiniSD, (with adapter), MiniSDHC (with adapter),
MicroSD, (with adapter), MicroSDHC (with adapter), MicroSDXC (with
adapter)
PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY)
SOFTWARE TOOLS Epson Easy Photo Print
WARRANTY
12 months return to base Standard
Optional Additional 2 Year Warranty 2YWXP320
Epson Warranty
PRODUCT DIMENSIONS 390mm (W) x 300mm (D) x 145mm (H)
WEIGHT 4.2kg
LIGHTFASTNESS
LIGHTFASTNESS# 120 years on Epson Matte Paper Heavyweight
LIGHTFASTNESS TEST CRITERIA (INDOOR DISPLAY CONDITIONS)
Light source Fluorescent light
Intensity 70k lux
Temperature 24°C
Humidity 60% RH
Glass Mount 2mm, soda lime
Fade Criteria Pure YMC 30% loss at OD=1
Display Life Calculation Total illuminance/(500 lux x 10 hours x 365 days = 1 year)
INK CARTRIDGES

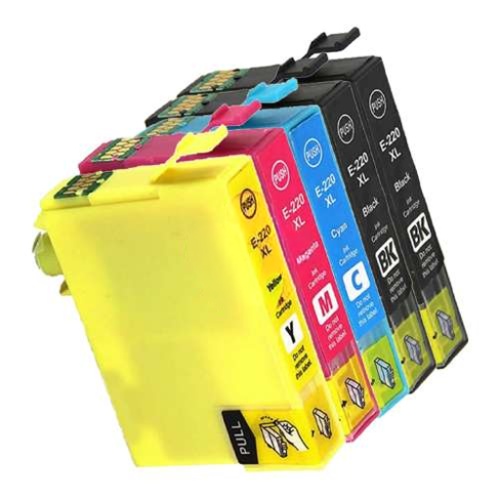

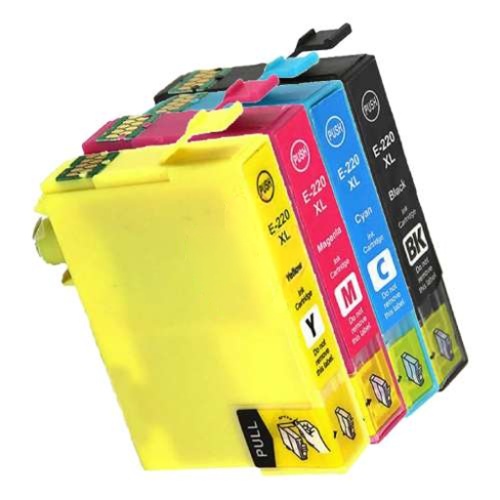

STANDARD INK CARTRIDGES 220 Black, 220 Cyan, 220 Magenta, 220 Yellow
HIGH CAPACITY INK CARTRIDGES 220XL Black, 220XL Cyan, 220XL Magenta, 220XLYellow
STANDARD INK CARTRIDGE YIELDS^^ Approx. Black 175 pages, Colour Composite 165 pages
HIGH CAPACITY INK CARTRIDGE YIELDS^^
What's in the box?
Expression Home XP-320 Small-in-One printer, instruction booklets, CD-ROM with drivers, power cord, four DURABrite Ultra Ink cartridges6 (one Black ink cartridge and three color ink cartridges: Cyan, Magenta, Yellow)
Product Specifications
Up to 33ppm in Black & 15ppm in Colour
Up to Resolution 5760 x 1440 dpi
100 Sheet Input Tray
Flatbed Colour Image Scanner
CIS Sensor Type
USB 2.0 Interface
One Year Return to Base Warranty
Brochure for Epson Expression Home XP-320 A4 Colour MFP Inkjet Printer
