Brief Overview

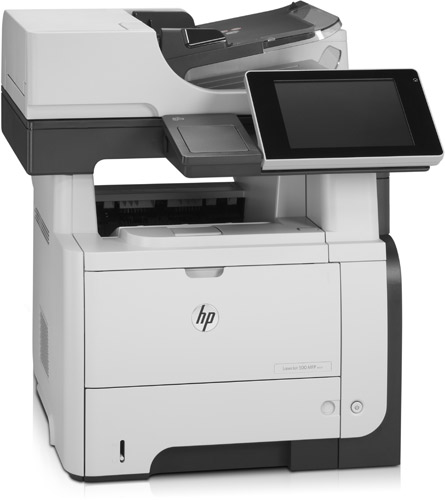

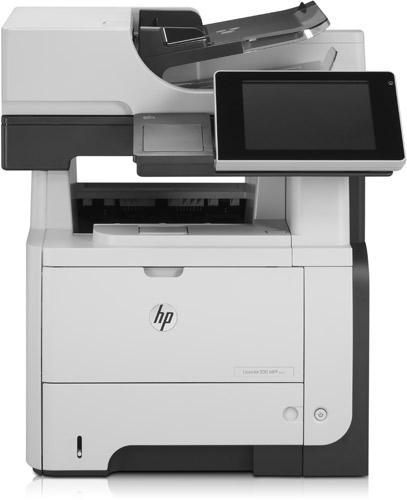

LaserJet Enterprise 500 mono MFP Series M525dn Printer (CF116A)
Product Description
Functions
All-in-one functions
Print, copy, scan, digital send, easy access USB drive, solid state drive (optional fax, advanced digital send, wireless)
Multitasking Supported
Yes
Printing specifications
Print speed, black (normal quality mode)
Up to 42 ppm
Print speed footnote
Measured using ISO/IEC 24734, excludes first set of test documents. For
more information see http://www.hp.com/go/printerclaims. Exact speed
varies depending on the system configuration, software application,
driver, and document complexity.
Page yield footnote
Declared yield value in accordance with ISO/IEC 19752. Actual yields
vary considerably based on images printed and other factors. For more
information, visit http://www.hp.com/go/learnaboutsupplies
First page out (black)
As fast as 8.5 sec
Monthly duty cycle
Up to 75,000 pages
Footnote for duty cycle
Duty cycle is defined as the maximum number of pages per month of imaged
output. This value provides a comparison of product robustness in
relation to other HP LaserJet or HP Color LaserJet devices, and enables
appropriate deployment of printers and MFPs to satisfy the demands of
connected individuals or groups.
Recommended monthly print volume
2000 to 6000 pages
Footnote for recommended monthly print volume
HP recommends that the number of pages per month of imaged output be
within the stated range for optimum device performance, based on factors
including supplies replacement intervals and device life over an
extended warranty period.
Print technology
Laser
Print resolution, black
Up to 1200 x 1200 dpi
Display
8.0" (20.3 cm) touchscreen, SVGA LCD (color graphics)
Paper Handling
Paper handling optional,input
Optional 500-sheet tray (add up to 2 trays)
Paper handling standard,input
100-sheet multipurpose tray, 500-sheet input tray 2, 50-sheet automatic document feeder
Paper handling standard,output
250-sheet output bin, 100-sheet rear output bin
Envelope capacity
Up to 10 envelopes
Envelope feeder
No
Duplex printing (printing on both sides of paper)
Automatic (standard)
Document finishing
Sheetfed
Media sizes, standard
Tray 1: Letter, legal, statement, executive, oficio, 3 x 5 in, 4 x 6 in,
5 x 7 in, 5 x 8 in, envelopes (No. 9, No. 10, Monarch); Tray 2,
optional 500-sheet tray (3, 4): letter, legal, statement, executive,
oficio, 5 x 7, 5 x 8
Media sizes, custom
Tray 1: 3 x 5 to 8.5 x 14 in; tray 2, optional 500-sheet tray (3, 4): 4.1 x 5.8 to 8.5 x 14 in
Media types
Paper (bond, color, letterhead, plain, preprinted, prepunched, recycled,
rough); envelopes, labels, cardstock, transparencies, user-defined
Media weight
Tray 1: 14 to 53 lb (straight-through paper path for special media and
heavier stock); tray 2, optional 500-sheet tray (3, 4): 14 to 32 lb
Media weight
Tray 1: 52 to 199 g/m² (straight through paper path for special media); tray 2, optional 500-sheet tray (3, 4): 52 to 120 g/m²
Weight
64.9 lb
Additional Specifications
Processor speed
800 MHz
Memory, standard
1 GB
Memory, maximum
1 GB
Memory Card Compatibility
None
Print languages, standard
HP PCL 6, HP PCL 5c (HP PCL 5c driver available from the Web only), HP Postscript Level 3 emulation, native PDF printing (v 1.4)
Scanner specifications
Scanner type
Flatbed, ADF
Scan resolution, optical
Up to 600 dpi
Bit depth
24-bit
Scan size, maximum (flatbed)
8.5 x 14 in
Scan size, maximum (ADF)
8.5 x 14 in
Scan speed (normal, letter)
Up to 42 ppm (b&w), up to 32 ppm (color)
Scanner features
Yes, reversing ADF
Automatic paper sensor
No
Digital sending specifications
Digital sending features
Scan to E-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax
Supported file formats
Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access
USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Print from easy access USB:
PDF, PS, Print Ready files (.prn, .pcl, .cht)
Copier specifications
Copy speed black (normal, letter)
Up to 42 cpm
Copy resolution, black
Up to 600 x 600 dpi (flatbed), 300 x 600 dpi (ADF)
Copy reduce/enlarge settings
25 to 400%
Maximum number of copies
Up to 9999 copies
Fax specifications
Faxing
Optional
Connectivity
HP ePrint
Yes
Mobile printing capability
HP ePrint, Apple AirPrint™
(Requires an Internet connection to the printer. Feature works with any
connected Internet- and email-capable device. Requires HP Web Services
Account Registration. Print times may vary. For a list of supported
documents, and image types, see http://www.hp.com/go/eprintcenter. And
for additional solutions, see
http://www.hp.com/go/mobile-printing-solutions. Supports the following
devices running iOS 4.2 or later: iPad®, iPad® 2, iPhone® (3GS or
later), iPod touch® (3rd generation or later). Works with HP’s AirPrint™
enabled printers and requires the printer be connected to the same
network as your iOS device. Wireless performance is dependent upon
physical environment and distance from the access point. AirPrint, the
AirPrint Logo, iPad, iPhone, and iPod touch are trademarks of Apple®
Inc., registered in the U.S. and other countries.)
Connectivity, standard
2 Hi-Speed USB 2.0 Host; 1 Hi-Speed USB 2.0 Device; 1 Gigabit Ethernet
10/100/1000Base-TX network; 1 Foreign Interface; 1 Hardware Integration
Pocket; 2 Internal USB Host
Connectivity, optional
HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A; HP Jetdirect
2700w USB Wireless Print Server J8026A (available in 2012)
Minimum system requirements
PC: Microsoft® Windows® 7, Windows Vista®, Windows® XP (SP2+), Windows
Server® 2003 (SP1+), Windows Server® 2008, Windows Server® 2008 R2; 200
MB available hard disk space; operating system compatible hardware
system requirements, see http://www.microsoft.com
Macintosh: Mac OS X v10.5, 10.6, 10.7; 200 MB available hard disk space;
operating system compatible hardware system requirements, see
http://www.apple.com
Compatible operating systems
Microsoft® Windows® 7, Windows Vista®, Windows XP® (SP2+), Windows®
Server 2003 (SP1+), Windows® Server 2008 (32 and 64-bit), Windows®
Server 2008 R2 (64-bit); Mac OS X v10.5, 10.6, 10.7; For the latest
operating system support see: Citrix and Windows® Terminal Services
(http://www.hp.com/go/upd); Novell (http://www.novell.com/iprint); Linux
(http://www.hplip.net); UNIX (http://www.hp.com/go/unix,
http://www.hp.com/go/unixmodelscripts,
http://www.hp.com/go/jetdirectunix_software); SAP device types
(http://www.hp.com/go/sap/drivers, http://www.hp.com/go/sap/print); HP
ePrint Mobile Driver (http://www.hp.com/go/eprintmobiledriver)
Dimensions and weight
Dimensions (W x D x H)
20.3 x 21.6 x 22.7 in
Dimensions, max. (W x D x H)
20.3 x 28.2 x 22.7 in (ADF jam door closed, multipurpose tray open, extension out, legal extension flipped)
Weight
64.9 lb
Package weight
78.3 lb
Power and operating requirements
Power supply
Input voltage: 100 to 127 VAC (+/- 10%), 50/60Hz (+/- 2 Hz) 8.5A and 220V-240 VAC (+/- 10%), 50/60Hz (+/- 2 Hz) 4.5A
Power consumption
780 watts (printing), 785 watts (copying), 30 watts (ready), 9.6 watts (sleep), 0.9 watts (auto-off), 0.2 watts (off)
Power consumption footnote
Power requirements are based on the country/region where the printer is
sold. Do not convert operating voltages. This will damage the printer
and void the product warranty. Power consumption value in Auto-Off mode
is for Auto-Off/Wake on network and depends on customer network switch
capability, user configuration and network activity and may require a
firmware upgrade. Off-mode power may vary while checking network packets
for print jobs.
Acoustic power emissions
6.7 B(A)
Acoustic pressure emissions bystander (ready)
54 dB(A)
Recommended operating temperature (Fahrenheit)
59 to 90.5ºF
Recommended Operating humidity range
30 to 70% RH
ENERGY STAR® Qualified
Yes
What's included
What's in the box
HP LaserJet Enterprise 500 MFP M525dn (includes built-in automatic
two-sided printing, HP Jetdirect 10/100/1000 Base-TX Ethernet embedded
print server, embedded solid state drive); power cord; HP 55A Black
LaserJet Toner Cartridge, full capacity (~6000 pages); software and
documentation on CD-ROM; Getting Started Guide, support flyer, Warranty
Guide (where applicable)
Cable included?
No, please purchase USB cable separately
Software included
Windows Installer, HP PCL 6 discrete driver, Mac Installer, HP Postscript emulation driver
Warranty
One-year, onsite warranty; one-year technical phone support, chat, and e-mail
What's in the box?
Printer is shipped with toners that do 6,000 prints
Power cord
Disk, (manual + Drivers)
Product Specifications
Up to 42ppm in Mono
Up to Resolution 1200 x 1200 dpi
100 Sheet Multipurpose Tray
Automatic Duplex Printing
75K Monthly Duty Cycle
USB 2.0 & Ethernet 10/100
One Year Limited Warranty
