Product Description
With Quick and simple operability this printer is a winner
Copy/Print (Colour/Monochrome): C4030 40 ppm
Scan (Colour/Monochrome): C4030 105 ppm
Fax: Super G3 FAX
Printing Resolution: 1,200 x 2,400 dpi
Control Panel: Tilted Colour Touchscreen C4030 7 inches
Mobile supported
Cloud Interactive
Security
Basic Specifications / Copy Function
Type Desktop
Memory Capacity 4 GB (Max: 4 GB)
Storage Device Capacity 128 GB
Colour Capability Full-Colour Scan Resolution 600 x 600 dpi
Printing Resolution 1,200 x 2,400 dpi
Warm-up Time 33 seconds or less (23 degrees Celsius room temperature)
Recovery Time (Recovery Time from Sleep Mode) 20 seconds or less (23 degrees Celsius room temperature)
Original Size Maximum of A4, Letter, Legal*3 for both Sheet and Book
Paper Size
Max A4, Letter, Legal
Min A6 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm
Paper Weight
Paper Tray 60 to 220 gsm
Bypass Tray 60 to 220 gsm
First Copy Output Time
B/W: 7.5 sec. (A4 / Monochrome priority mode)
Colour: 8.0 sec. (A4 / Colour priority mode)
Continuous Copy Speed
C4030 B/W: 40 ppm Colour: 40 ppm
Paper Tray Capacity
Standard Standard Tray: 550 sheets Bypass Tray: 150 sheets
Optional 550-Sheet Feeder: 550 sheets
Max 2,350 sheets [Standard + 550-Sheet Feeder x 3]
Output Tray Capacity 250 sheets
Dimensions W 470 x D 500 x H 582 mm W 420 x D 500*8 x H 565 mm
Weight 35 kg
Print Function
Type Built-in type
Paper Size
Max A4, Letter, Legal [215.9 x 520 mm when using Bypass Tray]
Min A6 [64 x 127 mm when using Bypass Tray]
Image loss width Lead edge 4.0 mm, Trail edge 4.0 mm, Right/Left edge 4.0 mm
Continuous Print Speed Same as the Basic Specifications / Copy Function
Printing Resolution
Standard [PCL Driver] Standard: 1,200 x 2,400 dpi, High Quality: 1,200 x 2,400 dpi, High Resolution: 1,200 x 1,200 dpi
Optional [Adobe® PostScript® 3TM Driver] High Speed (Standard): 600 x 600 dpi, High Quality: 1,200 x 2,400 dpi, High Resolution: 1,200 x 1,200 dpi
Page Description Language
Standard PCL5 / PCL6
Optional Adobe® PostScript® 3TM
Supported Operating System
Standard [PCL Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) [Mac OS X Driver] macOS 12 / 11 / 10.15 / 10.14
Optional [Adobe® PostScript® 3TM Driver] Windows 11 (64 bit), Windows 10 (32 bit / 64 bit), Windows Server 2022 (64 bit), Windows Server 2019 (64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit) macOS 12 / 11 / 10.15 / 10.14
Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T, USB3.0
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)
Scan Function
Type Colour Scanner
Scan Resolution 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi
Scan Speed Same as the Scan Speed for the Duplex Automatic Document Feeder
Interface
Standard Ethernet 1000BASE-T / 100BASE-TX / 10BASE-T
Optional Wireless LAN (IEEE 802.11a / b / g / n / ac)

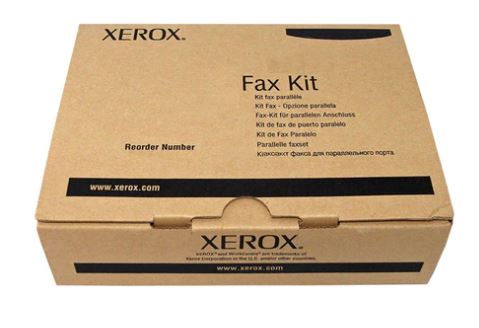

Fax Function (Optional)
Original Size Max: A4, Legal
Recording Paper Size Max: A4, Legal; Min: A5
Transmission Time 2 seconds and more but fewer than 3 seconds
Transmission Mode ITU-T G3
Applicable Lines Telephone subscriber line, PBX, Fax Communication (PSTN), Maximum 1 port (G3-1 port)
Duplex Automatic Document Feeder
Original Size / Paper Weight Max: A4, Letter, Legal; Min: A5 60 to 128 gsm (In Duplex: 60 to 128 gsm)
Capacity
C4030 100 sheets
Scan Speed
Copy (A4, Simplex) C4030 B/W : 40 ppm Colour : 40 ppm
Scan C4030 B/W: 53 ppm, Colour: 53 ppm (1 pass, 2-sided scanning; B/W and Colour: 105 ppm) [Standard Document (A4), 200 dpi, to Folder]
