Brief Overview

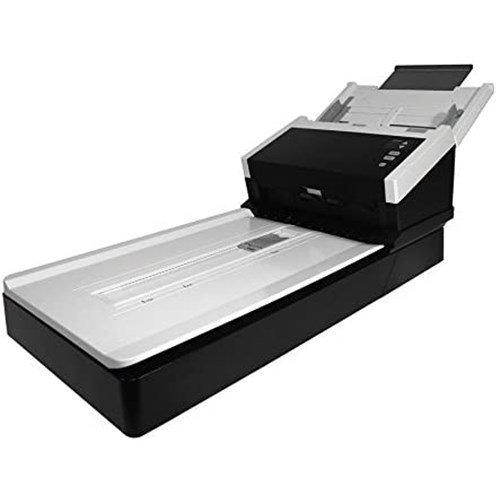

AVISION AD250F DOCUMENT SCANNER (A4, DUPLEX)
Product Description
A New Generation of Document Scanner
Enhanced with innovative features, the Avision AD250F offers high
throughput of 80 ppm and 160 ipm in a compact footprint conserving both
space and budget. Unlike common sheet-fed scanners which provide only
the auto document feeder and can not accommodate irregular sizes and
weights of paper, the AD250F harmoniously combines the benefits of the
fast scan rate of the ADF and the convenience of the flatbed unit to
meet customer’s diverse requirements.
Product Details
Support form document up to 242 x 356 mm (9.5 x 14 in.)
The AD250F boasts a unique and innovative design in comparison with its
predecessors - the ability to accommodate form document up to 242 x 356
mm (9.5 x 14 in.). The extended document width from standard 216 mm (8.5
in.) to 242 mm (9.5 in.) makes the AD250F more competitive to fit for a
wider range of documents.
Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse roller for advanced paper
separation capability, the AD250F delivers outstanding feeding
reliability and operating productivity by effectively reducing the risk
of a multi-feed or paper jam.
Paper Protection Technology
The advanced Paper protection technology protects valuable paper from
being wrinkled or torn by halting the scan process once a skewed page is
detected.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing
technology, mixed batches of documents with varies sizes and weights can
be scanned, appropriately cropped, deskewed, and ready to use. Scan
size accepts paper from receipts 50 x 50 mm (2 x 2 in.) to business
document 242 x 356 mm (9.5 x 14 in.). The auto document feeder is also
robust enough to feed paper up to 400 g/m2 (110 lb.) and embossed hard
cards such as ID cards, credit cards, driver’s license, and health
insurance card up to 1.4 mm in thickness.
Automatic multiple images cropping
In addition, the scanner comes with the convenient feature of multiple
images cropping. With this feature, various sizes of documents such as
photos, ID Cards, or business cards can be placed on the flatbed and the
scanner is able to crop and create multiple images according to the
original sizes of the documents in one single scan.
Earth-Friendly LED Technology
The AD250F delivers high throughput and outstanding performance.
However, it is earth-friendly at the same time. The LED technology
requires no warm up time and is lower power consumption without
generating mercury vapor as other traditional scanners using the CCFL
(cold cathode fluorescent lamp) technology.
High-Volume Daily Duty Cycle
The scanner can be used to scan up to 11,000 pages per day through the
100-page automatic document feeder. The data indicates that this scanner
is designed to scan document in any application requiring frequent
document and hard card scanning.
Powerful bundled software applications
The AD250F come with TWAIN and ISIS drivers, and are bundled with a
suite of powerful software applications that include Avision Button
Manager , AVScan, and PaperPort. With Button Manager , you can scan to
searchable PDF, JPEG, BMP, or GIF file format, save to folder on your
computer, and scan to e-mail, image editing application, or even a cloud
application such as Google Drive, or Microsoft SharePoint with a press
of a button. The AVScan and PaperPort are highly effective image
processing and document management software that helps you streamline
your task more efficiently.
Features
Scans double-sided color documents up to legal size
Fast scan rate up to 80 pages per minute and 160 images per minute at 200 dpi in color, gray, or B&W mode
Friction roller technology delivers outstanding feeding reliability
Ultrasonic multi-feed detection
Earth-friendly LED technology
Compact auto document feeder holds documents up to 100 pages
Easy-to-use button scanning
Supports 118” ( 300 cm ) long page scanning
Auto power off setting
General Specification
Technology Color Charged-Coupled Device ( CCD )
Light Source LED ( LIGHT BAR )
Document feeding mode Flatbed and ADF
Optical Resolution (dpi) 600
Output Resolution (dpi) 1200
File Formats BMP, PNG, GIF, JPEG, Single-Page PDF, Multi-Page PDF,
Multi-TIFF, TIFF, RTF, TXT, OCR ( for iScan only ), XPS,
DOC, XLS, PPT, DOCS, XLSX, PPTX, HTML
Halftone Patterns Dither and Error Diffusion
Grayscale mode 16-bit input 8-bit output
Color mode 48-bit input 24-bit output
Dimensions (WxDxH) 809.4 x 323.2 x 330 mm ( 31.87 x 12.72 x 12.99 in. )
Weight 9.1 kg
Interface USB 2.0 ( USB 3.0 compatible )
Power Consumption Operation < 43 W
Ready < 13 W
Sleep < 1.7 W
Off < 0.24 W
Acoustical Noise Operation < 50 dB
Standby < 45 dB
Recommended Daily Volume Up to 11,000 pages
OS Support Win XP / Vista / Win 7 / Win 8 / Win 8.1 / Win 10
Bundled Software ISIS driver, TWAIN driver, Button Manager , AVScan , PaperPort
Features
Ultrasonic paper jam detection Yes
Long Paper Mode Up to 200 dpi Color Duplex ( 118 in. )
up to 300 dpi Color simplex( 118 in. )
ADF paper width Up to 242 mm ( 9.5” )
Card Scan Embossed card ( Thickness 1.25 mm )
Scan Size
ADF Minimum 50 x 50 mm ( 2 x 2 in. )
ADF Maximum 216 x 356 mm ( Legal ) ( 8.5 x 14 in. )
ADF Capacity 100 sheets ( 80 g/m² or 20 lb. )
Paper Weight (Thickness ) 27 ~ 413 g/m² ( 7 to 110 lb. )
ID card thickness Embossed card ( Thickness 1.40 mm )
Scanning Speed
B/W @ 200dpi, A4 ADF : Simplex : 80 ppm / Duplex : 160 ipm
Flatbed : 5 sec / 7 sec ( Include Backhome )
B/W @ 300dpi, A4 ADF:Simplex : 50 ppm / Duplex : 100 ipm
Flatbed : 5 sec / 7 sec ( Include Backhome )
Color @ 200dpi, A4 ADF : Simplex : 80 ppm / Duplex : 160 ipm
Flatbed : 5 sec / 7 sec ( Include Backhome )
Color @ 300dpi, A4 ADF : Simplex : 50 ppm / Duplex : 100 ipm
Flatbed : 5 sec / 7 sec ( Include Backhome )
What's in the box?
AD250F Scanner
Power Supply
Quick Guide
USB 2.0 Cable
CD-ROM includes:
-Scanner Driver
(TWAIN/ISIS/WIA Driver)
-Avision Manager V2
-Avision AvScan X
-Nuance PaperPort SE14
Product Specifications
Up to Scan Speed 80ppm/160ipm
UP to Optical Resolution 600dpi
100 Sheets ADF Capacity
Ultrasonic Multi-feed Detection
11K Pages Daily Scan Volume
USB 2.0 Interface
One Year Return to Base Warranty
Brochure for Avision AD250F A4 Document Scanner
