Avision AD280 A4 Document Scanner

Brief Overview

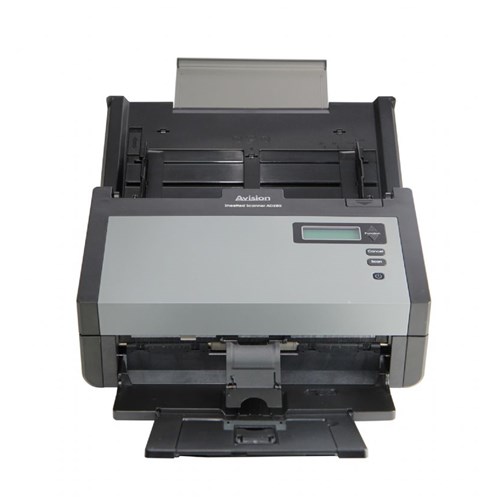

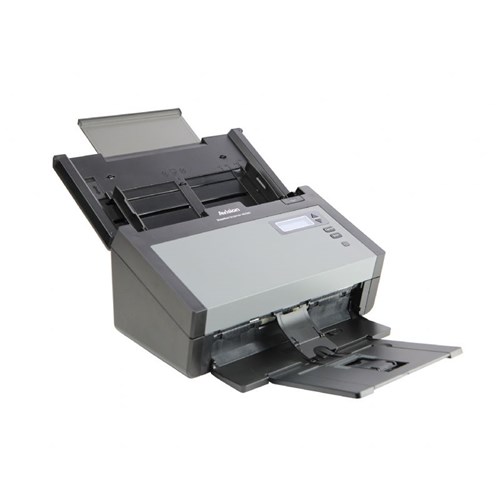

AVISION AD280 DOCUMENT SCANNER (A4, DUPLEX)

Product Description

AD280 A Fast, Reliable, and Easy-to-use Scanner, Fast and reliable duplex scanner with a large LCD screen

Built-in with the cutting-edge image processing engine and USB 3.1 Gen 1 connectivity, the Avision AD280 breaks new ground in scanning performance by offering a blazing duplex scanning speed of up to 160 images per minute in Color, Grayscale, and Monochrome. Combining paper protection and reverse roller technologies, the AD280 balances high performance with exceptional feeding reliability across a wide variety of scanning situations.

Product Details

Support document width up to 242 mm ( 9.5” )
The AD280 also boasts a unique and innovative design in comparison with its predecessors - the ability to accommodate document width up to 242 mm ( 9.5” ). The extended document width from standard 216 mm ( 8.5” ) to 242 mm ( 9.5” ) makes the AD280 more competitive to fit for a wider range of documents.

A Duplex Scanner Suited for Document and Cards
Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts 50 x 50 mm ( 2” x 2” ) to business document 242 x 356 mm ( 9.5” x 14” ). The auto document feeder is also robust enough to feed paper up to 400 g/m2 ( 110 lb. ) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25 mm in thickness.

Paper Protection Technology
The advanced Paper protection technology protects valuable paper from being wrinkled or torn by halting the scan process once a skewed page is detected.

Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse roller for advanced paper separation capability, the AD280 delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

Compact Design to Save Your Space
The AD280 features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD280 can be easily carried and fit on a desk without taking up a lot of space.

A Large LCD Display
The AD280 is easy to use through the enhanced LCD display which allows 128 x 32 dots ( 16*4 characters ). By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

Powerful Bundled Software Applications
The AD280 come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AvScan and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or other destinations with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

Features

Fast, 80 ppm / 160 ipm scanning in color, grayscale and monochrome (300 dpi, color)
Max. document width up to 242 mm ( 9.5” )
Robust 100-page automatic document feeder
Daily duty cycle of up to 11,000 sheets
Auto crop and deskew a document with the advanced image processing unit to enhance the scanning speed
Latest USB 3.1 Gen 1 connectivity for faster transmission speed
Reverse roller technology delivers outstanding feeding reliability
Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
Press and scan to cloud servers via the bundled software Button Manager V2
Earth-friendly LED technology
Long page scanning up to 6000 mm ( 236” )
Auto power off setting

What's in the box?

AD280 Scanner
Power Supply
Quick Guide
USB 3.1 Gen 1
CD-ROM includes:
-Scanner Driver
(TWAIN/ISIS Driver)
-Avision Button Manager V2
-Avision AvScan X
-Nuance PaperPort SE14

Product Specifications
