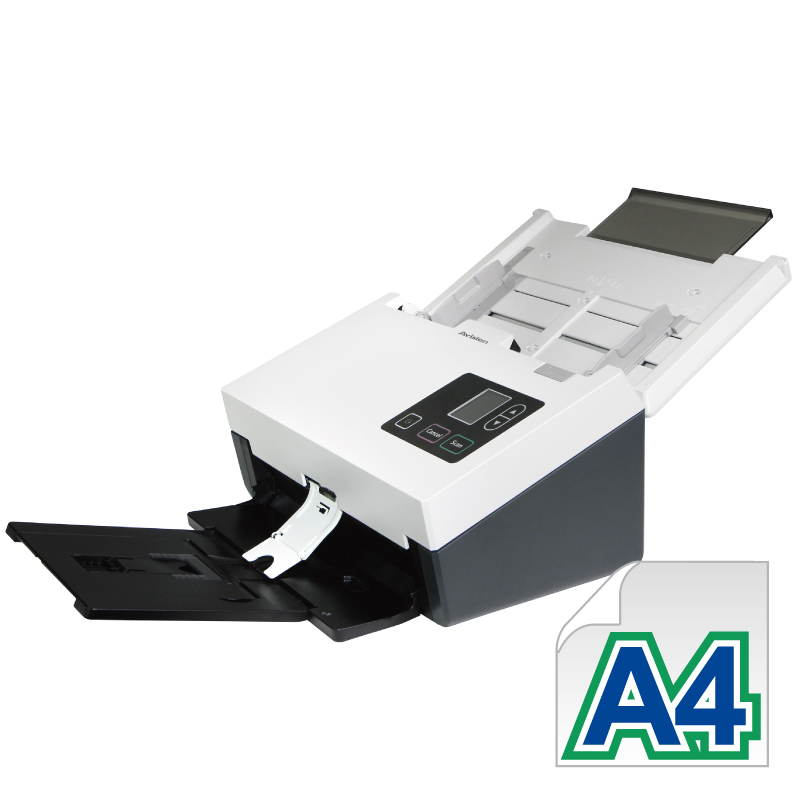

Avision AD345WN A4 Document Scanner

Brief Overview

AVISION AD345WN DOCUMENT SCANNER (A4, DUPLEX)

Product Description

Convenient mobile scanning

Built-in with a Wi-Fi dongle, the AD345WN can work as a wireless device to scan and receive images directly from your mobile devices through Avision’s MB App.

A network document scanner

AD345N and AD345WN* with the network port at the back side, Two product allows you to use it as a network scanner.  This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer.

Color, and Graphical LCD Display

The AD345 series are easy to use through the LCD display and buttons on the panel. By selecting your destination and pressing the “Scan” button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.

A Duplex Scanner Suited for Document and Cards

Thanks to the advanced straight paper path and image processing technology, mixed batches of documents with varies sizes and weights can be scanned, appropriately cropped, deskewed, and ready to use. Scan size accepts paper from receipts (2” x 2”) to business document (8.5 x 14 in.). The auto document feeder is also robust enough to feed paper up to 413 g/m2 (110 lbs) and embossed hard cards such as ID cards, credit cards, driver’s license, and health insurance card up to 1.25mm in thickness.

Reverse Roller Enhances Feeding Reliability

Designed with the innovative reverse roller for advanced paper separation capability, the AD345 series delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.

Ultrasonic Multi-Feed Detection

With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.

Compact Design to Save Your Space

The AD345 series features a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD345 series can be easily carried and fit on a desk without taking up a lot of space.

Powerful Bundled Software Applications

The AD345 series come with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort . With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google DriveTM, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.

Features

-Fast, 60ppm/120ipm scanning in color, grayscale and monochrome (200 dpi, color)
-Fast, 45ppm/90ipm scanning in color, grayscale and monochrome (300 dpi, color)
-Auto crop and deskew a document with the advanced Avision-developed image processing unit to enhance the scanning speed
-Support form paper up to 8.5 x 14 in.
-Daily duty cycle up to 10,000 sheets
-Robust 100-page automatic document feeder (80 g/m2, 20 lb)
-Reverse roller technology delivers outstanding feeding reliability
-Hard and embossed card scanning up to 1.25 mm in thickness in portrait or landscape feeding
-Press and scan to cloud servers via the bundled software Button Manager V2
-Earth-friendly LED technology
-Long page scanning:  3000 mm (118”) (300 dpi)/6000 mm (236”) (200 dpi)
-Hardware JPEG Compression, Compression TIFF (JPEG(7), CCITT G4, LZW), Compression PDF
-Auto power off setting

What's in the box?

AD345WN Scanner
Power Supply
Quick Guide
USB 3.1 Gen 1 Cable
CD-ROM includes:
-Scanner Driver
(TWAIN/ISIS Driver)
-Avision Button Manager V2
-Avision AvScan X
-Nuance PaperPort SE14
Virtual Scanner Link
