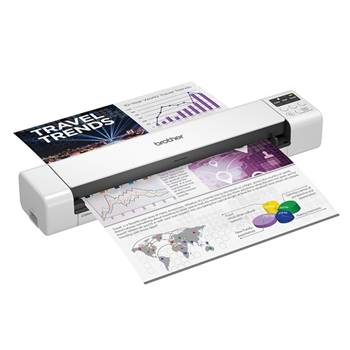

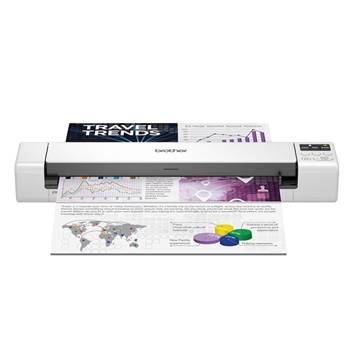

Brother DS-940DW, A4 Portable Document Scanner

Brief Overview

Brother DS-940DW Wireless Mobile Document Scanner, 15ppm Mono & Colour (300dpi) , USB. The DS-940DW is engineered to be truly flexible. Featuring a built-in Li-ion battery, Wi-Fi and an intuitive LCD panel, setup is effortless.

Product Description

The DS-940DW is engineered to be truly flexible. Featuring a built-in Li-ion battery,Wi-Fi and an intuitive LCD panel, setup is effortless. Digitising your files whether in the office or out on the road
is simple with smart phone scanning via Brother’s free iPrint&Scan app and tan expanding storage via a mirco SD card.

General
Technology Dual CIS (contact Image Sensor)
Product Form Factor Mobile single sheet fed scanner with U-path paper control system
Local Interface Super Speed micro USB 3.0 Type B, Micro USB 2.0, Type B
Light Source LED Array
Back Up Clock Yes (via Battery)
Networking WLAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g (Wi-Fi Direct)
Control Panel LED display, LED, Keys
Scan
Scan Speed Standard (A4)
Colour and Mono (2 Sided)
Up to 15ppm (pages per minute5)
Optical Scan Resolution Up to 600 x 600dpi (dots per inch)
Interpolated Scan Resolution2 Up to 1,200 x 1,200dpi (dots per inch)
Colour Depth 48 bit colour Processing (Input), 24 bit colour Processing (Output)
Grey Scale 256 levels (8 bit)
Scanner Driver
Windows® 4 TWAIN, WIA, Windows 7, 8.1, 10 (32 & 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012
Macintosh ICA, macOS 10.12.x, 10.13.x, 10.14.x
Linux SANE
Software for Windows®
iPrint&Scan for Windows PC iPrint&Scan - Easy to use scan software from Brother offering document workflow managment
Nuance® PaperPort SE 14 Document management and sharing program
Kofax Power PDF Standard v3 PDF Editor built to maximise productivity
Remote Setup Allows the user to set-up the scanner from their PC
NewSoft® Presto!® BizCard 6
A complete contact management solution that lets you scan, edit and synchronise business card contacts to various contact
management software applications
Software for mac OS
iPrint&Scan for macOS iPrint&Scan - Easy to use scan software from Brother offering document workflow management
Remote Setup Allows the user to setup the scanner from their PC
NewSoft® Presto!® BizCard 7 A complete contact management solution that lets you scan, edit and synchronise business contacts to various contact management software applications
Paper Handling
Media Size Single Width 50.8 - 215.9mm, Length 86.4 – 1828.8mm U-path paper control system: Width 74 - 215.9mm, Length 105 – 297mm
Media Weight 35gsm - 270gsm (single paper), 52 - 80 gsm (U-path paper control system)
Receipts Width 74 - 79.38mm, Length 105 – 355.6mm
Card Size Plastic Card (Landscape): Width - 85.60mm, Length - 53.98mm
Media Thickness Plastic Card up to 1.00mm, Embossed face up to 1.24mm
Mobile and Web Connectivity
iPrint&Scan Scan directly to a mobile device running Android or iOS operating Systems
Scan to Workflow2 Configure using Brother iPS and then scan direct to Dropbox, Google Drive, icloud, OneDrive (desktop iPS only. The iOS version does not support
workflows)
Fleet Management Tools
Embedded Web Server Web based scanner management software embedded onto the machine
BRAdmin Light2 WAN management software
Security and Network
Network Protocols TCP/IP (IPv4) TCP/IP (IPv6)
IPv4
DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c, ICMP, Web Services(Scan), HTTP/HTTPS server,
LLMNR responder, SNTP Client
Wireless Network Security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), SSL/TLS (HTTPS)
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Wireless Setup Support Wi-Fi Protected Setup™ (WPS)
Supplies and Accessories
Carton Contents DS-940DW device, Quick setup guide / Product safety guide, USB cable, Warranty
Optional Product Carrier Sheet 500 times (Pack of 2), Product code - CS-A3401

What's in the box?

DS-940DW device, Quick setup guide / Product safety guide, USB cable, Warranty
