Product Description

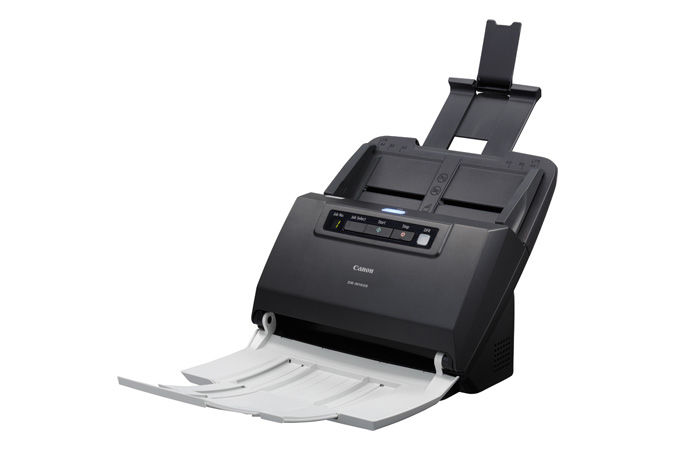

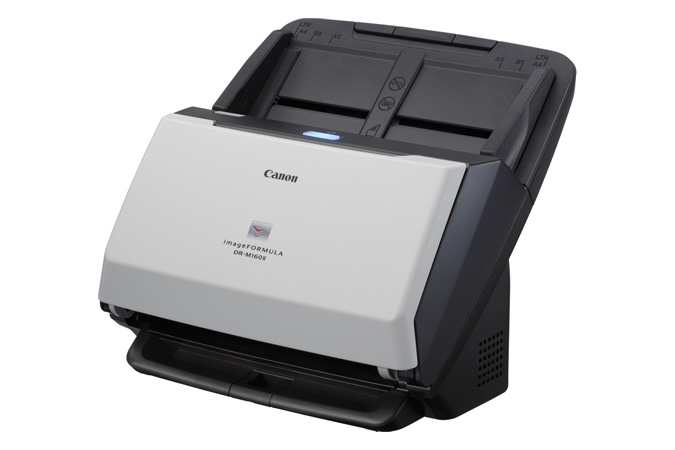

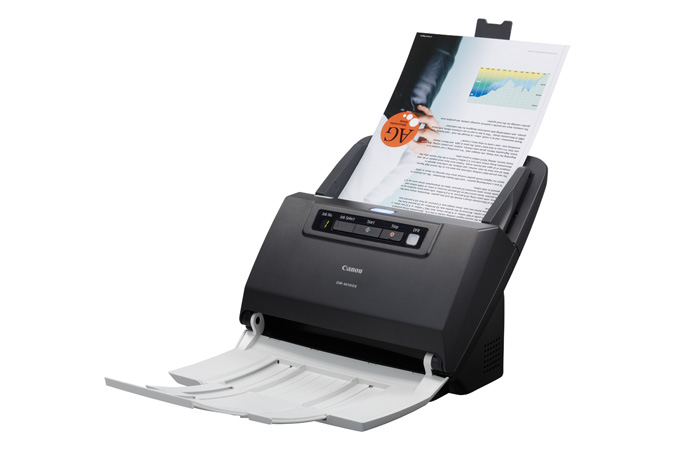

The imageFORMULA DR-M160II is a productivity-boosting desktop scanner. With a robust design, fast speed and reliable media handling, it is ideal for paper-intensive scanning.
Model Name : imageFORMULA DR-M160II
Type : Office Document Scanner
Document Feeding : Automatic or Manual
Document Size
Width: 2.0 - 8.5
Length: 2.1 - 14.0
Long Document Mode : Up to 118.1
Document Weight : 7 - 68 lb. Bond
Feeder Capacity : Up to 75 Sheets
Grayscale : 8-bit
Color : 24-bit
Light Source : RGB LED
Scanning Element : One-Line Contact Image Sensor (CMOS)
Scanning Modes : Color, Grayscale, Black and White
Optical Resolution : 600 dpi
Output Resolution : 150/200/240/300/400/600 dpi
Scanning Speeds : (Simplex/Duplex):* Black and White/Grayscale/Color: Up to 60 ppm/Up to 120 ipm
Interface : Hi-Speed USB 2.0
Dimensions (H x W x D) : 9.09 x 11.02 x 9.76 (with trays closed)
Weight : 7.05 lb.
Power Consumption : 27 W max. (Energy Saving Mode: 1.8 W)
Suggested Daily Volume : Approx. 7,000 Scans**
Bundled Software : Windows: ISIS/TWAIN Drivers; Canon CaptureOnTouch; CapturePerfect; Nuance eCopyPDF Pro Office; Kofax VRS Elite
MAC: TWAIN Driver, Canon CaptureOnTouch
Supported Operating Systems : Windows 8.1 (32bit/64bit), Windows 10 (32bit/64bit), Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Mac OS 10.13, Mac OS 10.14, Mac OS 10.15
Options
2D Code Module, Barcode Module, Exchange Roller Kit, Flatbed Scanner Unit 101, Flatbed Scanner Unit 201, eCarePAK Exchange Service
Other Features
Auto Color Detection, Auto Page Size Detection, Auto Resolution Setting, Background Smoothing, Character Emphasis, Color Dropout/Enhance Color, Deskew, Double-Feed Release, Feeding Retry, Folio Mode, Image Rotation, Long Document Mode, MultiStream, Pre-Scan, Prevent Bleed-Through/ Remove Background, Separation Retry, Shadow Cropping, Skip Blank Page, Text Enhancement, Text Orientation Recognition, Ultrasonic Double-Feed Detection, User Preferences
Product Specifications
Up to Scan Speed 60ppm
Up to Optical Res 600 dpi
75 Sheets Feeder Capacity
RGB LED Light Source
7K Pages Daily Duty Cycle
USB 2.0 Interface
Windows & Mac Compatible
