Brief Overview
Canon Provides Fast and Reliable Scanning for the Workgroup

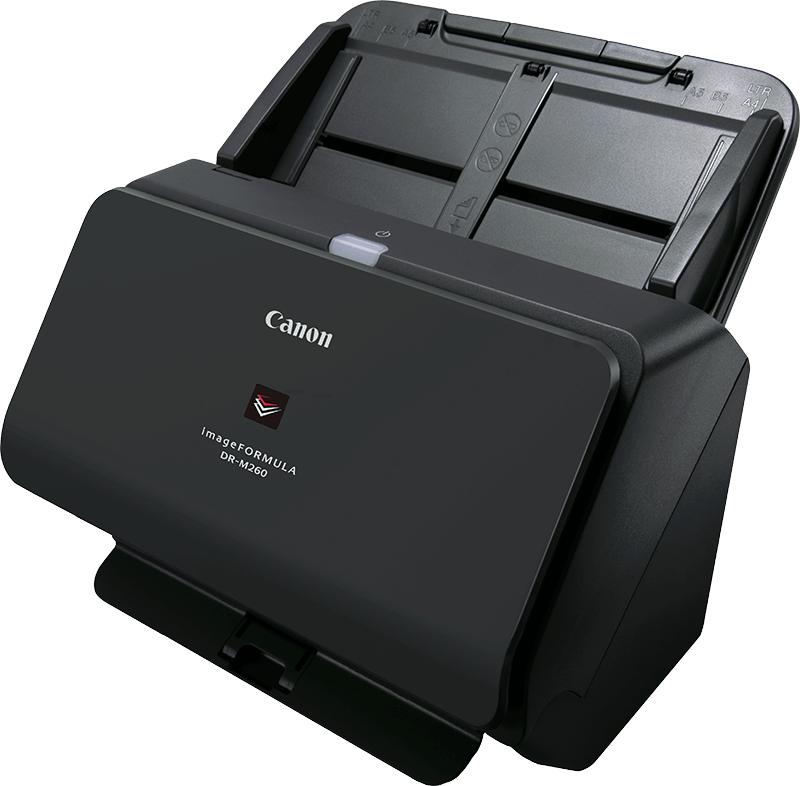

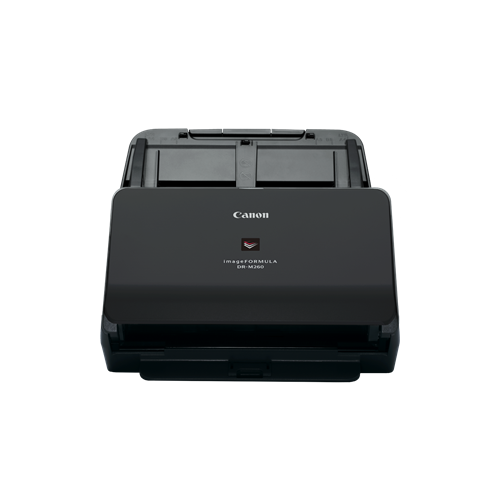

The Canon imageFORMULA DR-M260 combines fast and reliable document scanning with an easy user experience and impressive built-in image enhancement features to help workgroups convert their paper-based processes to digital form. “The Canon imageFORMULA DR-M260 offers some impressive media handling capabilities to keep workers moving. Sensors in the paper path and ejection sites reduce downtime and rescans and ensure that documents aren’t damaged,” noted Ellerman. “The device also leverages a DR processor to handle image processing on the device,
Product Description
Lightning speed in a single pass
It’s time to pump up office productivity. Your DR M260 scans up to 120 A4 sides in 200dpi per minute, and in a single-pass operation – whether you’re scanning in colour, grey, or black and white. And, with a heavy-duty auto document feeder on board that can hold up to 80 sheets of paper, it’s always equipped and ready for the next job.
Whatever you want, whenever
Plastic, card or paper, your DR M260 handles every scan with ease. A4 and passport carrier sheets make thick and delicate originals a breeze.
General product information
Type Desktop Type Sheet Fed Scanner
Scanning sensor unit CMOS CIS 1 Line Sensor
Optical resolution 600dpi
Light source RGB LED
Scanning side Front / Back / Duplex
Interface USB3.1 Gen1
Dimensions (W x D x H)
Trays Closed : 285 x 180 x 178 mm
Trays Opened : 285 x 254 x 231 mm
Weight Approx.3.6kg
Power requirements AC 100-240V (50/60Hz)
Power Consumption
Scanning: 23W or less
Sleep mode: 1.4W or less
Power turned off: 0.1W or less
Scanning specifications
Black and White 60ppm / 120ipm
Colour 60ppm / 120ipm
Output resolution 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Output mode
Black & White/Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour
Suggested Daily Duty Cycle Approx. 7500 scans
Document specifications
Width 50 - 216mm
Length 54 - 356mm
Thickness 27 - 413g/m² (0.04 - 0.49mm)
Long document mode 5588mm Max
Business card scanning
Size: 50mm x 91mm
Thickness: Less than 0.45mm
Postcard scanning
Size: 89mm x 152mm
Thickness: Less than 0.45mm
Plastic card scanning
Size: 54 x 86mm
Thickness: Less than 1.4mm
Passport scanning Up to 6mm thick (via carrier sheet)
Paper separation Retard Roller Method
Feeder capacity 80-sheets (80g/m²)
Special Features
New DR Processor giving High Speed/quality image processing, Five line LCD Operation panel, Automatic Page Size Detection, Full Auto Mode, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Character Emphasis, Text Orientation Recognition, Auto Colour Detection, Shadow Cropping, Adjustable gamma settings, Skip Blank Page, Folio Mode, MultiStream™ support, Batch Separation with blank page or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, B&W Contrast, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Ultrasonic Double Feed Detection, Double Feed Release, Separation Retry.
Bundled Software
Windows
ISIS /TWAIN Driver (Microsoft Windows 7/8.1/10/ Server 2008 R2 SP1/Server 2012 R2/ Server 2016)
CaptureOnTouch Pro
CapturePerfect
Kofax VRS
eCopy PDF Pro Office
Consumables
Exchange Roller Kit, Carrier sheet (Passport), Carrier Sheet (A4)
Accessories
A4 Flatbed Scanner Unit 102
A3 Flatbed Scanner Unit 201
Barcode Module
2D code Module
What's in the box?
Scanner
Setup disc
Kofax VRS disc
Documentation
USB cable
AC adapter
Power cable
Product Specifications
60ppm Simplex & 120ipm Duplex
Up to Resolution 600 x 600 dpi
RGB LED Light Source
80 Sheets ADF Capacity
7,500 Scans Daily Duty Cycle
USB 3.1 Gen 1 Interface
CMOS CIS 1 Line Sensor
Brochure for Canon imageFORMULA DR-M260 A4 Document Scanner
