Brief Overview
DR6010C 60PPM A4 COLOUR DUPLEX HIGH SPEED DOCUMENT SCANNER
Product Description

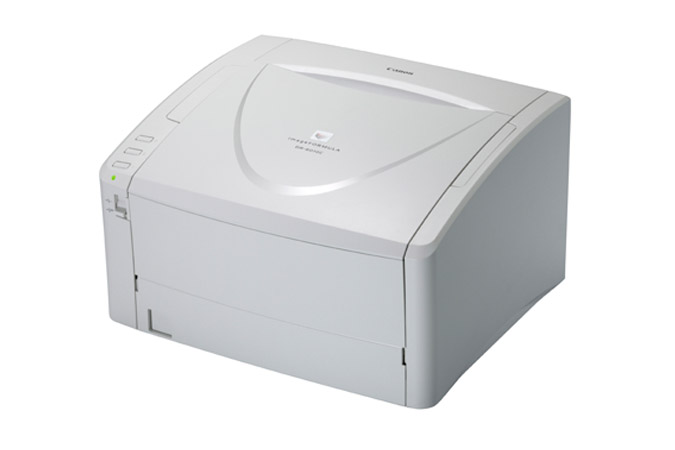

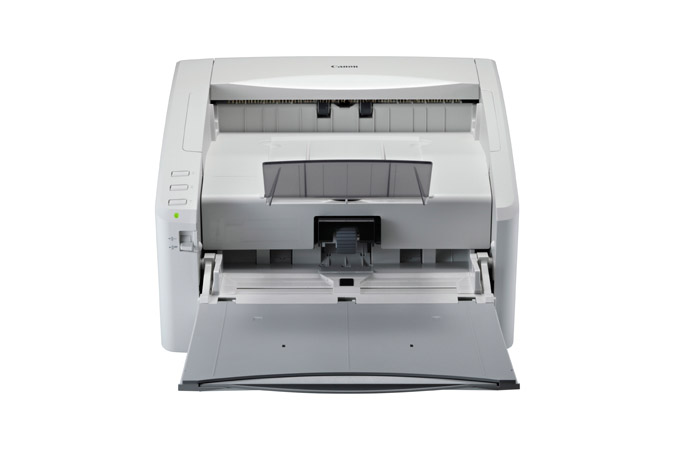

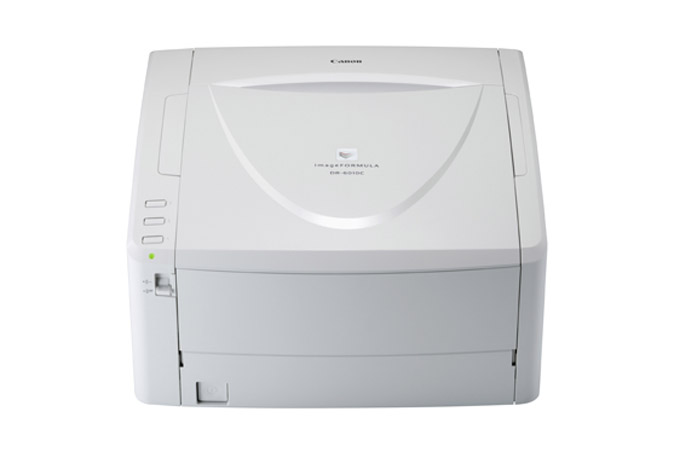

Canon DR-6010C Desktop Scanner
The innovative design and cutting-edge technology expertly accommodate a wide variety of document sizes and types, converting with ease stacks of papers to digital format with exceptional speed and accuracy.
Specifications :
Type : Desktop sheet-fed scanner
Document Feeding : Automatic or manual sheet feeding
Document size : Width: 53 - 219 mm (2.08 - 8.6 in.)
Length: 70 - 356 mm (2.76 - 14 in.); Long Document Mode: up to 1,000 mm (39.3 in.)
Document thickness and weight :
U-Turn Path : Automatic feeding: 0.06 - 0.15 mm, 52 - 128 g/m2 (14 - 32 lb bond)
Manual Feeding : 0.05 - 0.2 mm, 42 - 157 g/m2 (11 - 40 lb bond)
Straight Path :
Automatic feeding: 0.06 - 0.15 mm, 52 - 128 g/m2 (14 - 32 lb bond)
Manual Feeding: 0.05 - 0.66 mm, 42 - 546 g/m2 (11 - 144 lb bond)
Business card size and thickness :
Size: 53.9 x 85.5 mm (2.12 x 3.37 in.)
Thickness: 0.76 ± 0.08 mm (0.03 ± 0.003 in.)
Feeding capacity : 10 mm stack or 100 sheets of 80 g/m2 (20 lb bond)
Scanning element : 3-line CMOS CIS
Light source : LED (red, green, and blue)
Scanning side : Simplex/Duplex
Scanning modes : Black and White, Error Diffusion, High-Speed Text Enhancement, Advanced Text Enhancement,Advanced Text Enhancement II, 256-level Grayscale, 24-bit Colour, Auto Colour Detection
Scanning resolutions : 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 240 x 240 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
Scanning speed (A4/LTR, Portrait) :
B&W : 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi : 60 ppm (Simplex), 120 ipm (Duplex)
Grayscale : 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
Colour : 200 dpi: 60 ppm (Simplex), 120 ipm (Duplex)
300 dpi: 60 ppm (Simplex), 84 ipm (Duplex)
Interface : SCSI-III / Hi-Speed USB 2.0
Scanner driver : ISIS/TWAIN
Useful functions : Job Function, Folio, Ultrasonic Double-Feed Detection, Rapid Recovery System, Moire Reduction, Prevent Bleed Through / Remove Background, Punch Hole Removal, Color Dropout, Auto Page Size Detection, Text Orientation Recognition, Skip Blank Page, Deskew, MultiStream, Prescan, User Preferences
Dimensions (W x D x H) : Feed trays closed: 318 x 278 x 185.5 mm (12.5 x 10.9 x 7.3 in.)
Weight : Approx. 6.5 kg
What's in the box?
Scanner Main Unit
Power Cord
USB Cable
Setup DVD Rom
Adobe Acrobat 9.0 DVD
Document Eject Guide
Reference Guide
Cleaning Cloth
Registration Card
Warranty Card
Product Specifications
60ppm Simplex / 120ipm Duplex
Scanning Res 600 x 600 dpi
100 Sheet Feeding Capacity
3 Colour LED Light Source
Auto Colour Detection
USB 2.0 Hi-Speed
Ultrasonic Double-Feed Detection
Brochure for Canon DR6010C A4 Document Scanner
